Belden 5302FE 4 Conductor 18 AWG Stranded Security and Commercial Audio Cable - Gray - 500 Foot

ITEM #: BL-5302FE-500 MFG #: 5302FE 008U500

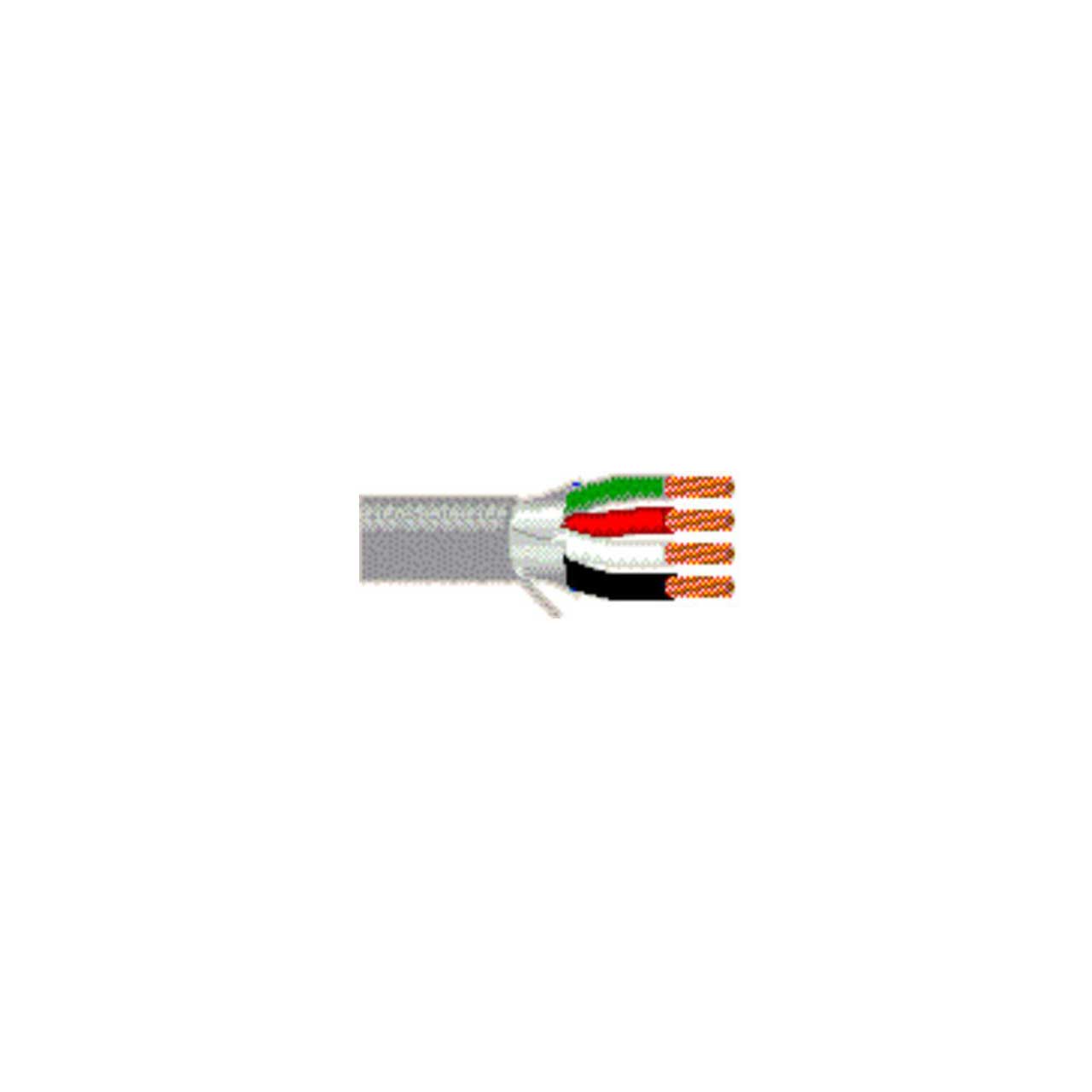

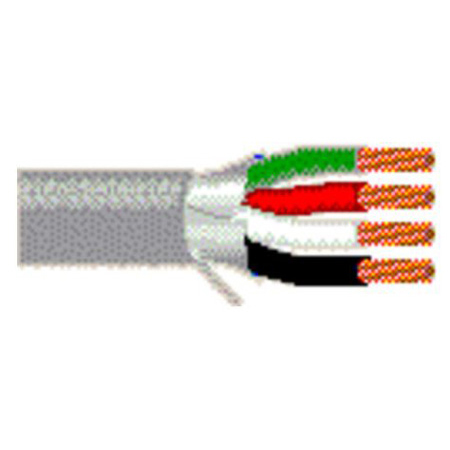

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$226.75

Our Price:

$196.47

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5302FE 008U500 - Overview

Belden's 5302FE is security and sound cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil shield and PVC jacket with ripcord.

  • Specifications:

    • CEC/C(UL) Specification: CMG
    • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    • EU CE Mark: Yes
    • EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
    • CPR Euroclass: Eca
    • CA Prop 65 (CJ for Wire & Cable): Yes
    • NEC Articles: 800
    • NEC/(UL) Specification: CMR
    • CSA Flammability: FT4
    • UL Flammability: UL1666 Riser
    • Suitability - Indoor: Yes
    • Operating Temp Range: -20°C To +75°C
    • Bulk Cable Weight: 30 (lbs/1000ft)
    • Max Recommended Pulling Tension: 103.6 (lbs)
    • Min Bend Radius/Minor Axis: 1.8(in)
    • UL Temp Rating: 75°C


  • GTIN:

    0612825159544
