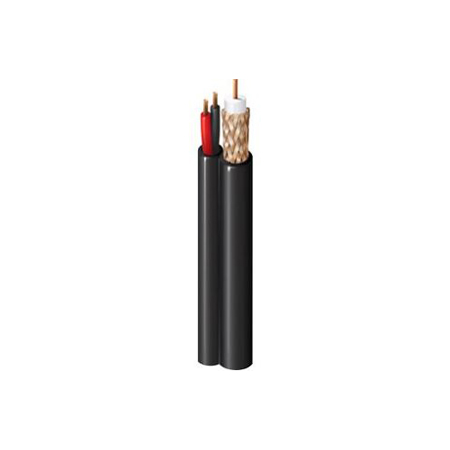

The Belden 549945 is a PTZ (CCTV + Power/Audio) Cable, Rated-CMG, with 1-RG59 20 AWG solid bare copper with foam polyethylene, 95% bare copper braid alongside one 1-18 AWG stranded bare copper pair with polypropylene insulation unshielded in a PVC Jacket. This is a Siamese cable, a cable built to include both video and power.
To ensure maximum safety and security, be sure to use Belden's New Generation CCTV and Security Cables. Beldens security cable product line represents one of the largest, most economical selections of multi-conductor and coaxial products on the market today.
Applications
Surveillance
CCTV Camera
PTZ (Pan-Tilt-Zoom)
