Belden FSNS59BNCSL ProSNS - 25 Pack Snap-N-Seal RG59 Security/CCTV BNC Connector

ITEM #: BL-FSNS59BNCSL25 MFG #: FSNS59BNCSL-25

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$135.41

Our Price:

$124.33

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FSNS59BNCSL-25 - Overview

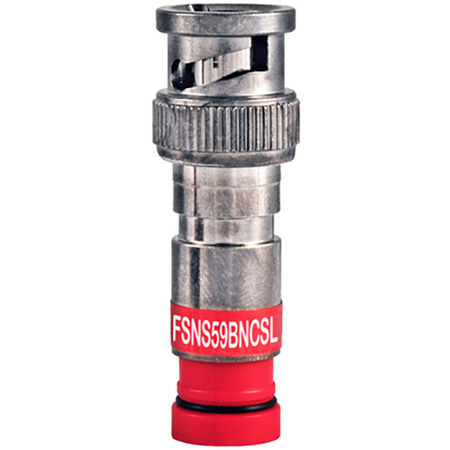

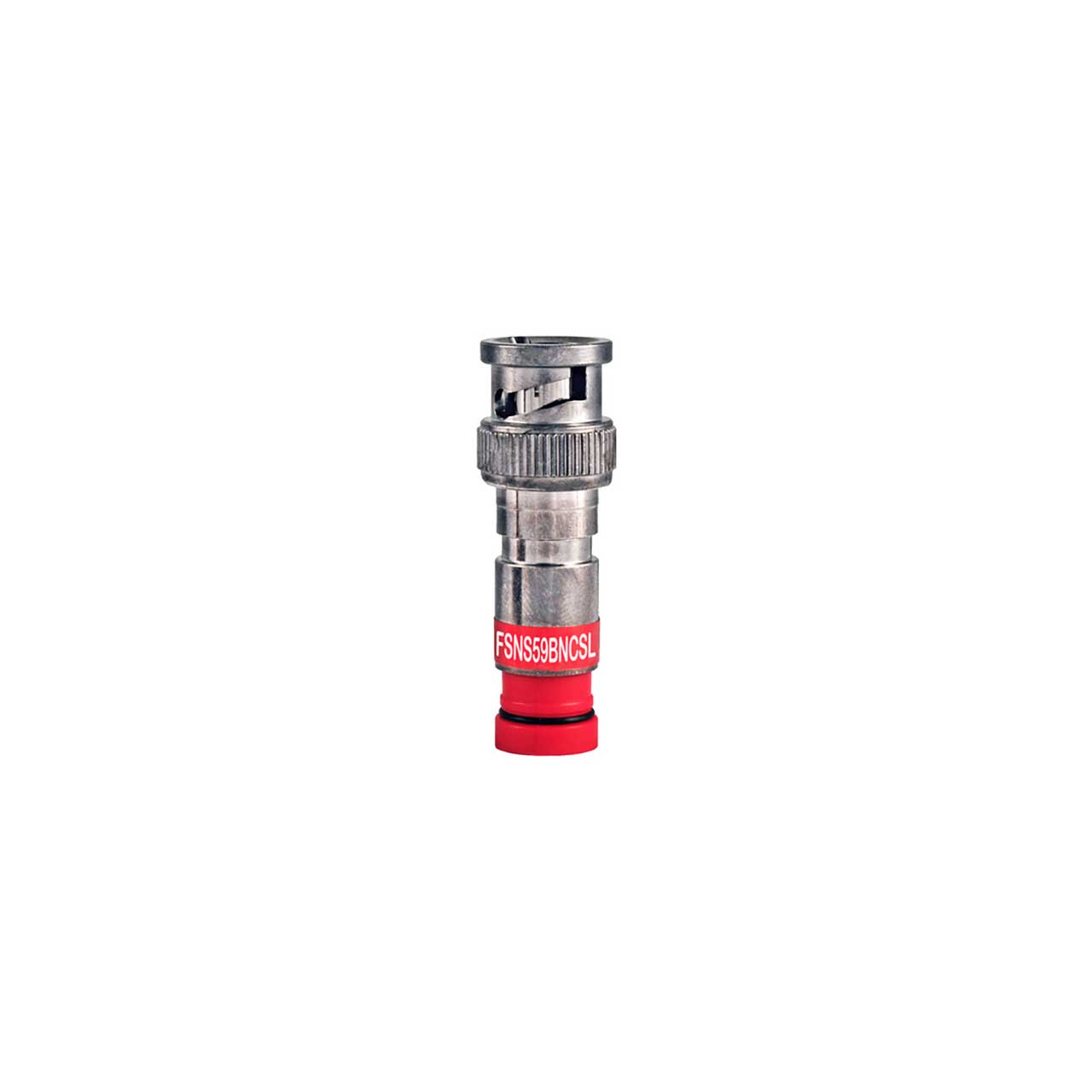

Belden FSNS59BNCSL is a ProSNS RG59 BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack.

For use with the following.cable....

Belden: 1426A, 8212, 8221, 9240, 9265, 9659, 543945, 5439W5, 549945

West Penn 25815, 25819, 25Q843

  • Specifications:

    • Environmental Space: Indoor/Outdoor
    • Suitable Applications: CCTV, Security Cameras, Video
    • Packaging: 25 Pack
    • Number of Pieces: 1
    • Nominal Characteristic Impedance: 75
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: ProSNS
    • Color Band: Red
    • Locking: No
    • Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
    • Termination Type: Compression
    • Electrical Characteristics Notes: Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil), All Belden ProSNS connectors meet or exceed SCTE return loss standards.
    • Limits: .0317 - .0339 inch
    • Cable Dielectric Diameter Limits: .130 - .148 inch
    • Cable Outer Jacket Diameter Limits: .232 - .248 inch
    • Cable Insertion Force: 20 lbf
    • RG Type: 59/U Type


  • GTIN:

    0845671003734
