Belden 9265 -- Composite - ENG - EFP and CCTV Cable - 1000 Foot

ITEM #: BL-9265-1000 MFG #: 9265 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$3,238.20

Our Price:

$2,651.19

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9265 0101000 - Overview

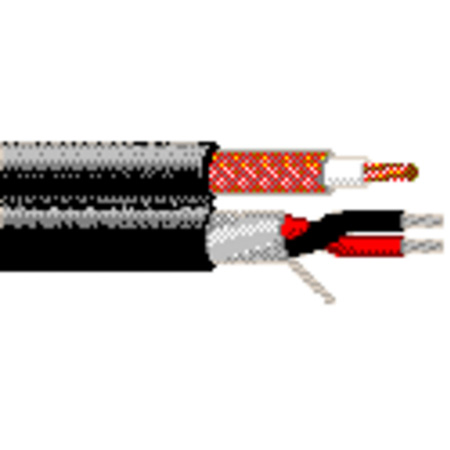

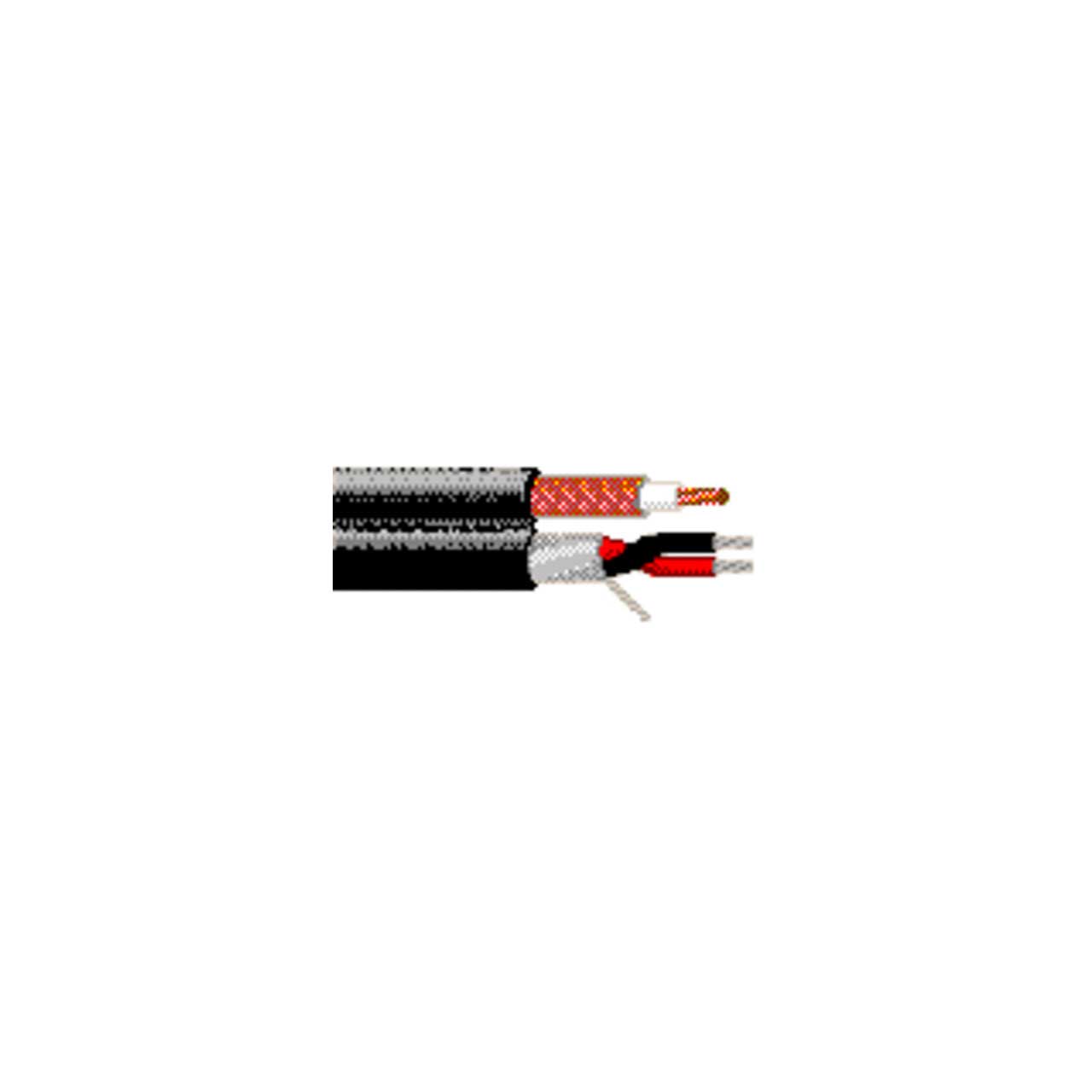

22 AWG stranded (7x30) conductors, foam polyethylene insulation (coax) and PVC (Pairs) insulation, coax w/BC braid shield (95% coverage), (1) twisted pair w/Beldfoil® shield, 22 AWG drain wire, PVC jacket.

  • Specifications:

    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Number of Pairs: 1
    • Twisted Pair AWG: 22
    • Twisted Pair Stranding: 7x30
    • Twisted Pair Conductor Material: TC - Tinned Copper
    • Twisted Pair Insulation Material: PVC - Polyvinyl Chloride
    • Number of Coax: 1
    • Coax AWG: 22
    • Coax Stranding: 7x30
    • Coax Conductor Material: BC - Bare Copper
    • Coax Insulation Material: FPE - Foam Polyethylene
    • Coax Shield Material: BC - Bare Copper
    • Plenum (Y/N): N


  • GTIN:

    0612825226000
