Belden 1426A RG59 20AWG 75 Ohm Analog Coaxial Cable - Black - 1000 Foot Roll

ITEM #: BL-1426A-1000 MFG #: 1426A 010U1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$868.80

Our Price:

$715.71

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

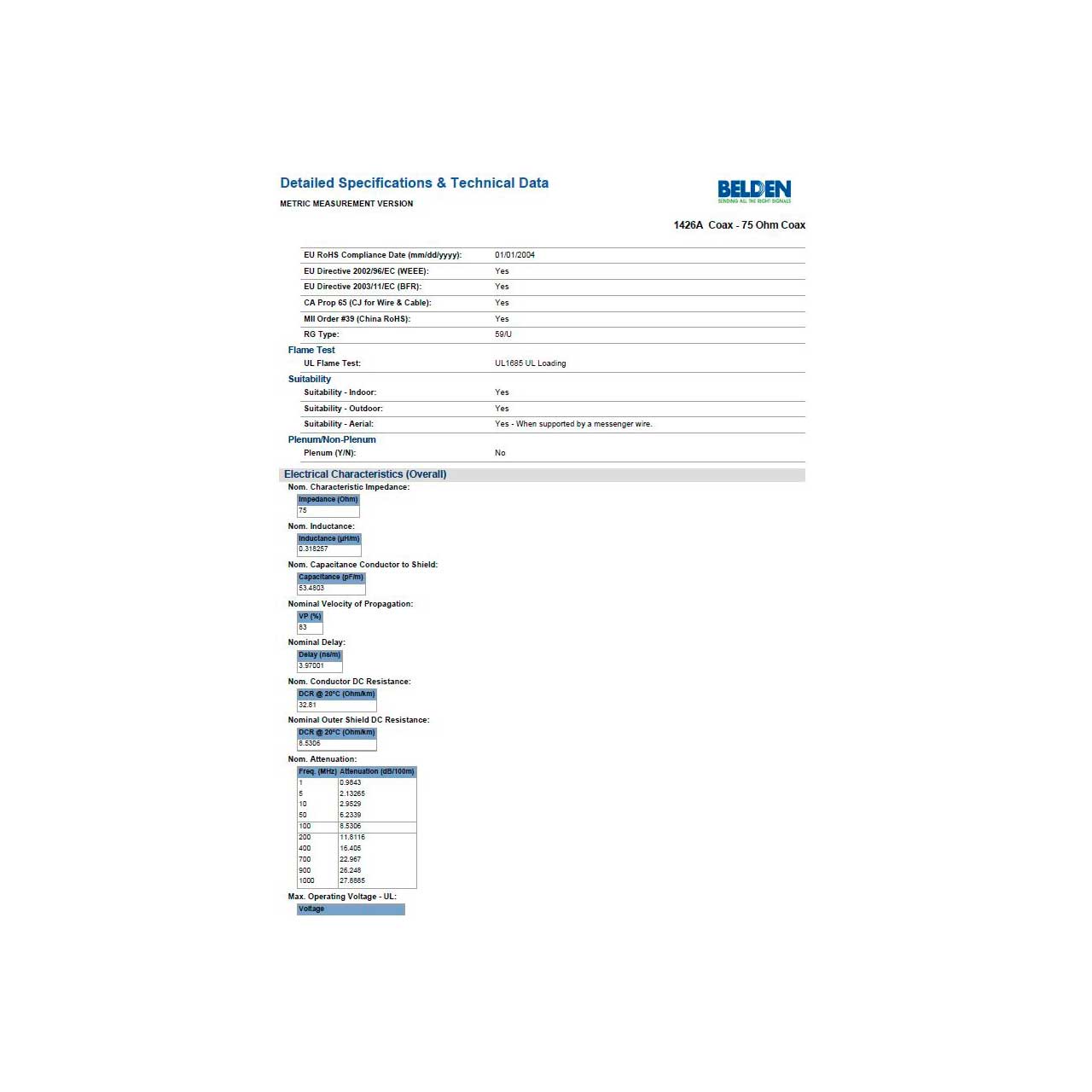

1426A 010U1000 - Overview

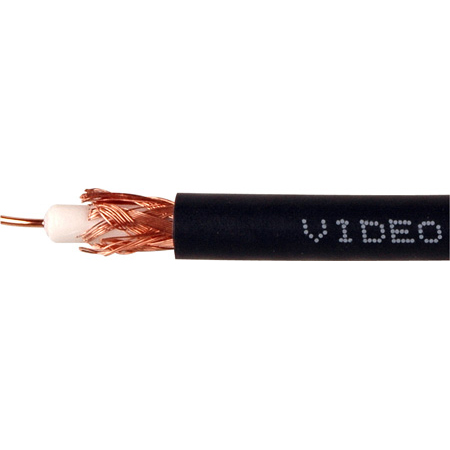

Belden 1426A is a 20 AWG analog coaxial cable with a solid .032" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shield (95% coverage), and PVC jacket.

Applications: Standard Analog Video Cables - 75 Ohm Coax

  • Features:

    • Number of Coax: 1
    • RG Type: 59/U
    • AWG: 20
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: HDPE - High Density Polyethylene
    • Outer Shield Material: BC - Bare Copper
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 Ohms
    • Nominal Conductor DCR: 10 Ohm/1000ft
    • Nominal Conductor DCR Conductor Resistance: 10 Ohm/1000ft
    • Nominal Outer Shield DCR: 2.6 Ohm/1000ft
    • Outer Conductor DCR: 2.6 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 16.3 pF/ft
    • Nominal Inductance: 0.097 µH/ft
    • Non-UL Voltage Rating: 300 V RMS 30 V RMS
    • UL Voltage Rating: 300 V RMS (CM)
    • Non-UL Temp Rating: 75°C
    • UL Temp Rating: 60°C
    • Operating Temp Range: -30°C To +75°C
    • Bulk Cable Weight: 36 lbs/1000ft
    • Max. Pull Tension: 68 lbs
    • Min Bend Radius/Minor Axis: 2.5 in
    • NEC/(UL) Compliance: CM
    • UL AWM Style Compliance: UL Style 1354
    • RG Type: 59
    • Series Type: 59
    • Environmental Space: Indoor/Outdoor
    • UL Flammability: UL1685 UL Loading


  • Item Includes:

    • 1x Belden 1426A RG59 20AWG 75 Ohm Analog Coaxial Cable - Black - 1000 Foot Roll


  • GTIN:

    0612825357902
