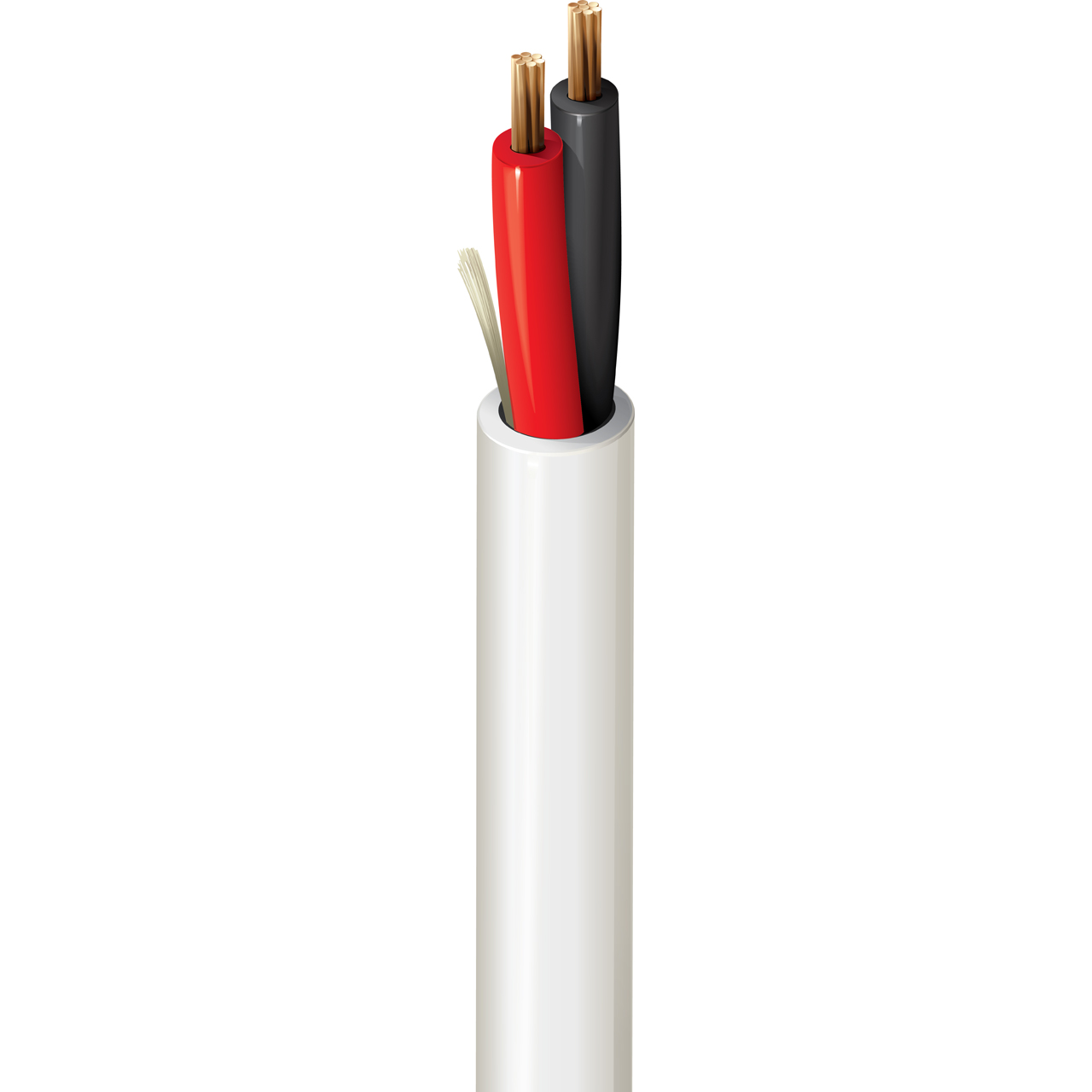

Belden 6300UE CMP/Plenum Unshielded Security & Commercial Audio Cable Stranded BC 18AWG - White - 1000 Foot

6300UE 0091000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Number of Conductors: 2
  • Conductor AWG: 18
  • Conductor Stranding: 7x26
  • Conductor Material: BC - Bare Copper
  • Insulation Material Trade Name: Flamarrest
  • Insulation Material: LS PVC - Low Smoke Polyvinylchloride
  • Insulation Nom. Thickness: 0.009 in (0.23 mm)
  • Insulation Color Code: Black, Red
  • Outer Shield Material: Unshielded
  • Outer Jacket Material Trade Name: Flamarrest™
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
  • Outer Jacket Nom. Diameter: 0.154 in (3.91 mm)
  • Outer Ripcord: Yes
  • Overall Nominal Diameter: 0.154 in (3.91 mm)
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • Plenum (Y/N): Y
  • Nom. Inductance: Inductance 0.15
  • Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 34.000
  • Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 6.5


• Item Includes:

  • 6300UE CMP/Plenum Unshielded Security & Commercial Audio Cable - White - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825174912
