Belden 6504FE CMP/Plenum Safety - Sound & Security Cable Shielded/BC 6x22AWG - Black - 1000 Ft/UnReel Box

ITEM #: BL-6504FE-1000 MFG #: 6504FE 877U1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$333.70

Our Price:

$269.91

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


6504FE 877U1000 - Overview

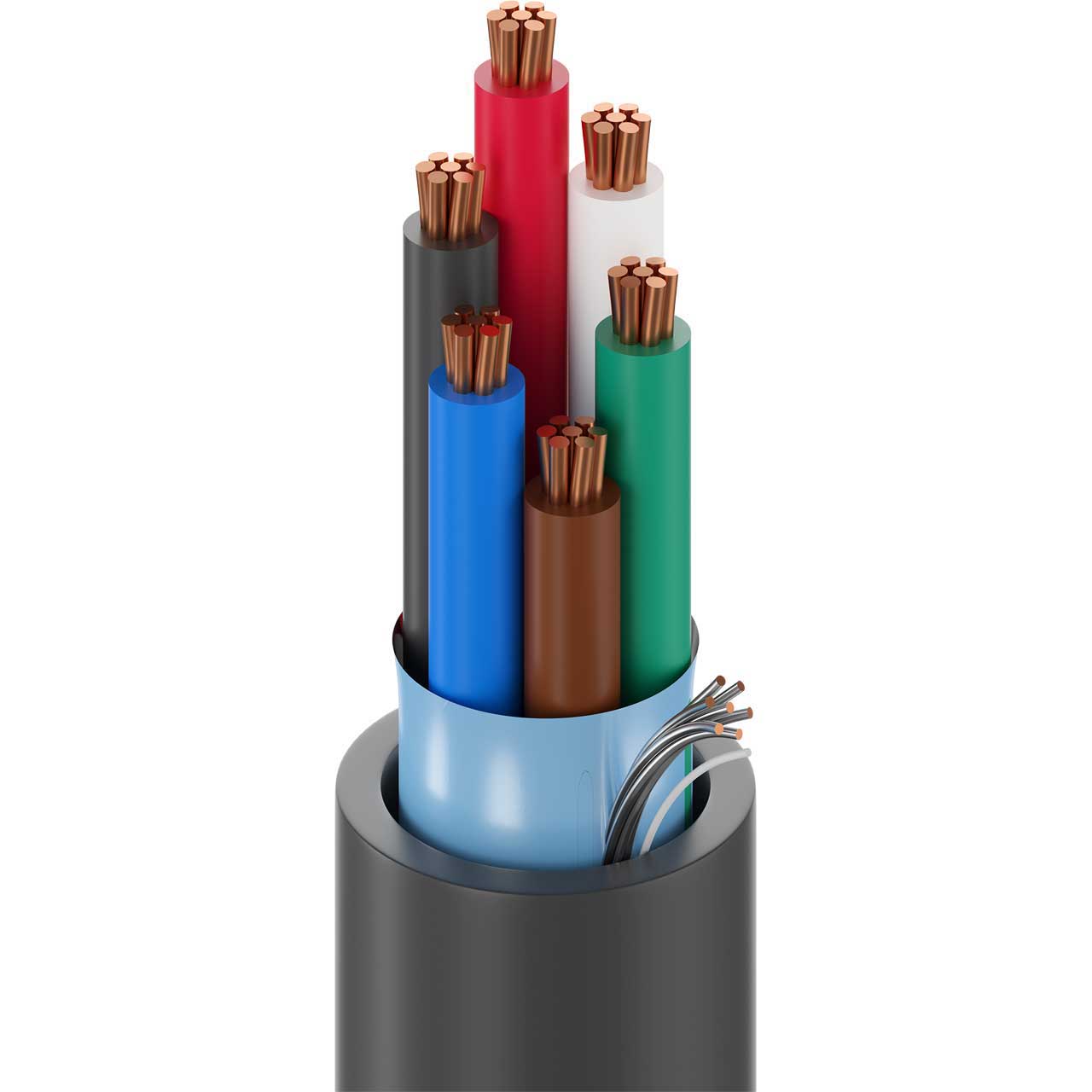

Belden 6504FE is a Plenum-CMP Security & Sound Cable. It features 6-22 AWG stranded bare copper conductors with Flamarrest® insulation, a Beldfoil® shield in a Flamarrest® jacket with ripcord.

This cable ships in Belden's unique installer UnReel Box.

Reimagining Unreel Packaging for Enhanced Sustainability

Unreel packaging has been in use by Belden for more than 40 years and has served the industry well in terms of portability and ease of use. Unreel consists of a coil of wire or cable that is wound using patented Reelex technology. The cable is then placed into a cardboard box and smoothly dispensed from the center of the coil via a tube for easy access. Until now, that tube (called a "payout tube") was made of plastic. Today, through the work of Belden packaging engineers, a new tube design, made with recycled paper pulp, is being implemented to replace the plastic component. This allows the entire package to be placed in the paper recycling stream!

The shift towards a fully paper-based, recyclable generation of Unreel packaging is important, as there is a great deal of evidence pointing to plastic's harm on the environment. Everything from single-use plastic water bottles and grocery bags to food containers and packaging is finding its way to our oceans and piling up in landfills. Excessive use of plastic simply isn't sustainable for the planet. Therefore, it's important that we all do our part to reduce our use of plastic. Eliminating the plastic components in Unreel packaging is just one way that Belden can be part of the solution.

Applications
Security Systems
Intercom/PA
Audio/Speaker
Power-Limited Controls
Noisy Environment
Security & Alarm Cable, Plenum-CMP, 6-22 AWG stranded bare copper conductors with Flamarrest insulation, Beldfoil shield and Flamarrest jacket with ripcord.

  • Features:

    • Quick Installation: Rip cords support easy jacket removal
    • Time Savings: Sequential footage markings on jacketing indicate remaining cable

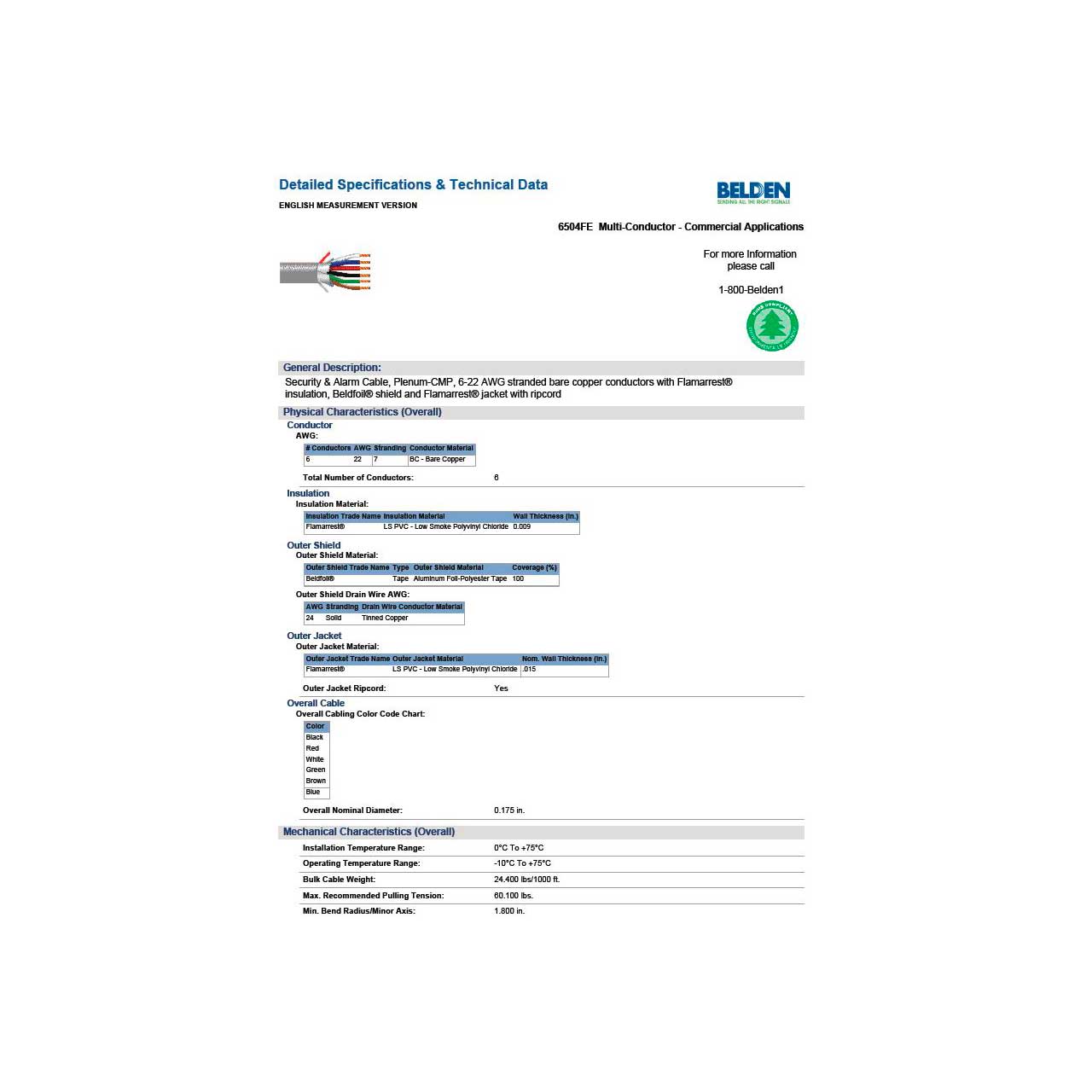

  • Specifications:

    • Conductor AWG: 22
    • Conductor Elements: 6
    • Conductor Stranding: 7x30
    • Conductor Material: BC - Bare Copper
    • Insulation Element: Conductor(s)
    • Insulation Material: PVC - Polyvinyl Chloride
    • Insulation Nom. Thickness: 0.009 in (0.23 mm)
    • Nom. Insulation Diameter: 0.047 in (1.2 mm)
    • Insulation Color Code: Black, Red, White, Green, Brown, Blue
    • Outer Shield Type: Tape
    • Outer Shield Material: Material
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 24 AWG (7x32) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
    • Outer Jacket Nom. Diameter: 0.175 in (4.45 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.175 in (4.45 mm)
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating: 75°C / Operating - 0°C to +75°C
    • Max. Pull Tension: 60 lbs
    • Bulk Cable Weight: 24 lbs/1000ft
    • Environmental Suitability: Indoor - Plenum, Indoor
    • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6
    • NEC / UL Compliance: Article 800, CMP
    • CEC / C(UL) Compliance: CMP

  • Item Includes:

    • 6504FE CMP/Plenum Cable Shielded/BC 6x22AWG - Black - 1000 Ft/UnReel Box

  • Warranty:

    • 10 Year Limited Warranty

  • GTIN:

    0612825177845
