Belden 7807A Indoor/Outdoor Low Loss Flexible 50 Ohm Wireless Transmission Coax Cable Shld BC 17AWG - Black - Per Ft

ITEM #: BL-7807A MFG #: 7807A 010500 PER FT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$890.75

Our Price:

$1.72

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

7807A 010500 PER FT - Overview

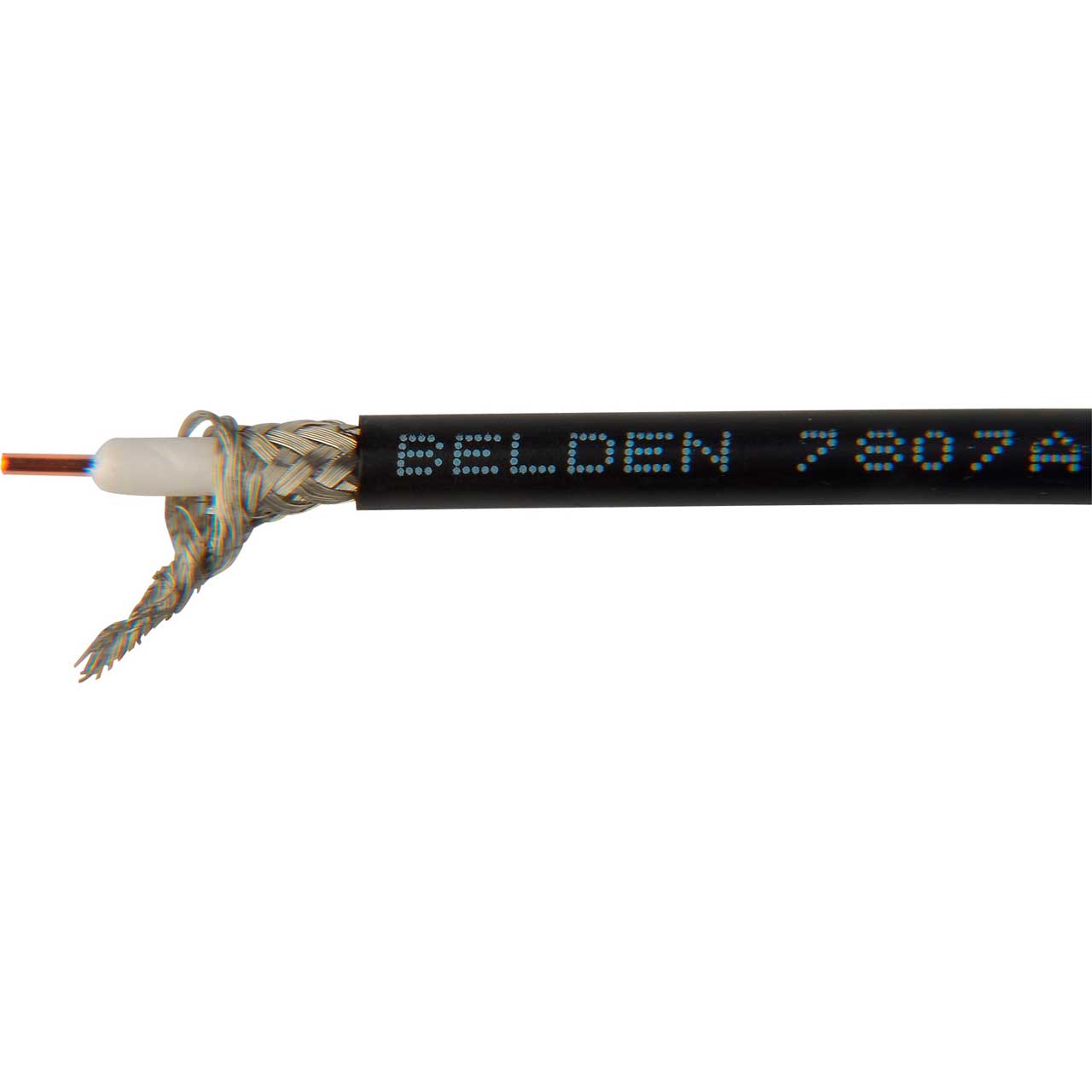

Belden 7807A is a 50 Ohm Wireless Transmission Coax. It's RF 200, RG58, with a 17 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil® + 95% Tinned Copper Braid Shield, in a PE Jacket.

Belden 50 Ohm Coax Cables offer excellent performance across longer distances as they carry power and voltage signals. Designed to make certain that data signals travel through the cable in the most efficient way possible, they can maintain signal strength while also ensuring reliable integrity and exceptional quality.

Applications
Point-to-point and point-to-multipoint wireless antenna communication
Wireless microphones
Two-Way Radios
Amateur (Ham) Radio
Low Power FM, GPS, RFID (Radio Frequency Identification)

  • Features:

    • Designed for Communication: Supports point-to-point and point-to-multipoint wireless antenna communication: wireless mics, two-way radios, etc.
    • Suitable for a Variety of Applications: Available in outdoor, riser-rated and water-blocked options

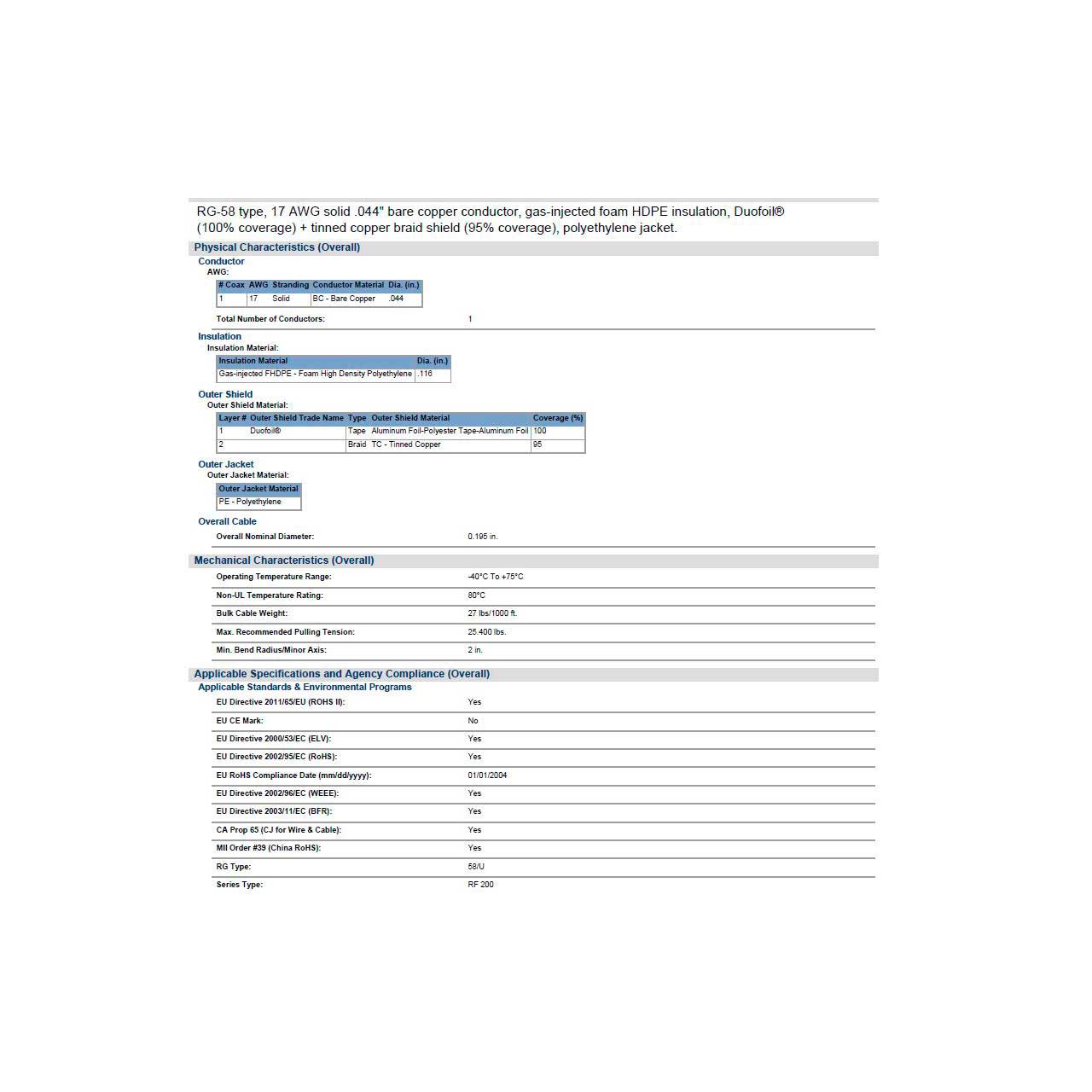

  • Specifications:

    • AWG: 17
    • Conductor Count: 1
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Conductor Nominal diameter: 0.044 in
    • Conductor No of Coax: 1
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nom. Insulation Diameter: 0.116 in (2.95 mm)
    • Insulation Color Code: White
    • Outer Shield Layer 1: Tape - Duofoil® Tri-Laminate (Alum+Poly+Alum) - 100%
    • Outer Shield Layer 2: Braid - Tinned Copper (TC) - 95%
    • Outer Nom. Diameter: 0.195 in (4.95 mm)
    • Outer Jacket Material: PE - Polyethylene
    • Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)
    • Voltage Rating: 300 V
    • Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
    • Sustainability: CA Prop 65

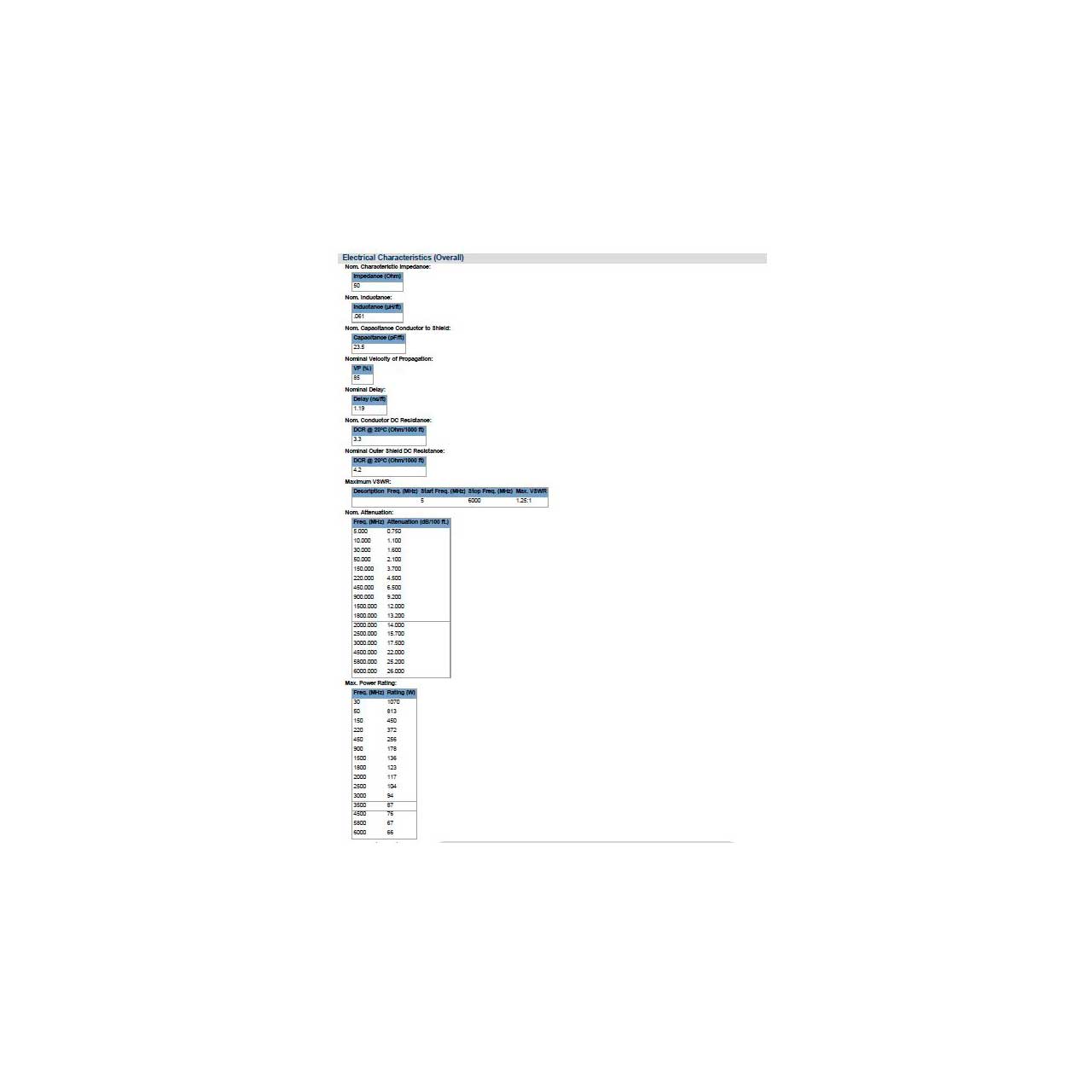

    • Nominal Conductor DCR: 3.3 Ohm/1000ft
    • Nominal Outer Shield DCR: 4.2 Ohm/1000ft
    • Outer Conductor DCR: 4.2 Ohm/1000ft
    • Nominal Characteristic Impedance: 50 Ohm
    • Frequency [MHz]: 5-6000 MHz
    • Non-UL Temp Rating: 80°C
    • Operating Temp Range: -40°C To +75°C
    • Bulk Cable Weight: 27 lbs/1000ft
    • Max Recommended Pulling Tension: 25.4 lbs
    • Min Bend Radius/Minor Axis: 2 in
    • RG Type: 58/U Type
    • Series Type: RF 200


  • Item Includes:

    • 7807A Indoor/Outdoor Flexible 50 Ohm Coax Cable 17AWG - Black - Sold Per Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825189633
