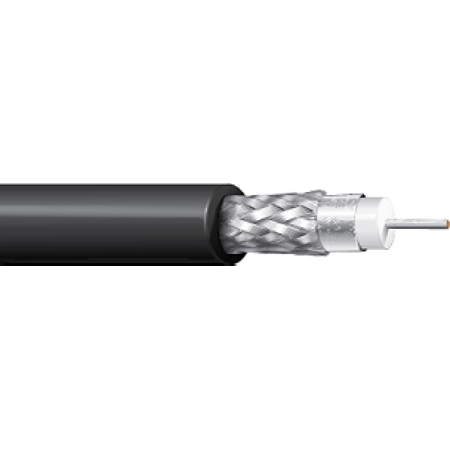

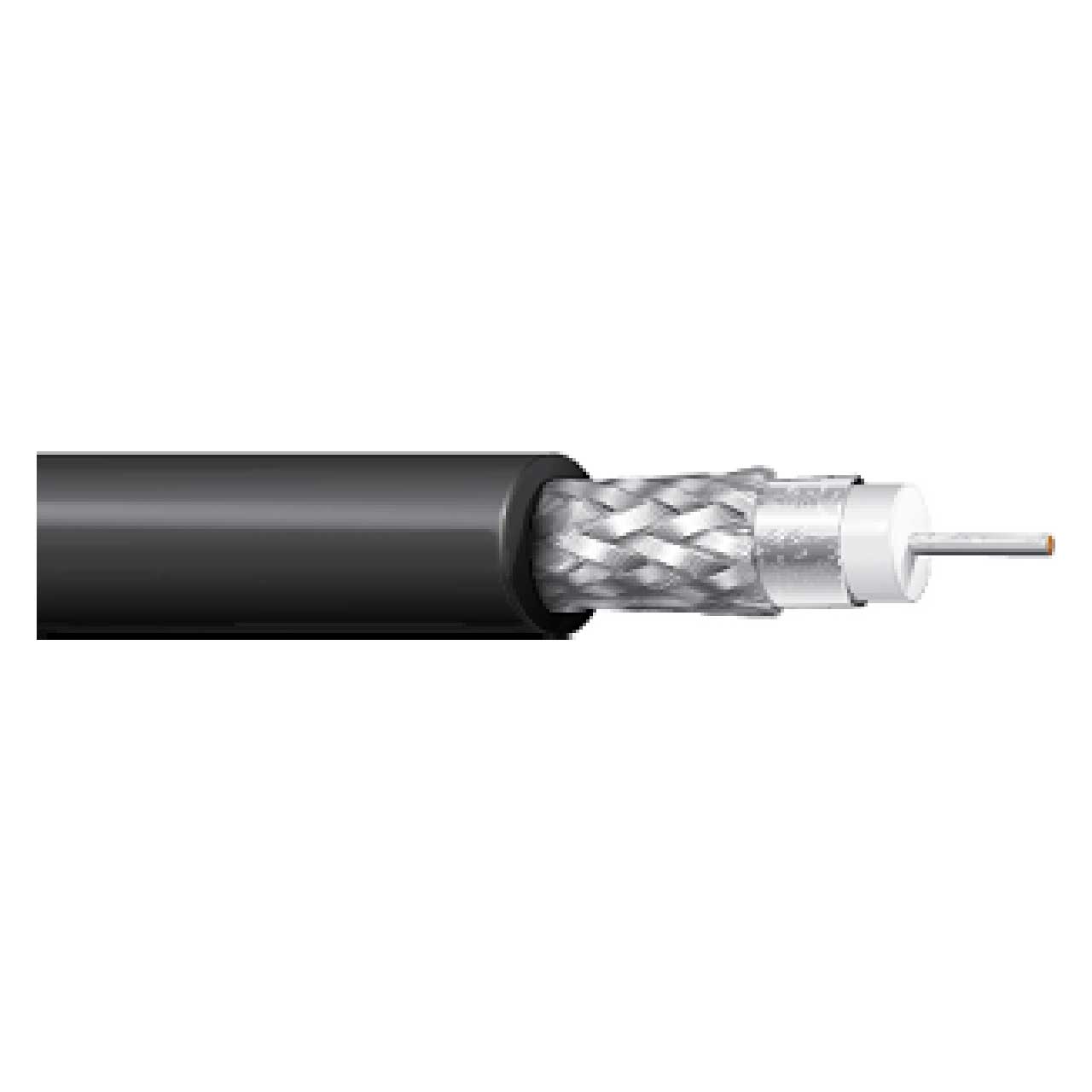

Belden 4694P CMP/Plenum Rated 12G-SDI 4K UHD RG-6 75 Ohm Coax Video Cable 18AWG - Black - Per Foot

4694P PER FT - Overview

• Features:

  • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
  • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
  • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
  • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


• Specifications:

  • Conductor Size: 18 AWG
  • Conductor Stranding: Solid
  • Conductor Material: SC - Silvered Copper
  • Insulation Material: - Foam Fluorinated Ethylene Propylene
  • Nom. Insulation Diameter: 0.168 in
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.229 in (5.82 mm)
  • Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)
  • Outer Sheild Tape: - Duobond® II Aluminum/Polyester/Aluminum 100%
  • Braid: TC - Tinned Copper 95%
  • LS PVC - Low Smoke Polyvinyl Chloride: 0.229 in
  • Nominal Conductor DCR: 6.3 Ohm/1000ft
  • Outer Conductor DCR: 2.9 Ohm/1000ft
  • Frequency [MHz]: 5 MHz - 1600 MHz - 1600 MHz - 4500 MHz - 4500 MHz - 12000 MHz
  • Minimum Return (RL): 23 dB - 21 dB - 15 dB
  • UL Voltage Rating: 300 V
  • Operating Temp Range: -4F to 167F / -20C to 75C
  • Bulk Cable Weight: 41 lbs/1000ft
  • Max Recommended Pulling Tension: 69 lbs
  • Min Bend Radius/Minor Axis: 2.3 in
  • NEC/(UL) Specification: CMP
  • RG Type: 6/U Type


• Item Includes:

  • 4694P CMP Rated RG-6 75 Ohm Plenum Coax Video Cable 18 AWG - Black - Per Foot


• Warranty:

  • Limited 10 Year Warranty
