Kings 2065-E00-C9201N Long Barrel 12G BNC Connector for Belden 4694P Cable

Name: Kings 2065-E00-C9201N Long Barrel 12G BNC Connector for Belden 4694P Cable
Brand: Kings Brand
SKU: 2065-E00-C9201N
Price: 24.00 USD
Availability: PreSale

ITEM #: 2065-E00-C9201N MFG #: 2065-E00-C9201N

Kings Brand

List Price:

$24.95

Our Price:

$24.00

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

2065-E00-C9201N - Overview

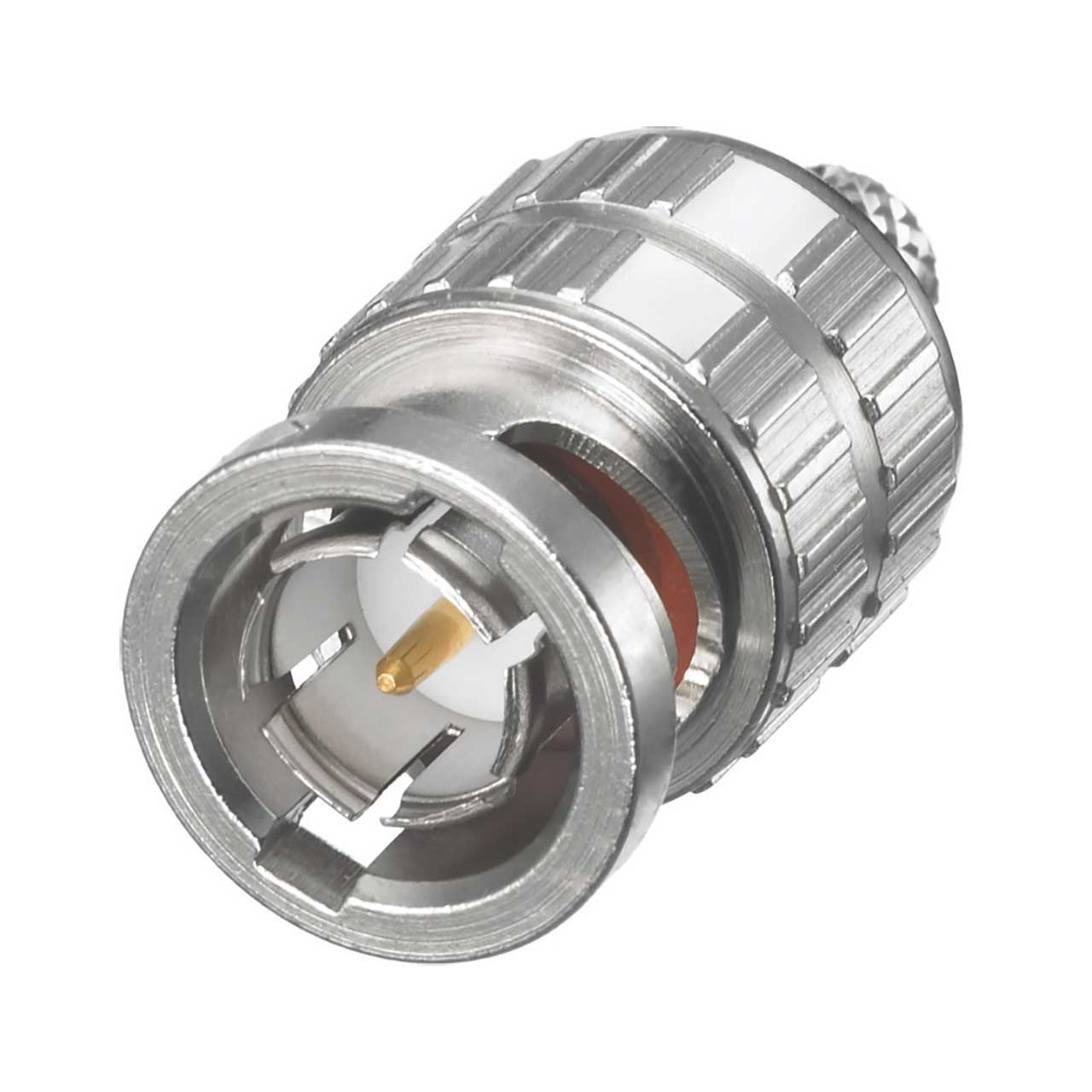

The evolution of the Kings worldwide famous BNC connector is upon us. The Kings 2065-E00-C9201N 12G Compliant BNC Connector features an ergonomic design with a longer grip when compared to the standard 2065 Series Connectors. This makes them much easier to grasp and twist when installed in OB truck panels, patchbays and system equipment. The 2065 E series connector also has white markings for a quick visual confirmation of proper mating.

Features:
- Ergonomic Design with Longer Grip than Standard 2065 Series Connectors

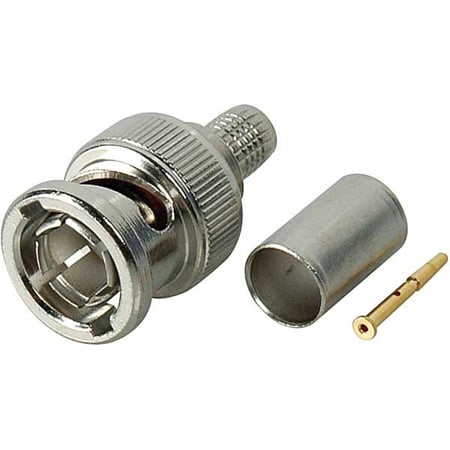

- Full Crimp, Field Installable
- White Markings to Visually Confirm Correct Mating
- 75 Ohm Design Meets or Exceeds HDTV Standards
- Use with Belden 4694P Cable
Specifications:
- Material:
- Insulator: PTFE per ASTM-D-4894 or ASTM D1710
- Gasket: Silicone Rubber, A-A-59588
- Spring Washer, Outer Contact: PER. COP., ASTM B196
- Ferrule: Commercial Bronze, ASTM B135
- All other Metal Parts: Brass per ASTM B16

  Finish:
- Contact: Gold Plate per ASTM B488 over Nickel per SAE-AMS-QQ-N-290 (RoHS)
- Spring Washer: Silver Plate per ASTM B700
- All other Metal Parts: Nickel per SAE-AMS-QQ-N-290 (RoHS)

  Electrical:
- Impedance: 75 Ohms
- Working Voltage: 500 Volts RMS
- Frequency Range: DC - 12 GHz
- Return Loss: -30dB Max to 3.0 GHz, -20dB Max to 6.0 GHz

2065-E00-C9201N - Recommended Accessories

Kings KTH-2261 Crimp Die for 2065-7-9 and 2065-2-9 BNCs
KTH-2261
Our Price: $282.46
Kings KTH-1000 BNC Crimp Tool with Removable Die (Die Not Included)
KTH1000
Our Price: $552.96
Belden 4694P CMP/Plenum Rated 12G-SDI 4K UHD RG-6 75 Ohm Coax Video Cable 18AWG - Black - 1000 Foot
BL-4694P-1000BK
Our Price: $4,678.87
Canare TS100u 5-In-1 Universal Coax Cable Stripper for Belden & Canare Cable
TS100U
Our Price: $86.43
Canare BCJ-JRUDK 12G-SDI 75 Ohm Female to Female Barrel BNC Connector - Flush-Mount Neutrik D Panel Receptacle - Black
BCJ-JRUDBK
Our Price: $7.34
Canare BCJ-JRK 12G-SDI 75 Ohm BNC Female to Female Panel Mount Barrel Connector - Bulkhead Receptacle
BCJ-JRK
Our Price: $4.28
Canare BCJ-JK 12G-SDI 75 Ohm BNC Female to Female Barrel Adapter / BNC Coupler
BCJ-JK
Our Price: $4.11
Canare BCJ-JRUK 12G-SDI 75 Ohm BNC Flush-Mount Chassis Receptacle
BCJ-JRUK
Our Price: $5.59
Canare BCJ-JRUDK 12G-SDI 75 Ohm Female to Female Barrel BNC Connector - Flush-Mount Neutrik D Panel Receptacle
BCJ-JRUDK
Our Price: $6.94
Cobalt Digital BBG-DA-12G-1x6 12G-SDI ASI MADI Reclocking Distribution Amplifier w/ Input Status LED & PS4
CB-BBGDA-12G-1X6
Our Price: $434.94
Freakshow HD MSX2-O 1x2 Microsplit Reclocking DA 4K 12G/3G SDI Splitter - Standard Power Connector
FREAKS-MSX2-O
Our Price: $305.00
Camplex 12G SDI Over Single Mode Fiber SFP-Based Extender Set
CMX-12GSDI-TR
Our Price: $549.95
Blackmagic Design HDL-SMTV4K12G3 SmartView 4K G3 6RU Ultra HD Broadcast Monitor with 12G-SDI/SMPTE-2110 IP Video Inputs
BMD-SMRTVIEW4KG3
Our Price: $1,265.00
AJA 12GDA 12G-SDI 1x6 Video Distribution Amplifier
AJA-12GDA
Our Price: $625.00
My Custom Shop 16-Port 12G-SDI BNC Feed-Through Patchbay Panel for HD-SDI and SDI - 1RU
16XB-HD
Our Price: $178.95
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
My Custom Shop 8-Port 4K/8K 12G-SDI Feed-Through BNC Patch Panel - 1RU
8XUHD-BNCR
Our Price: $192.49
Amphenol 034-1110-12G HD-BNC Jack to HD-BNC Jack Isolated Bulkhead adapter 12G Optimized 75 ohm
034-1110-12G
Our Price: $43.27
Decimator Design 12G-CROSS HDMI/SDI 4K Ultra HD Cross Converter with Scaling and Frame Rate Conversion
DEC-12G-CROSS
Our Price: $495.00
Freakshow HD MSX4-O 1x4 Microsplit Reclocking DA 4K 12G/3G SDI Splitter - Standard Power Connector
FREAKS-MSX4-O
Our Price: $358.73
Amphenol 031-70540-12G BNC Adapter - Female BNC Jack to Male HD-BNC Plug
AMPH-0317054012G
Our Price: $35.75
Digital Forecast Bridge X-TS PACK V3 Video and Audio Troubleshooter and Cross Converter Hard Case Bundle
DF-X-TS-PACK-V3
Our Price: $1,424.00
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99

2065-E00-C9201N - Reviews

2065-E00-C9201N - Attachments

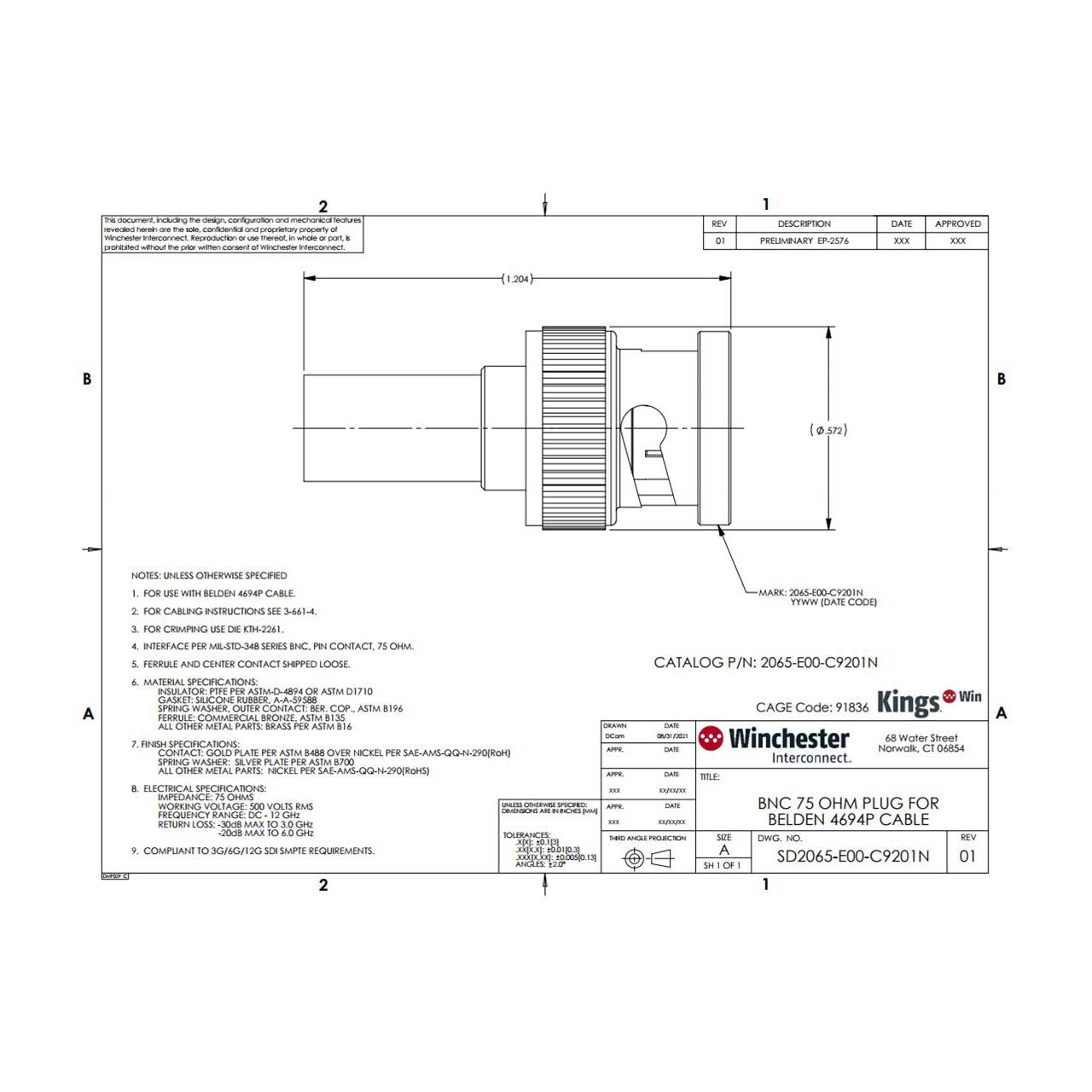

Kings 2065 Series Long Barrel 12G BNC Spec Sheet
