Belden 7934A Paired DataTuff Waterblocked Enhanced CAT5e Cable - 1000 Foot

ITEM #: BL-7934A-1000 MFG #: 7934A 0101000

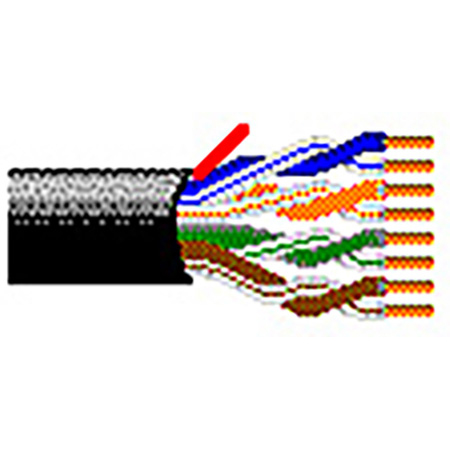

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,558.10

Our Price:

$1,306.84

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

7934A 0101000 - Overview

Belden 7934A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PE Outer Jacket, Polymer Gel Waterblocked OSP BURIAL. Suitable for burial, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc applications.

  • Specifications:

    • AWG: 24
    • Stranding: Solid
    • Material: BC - Bare Copper
    • Pairs: 4
    • Max. Conductor DCR: 9.38 Ohm/1000ft
    • Max. DCR Unbalance: 3%
    • Max. Capacitance Unbalance: 150 pF/ft
    • Nom. Mutual Capacitance: 15 pF/ft
    • Max. Delay: 538 ns/100m
    • Max. Delay Skew: 45 ns/100m
    • Non-UL Voltage Rating: 300 V
    • Operating Temp: -40°C To +75°C
    • Installation Temp: -25°C To +75°C
    • Storage Temp: -40°C To +85°C
    • Max. Pull Tension: 40 lbs
    • Bulk Cable Weight: 30 lbs/1000ft
    • Environmental Suitability: Outdoor - Direct Burial, Outdoor, Non-Halogenated, Sunlight Resistance, Oil Resistance
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e


  • GTIN:

    0612825191674
