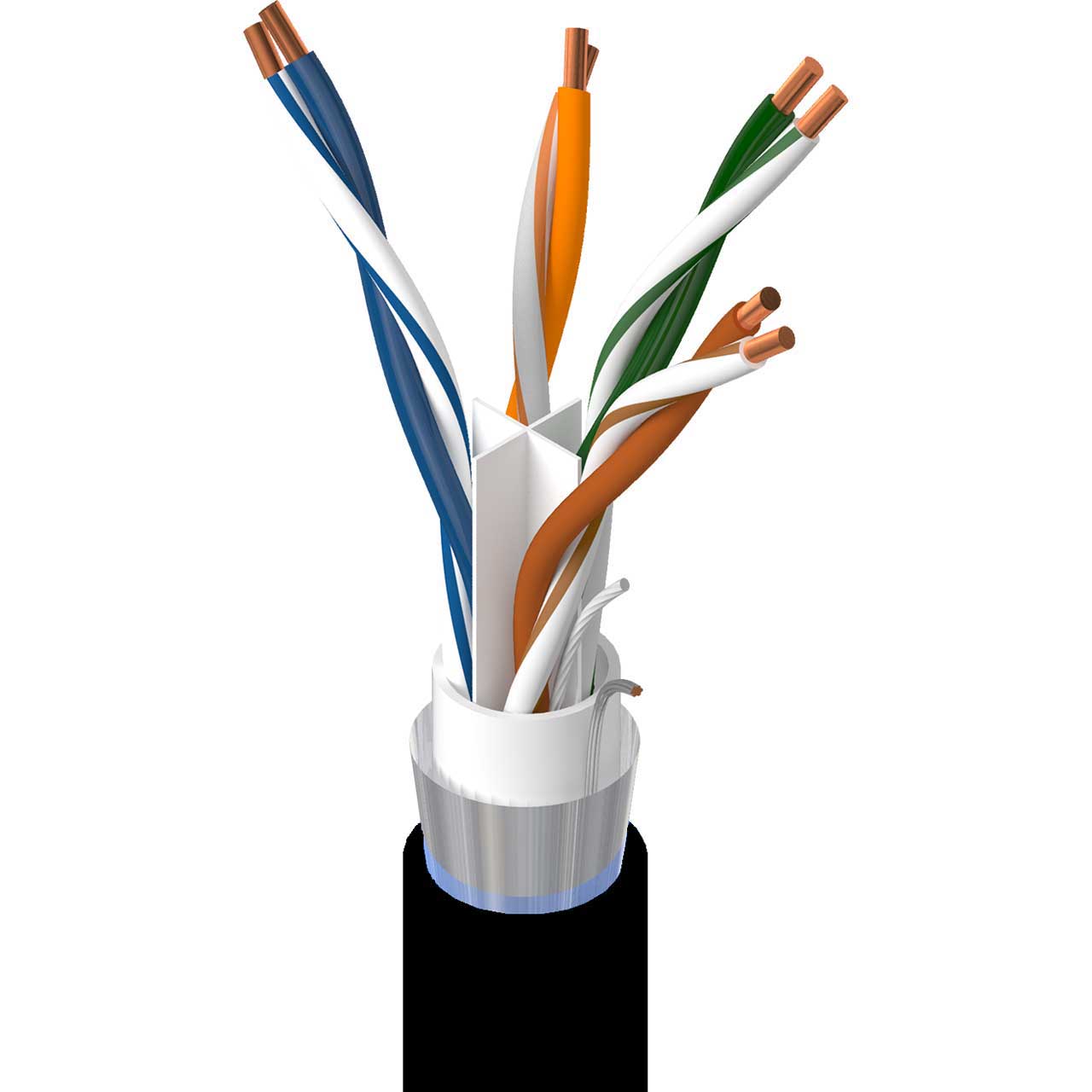

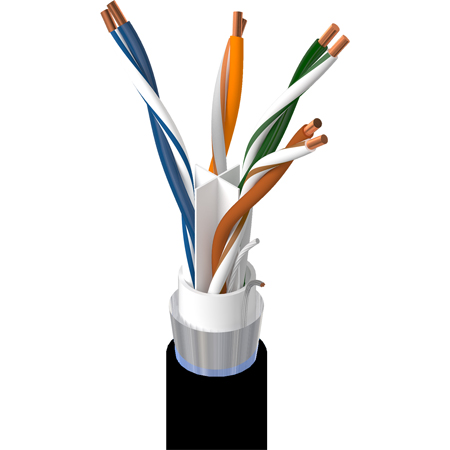

Belden 7953A CMX/MSHA DataTuff Category 6 Outdoor Cable 4 Bonded Pair 600V AWM 23 AWG Solid Copper - Black - 1000 Foot

ITEM #: BL-7953A-1000-BK MFG #: 7953 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,455.60

Our Price:

$2,896.31

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    7953 0101000 - Overview

    Industrial Ethernet Outdoor 600V AWM 21047 Category 6 Cable

    Belden 7953A in black is a 23 AWG Industrial Ethernet Cat 6 cable featuring 4 Bonded-Pairs, 23AWG (Solid) Bare Copper conductors with PO - Polyolefin Insulation, Overall Beldfoil™ Shield, PVC Inner Jacket and a PVC Outer Jacket. Designed for Harsh Enviornments it's 600V AWM 21047 cable rated for Sunlight and Oil Resistance,and is MSHA (Mine Safety and Health Administration) as well as CMX-Outdoor approved.

    Applications:
    Outdoor Locations
    Installation in cabinets with high volt devices, such as a motor control center
    Heavy Equipment
    Mining/MSHA Approved
    Noisy and Harsh Environments
    IIoT or Industrial Internet of Things applications
    Factory or process automation
    IP cameras and devices
    Data Communication

    • Features:

      • 600 AWM rating ensures performance near high-voltage devices
      • Compatible with Belden Industrial REVConnect and standard RJ45 connectors
      • Ruggedized, Outdoor industrial-grade solution
      • Withstands hazards like Sunlight/UV, Oil/Gas and EMI noise interference
      • Bandwidth up to 10Gb/s over 100 meters and 500 MHz frequency range
      • Supports up to 100W of type 3 and type 4 PoE
      • Bonded twisted pair construction for durability, noise immunity and installable performance
      • 10-year guarantee of performance consistency and reliability with Belden's limited warranty
      • Versatile applications with UL 1666 - Riser Flammability

    • Specifications:

      • AWG: 23
      • Conductor Stranding: Solid
      • Conductor Material: Bare Copper
      • Number of Pairs: 4
      • Conductor Count: 8
      • Insulation Material: PO - Polyolefin
      • Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
      • Bonded-Pair: Yes
      • Inner Jacket Material: PVC - Polyvinyl Chloride
      • Inner Jacket Nom. Diameter: 0.254 in (6.45 mm)
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Shield Type: Tape
      • Coverage: 100%
      • Drainwire Type: 24 AWG (7x32) TC
      • Overall Cable Diameter (Nominal): 0.335 in (8.51 mm)
      • UL Voltage Rating: 300 V (CMR, CMX-Outdoor), 600 V (AWM 21047)
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial
      • Installation Temp Range: -25°C To +75°C
      • UL Temp Rating: 75°C
      • Storage Temp Range: -40°C To +80°C
      • Operating Temp Range: -40°C To +75°C
      • Bulk Cable Weight: 44 lbs/1000ft
      • NEMA Compliance: ANSI/NEMA WC-66
      • NEC/(UL) Specification: CMR, CMX-Outdoor
      • CEC/C(UL) Specification: CMX-Outdoor;CMG
      • UL AWM Style: UL Style 21047
      • ISO/IEC Compliance: ISO/IEC 11801 ed 2.1 (2008) Class E
      • CPR Euroclass: Eca
      • Please see attached Spec Sheet for complete specifications

    • Item Includes:

      • 7953A Category 6 Cable- 1000 Foot Reel in Black

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825191964
