Belden R301604 Industrial DataTuff Rugged RJ45 T568B Plug Field Kit for AWG 24-26 - IP20 CAT6A UTP/STP

ITEM #: BL-R301604 MFG #: R301604

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$59.89

Our Price:

$58.72

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


R301604 - Overview

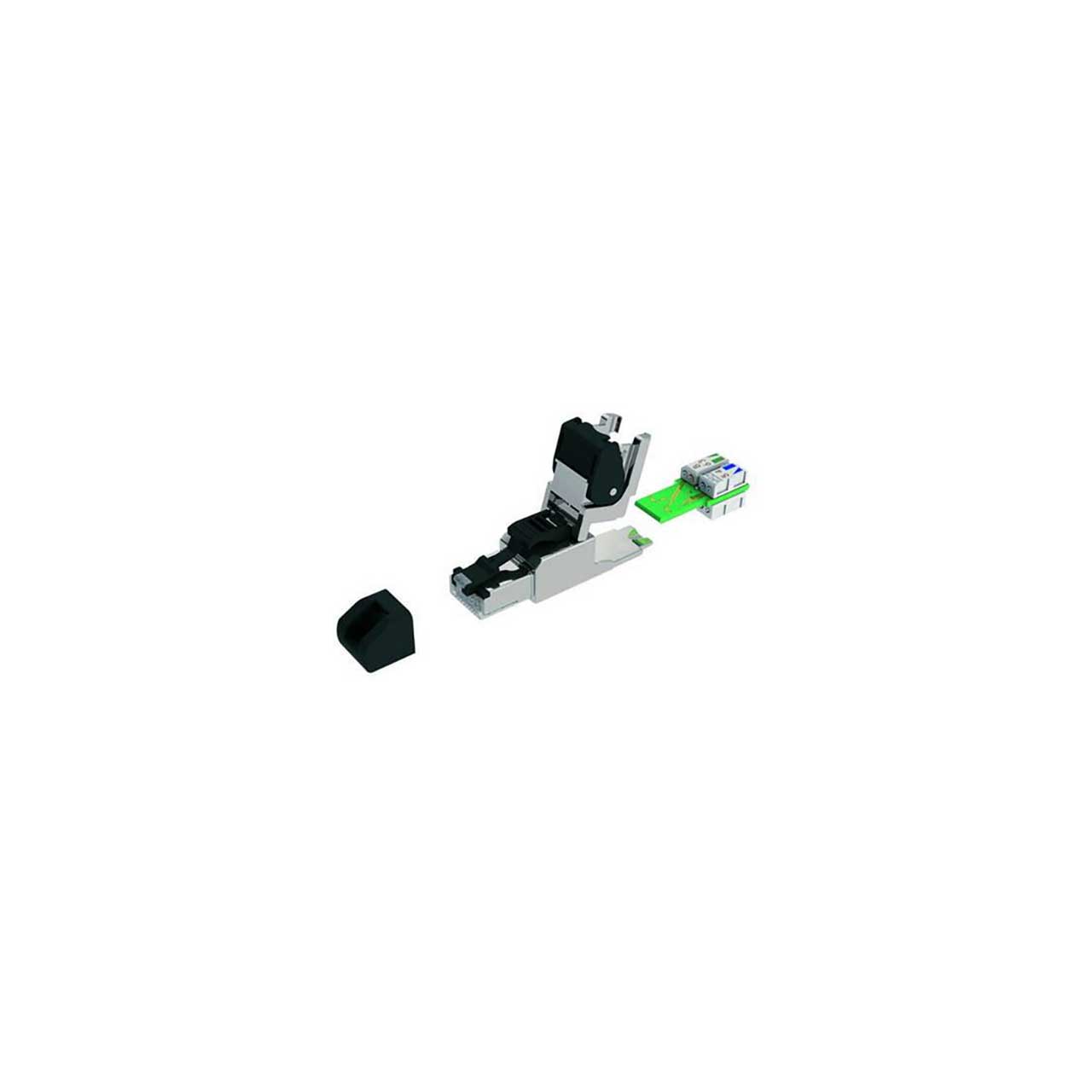

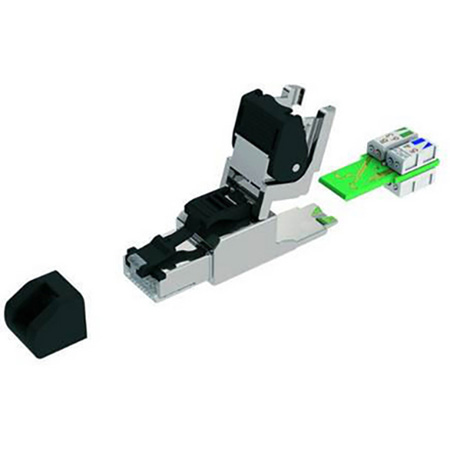

Belden R301604 is a DataTuff® industrial ethernet ruggedized RJ45 T568B plug CAT6A UTP/STP field kit. Suitable for use in IP20 installation.

Suitable Applications:
Up to TIA Category 6A, ISO Class EA, 10GBASE-T

Note: Suitable for use with cables 300V RMS and 600V AWM. Outer Jacket Diameter range: 0.197 to 0.354 in. Insulation Diameter range: 0.033 to 0.042 in.

Please Note! This is wired according to ANSI/TIA/EIA wiring standards for Ethernet T568B

T568A and T568B are the two color codes used for wiring eight-position RJ45 modular plugs. Both are allowed under the ANSI/TIA/EIA wiring standards. The only difference between the two color codes is that the orange and green pairs are interchanged.

  • Specifications:

    • Physical Characteristics (Overall)
    • Height: 0.62
    • Width: 0.54
    • Depth: 2.06
    • Wiring Scheme: T568B
    • Packaging: Individually packaged in a plastic bag.
    • Weight: 0.060 lbs
    • Environmental Space: Indoor

      Electrical Characteristics
    • Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
    • Current Rating: 1.500 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Max Contact Resistance: 20 mOhm
    • Termination Resistance: 2.5 m-Ohm

      Temperature Range
    • Installation Temp Range: -40°C To +85°C
    • Storage Temp Range: -40°C To +85°C
    • Operating Temp Range: -40°C To +85°C

      Mechanical Characteristics
    • Footprint/Type: Modular
    • Plug /Jack Compatibility: RJ45
    • Termination Front Connection: Mated Connection
    • Termination Front Connection Durability: 750 cycles
    • Termination Rear Connection: Mated Connection
    • Termination Rear Connection Durability: 750 cycles
    • Connector/Hardware Retention: 20 lbs
    • Plug/Connector Retention: 11.250 lbs

      Standards
    • UL Rating: UL94V-0
    • Telecommunications Standards: Category 6A - TIA 568.2-D, Category 6A - ISO/IEC 11801:2002 Ed.2
    • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
    • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

      Applicable Environmental and Other Programs
    • EU Directive 2002/95/EC (RoHS): Yes
    • EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
    • MII Order #39 (China RoHS): EUP 50
    • Flammability, LS0H, Toxicity Testing
    • UL Flammability: UL2043 Air Handling Spaces
    • Safety Listing: c(UL)us Listed
