Belden 8133 3-Pair 28AWG Stranded Computer EIA RS-232/485 Cable - Chrome - Per Foot

ITEM #: BL-8133-FT-CE MFG #: 8133 PER FOOT

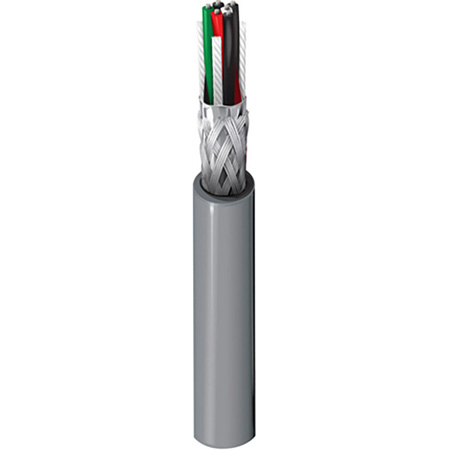

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-8133-FT-CE

8133 PER FOOT - Overview

Belden 8133 Computer EIA RS-232/485 Cable, 3-Pair, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket. Suitable for RS-232 extended distance applications; RS-485 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ); low voltage digital control (24v, ); line level audio; panel wiring applications.

Note: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

  • Specifications:

    • Pairs: 3
    • AWG: 28
    • Stranding: 7x36
    • Material: Tinned Copper
    • Nom. Conductor DCR: 65 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 11 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds +Shield): 20 pF/ft
    • Characteristic Impedence: 120 Ohm
    • Nom. Velocity of Prop.: 78%
    • Max. Current: 0.9 Amps per Conductor at 25°C
    • Nom Outer Shield DCR: 5.2 Ohm/1000ft
    • UL Voltage Rating: 30 V (UL AWM 2919)
    • UL Rating: 80°C (UL AWM 2919)
    • Operating: -30°C to +80°C
    • Bulk Cable Weight: 31 lbs/1000ft
    • Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
    • NEC / UL Compliance: CL2
    • AWM Compliance: 2919
