Belden 8232A Video Triax 20AWG Solid .032-In Bare Copper Conductor/Gas-Injected Foam HDPE Insulation - Black - 1000 Foot

ITEM #: BL-8232A-1000-BK MFG #: 8232A 1000 FOOT

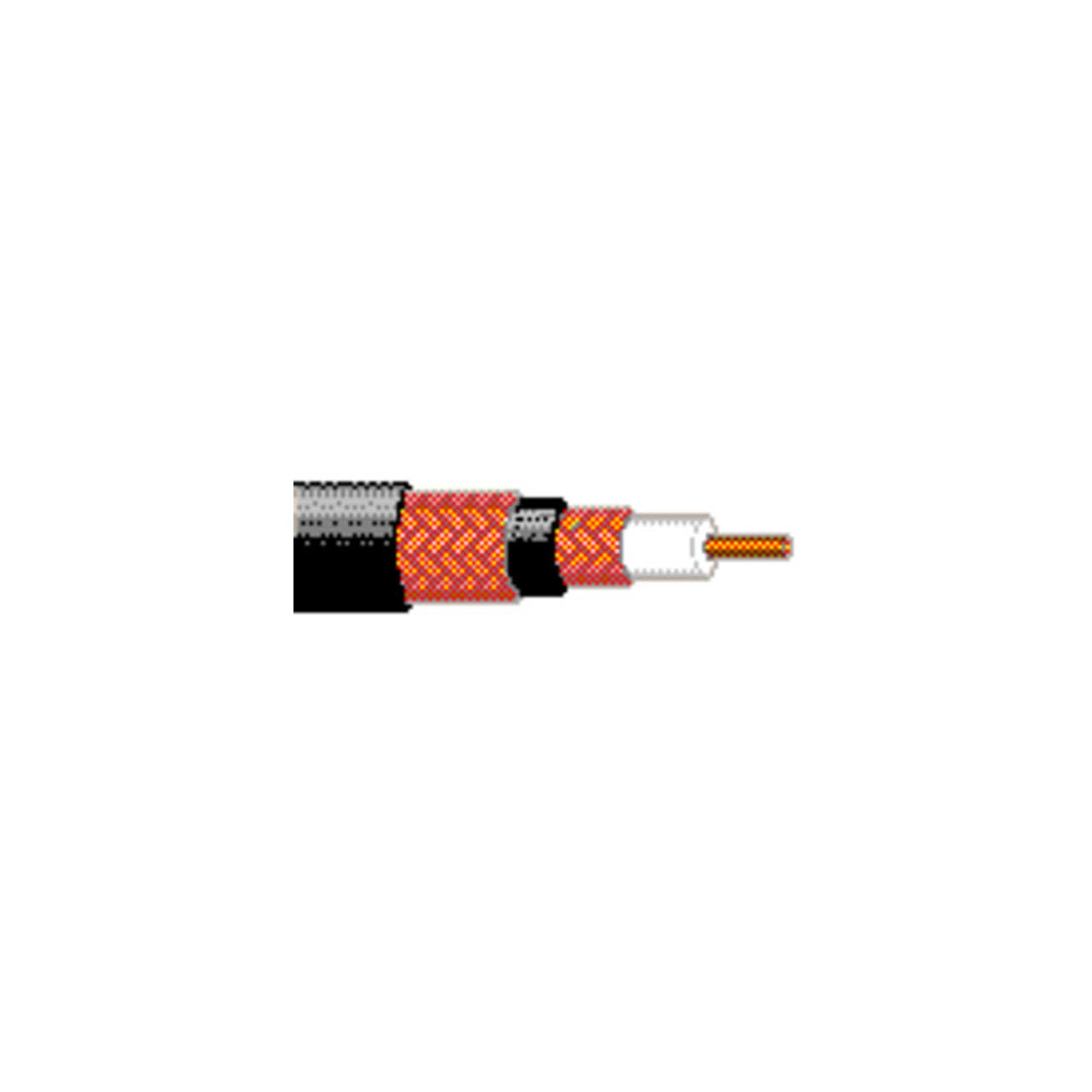

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-8232A-1000-BK

8232A 1000 FOOT - Overview

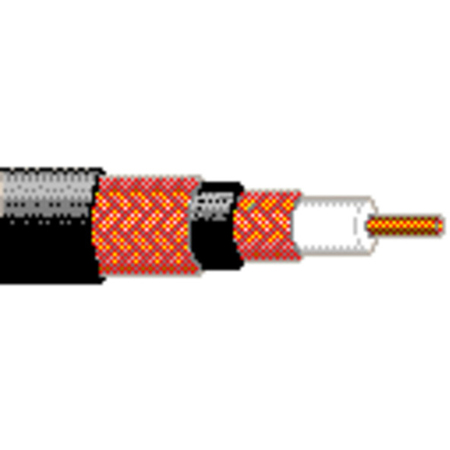

Belden 8232A is a 1000 Foot Video Triax cable, 20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shields (95% and 80% coverage), PVC jacket.

  • Specifications:

    • Temperature Range
    • Non-UL Temp Rating: 167°F (75°C)
    • UL Temp Rating: 140°F (60°C)
    • Operating Temp Range: -40° to 167°F (-40°C To +75°C)

      Mechanical Characteristics
    • Bulk Cable Weight: 63 lbs/1000ft
    • Max. Pull Tension: 125 lbs
    • Min. Bend Radius/Minor Axis: 3.25 in

      Standards
    • NEC/(UL) Compliance: CMR
    • CEC/C(UL) Compliance: CMG
    • RG Type: 59

      Applicable Environmental and Other Programs
    • Environmental Space: Indoor/Outdoor
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2011/65/EU (RoHS 2): Yes
    • EU Directive 2012/19/EU (WEEE): Yes
    • EU Directive 2015/863/EU (RoHS 2 amendment): Yes
    • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    • EU CE Mark: No
    • MII Order #39 (China RoHS): Yes

      Suitability
    • Suitability - Aerial: Yes - When supported by messenger wire
    • Suitability - Indoor: Yes
    • Suitability - Outdoor: Yes

      Flammability, LS0H, Toxicity Testing
    • UL Flammability: UL1666 Vertical Shaft
    • UL voltage rating: 300 V RMS

      Plenum/Non-Plenum
    • Plenum (Y/N): No
    • Plenum Number: 88232


  • GTIN:

    0612825438267
