Belden 8233A CMR RG-11 Indoor/Outdoor Triax Video Cable Solid BC/Double BC Braids Shielded 14 AWG - Black - 1000 Foot

ITEM #: BL-8233A-1000 MFG #: 8233A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,115.90

Our Price:

$4,213.35

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

8233A 0101000 - Overview

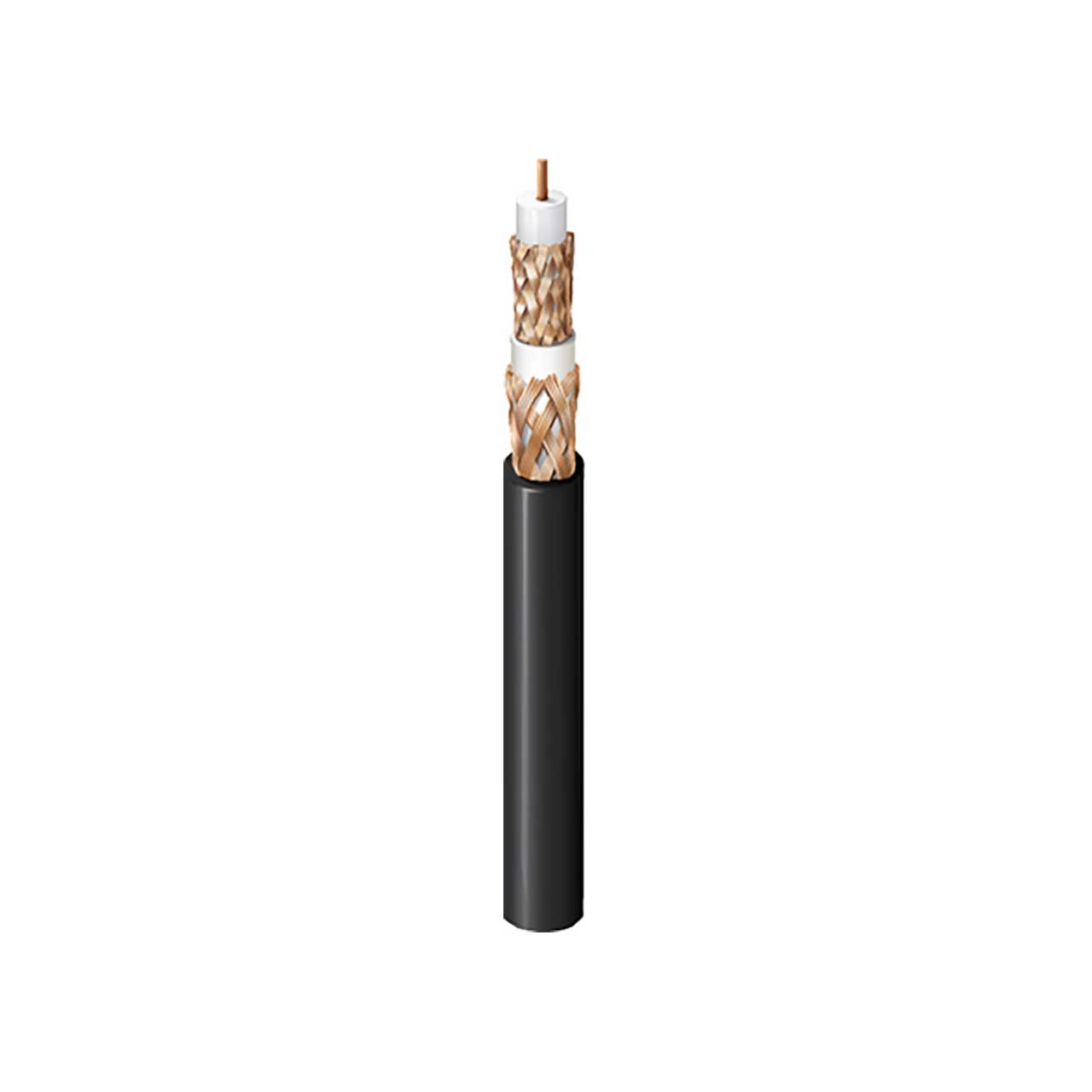

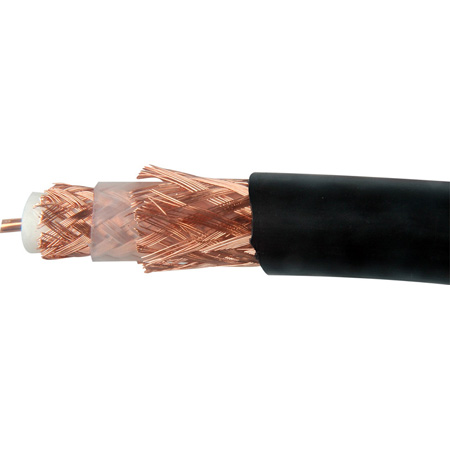

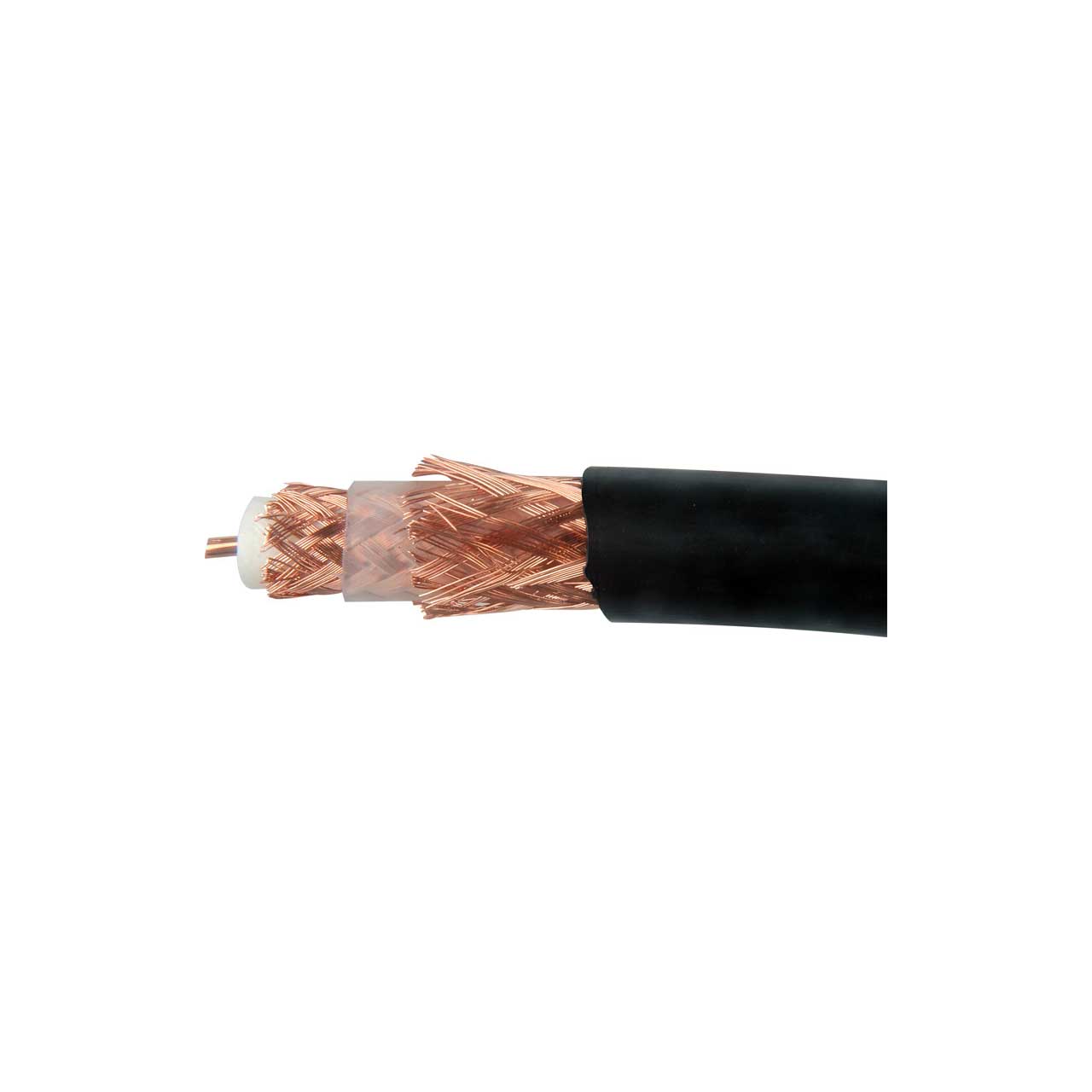

The Belden 8233A is an RG11 Triax Video Cable. It features a 14 AWG Solid Bare Copper Conductor, with PE Insulation, 95% Bare Copper Braid Shield, PVC Insulation, 80% Bare Copper Braid Shield in a CMR rated PVC Jacket.

If you need a cable that provides more bandwidth and rejection of interference than traditional coax, Belden Video Triaxial Cables meet those needs with the utmost quality standards. Belden has a comprehensive offering ranging from 14 AWG to 22 AWG that can be used for flexible or permanent installs. Common applications analog video cameras in the broadcast and television industries.

Applications
Analog Video
Interconnect camera to CCU (camera control unit)

  • Features:

    • Flexible Selection: Flexible versions are available for deployable applications
    • Multiple Jacket Options: Belflex provides extra flexibility (available in up to six colors) or choose a SCPE thermoset jacket for more ruggedness


  • Specifications:

    • Coax Construction: Triaxial
    • Coax Type: RG 11
    • Conductor AWG: 14
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Conductor Nom. Diameter (inches): 0.064
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nominal Diameter: 0.285 in
    • Inner Jacket Material: PE - Polyethylene
    • Inner Jacket Nominal Diameter: 0.365 in
    • Outer Shield Type: Braid
    • Outer Shield Material: Bare Copper (BC)
    • Outer Shield Coverage [%]: 80%
    • Outer Jacket Material: PE - Polyethylene
    • Outer Jacket Nominal Diameter: 0.475 in
    • NEC: Not listed by UL under NEC
    • Ohms: 75
    • Outside Diameter: 0.475
    • Outdoor Grade: Yes
    • Plenum/Riser: Riser
    • RG Type: RG11
    • RoHS Compliant: YES
    • Shield 1 type: Double Braid Shield
    • Shield 2 type: 2-95% BC Braids
    • Weight per Foot: 0.13600


  • Item Includes:

    • 8233A CMR RG-11 Triax Video Cable 14 AWG - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825355656
