Belden 8308 8/22 Low Capacitance Computer Cable for EIA RS-232 Applications - 100 Foot

Name: Belden 8308 8/22 Low Capacitance Computer Cable for EIA RS-232 Applications - 100 Foot
Brand: Belden
SKU: BL-8308-100
Price: 1091.81 USD
Availability: PreSale

ITEM #: BL-8308-100 MFG #: 8308 060100

Belden

List Price:

$1,104.84

Our Price:

$1,091.81

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8308 060100 - Overview

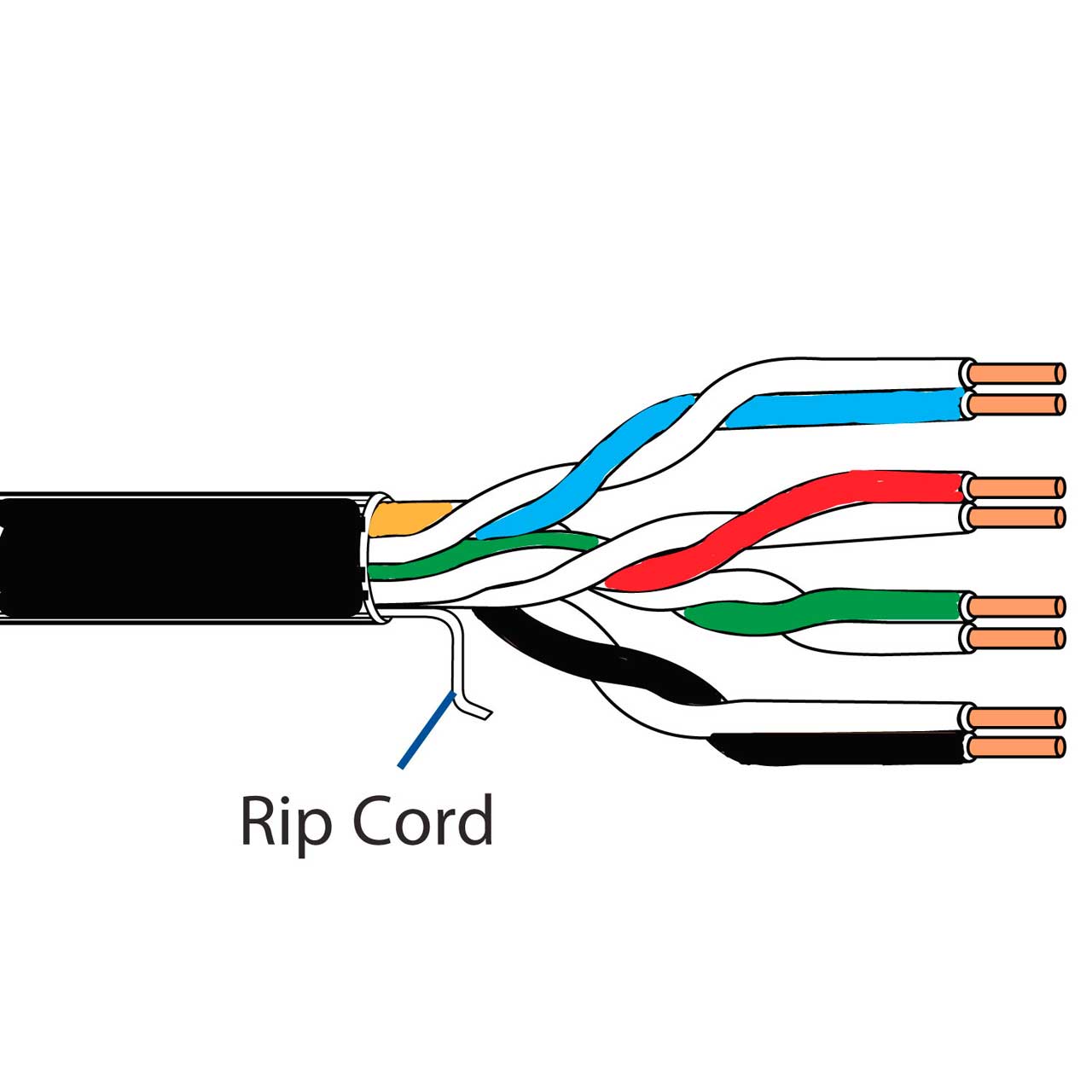

Belden 8308 Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, 8 twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket. Suitable for RS-232 Extended Distance Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ); Low Voltage Digital Control (24v, ); Line Level Audio; Panel Wiring applications.

Specifications:
- No. of Elements: 7
- AWG: 22
- Stranding: 7x30
- Material: TC - Tinned Copper
- Nom. Conductor DCR: 15 Ohm/1000ft
- Nom. Capacitance Cond-to-Cond: 35 pF/ft
- Nom. Capacitance Cond-to-Other (Conds + Shield): 63 pF/ft
- Nom. Velocity of Prop. Max.: 60%
- Current: 1.5 Amps per Conductor at 25§C
- Nom Outer Shield DCR: 4.4 Ohm/1000ft
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
- UL Rating Temp: 80°C (UL AWM 2464)
- Operating Temp: -30°C to +80°C
- Max. Pull Tension: 180 lbs
- Bulk Cable Weight: 94 lbs/1000ft
- Environmental Suitability: Indoor
- Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: 2464
- CEC / C(UL) Compliance: CMG
GTIN:
0612825203032

8308 060100 - Recommended Accessories

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
LXS31 In-line 3-Pin DIN Male Cable End Connector
LXS31
Our Price: $3.35
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

8308 060100 - Reviews

8308 060100 - Attachments

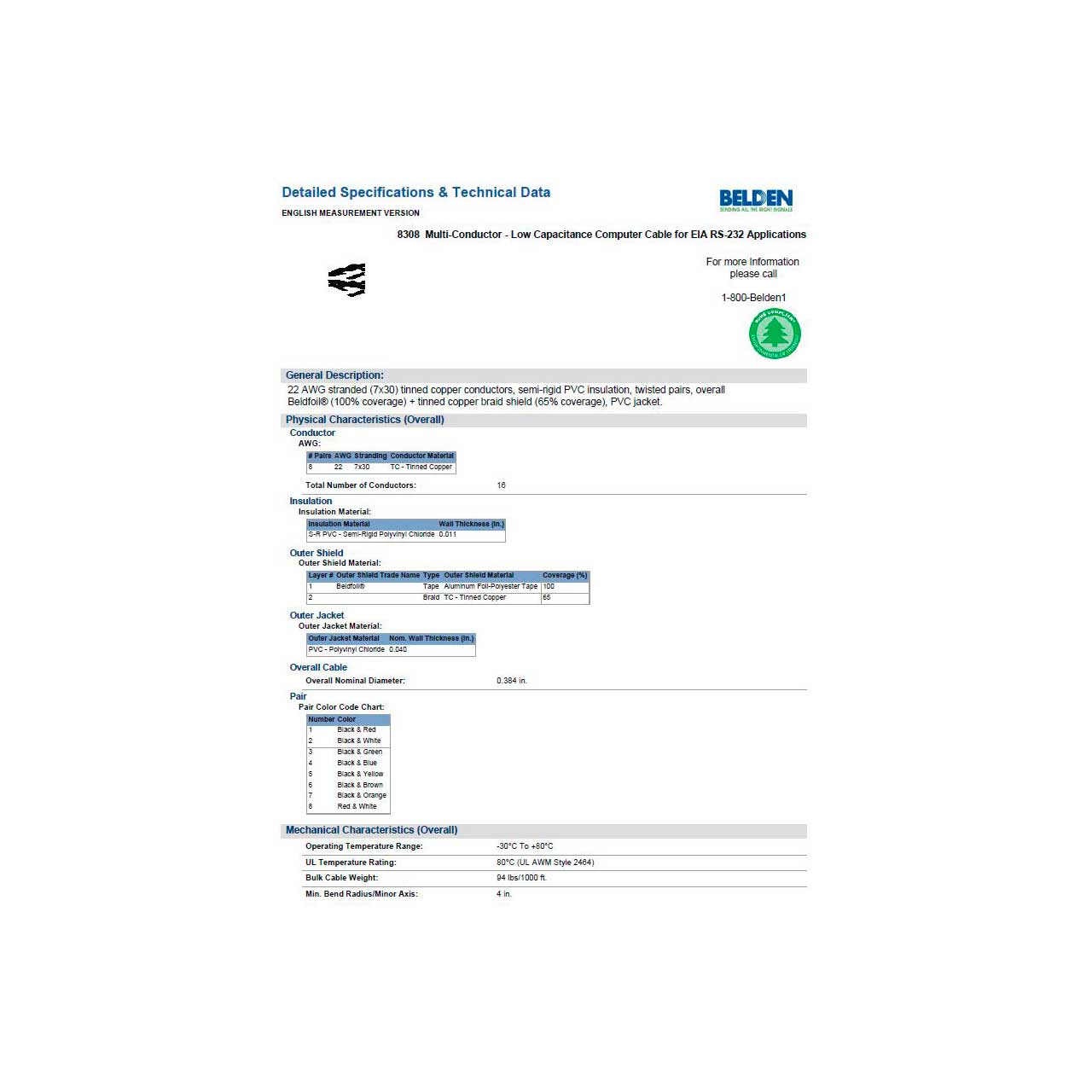

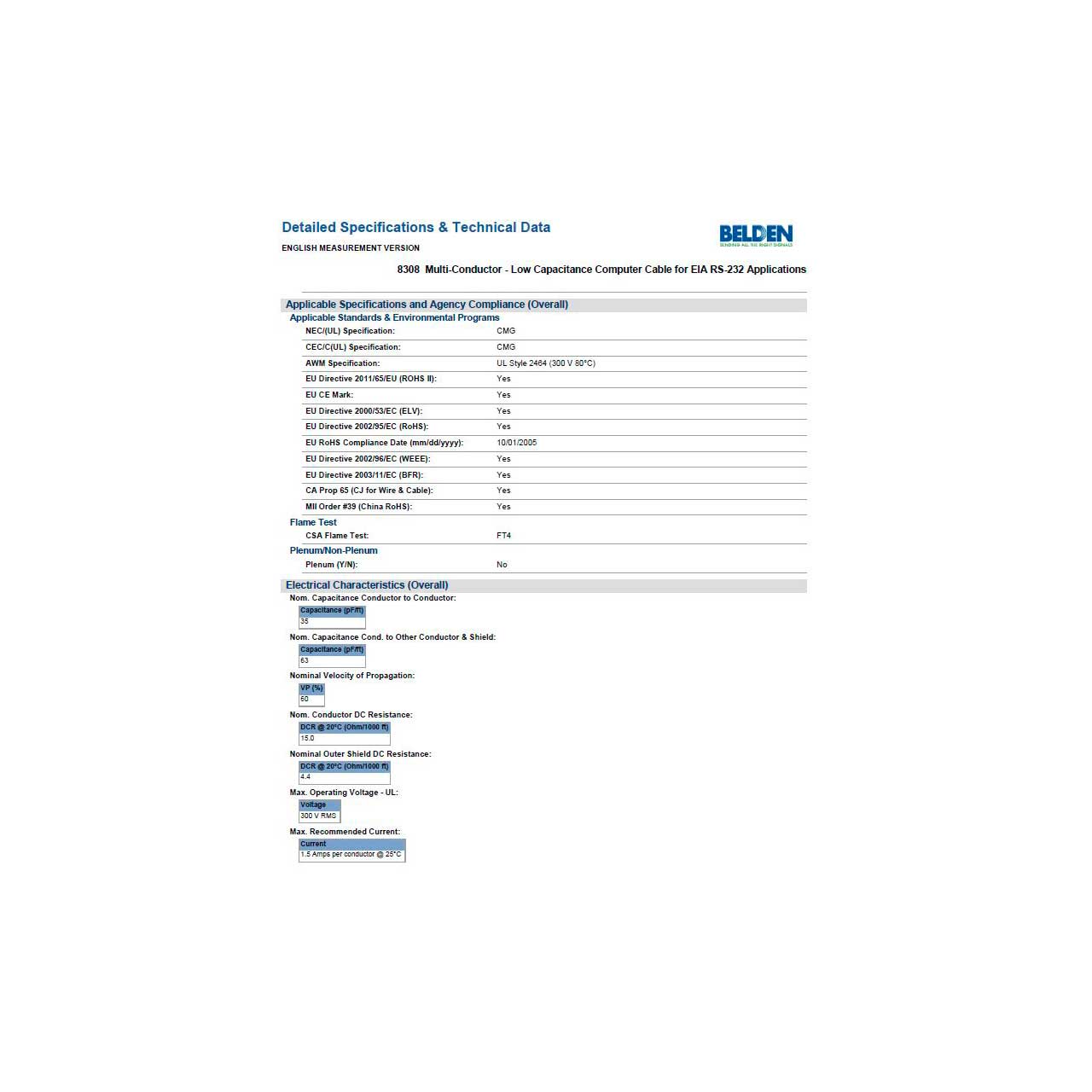

See Belden BL-8308-100 Specifications (PDF)
