Belden 8451 CM Single Pair Analog Audio & Instrumentation Cable Shielded/Stranded TC 22AWG - Black - 1000 Ft Reel

ITEM #: BL-8451-1000 MFG #: 8451 0101000

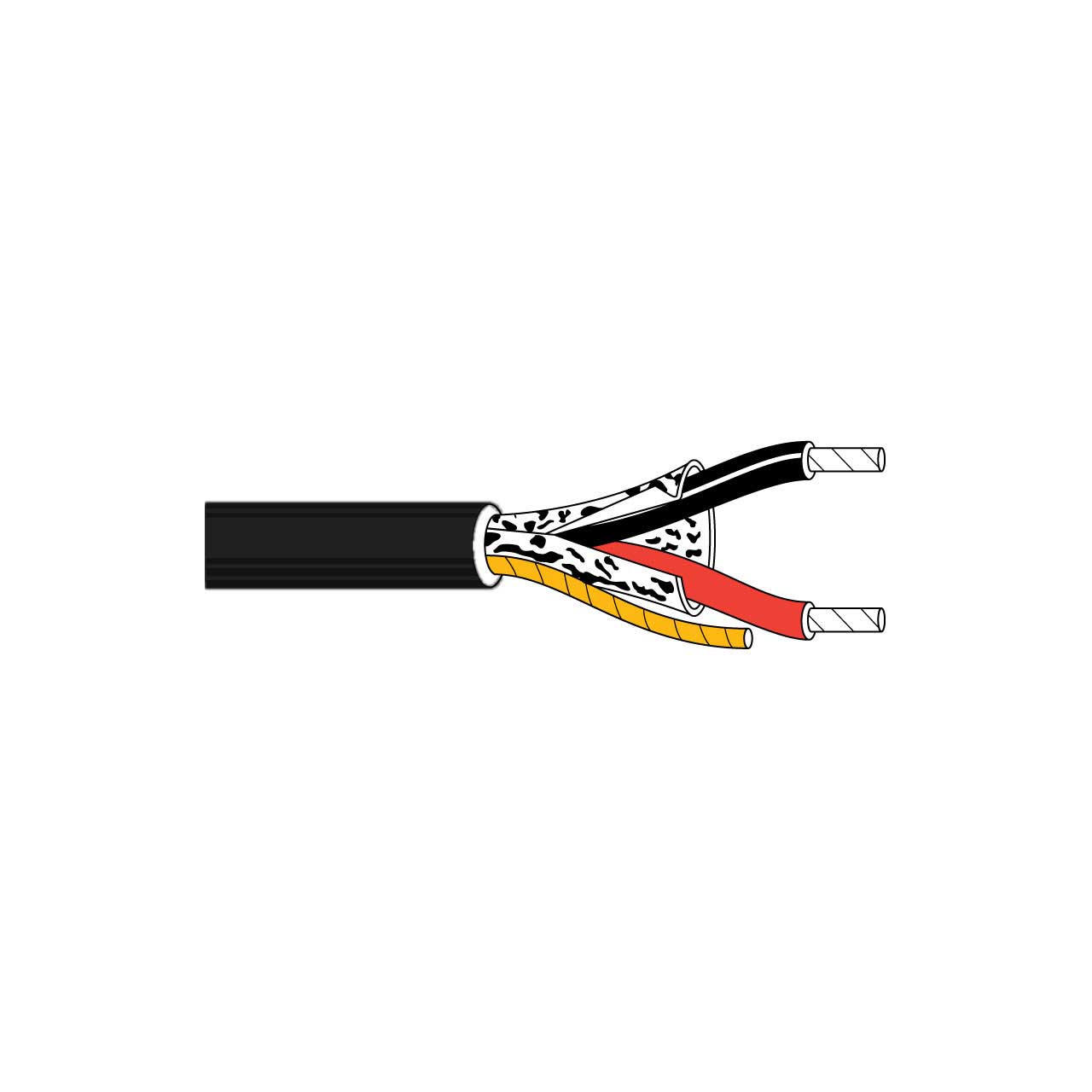

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$505.10

Our Price:

$282.45

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

8451 0101000 - Overview

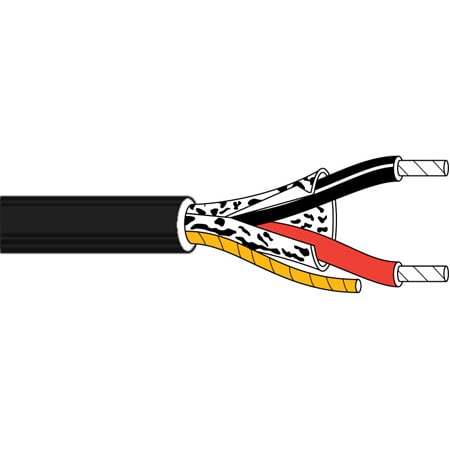

Belden 8451 is a single Pair, 22AWG Analog Audio & Instrumentation Cable with stranded (7x30) TC conductors, polypropylene insulation, paper wrap and twisted pair. It features an overall Beldfoil® shield (100% coverage) and a 22 AWG stranded TC drain wire in a PVC jacket.

Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden’s quality standards in mind.

Applications
Designed for ease of use with automatic stripping equipment
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio
Computer communication; panel wiring
Audio instrument or microphone cable for studio and live stage application
Internal wiring of portable audio equipment racks
Balanced and unbalanced audio signals in commercial and residential audio installations

  • Features:

    • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
    • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
    • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


  • Specifications:

    • Conductor Pairs: 1
    • Conductor Size: 22 AWG
    • Conductor Stranding: 7x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Element: Pair(s)
    • Insulation Material: PP - Polypropylene
    • Insulation Nom. Thickness: 0.009 in (0.23 mm)
    • Insulation Color Code: Black & Red
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
    • Outer Jacket Nom. Diameter: 0.138 in (3.51 mm)
    • Overall Cable Diameter (Nominal): 0.138 in (3.51 mm)
    • UL Voltage Rating: 300 V RMS
    • Operating Temperature Range: -20°C To +75°C
    • Bulk Cable Weight: 22.323 Kg/Km
    • Max. Recommended Pulling Tension: 120.101 N
    • Min. Bend Radius/Minor Axis: 38.100 mm
    • Max Current: 2.9 Amps per Conductor at 25°C
    • Nom. Characteristic Impedence (Ohm): 45
    • Nom. Inductance: (uH/m) 0.55777
    • Nom. Capacitance Conductor to Conductor: (pF/m) 111.554
    • Nom. Capacitance Cond. to Other Conductor & Shield: (pF/m) 219.827
    • Nominal Velocity of Propagation: VP (%) 66
    • Nominal Delay: (ns/m) 4.9215
    • Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/km) 47.5745


  • Item Includes:

    • 8451 CM Single Pair Analog Audio & Instrumentation Cable 22AWG - Black - 1000 Ft Reel


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825207726
