Belden 88102 CMP/Plenum 100 Ohm 2-Pr Computer Cable for EIA RS-232/422 FFEP Shld/Str/TC 24 AWG - Gray - 500 Foot

Name: Belden 88102 CMP/Plenum 100 Ohm 2-Pr Computer Cable for EIA RS-232/422 FFEP Shld/Str/TC 24 AWG - Gray - 500 Foot
Brand: Belden
SKU: BL-88102-500GY
Price: 6879.23 USD
Availability: PreSale

ITEM #: BL-88102-500GY MFG #: 88102 008500

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7,668.30

Our Price:

$6,879.23

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

88102 008500 - Overview

FFEP - Suited for extreme high temperature environments

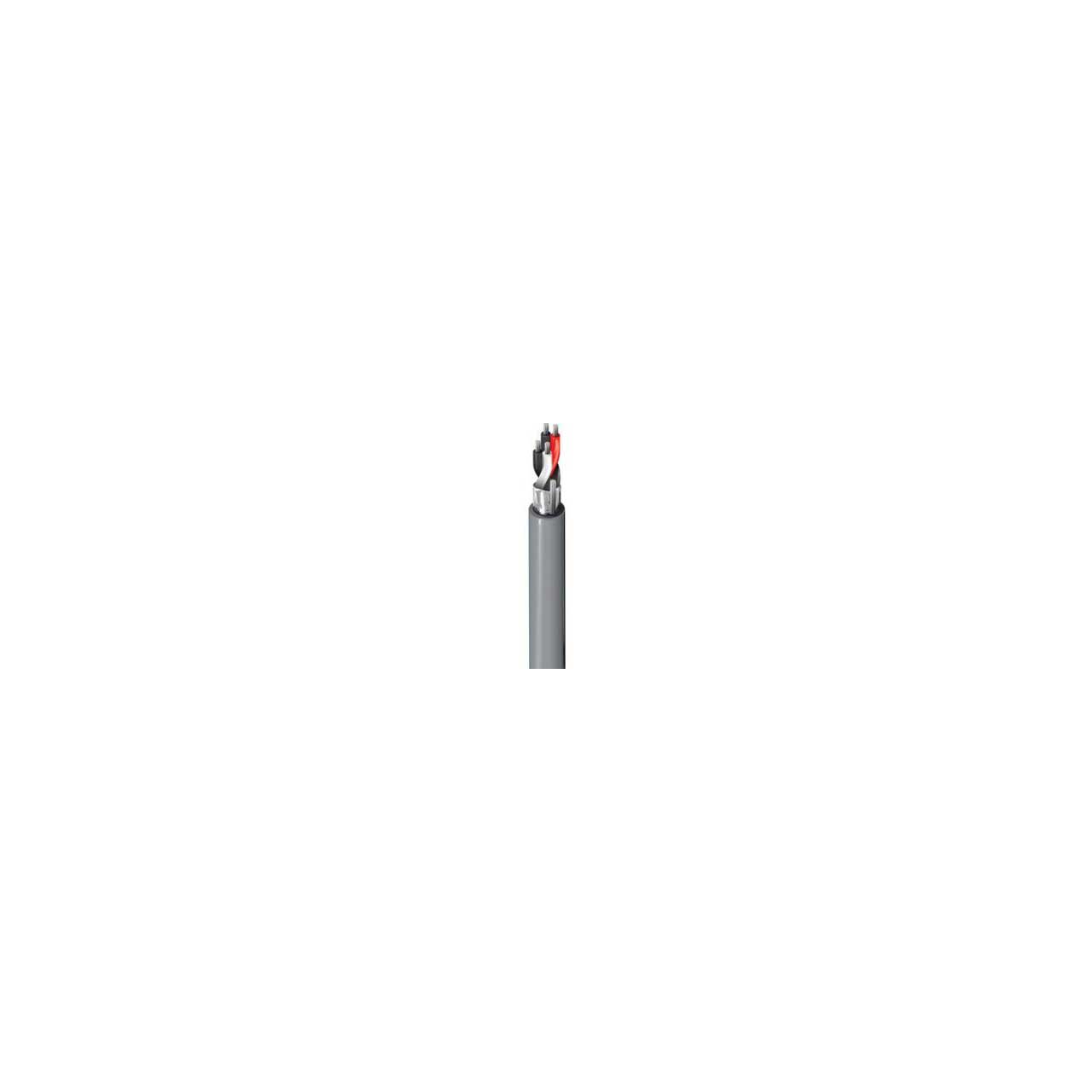

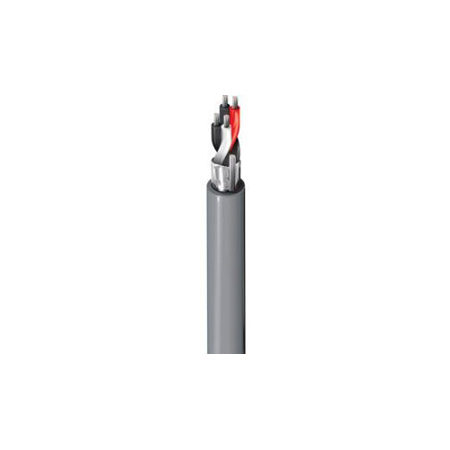

Belden 88102 is a CMP/Plenum rated EIA RS-232/422 Computer Cable. It features 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, with an overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire in a fluorocopolymer jacket.

Features:
- Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
- Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
- Lower Capacitance: Strong signal transmission over extended distances
- Increased Flexibility: Finely stranded conductors offer easier installation
Item Includes:
- 88102 CMP/Plenum Computer Cable - Gray - 500 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825216650

88102 008500 - Recommended Accessories

Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $151.93
Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19

88102 008500 - Reviews

88102 008500 - Attachments

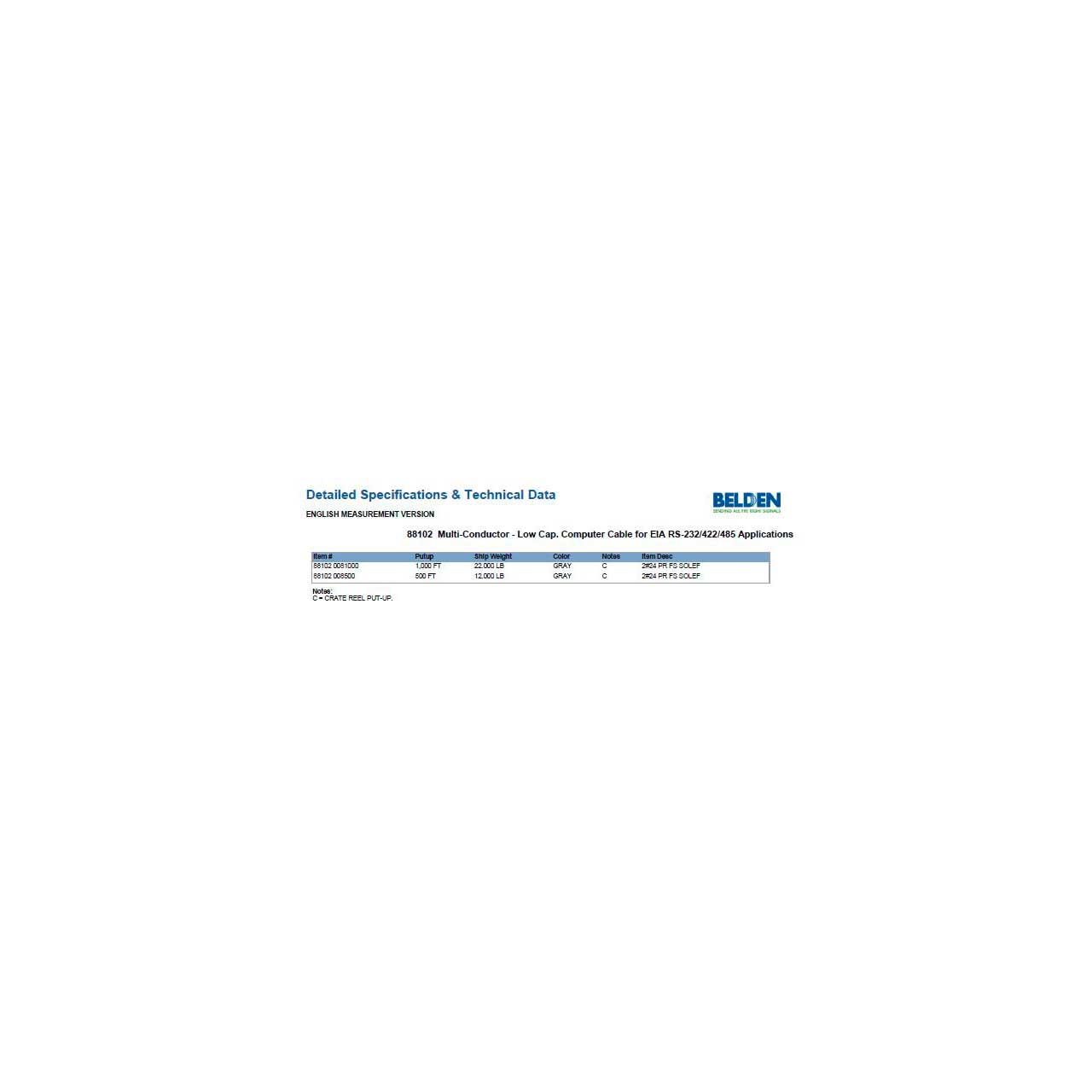

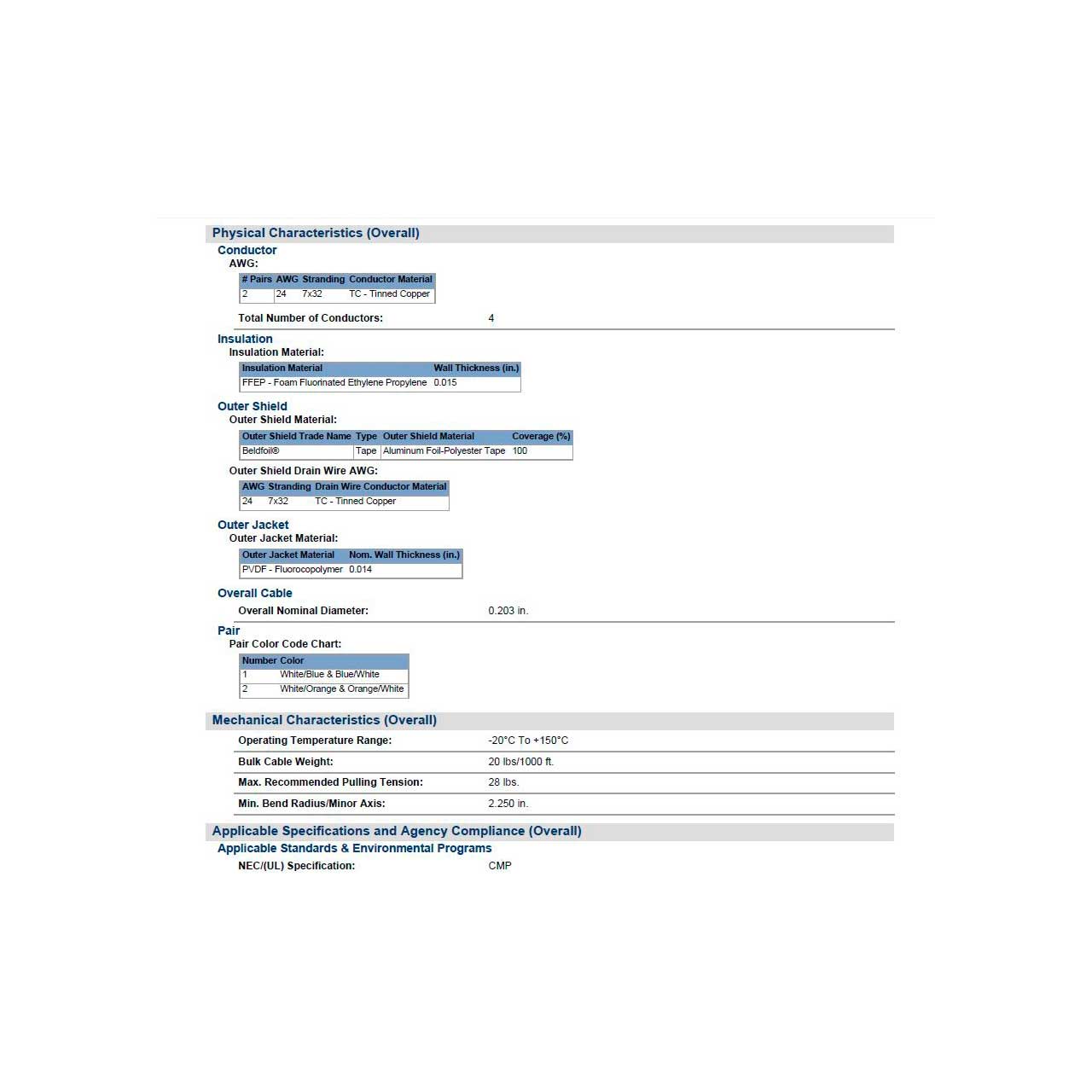

See Belden BL-88102-500GY Specifications (PDF)

Overview

88102 008500 - Overview

FFEP - Suited for extreme high temperature environments

Features:
- Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
- Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
- Lower Capacitance: Strong signal transmission over extended distances
- Increased Flexibility: Finely stranded conductors offer easier installation
Item Includes:
- 88102 CMP/Plenum Computer Cable - Gray - 500 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825216650
