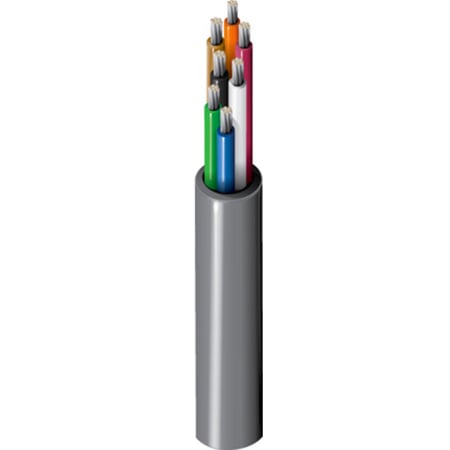

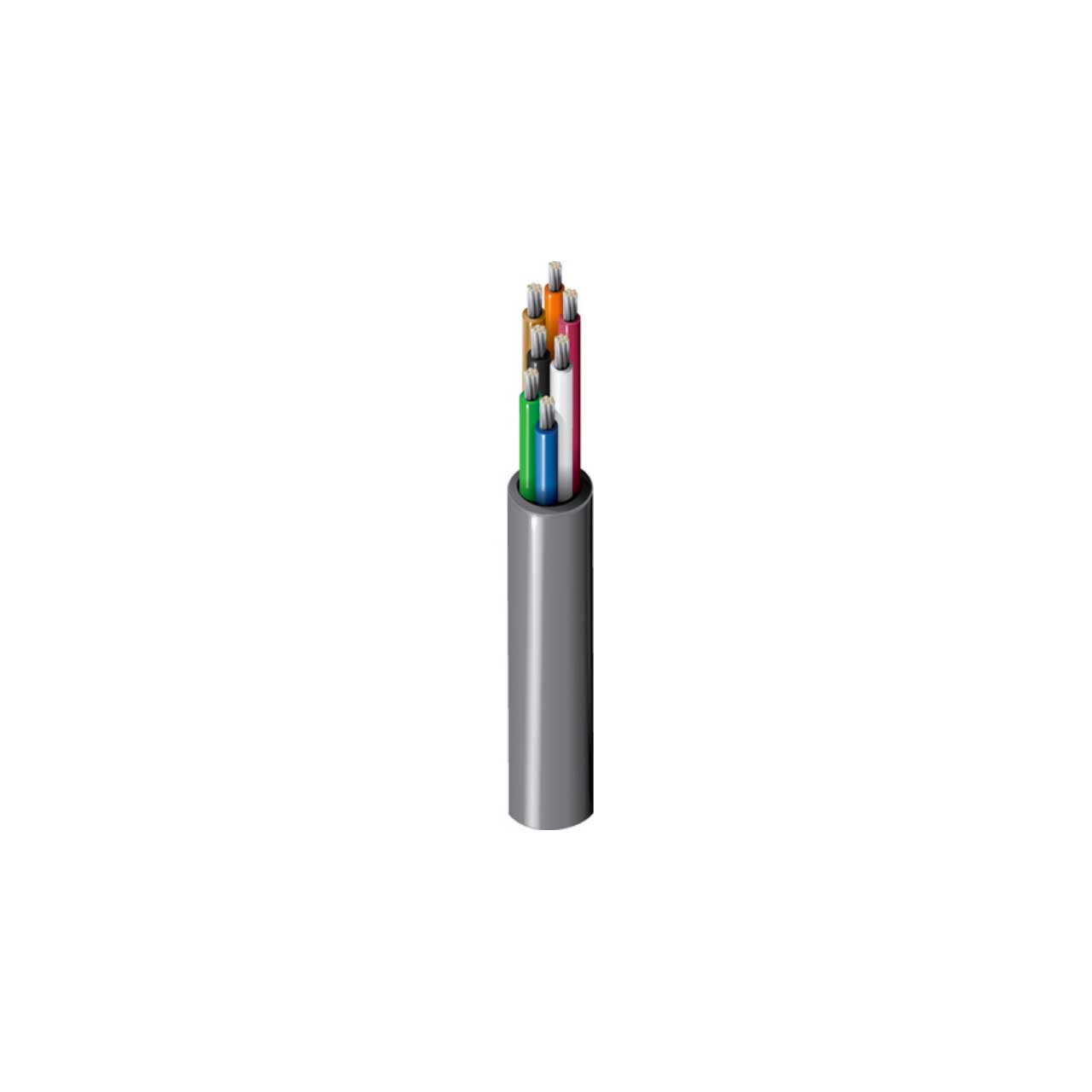

Belden 9455 9 Conductor 20AWG (7x28) Tinned Copper - PVC Insulation - PVC Outer Jacket - CMG - Chrome - 100 Foot

9455 060100 - Overview

• Specifications:

  • Physical
  • Conductor
  • Awg: 20
  • Stranding: 7x28
  • Material: TC - Tinned Copper
  • No. of Conductorsr: 9
  • Insulation Material: PVC - Polyvinyl Chloride
  • Nominal Wall Thickness: 0.015"
  • Color Chart: 1 White, 2 Red, 3 Green, 4 Brown, 5 Blue, 6 Orange, 7 Yellow, 8 Purple (around Black), 9 Black
  • Outer Shield Material: Unshielded
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Nominal Diameter: 0.317"
  • Nominal Wall Thickness: 0.035"

    Electrical
  • Nominal Conductor DCR: 10.7 Ohm/1000ft
  • Nom. Capacitance Conductor to Conductor: 27 pF/ft
  • Max. Recommended Current (A): 2.8 Amps per conductor @ 77°F
  • UL Voltage Rating: 300 V RMS

    Temperature Range
  • UL Temp Rating: 176°F (UL AWM Style 2464)
  • Operating Temp Range: -4 to 176°F

    Mechanical Characteristics
  • Bulk Cable Weight: 63 lbs/1000ft
  • Max Recommended Pulling Tension: 111 lbs
  • Min Bend Radius/Minor Axis: 3.25"

    Standards
  • NEC/(UL) Specification: CMG
  • CEC/C(UL) Specification: CMG
  • UL AWM Style: UL Style 2464 (300 V 176°F)
  • CPR Euroclass: Eca

    Applicable Environmental and Other Programs
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2003/96/EC (BFR): Yes
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU Directive 2012/19/EU (WEEE): Yes
  • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
  • EU CE Mark: Yes
  • EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes

    Flammability, LS0H, Toxicity Testing
  • UL Flammability: UL1685 FT4 Loading
  • CSA Flammability: FT4
  • ISO/IEC Flammability: IEC 60332-1-2
  • UL voltage rating: 300 V RMS

    Plenum/Non-Plenum
  • Plenum (Y/N): No
