Belden 9538 CMG Rated EIA RS-232 Computer Control Cable Str TC/Shielded 8x24AWG - Chrome - 1000 Foot

ITEM #: BL-9538-1000 MFG #: 9538 0601000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,737.60

Our Price:

$2,179.66

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    9538 0601000 - Overview

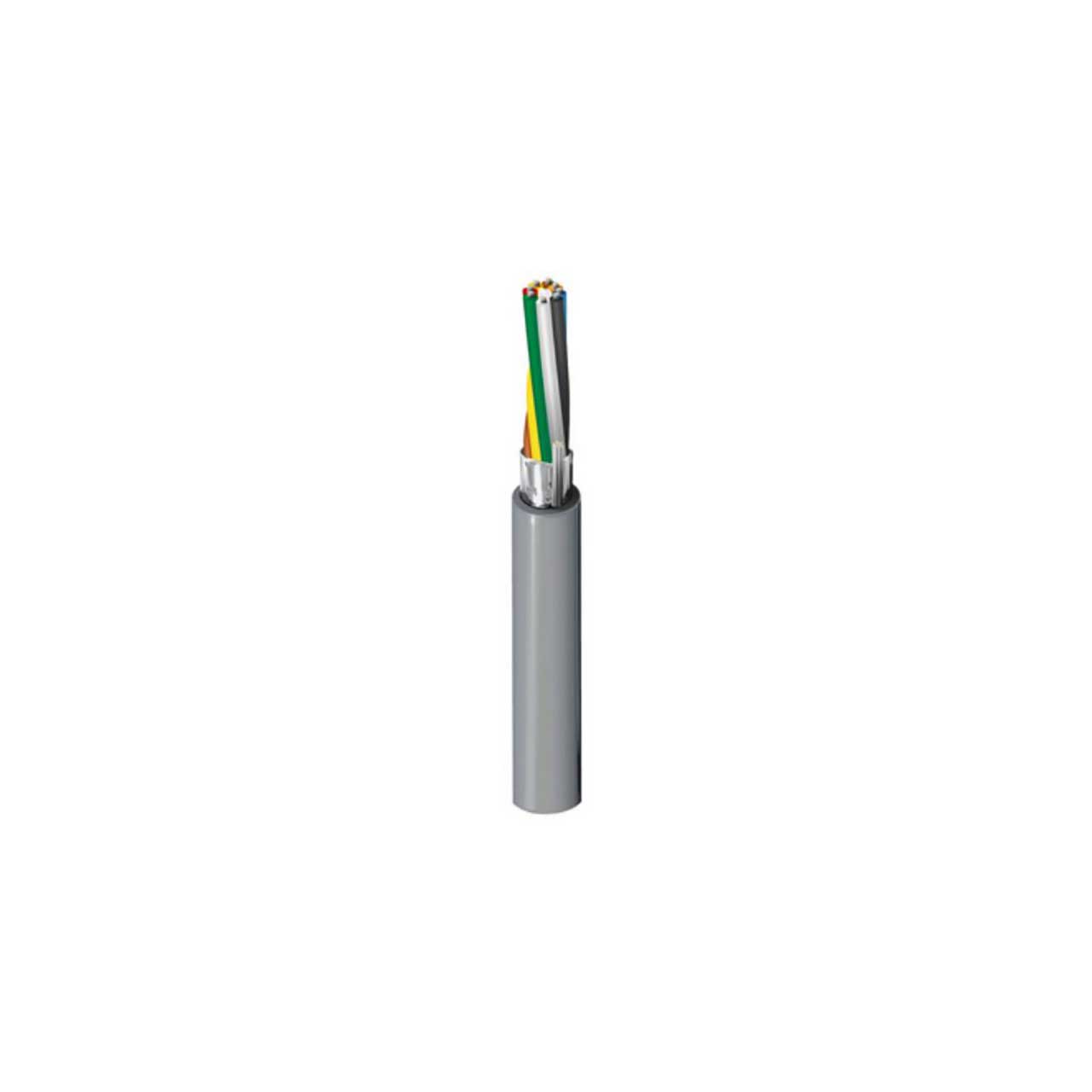

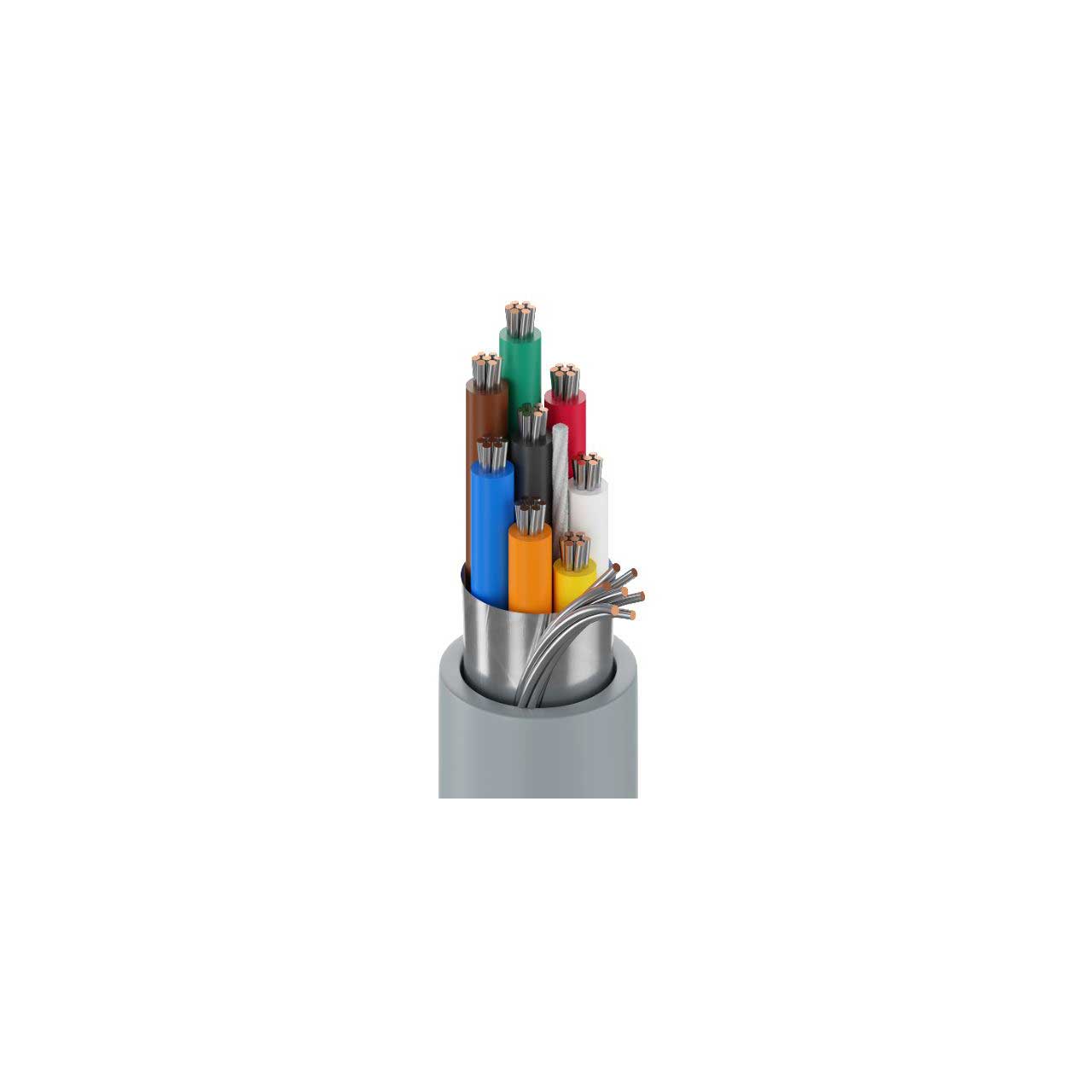

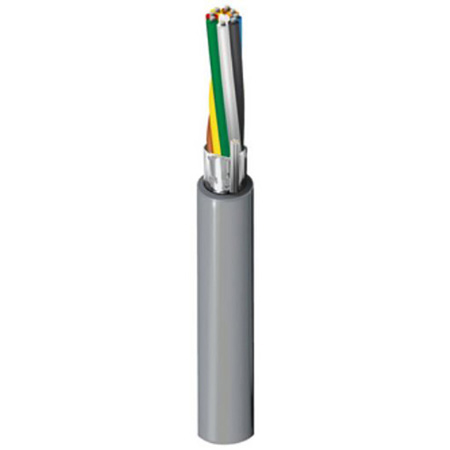

    Belden 9538 is a CMG rated, EIA RS-232 Computer Control Cable. It features Eight 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, an overall Beldfoil® shield (100% coverage), with a 24 AWG stranded tinned copper drain wire in a PVC jacket.

    With proven reliability and performance backed by a 10-year no-cost warranty, these utility-grade essentials will outlast alternative options-even in the most demanding environments.

    Applications
    RS-232 Applications
    Computer Communications
    Low Voltage Analog Signals (4-20mA, 0-10V, ...)
    Low Voltage Digital Control (24V, .)
    Line Level Audio; Panel Wiring

    • Features:

      • Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
      • Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
      • Lower Capacitance: Strong signal transmission over extended distances
      • Increased Flexibility: Finely stranded conductors offer easier installation

    • Specifications:

      • Conductor: 8 Conductor, 24 AWG, 7x32 stranding Tinned Copper
      • Insulation Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
      • Insulation Nom. Thickness: 0.011 in (0.28 mm)
      • Insulation Nom. Insulation Diameter: 0.044 in (1.1 mm)
      • Insulation Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow
      • Outer Shield Material: Bi-Laminate (Alum+Poly) Tape - 100%
      • Outer Shield Drainwire Type: 24 AWG (7x32) TC
      • Outer Jacket Material: Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.032 in (0.81 mm)
      • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
      • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
      • Operating Temperature Range: -30°C To +80°C
      • UL Temperature Rating: 80°C (UL AWM Style 2464)
      • Bulk Cable Weight: 31 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 44 lbs.
      • Min. Bend Radius/Minor Axis: 2.250 in.
      • NEC/(UL) Specification: CMG
      • NEC Articles: 800
      • CEC/C(UL) Specification: CMG
      • AWM Specification: UL Style 2464 (300 V 80°C)
      • CA Prop 65 (CJ for Wire & Cable): Yes
      • MII Order #39 (China RoHS): Yes
      • UL Flame Test: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
      • CSA Flame Test: FT4
      • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
      • Plenum (Y/N): No
      • Capacitance: 33 pF/ft
      • DC Resistance @ 20°C: 25 Ohm/1000 ft
      • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

    • Item Includes:

      • 9538 CMG Rated EIA RS-232 Computer Control Cable - Chrome - 1000 Foot

    • Warranty:

      • 10 Year Limited Warranty

    • GTIN:

      0612825255352
