Belden 9740 1 Pair 18AWG Audio Control & Instrumentation Cable - 500 Foot

ITEM #: BL-9740-500 MFG #: 9740 060500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$729.55

Our Price:

$650.58

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9740 060500 - Overview

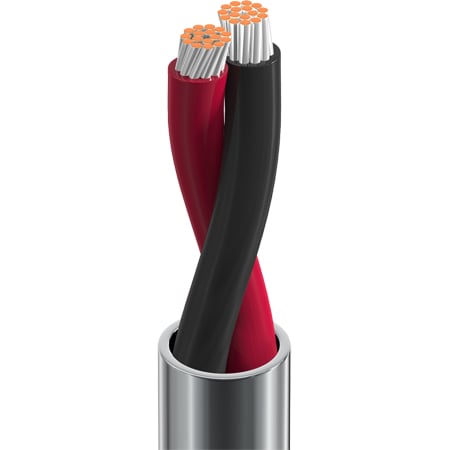

Belden 9740 Electronic, 1 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG. Suitable for low voltage analog signals (4-20ma, 0-10v, ); low voltage digital control (24v, ); line level audio; computer communication; panel wiring applications.

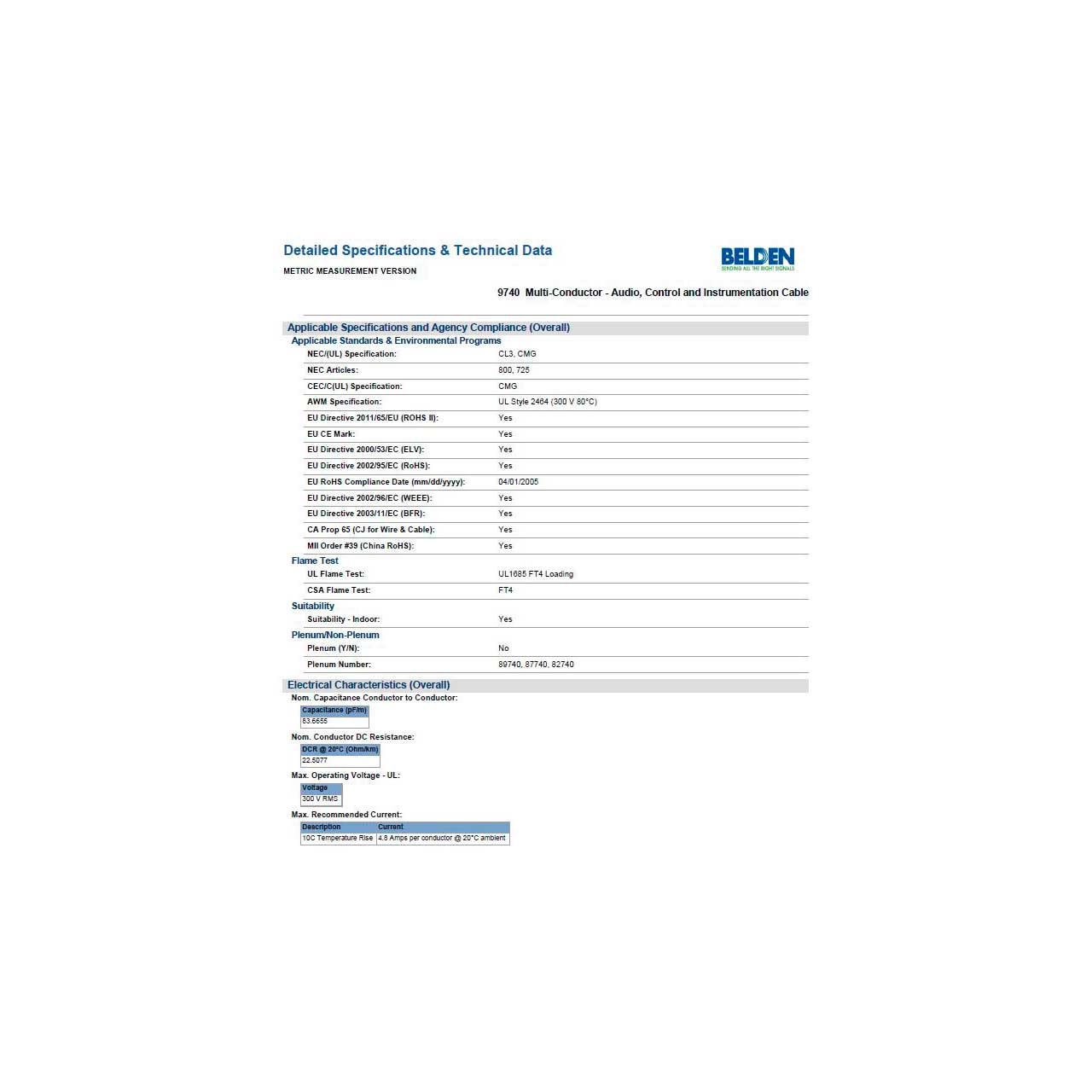

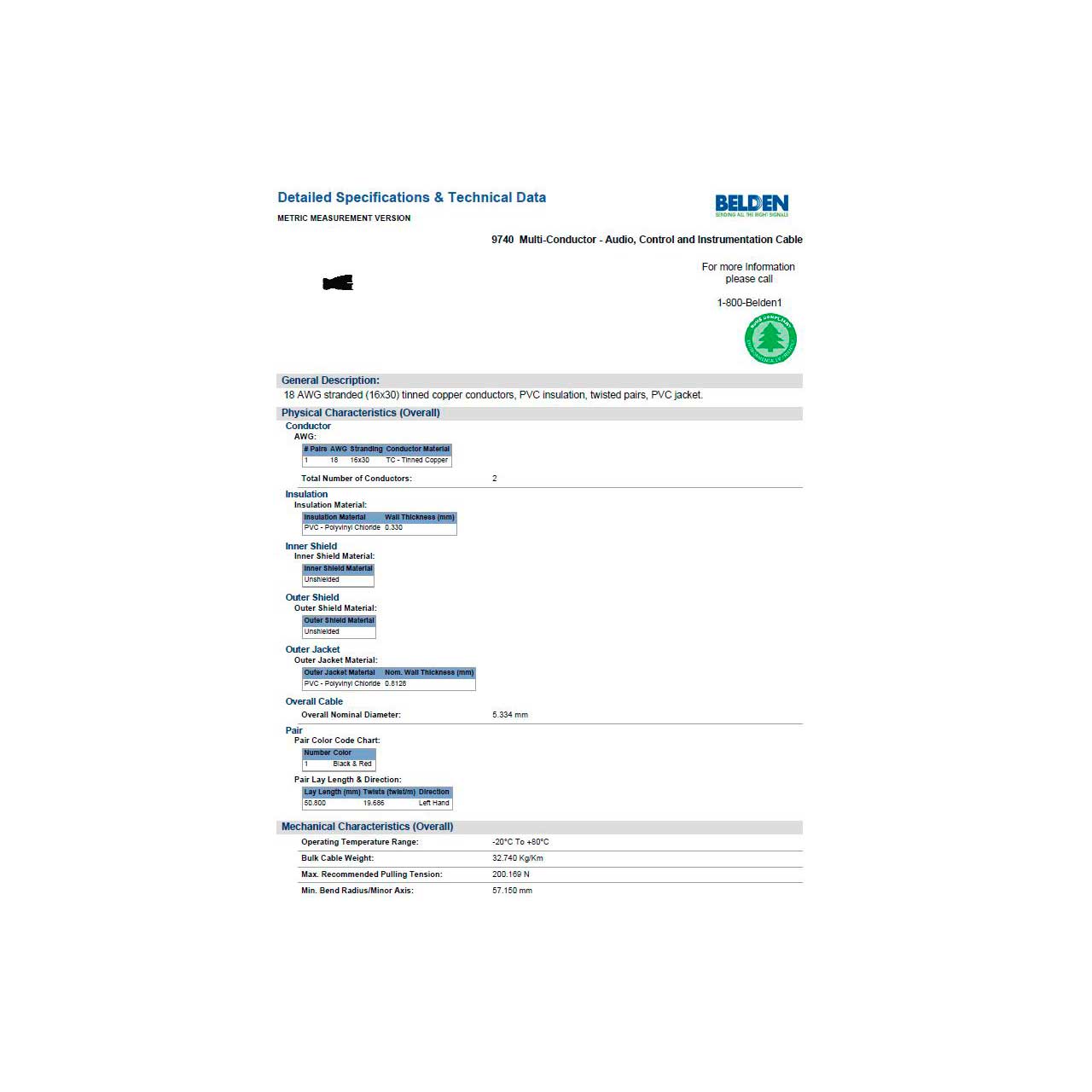

  • Specifications:

    • No. of Elemens: 1
    • AWG: 18
    • Stranding: 16x30
    • Material: TC - Tinned Copper
    • Nom. Conductor DCR: 6.86 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 25.5 pF/ft
    • Max. Current: 4.8 Amps per Conductor at 20§C
    • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2464)
    • UL Rating Temp: 80°C (UL AWM 2464)
    • Operating Temp: -20°C to +80°C
    • Max. Pull Tension: 45 lbs
    • Bulk Cable Weight: 21 lbs/1000ft
    • Environmental Suitability: Indoor
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
    • NEC / UL Compliance: Article 725, Article 800, CMG, CL3


  • GTIN:

    0612825257950
