Belden 9842 2 Pair 24 AWG RS-485 Computer Cable - 500 Foot

Name: Belden 9842 2 Pair 24 AWG RS-485 Computer Cable - 500 Foot
Brand: Belden
SKU: BL-9842-500
Price: 1289.85 USD
Availability: PreSale

ITEM #: BL-9842-500 MFG #: 9842 060500

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,042.85

Our Price:

$1,289.85

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9842 060500 - Overview

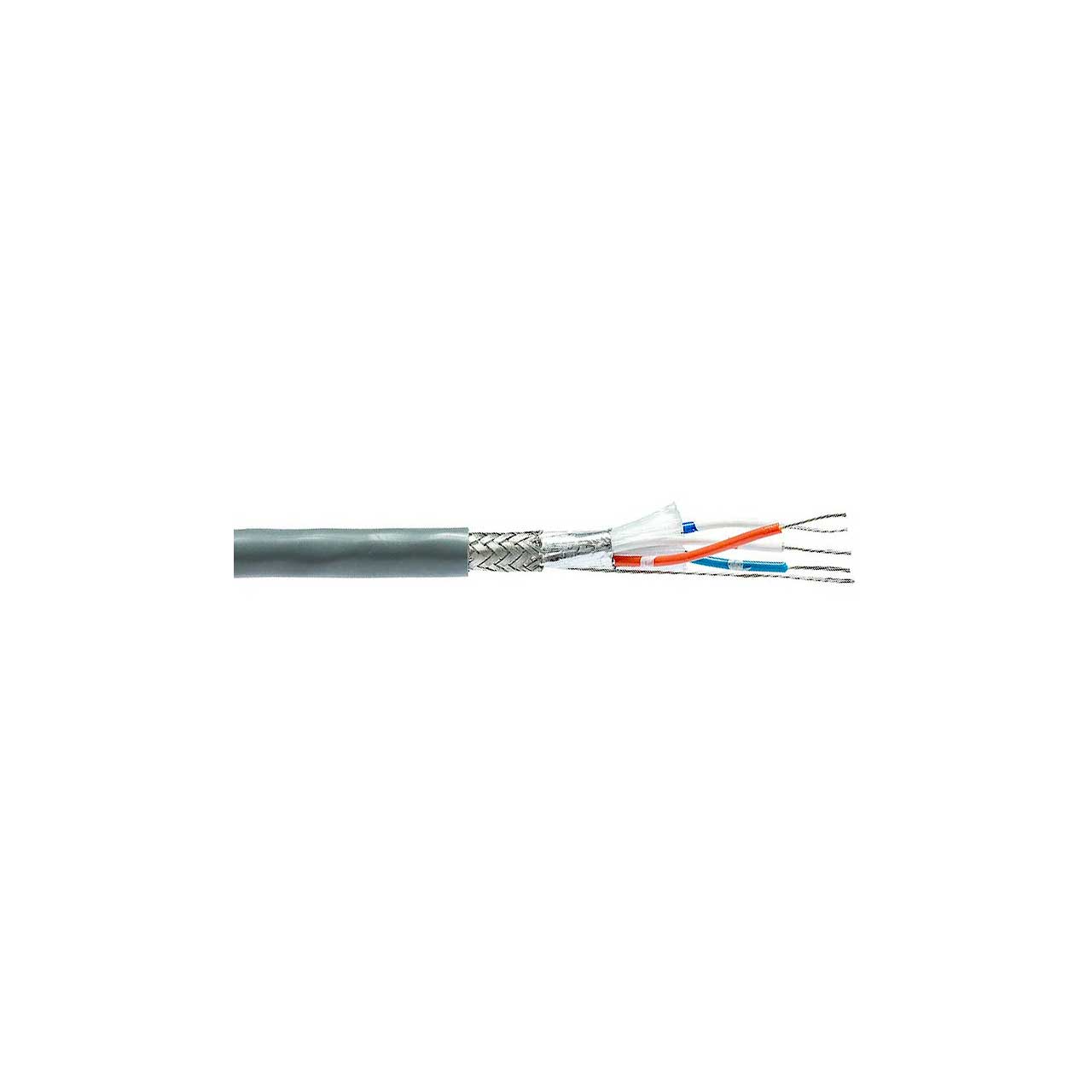

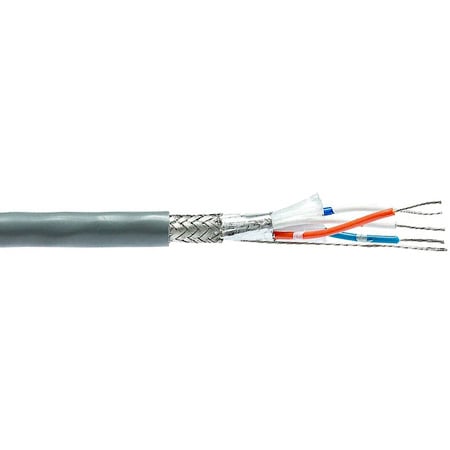

Belden 9842 24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, PVC jacket. Suitable for RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, .); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Specifications:
- AWG: 24
- Stranding: 7x32
- Material: TC - Tinned Copper
- Nominal Diameter: 0.021 in
- Conductor Count: 2
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
- UL Rating: 80°C (UL AWM 2919)
- Operating: -30°C to +80°C
- Stationary Min.: 3.5 in
- Max. Pull Tension: 87 lbs
- Bulk Cable Weight: 49 lbs/1000ft
- Environmental Suitability: Indoor
- Flammability / Fire: Resistance: IEC 60332-1-2
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: 2919
- CEC / C(UL) Compliance: CM
- CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
GTIN:
0612825259541

9842 060500 - Recommended Accessories

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
LXS31 In-line 3-Pin DIN Male Cable End Connector
LXS31
Our Price: $3.35
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

9842 060500 - Reviews

9842 060500 - Attachments

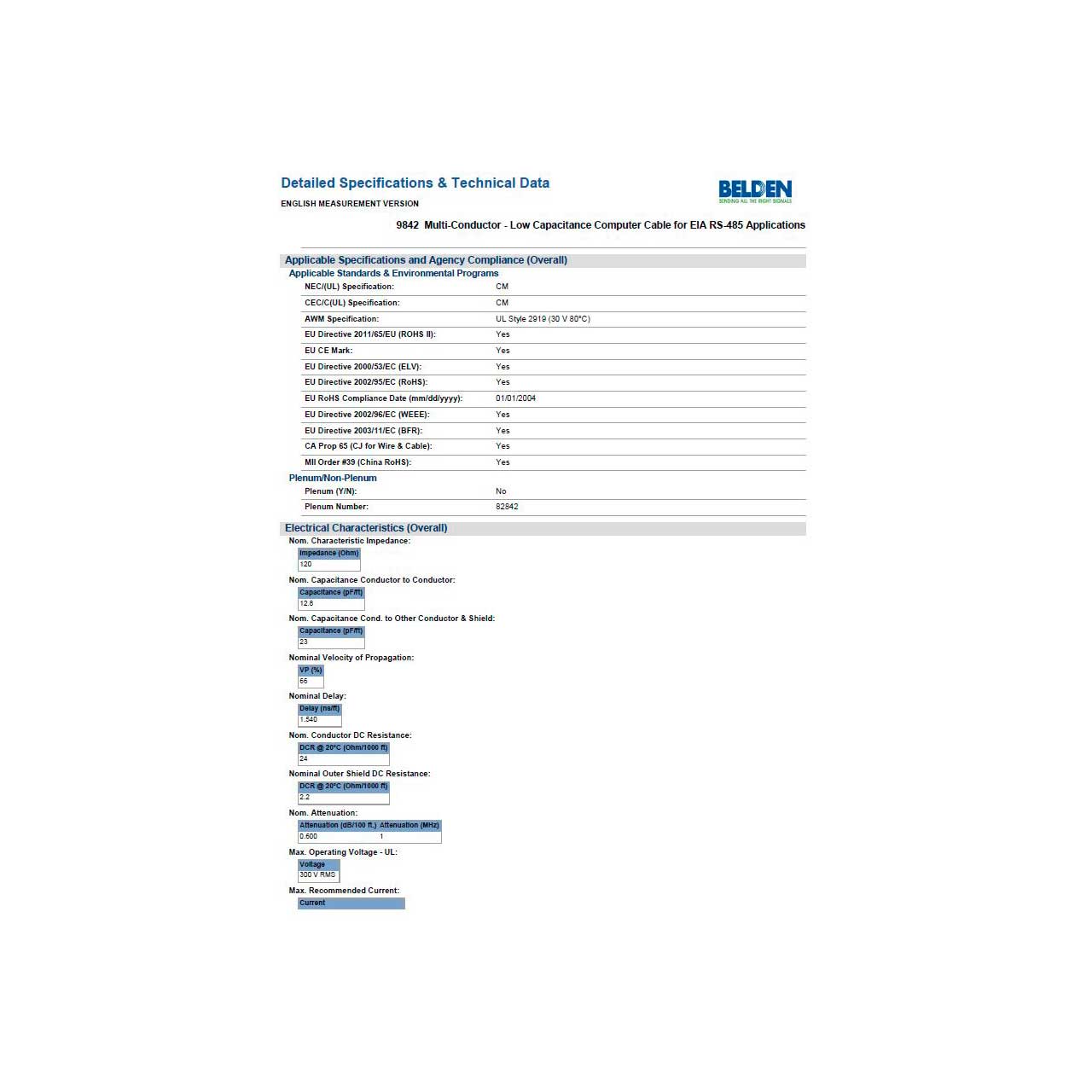

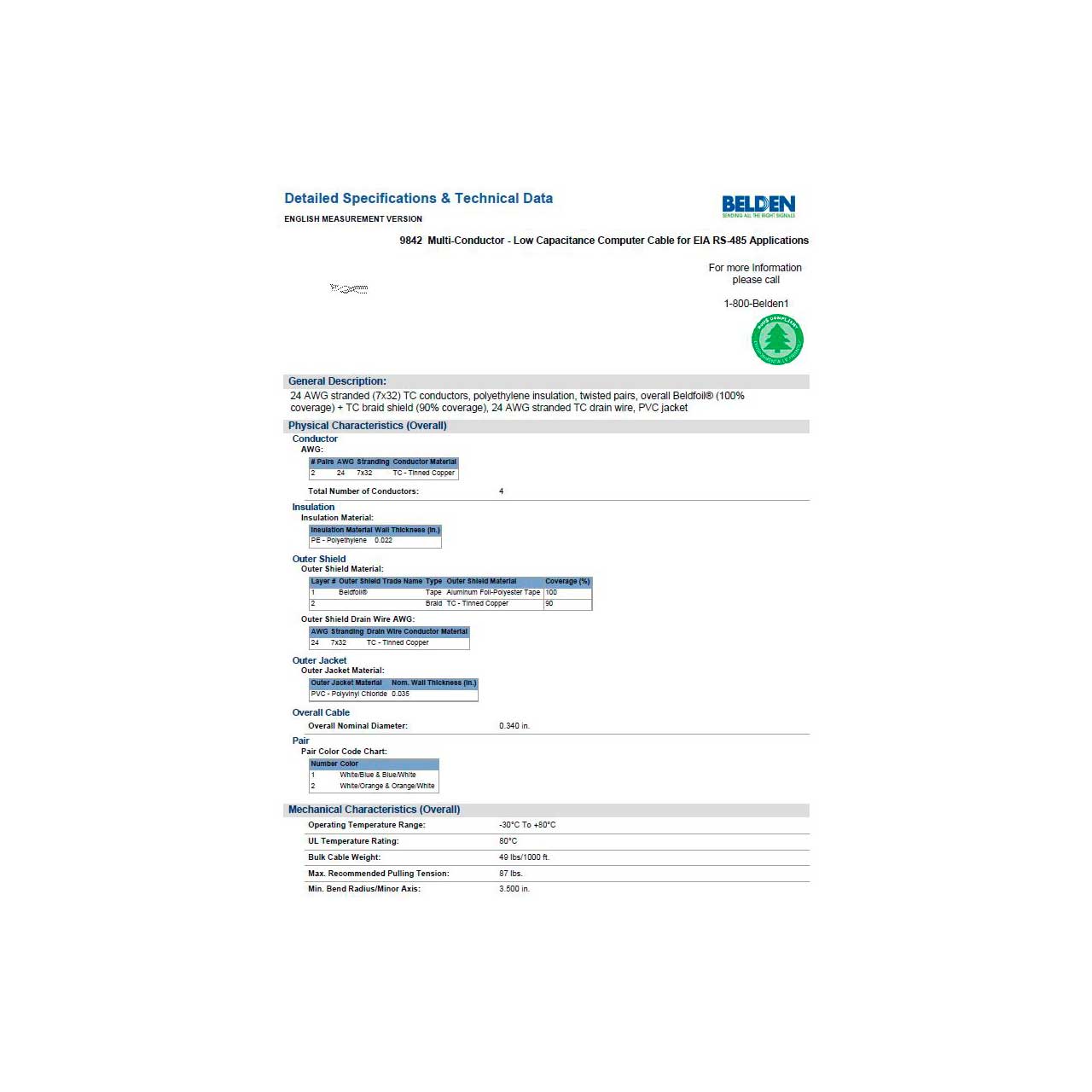

See Belden BL-9842-500 Specifications (PDF)

Overview

9842 060500 - Overview

Specifications:
- AWG: 24
- Stranding: 7x32
- Material: TC - Tinned Copper
- Nominal Diameter: 0.021 in
- Conductor Count: 2
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
- UL Rating: 80°C (UL AWM 2919)
- Operating: -30°C to +80°C
- Stationary Min.: 3.5 in
- Max. Pull Tension: 87 lbs
- Bulk Cable Weight: 49 lbs/1000ft
- Environmental Suitability: Indoor
- Flammability / Fire: Resistance: IEC 60332-1-2
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: 2919
- CEC / C(UL) Compliance: CM
- CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
GTIN:
0612825259541
