Belden C601104010 CMR CAT6+ 4-Bonded Pair Patch Cable 24 AWG U/UTP Solid - Yellow - 10 Foot

Name: Belden C601104010 CMR CAT6+ 4-Bonded Pair Patch Cable 24 AWG U/UTP Solid - Yellow - 10 Foot
Brand: Belden
SKU: BL-C601104010
Price: 15.79 USD
Availability: PreSale

ITEM #: BL-C601104010 MFG #: C601104010

Belden

Our Price:

$15.79

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

C601104010 - Overview

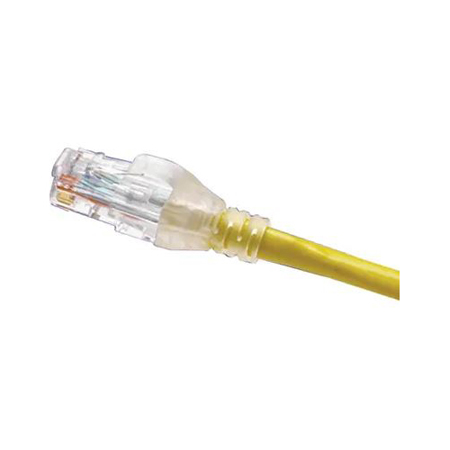

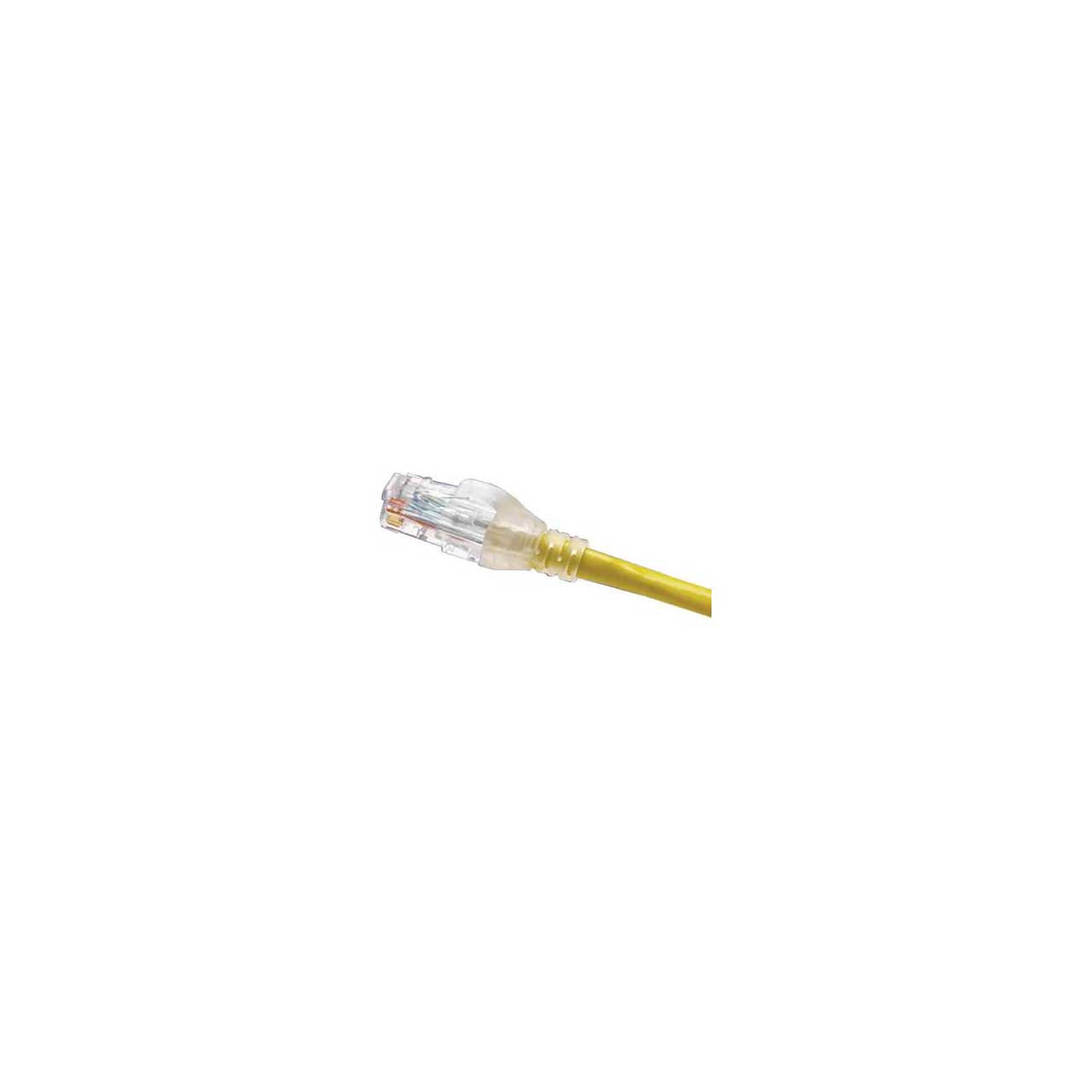

The Belden C601104010 is a 24 AWG 4 Bonded-Pair CMR CAT6+ Copper U/UTP RJ45 Patch Cord. This patchord is suitble for IBDN System 4800, IBDN System 2400,TIA Category 6, ISO Class E, and 1000BASE-T applictions. It's perfect for CAT6+ Modular Jacks, CAT6+ RJ45 Couplers, CAT6+ Patch Panels.

Specifications:
- # Pairs: 4
- AWG: 24
- Stranding: Solid
- Conductor Material: BC - Bare Copper
- Insulation Material: PO - Polyolefin
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Color: Yellow
- Overall Cabling Fillers: Cross Web
- Overall Nominal Diameter: 0.238 in.
- Individual Cable Diameter: 0.250 in.
- Boot Color: Translucent
- Wiring Scheme: T568A/B-T568A/B
- Weight: 0.060 lbs.
- Plug / Jack Compatibility: RJ45
- Storage Temperature Range: -40°C To +70°C
- Installation Temperature Range: -10°C To +60°C
- Operating Temperature Range: -10°C To +60°C
- Max. Recommended Pull Tension: 25 lbs.
- Min. Bend Radius (Overall Cable): 1.040 in.
- Suitability - Indoor: Yes
- UL Rating: Riser
- Other Standards: FCC Part 68, Subpart F, IEC 60603-7
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.500 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max. Contact Resistance: 20 m-Ohm
