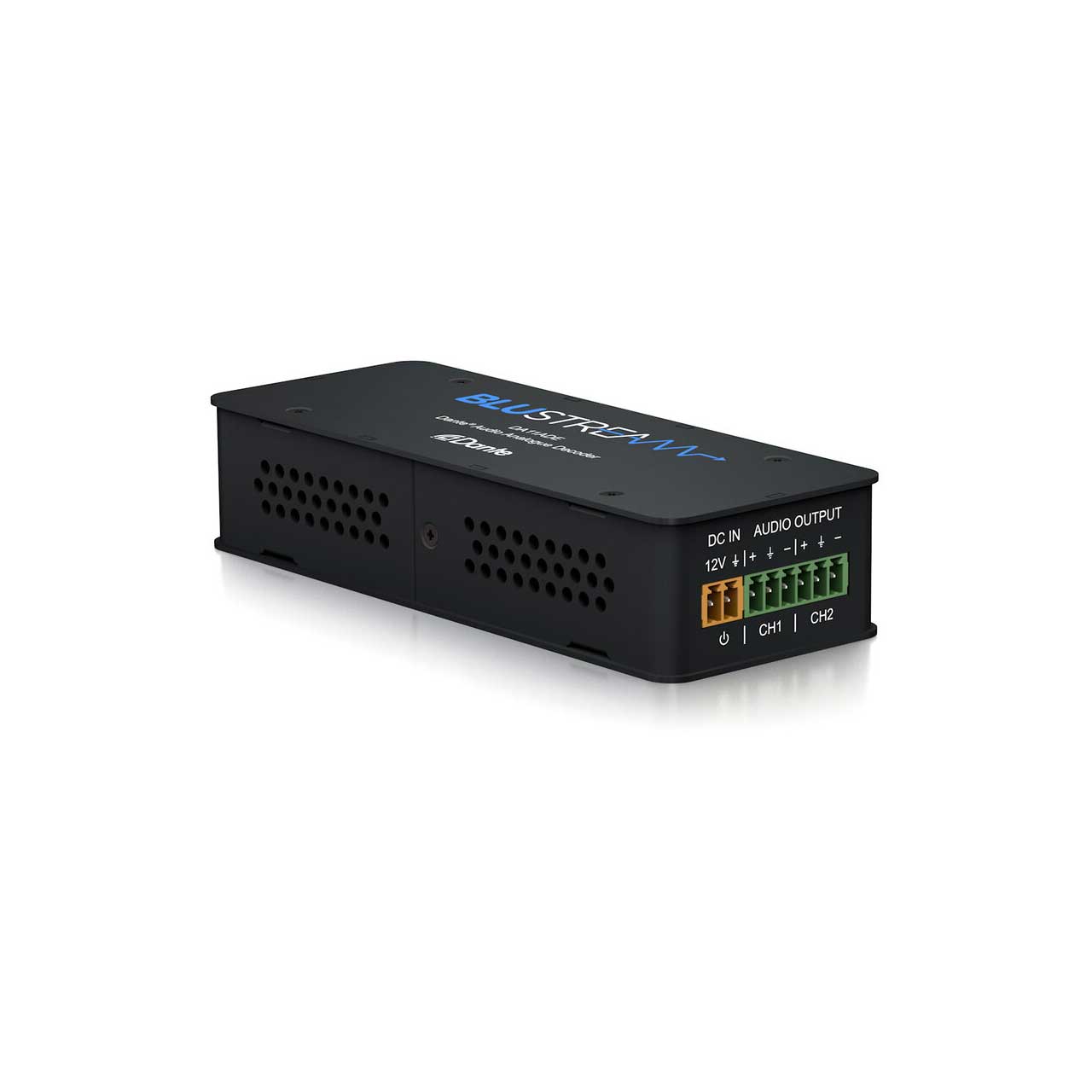

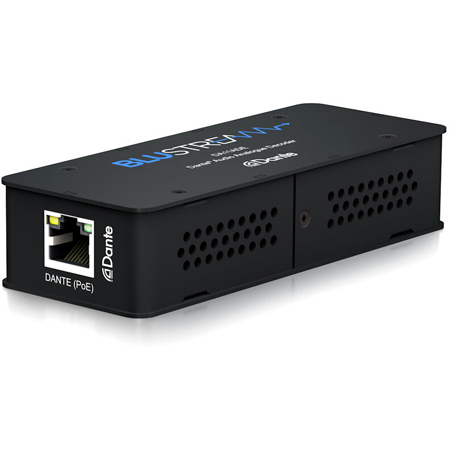

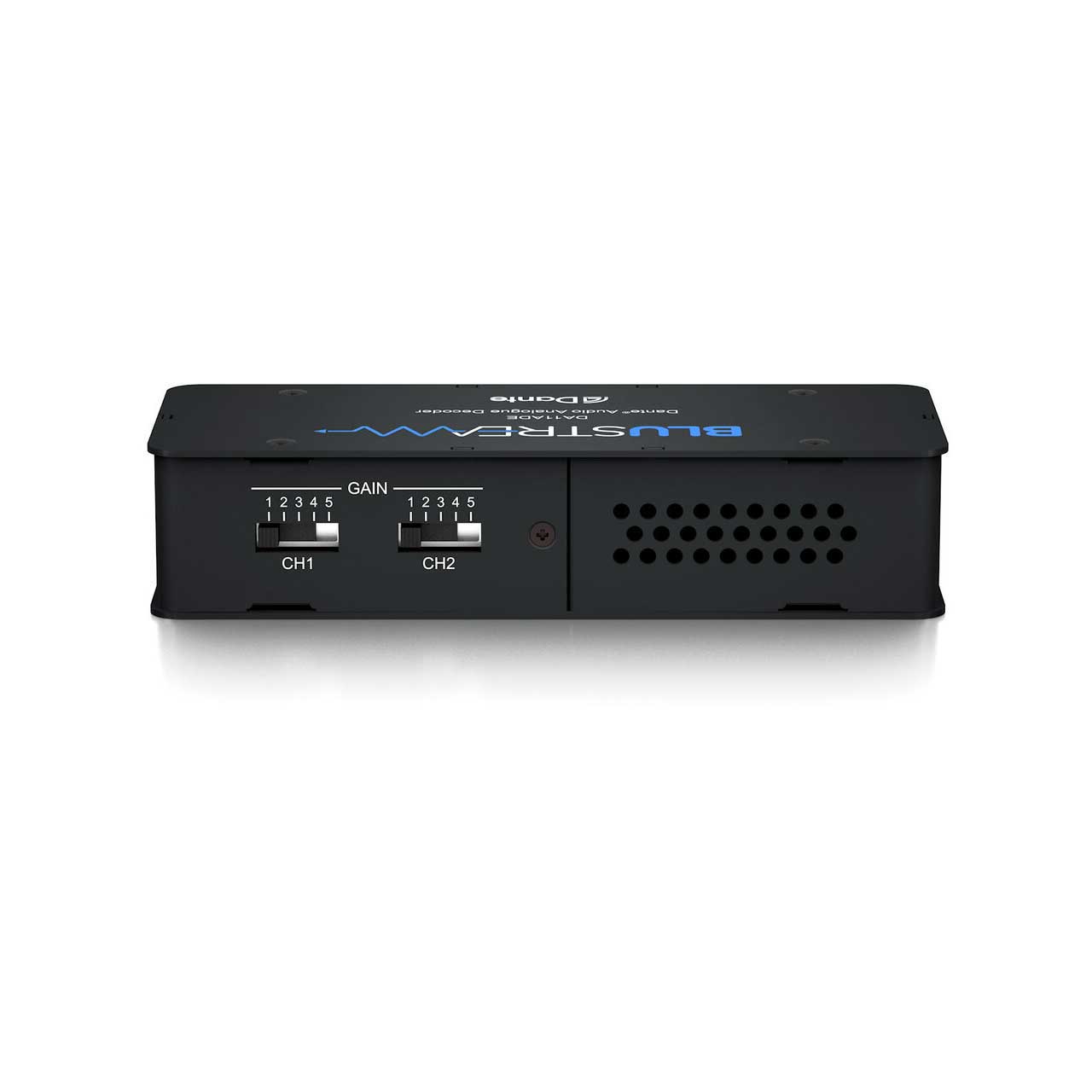

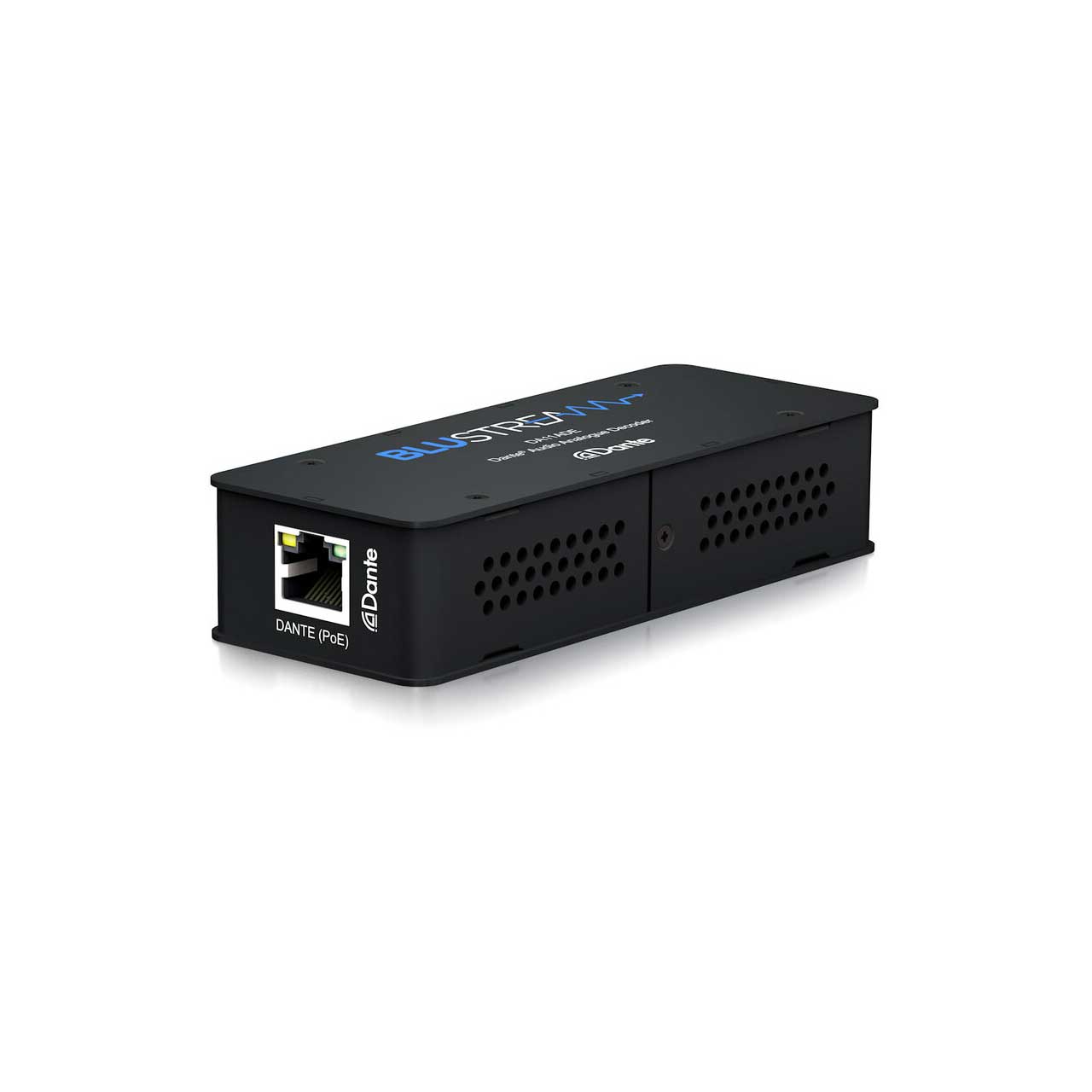

Blustream DA11ADE 2 Channel Dante Audio Analog Decoder

BLU-DA11ADE - Overview

• Features:

  • Decodes a Dante® digital signal to unbalanced or balanced 2ch analog audio
  • Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Danter Controller)
  • Supports AES67 RTP audio transport
  • Features Class 1 802.3af PoE for powering of product from any PoE switch


• Specifications:

  • Audio Input Connectors: 1x RJ45, female (100Mbps Dante® network)
  • Audio Output Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analog audio)
  • Casing Dimensions (L x W x H): 4.72 x 1.85 x 120mm x 1.02 in (47mm x 26mm)
  • Shipping Weight: 0.44lbs 0.2kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Class 1 IEEE 802.3af POE PD


• Item Includes:

  • 1xDA11ADE Audio Analog Decoder
  • 1xQuick Reference Guide


• GTIN:

  9340242003744
