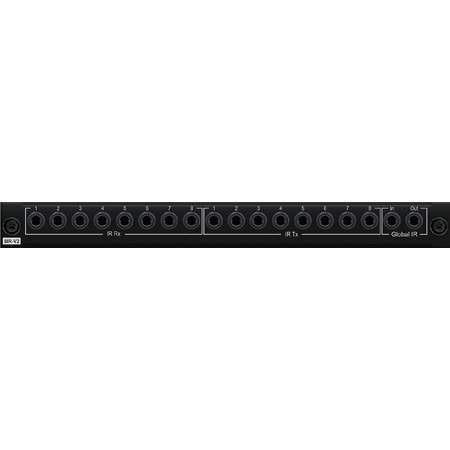

Blustream PRO-8IR-V2 Pro Matrix 8x Bi-Directional IR Control Board

PRO-8IR-V2 - Overview

• Features:

  • 8x 5V IR outputs for routed control of local source equipment
  • 8x 5V IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub


• Specifications:

  • IR Input ports: 9x 5V 3.5mm stereo jack
  • IR Output ports: 9x 5V 3.5mm mono jack
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x PRO-8IR-V2


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002440
