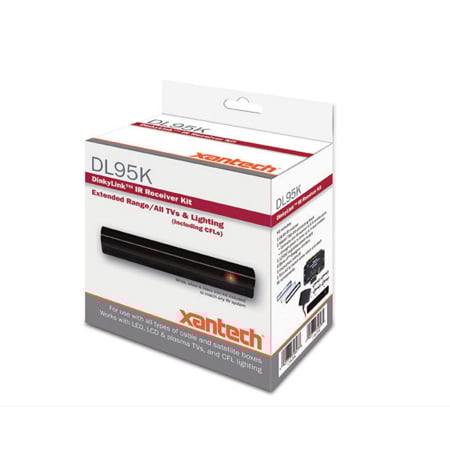

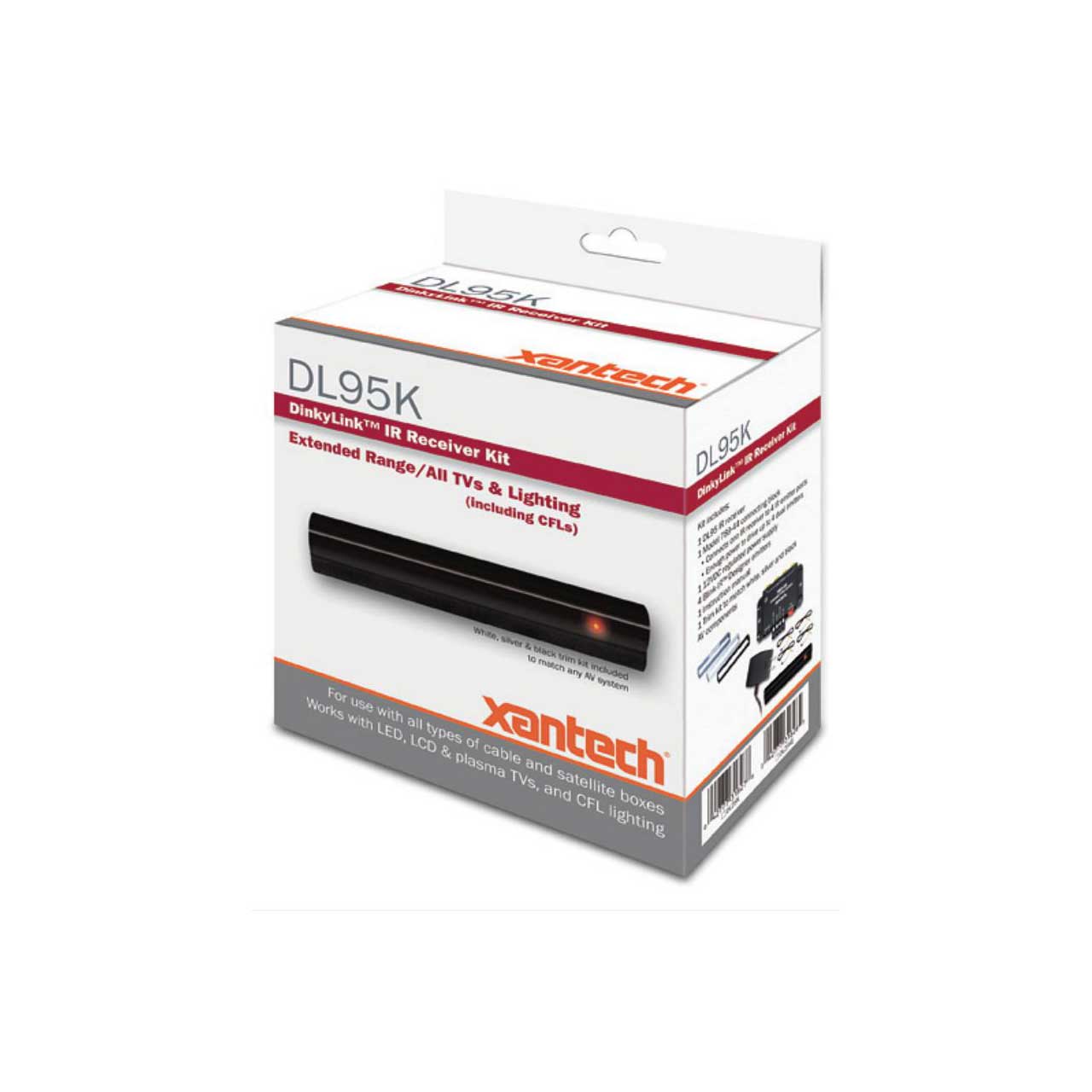

Xantech DL95K Universal Dinky Link Standard Range IR Kit For Commercial and Home A/V Installations - 120 Foot Range

ITEM #: XAN-DL95K MFG #: DL95K

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$439.00

Our Price:

$435.00

Availability: In Stock
iAvailability Description Popup


DL95K - Overview

The new 95 and 85 series IR kits from Xantech feature five significant advances in IR control to achieve their remarkable sensitivity, performance and reliability in a wide variety of installation environments. Xantech is the only manufacturer building an IR product line around this level of advanced circuit design. IR is a crucial control "backbone" in nearly every A/V system installation, and Xantech is committed to IR that works perfectly every time which demands such a no-compromise approach. If it is an IR problem and Xantech can't solve it, nobody can. All Xantech IR series kits feature advanced circuitry which passes the native IR carrier and data signals faithfully and reliably to ensure proper control of all A/V components. Premium kit for high-end and custom installations requiring the ultimate in IR control.95-series works with remotes up to 120 feet away. Compatible with all types of TV's including plasma, LCD and LED, and all satellite and cable TV boxes. Works wtih CFL lighting. These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. - anywhere an inconspicuous appearance is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands up to 120 feet away.

  • Features:

    • Works with all types of cable boxes, satellite boxes, and TVs
    • Low profile-easy to hide
    • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
    • IR modulation frequency bandwidth: 25-60kHz
    • Reception range: up to 120 ft/36 m*
    • Color-coded connectors for fast, easy installation

  • Specifications:

    • Infrared carrier frequency bandwidth: 25 - 60 kHz.
    • Reception range: Up to 120 feet.
    • Reception angle: +/- 60 degrees.
    • Max. Transmission length: 1 mile using 18 gauge wire.
    • Maximum current output: 100mA.

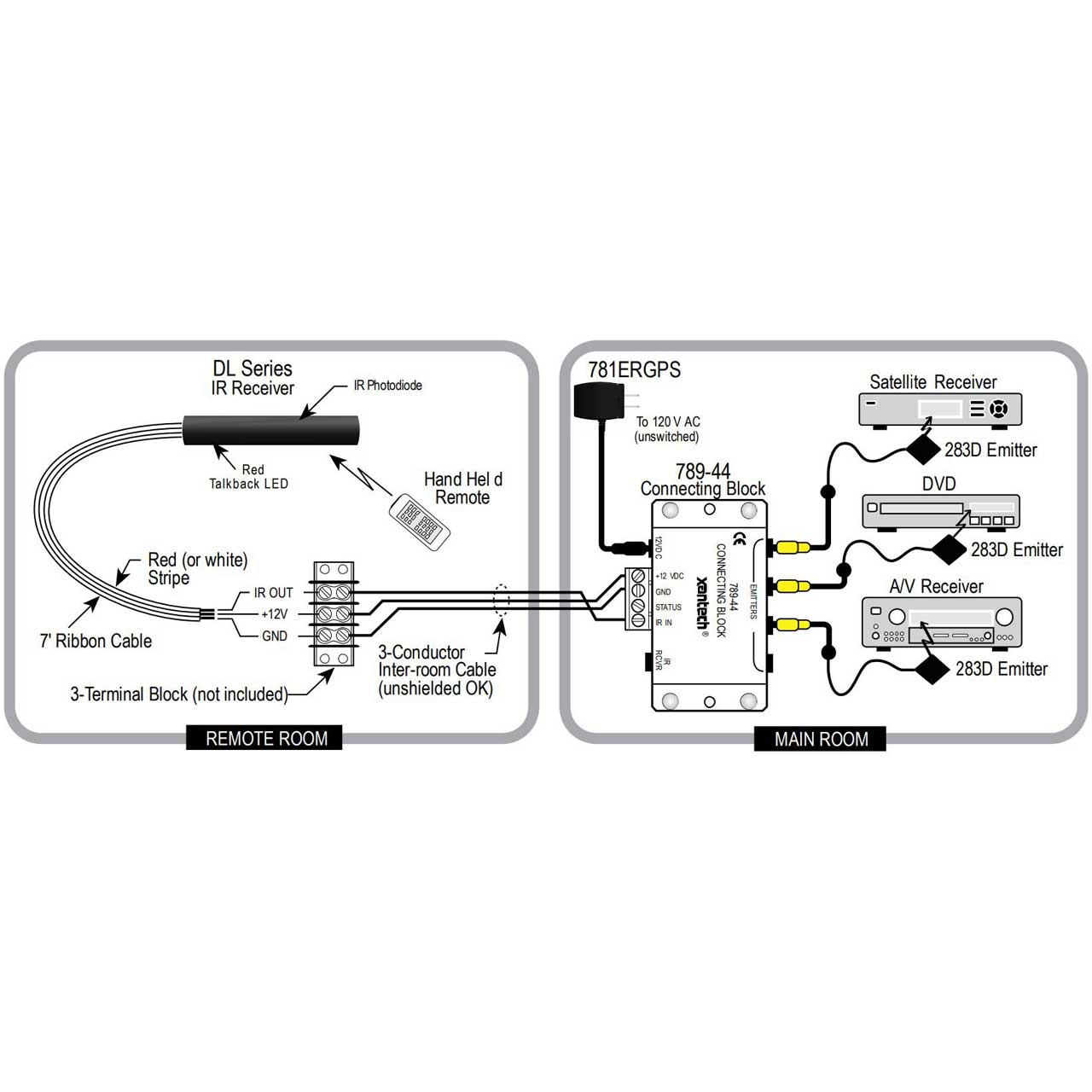

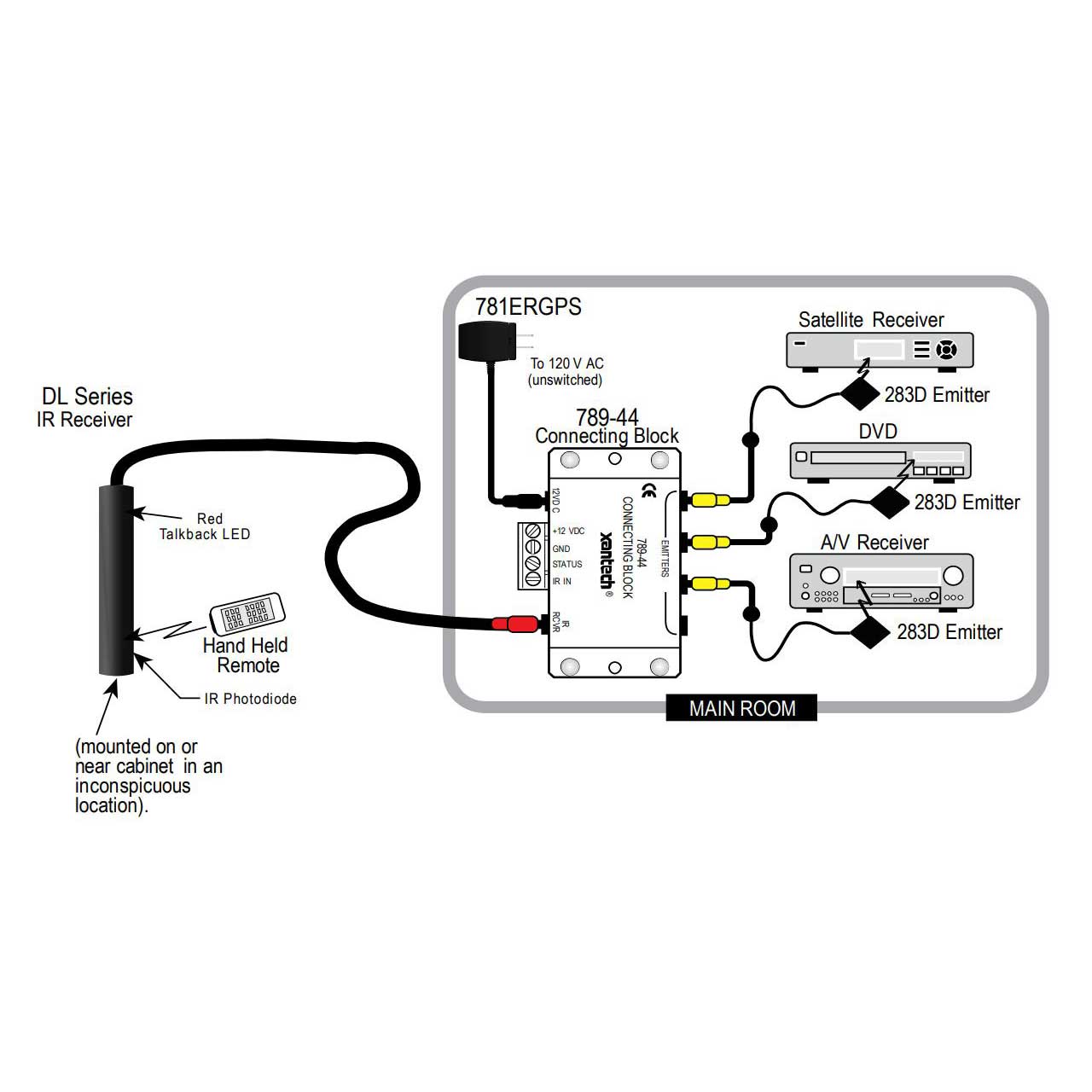

    • Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
    • Dimensions: 2.55" x 0.55" x 0.35" (65mm x 14mm x 9mm).
    • Power requirements: +12VDC, 10mA

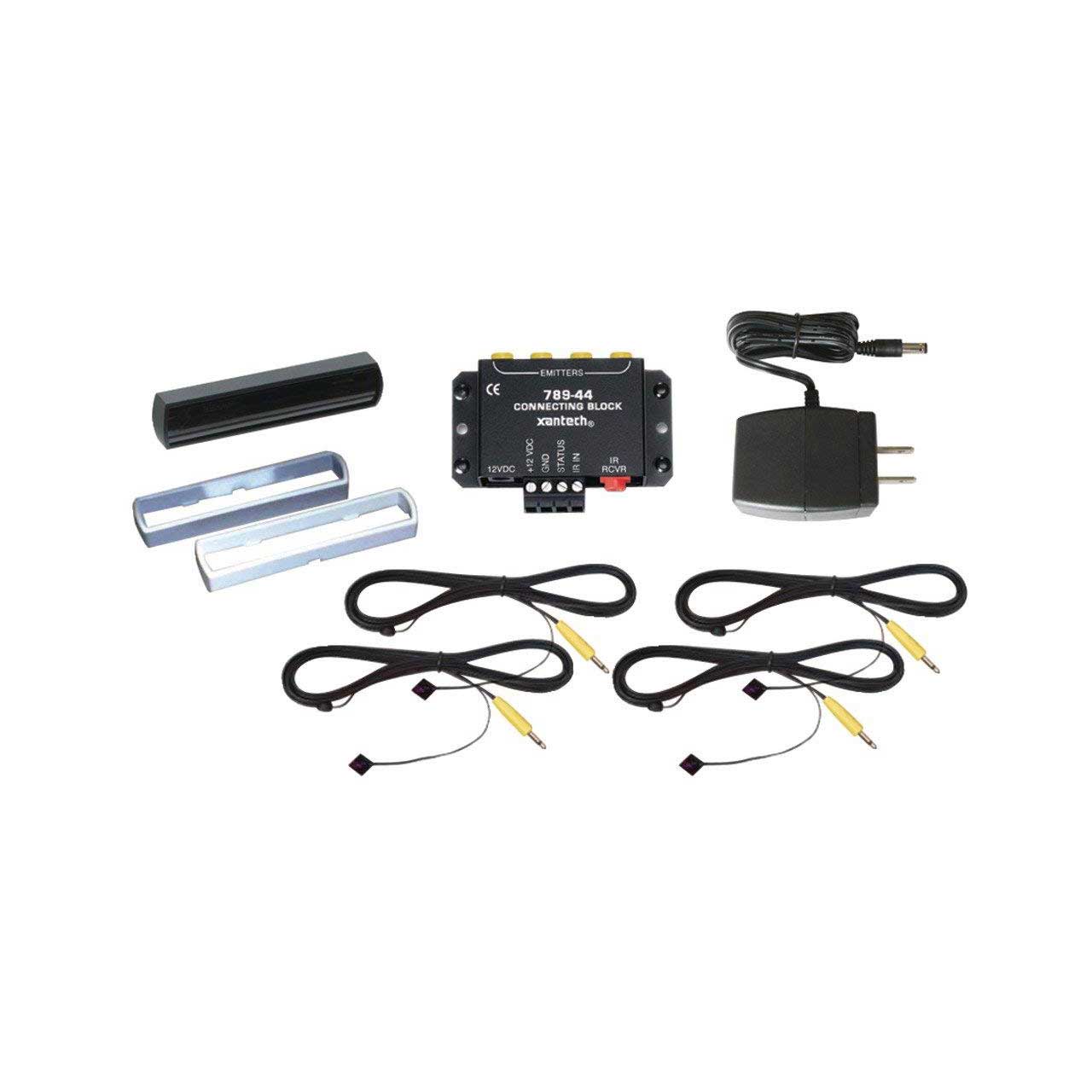

  • Item Includes:

    • 1 DL95 IR receiver
    • 1 Model 789-44 connecting block that connects one IR receiver to four IR emitter ports. Has enough power to drive up to four dual emitters
    • 1 12VDC regulated power supply
    • 4 Blink-IRT Designer emitters
    • 1 Instruction manual
    • 1 Trim kit to match white, silver and black AV components

  • GTIN:

    0042777318698
