Atlona VCC-RS232-KIT IP to RS-232 Command Converter for Velocity Control System

ITEM #: ATNO-VCC-RS232KT MFG #: VCC-RS232-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$220.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VCC-RS232-KIT - Overview

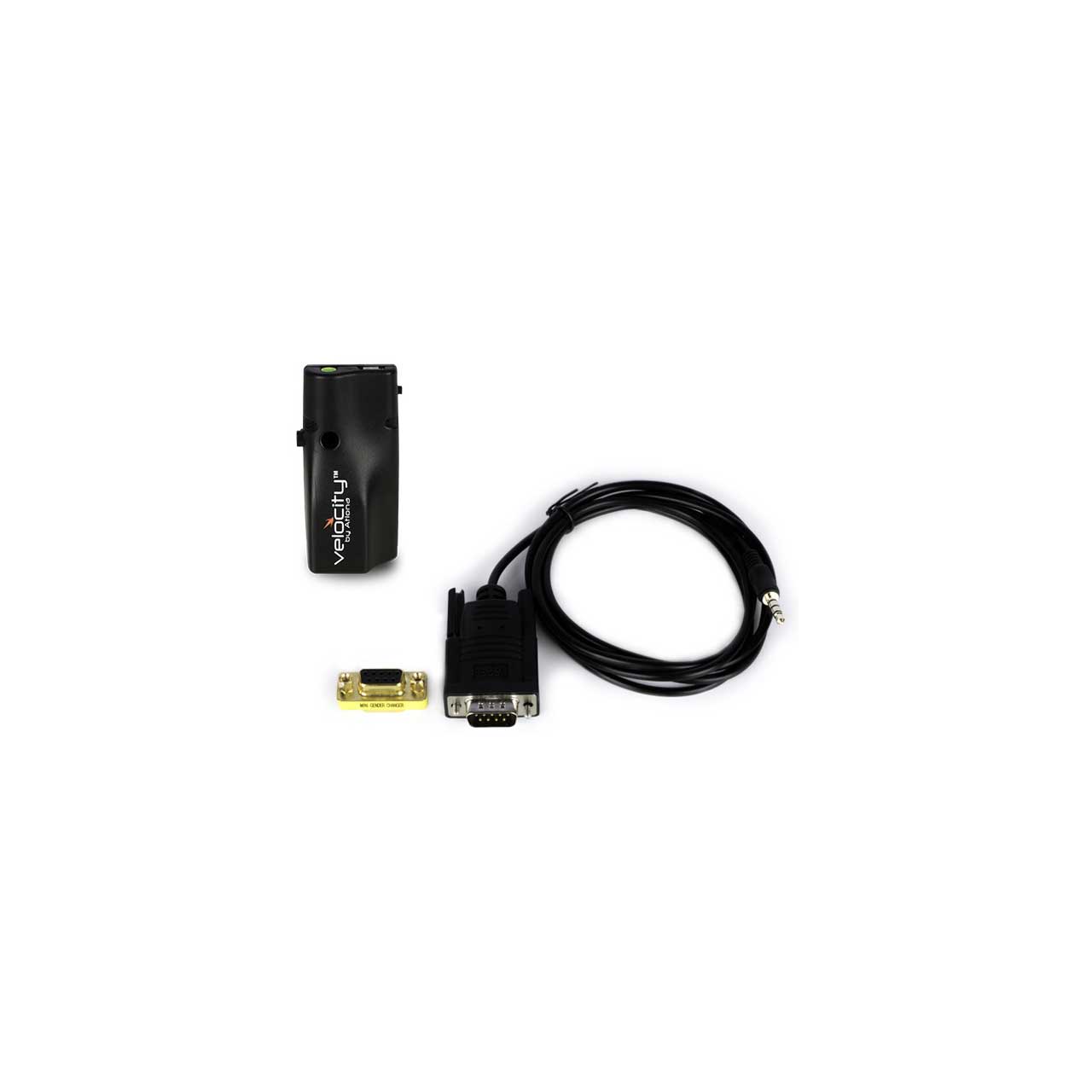

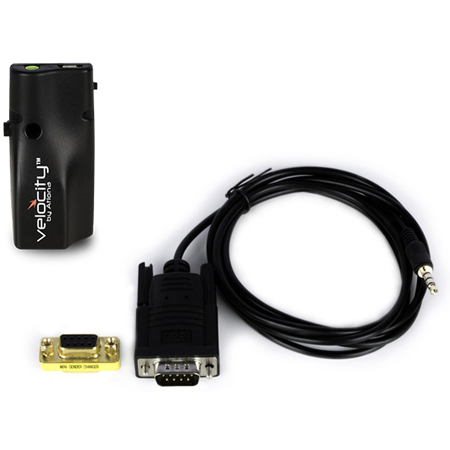

The Atlona AT-VCC-RS232-KIT is an accessory for the Atlona Velocity Control System that provides conversion between IP and RS-232 control commands. This Velocity Control Converter is very compact and can be placed anywhere a device requires control and is not IP-capable. The VCC-RS232-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs onto any surface via a convenient mounting dock. A simple "click" locks it into place for a secure, reliable installation. An RS-232 gender changer is included.

Comprehensive Support of Third-Party AV Products

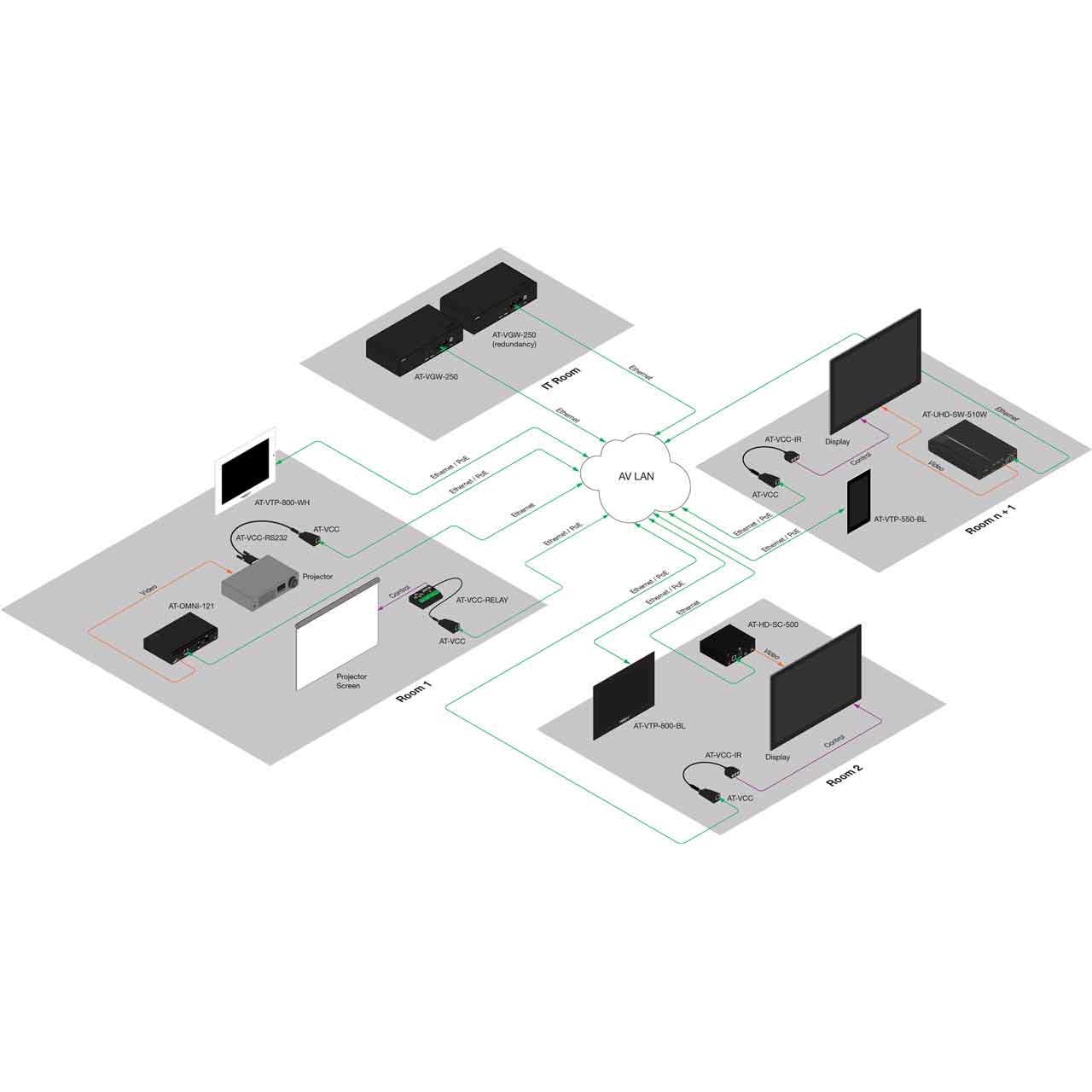

The Velocity Control System can be integrated with a wide range of sources, displays, DSPs, videoconferencing systems, and many other types of AV equipment. Please refer to this comprehensive database of supported third-party products for detailed information. Devices in the database are ready for immediate integration into a Velocity Control System with just a few mouse clicks. No driver download or installation is necessary.

  • Features:

    • Provides conversion between IP and RS-232 control commands for the Velocity Control System

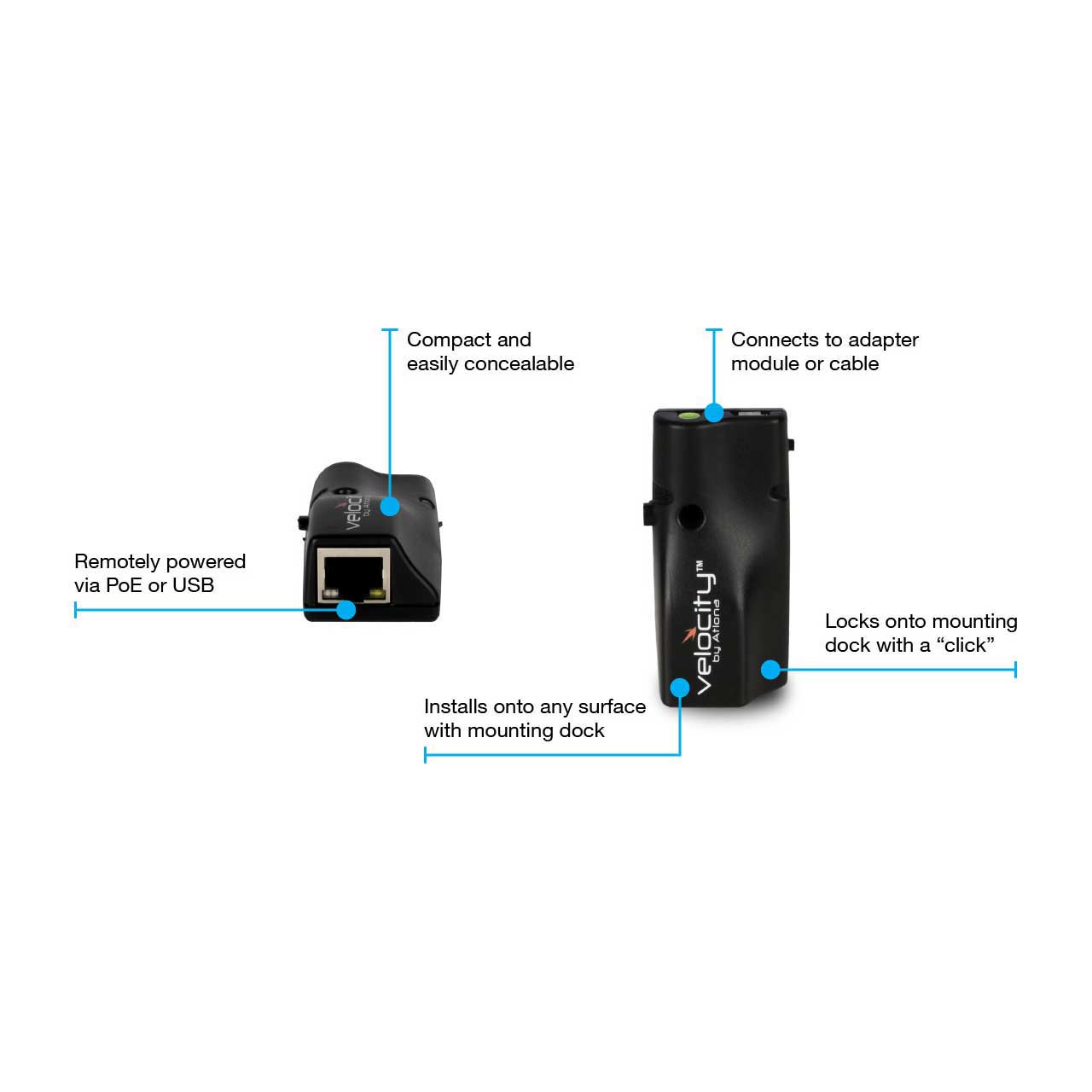

    • Compact form factor - inconspicuous and easily concealable
    • Easy to set up and configure from the Velocity Control Gateway
    • Remotely powered via PoE (Power over Ethernet)
    • Also can be powered through USB from a nearby USB power source
    • Primary unit installs onto any surface via a convenient mounting dock - simple "click" locks device into place

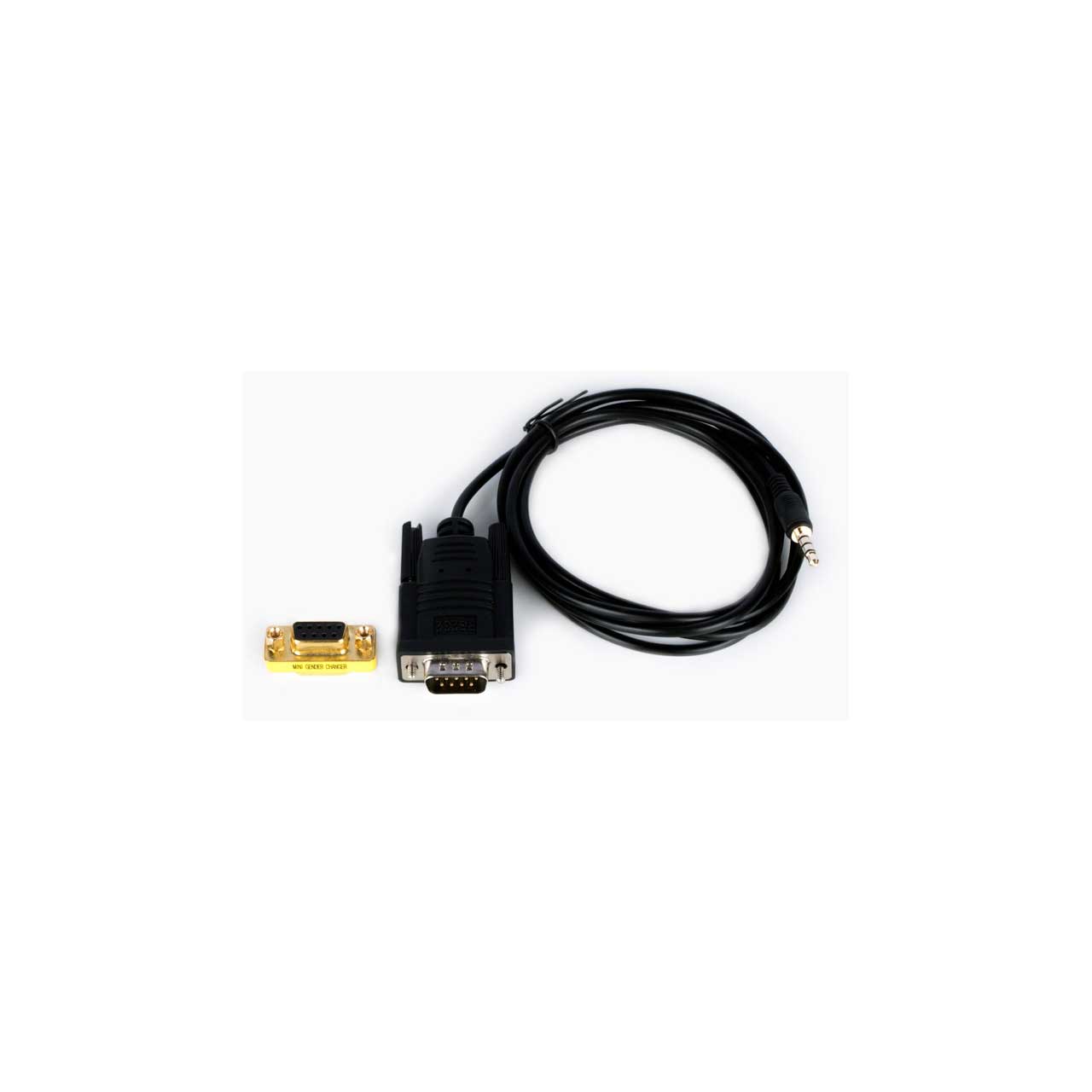

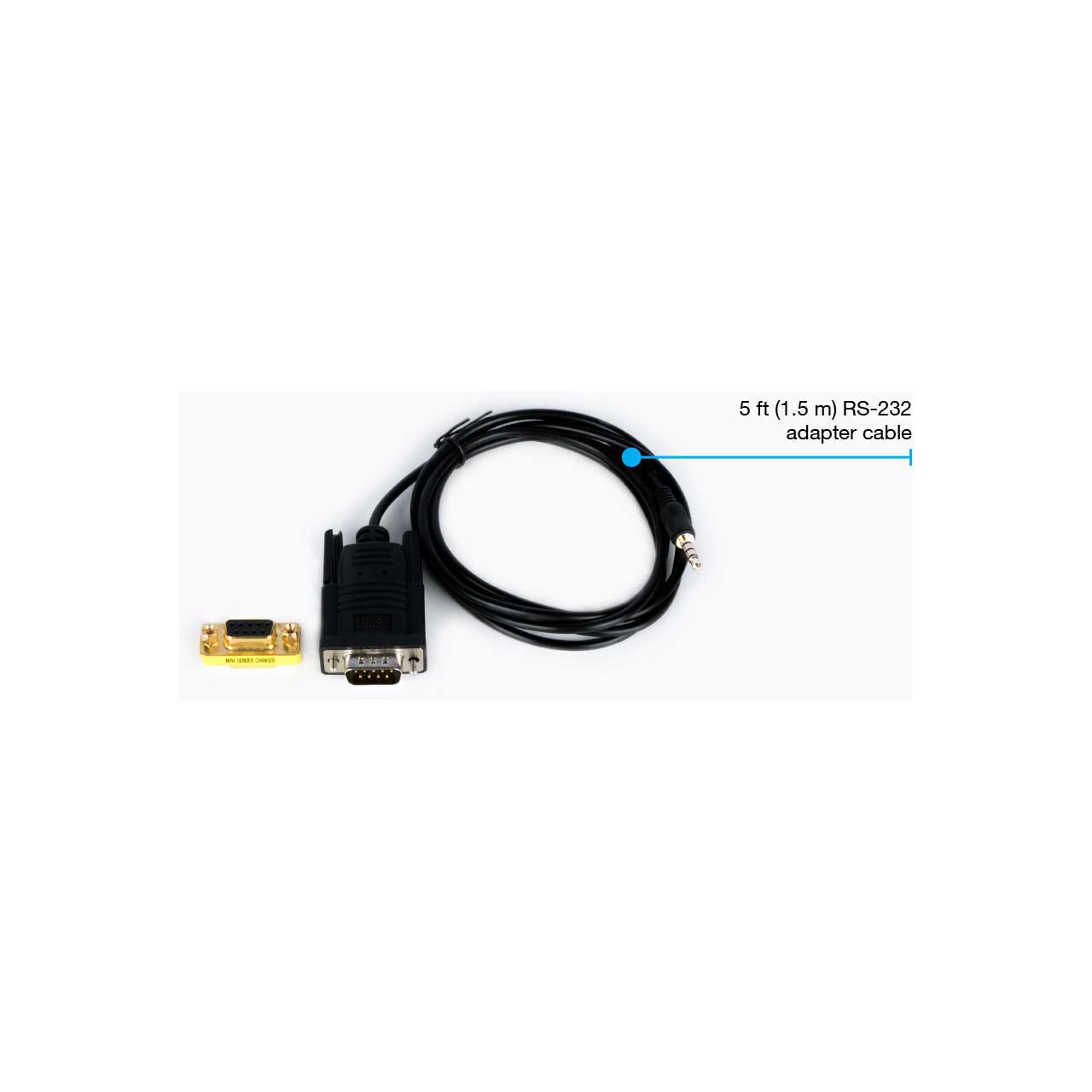

    • 5 foot (1.5 meter) RS-232 adapter cable
    • Includes gender changer for male DE-9 connector
    • Award-winning 10 year limited product warranty

  • Specifications:

    • Ports
    • Network Connection: RJ-45, 100/10 Mbps Ethernet Protocol
    • RS-232: DB9, male, with gender changer 5 feet cable with 3.5 mm mini-stereo connector
    • Full support for Tx, Rx, CTS, RTS, DTR, and DTS signals
    • Bidirectional communication with hardware handshaking

      Power
    • USB: Micro-B
    • PoE: 802.3af-compliant

      Weights & Dimensions
    • H x W x D (AT-VCC-RS232): 0.60 x 1.28 x 2.20 (inch): 15.24 x 32.51 x 55.88 (mm)
    • H x W x D (AT-VCC): 0.82 x 1.22 x 2.58 (inch): 20.82 x 30.98 x 65.53 (mm)
    • AT-VCC-RS232: 0.10 (lb): 0.04 (kg)
    • AT-VCC: 0.05 (lb): 0.02 (kg)

  • Item Includes:

    • Includes gender changer for male DE-9 connector

  • Warranty:

    • Award-winning 10 year limited product warranty

  • GTIN:

    0846352005689
