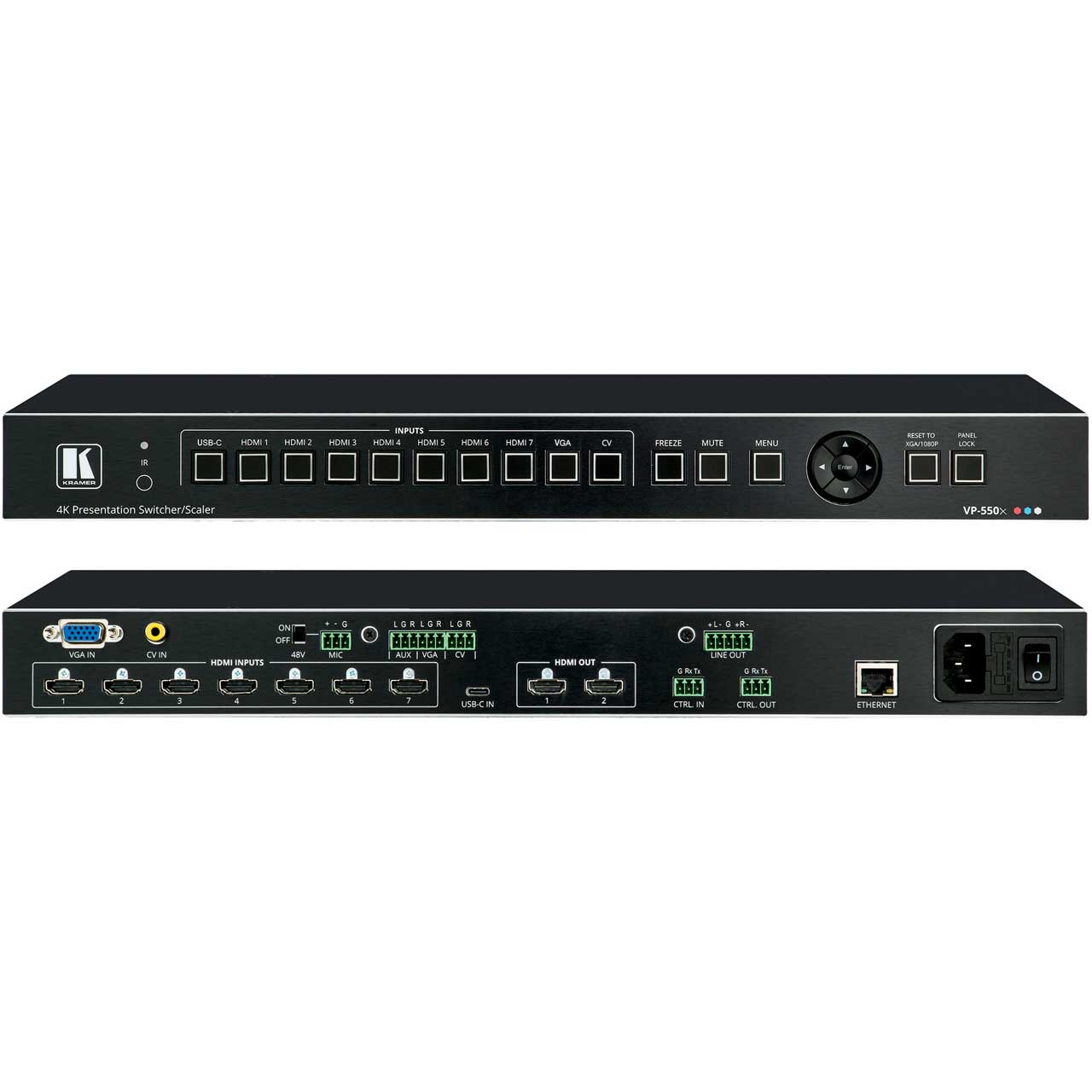

Kramer VP-550X 18G 4K HDR 10-Input HDMI/USB-C/VGA/Composite Video Presentation Switcher/Scaler

VP-550X - Overview

High-Resolution Video

• Features:

  • High-Performance Switcher/Scaler - Scales HDMI, USB-C (Alt-DP), VGA, and Composite video signals for outputting to two mirrored HDMI outputs. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
  • High-Resolution Video - Supports and scales to/from resolutions up to 4K@60Hz (4:4:4). Complies with HDCP 2.2. Supports HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0.
  • Professional Video Quality - Provides selectable aspect ratios (full, best fit, over-scan, under-scan, letter box and pan scan). Includes built-in ProcAmp for color, hue, sharpness, noise, contrast, and brightness control. Supports PixPerfectT, Kramer's precision pixel mapping and high-quality scaling technology with full up-scaling and down-scaling of all video input signals.
  • Versatile Audio Options - Includes a companion analog audio input for each of the 2analog video inputs and an additional AUX audio input - enabling the user to embed analog audio channel into the video signal or to bypass an embedded audio input (for example, to support multi-channel, compressed audio formats like Dolby and DTS). Provides an independent microphone input (with optional 48V phantom power) for mixing, switching or talk-over. On the output, besides the audio embedded on the HDMI outputs, the audio signal is also extracted (de-embedded) and output as a balanced stereo analog audio signal.
  • Powerful Audio Features - Includes DSP with audio equalization, mixing, delay and more.
  • Versatile Powering Options - Receives power from a universal power supply (100-240V AC) and provides up to 18W of power to the USB-C input, HDTV Compatible.
  • 4K and Legacy Inputs - 7 HDMI and 1 USB-C 4K@60 (4:4:4) inputs, 1 VGA input, and 1 CV (composite video) input.
  • Non-Volatile Memory - Saves final settings before shutdown and retains them for next power up.
  • Convenient Control Options - Local control via front panel buttons (input selection, audio mute, freeze and front panel lock), RS-232, IR remote, and OSD. Long-distance control via Ethernet using embedded web pages.
  • Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.


• Specifications:

  • Inputs
  • 7 HDMI: On female HDMI connectors
  • 1 USB (providing power): On a USB type-C connector
  • 1 Computer Graphics: On a 15-pin HD connector
  • 1 Composite Video: On an RCA connector
  • 3 Unbalanced Stereo Analog Audio (AUX, VGA and CV): On 3-pin terminal blocks
  • Microphone: On 3-pin terminal block

    Outputs
  • 2 HDMI: On female HDMI connectors
  • 1 Balanced Analog Stereo Audio: On a 5-pin terminal block

    Ports
  • 1 RS-232 (Data): On a 3-pin terminal block
  • 1 RS-232 (Control): On a 3-pin terminal block
  • 1 Ethernet: On an RJ-45 connector

    Video
  • Input HDMI and USB-C Resolutions: 480i/576i, 480p/576p, 640x480@60/72/75/85Hz, 720p@60/50Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1080i@60/50Hz, 1080p@24/25/30Hz, 1080p@60/50Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60Hz RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB, 4K2K@24/25/30/50/60Hz (4:4:4), 4K2K@50/60Hz (4:2:0)
  • Input Computer Graphics Resolutions: 640x480@60/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x960@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB
  • Input CV Resolution: 480I/576i
  • Output HDMI Resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4)
  • Max. Input Resolution - HDMI and USB-C: 4K@60Hz (4:4:4)
  • Max. Input Resolution - VGA: 1080p60 / UXGA
  • Max.Output Resolution- HDMI: 4K@60Hz (4:4:4)
  • Content Protection: Up to HDCP 2.2
  • HDMI Support: HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0
  • Latency: 1-2 frames

    User Interface
  • Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  • Indicators: IR, selected input LEDs

    Power
  • Source: 100-240V AC 50/60Hz
  • Consumption: 1A

    Enclosure
  • Size: 19"
  • Type: Aluminum
  • Cooling: Convection ventilation

    Physical
  • Environmental Conditions: Operating Temperature: 32° to 104°F, Storage Temperature: -40° to 158°F, Humidity: 10% to 90%, RHL non-condensing
  • Regulatory Compliance (Standards Compliance): Standards: CE, FCC
  • Product Dimensions: 17.18" x 9.34" x 1.72" W, D, H
  • Product Weight: 4.5lbs approx.
  • Shipping Dimensions: 21.65" x 12.99" x 4.21" W, D, H
  • Shipping Weight: 6.5lbs approx.


• Item Includes:

  • 1x Kramer VP-550X 18G 4K 10 Input Presentation System / Scaler
  • 1x Power cord
  • 1x Rubber feet
  • 1x Rack ears
  • 1x IR remote control with batteries


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063092221
