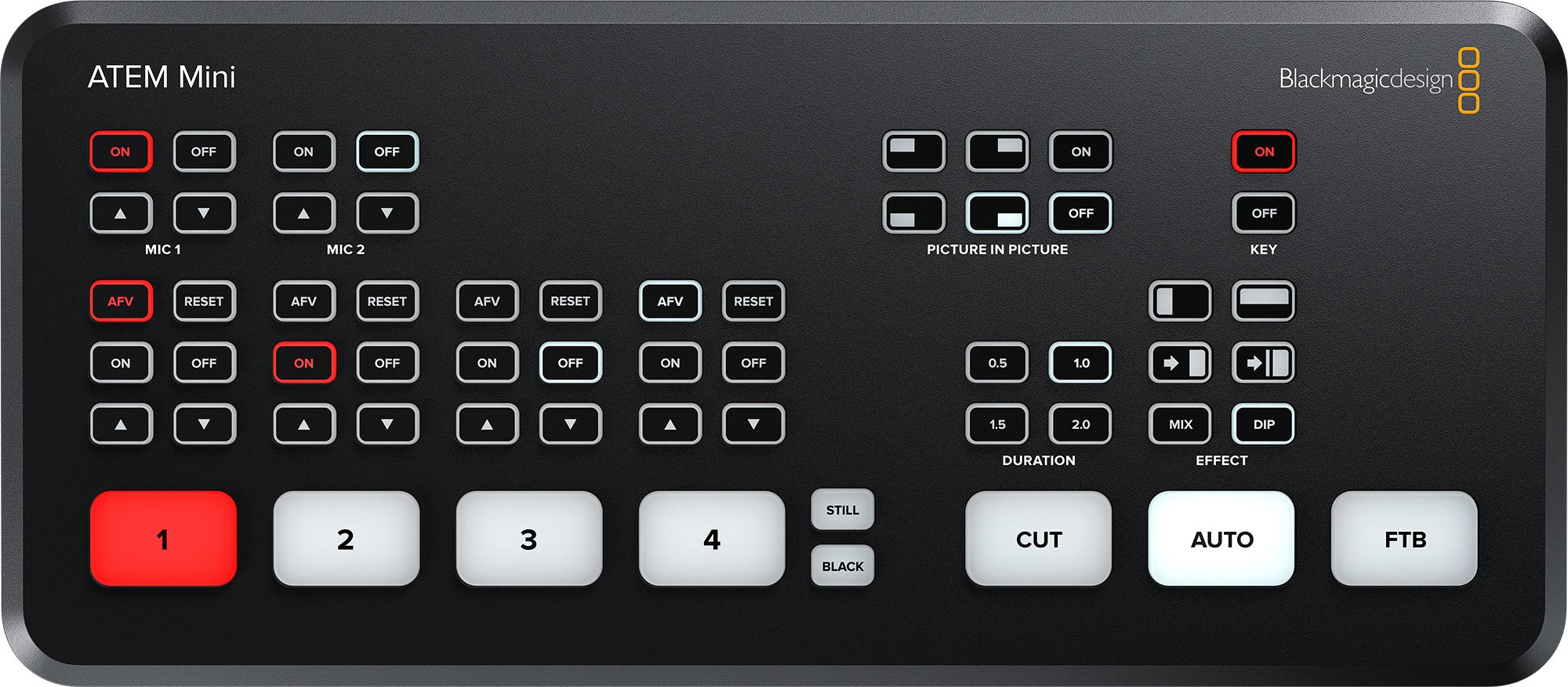

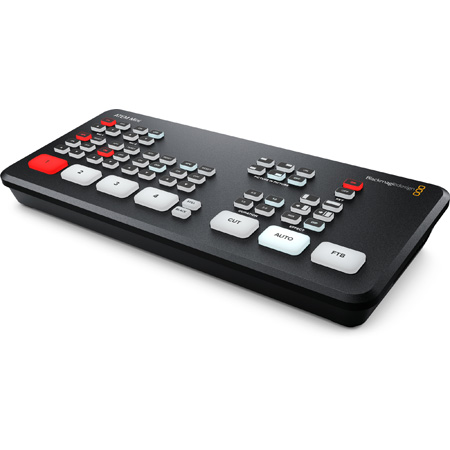

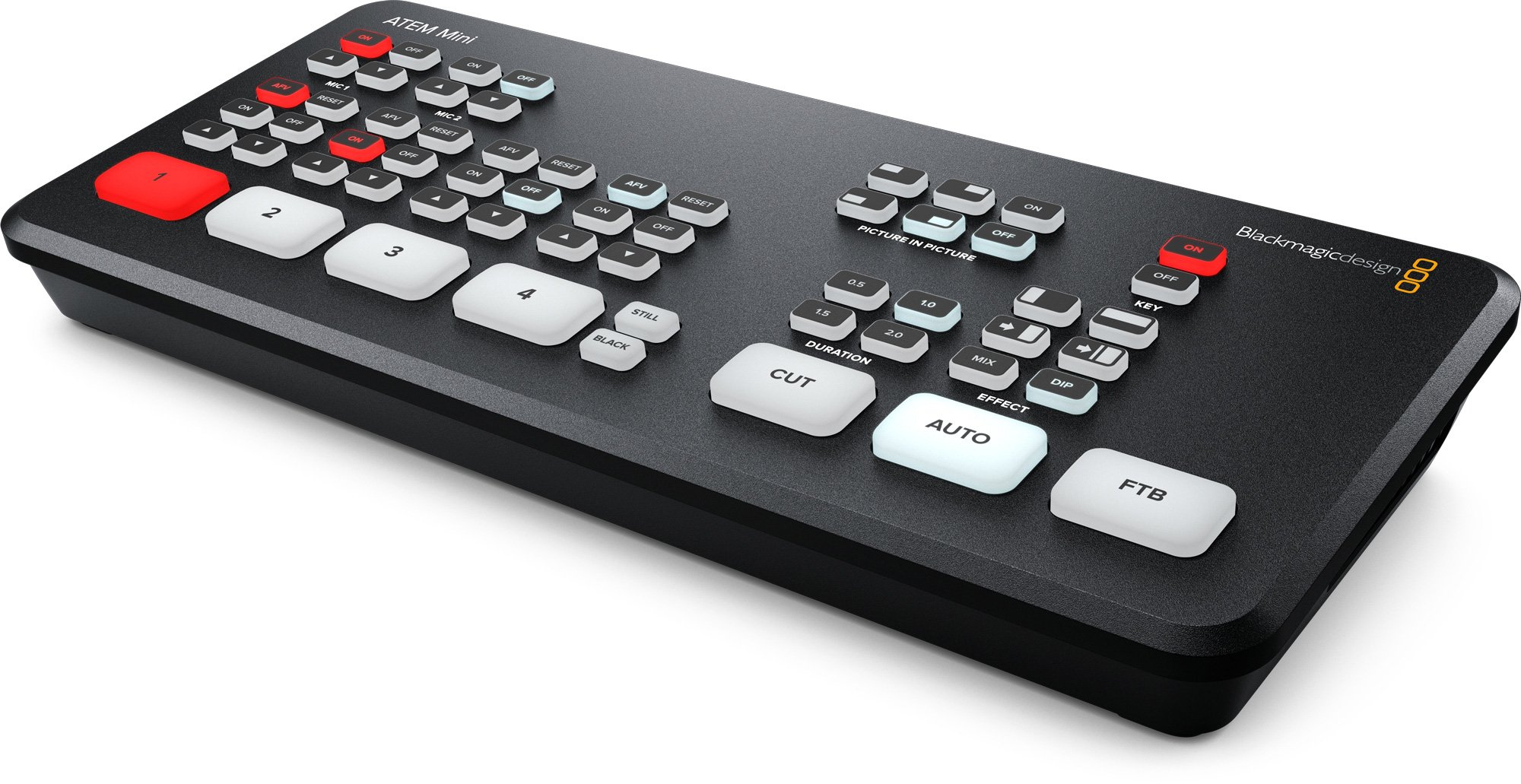

Blackmagic Design SWATEMMINI ATEM Mini HDMI Live Production Streaming Switcher

ITEM #: BMD-ATEM-MINI MFG #: SWATEMMINI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


SWATEMMINI - Overview

Multi-Camera Live Production Switcher With Advanced Broadcast Features For The Beginner Videographer!

The Blackmagic Design ATEM Mini is fast to set up and easy to use! It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, a Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control! ATEM Mini features 4 HDMI inputs and has an intuitive design that makes it possible for anyone to live stream multi camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply connect to the 4 high quality HDMI inputs that can be used for live switching cameras, computers or even game consoles. You get a built in DVE for exciting picture in picture effects, broadcast quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors.

While ATEM Mini is easy to use, it's also hiding very powerful broadcast features! If you're interested in a career in the television industry, then ATEM Mini is perfect for training as it has the same features as switchers in high end broadcast studios. With ATEM Advanced Chroma Key, the Fairlight audio mixer, DVE, still store for graphics and more just like the Pro's! Simply run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access the extended features of the ATEM Mini. With a little experimentation you can learn how to produce broadcast quality live production. Only ATEM Mini is a true broadcast switcher hidden in a tiny and affordable design!

PLEASE NOTE: To fully utilize all features and capabilities of the ATEM Mini and the ATEM software, we recommend purchasing a USB-C to USB-A cable.
Applications:
Streaming anything!
On line education and training
Business presentations and meetings
Live stream eSport competitions
Live sporting events
Stream concerts and music videos

  • Features:

    • Faster Video Production plus Live Streaming
    • Self Contained Broadcast Quality Switcher
    • Easy to Use and Fast to Learn!
    • Stream Live Interviews
    • Connect up to 8 Independent Cameras
    • Outputs to HDMI Video and USB Webcam!

  • Specifications:

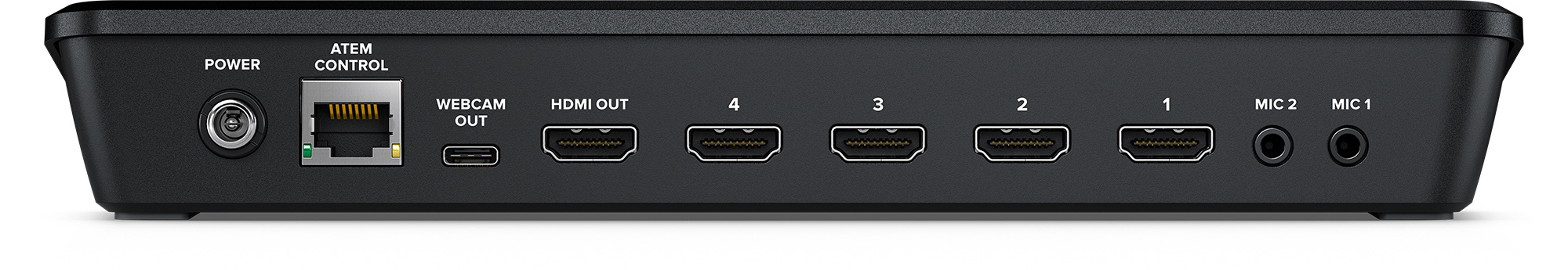

    • Connections
    • Total Video Inputs: 4
    • Total Outputs: 2
    • Total Aux Outputs: 1
    • Total Audio Inputs: 2x 3.5mm stereo mini jack
    • Total Audio Outputs: None, embedded audio only
    • Timecode Connection: None
    • HDMI Video Inputs: 4x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
    • Video Input Re-Sync: On all 4 HDMI inputs
    • Frame Rate and Format Converters: On all 4 HDMI inputs
    • HDMI Program Outputs: 1
    • Ethernet: Ethernet supports 10/100 BaseT for software control, software updates and direct or network panel connection
    • Computer Interface: 1x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

      Standards
    • HD Video Input Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080i50, 1080i59.94, 1080i60
    • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • Ultra HD Video Standards: None
    • Video Sampling: 4:2:2 YUV
    • Color Precision: 10-bit
    • Color Space: Rec 709
    • HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz ,1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz ,1920 x 1080i 50, 59.94Hz and 60Hz
    • Colorspace Conversion: Hardware based real time

      Product Specifics
    • Upstream Keyers: 1
    • Downstream Keyers: 1
    • Advanced Chroma Keyers: 1
    • Linear/Luma Keyers: 2
    • Transition Keyer: DVE only
    • Total Number of Layers: 5
    • Pattern Generators: 1
    • Color Generators: 2
    • DVE with Borders and Drop Shadow: 1
    • Interface: Minimum monitor resolution of 1366 x 768

      Audio
    • Audio Mixer: 6 input x 2 channel mixer.Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
    • Analog Input: Unbalanced stereo

  • Item Includes:

    • 1x ATEM Mini
    • 1x External 12V power supply with locking connector and international socket adapters

  • Warranty:

    • 1 Year Limited Manufacturer's Warranty

  • Tags

    :

    • #ATEM-MINI; #BlackmagicATEMMini;#ATEM Mini

  • GTIN:

    9338716006445
