Blackmagic Design HyperDeck Extreme 8K HDR with Advanced H.265 Rec/Internal Cache/3D LUTs/Native 8K

ITEM #: HYPERDECKEXT8KHD MFG #: BMD-HYPERD/RSTEX8KHDR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BMD-HYPERD/RSTEX8KHDR - Overview

    Record and Playback in Full Resolution 8K!

    The Blackmagic HyperDeck Extreme 8K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support! With the ability to record native 8K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings. You can then add HyperDeck ExtremeControl to transform it into a traditional broadcast deck!

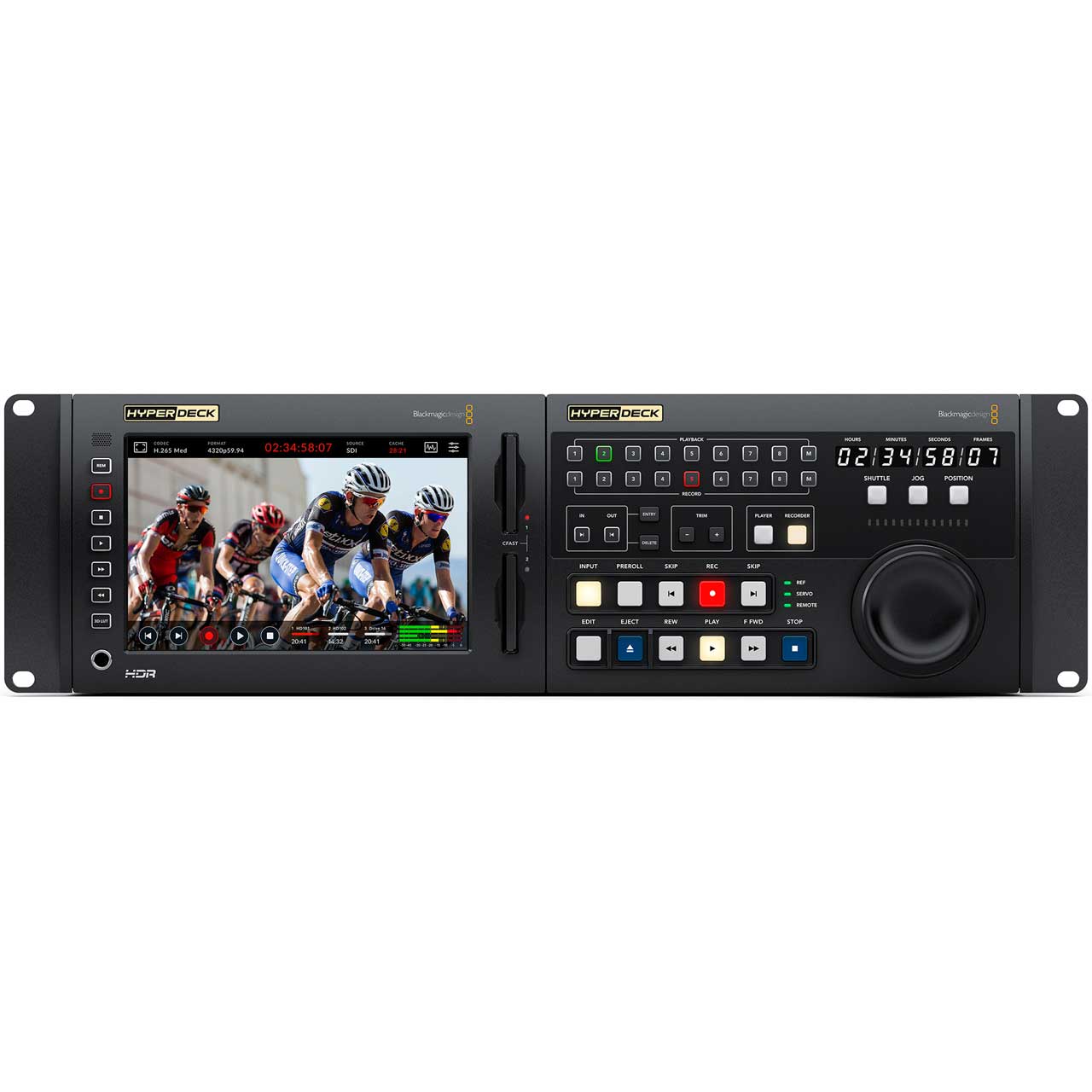

    HyperDeck Extreme has an innovative touch screen user interface with deck controls as well as a large screen to view your recording. Then add a HyperDeck Extreme Control for traditional broadcast deck controls and a large shuttle knob that feels incredibly luxurious to use! You can even rack mount the HyperDeck and the controller! HyperDeck Extreme also includes 2 media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB C external disk recording, plus a front panel speaker and headphone jack!

    Quad Link 12G-SDI is included so it's possible to record and playback in full resolution 8K for amazing quality! The SDI connections are multi-rate, so you can use Quad Link 12G-SDI to get compatibility with other 8K products, or switch to SD, HD or Ultra HD using the single link 12G-SDI connection. To allow regular CFast cards to be recorded at high resolution 8K, HyperDeck Extreme uses modern H.265 files for 8K recording and playback. This means HyperDeck Extreme 8K is perfect for connecting to the latest 8K televisions and projectors.

    • Features:

      • Advanced Quad Link 12G-SDI for 8K, HDMI and Legacy Analog!
      • Modern Design with Traditional Controls
      • Perfect for Live Production, Digital Signage and Archive
      • Convert Legacy Programming for Streaming
      • Record and Playback in Full Resolution 8K

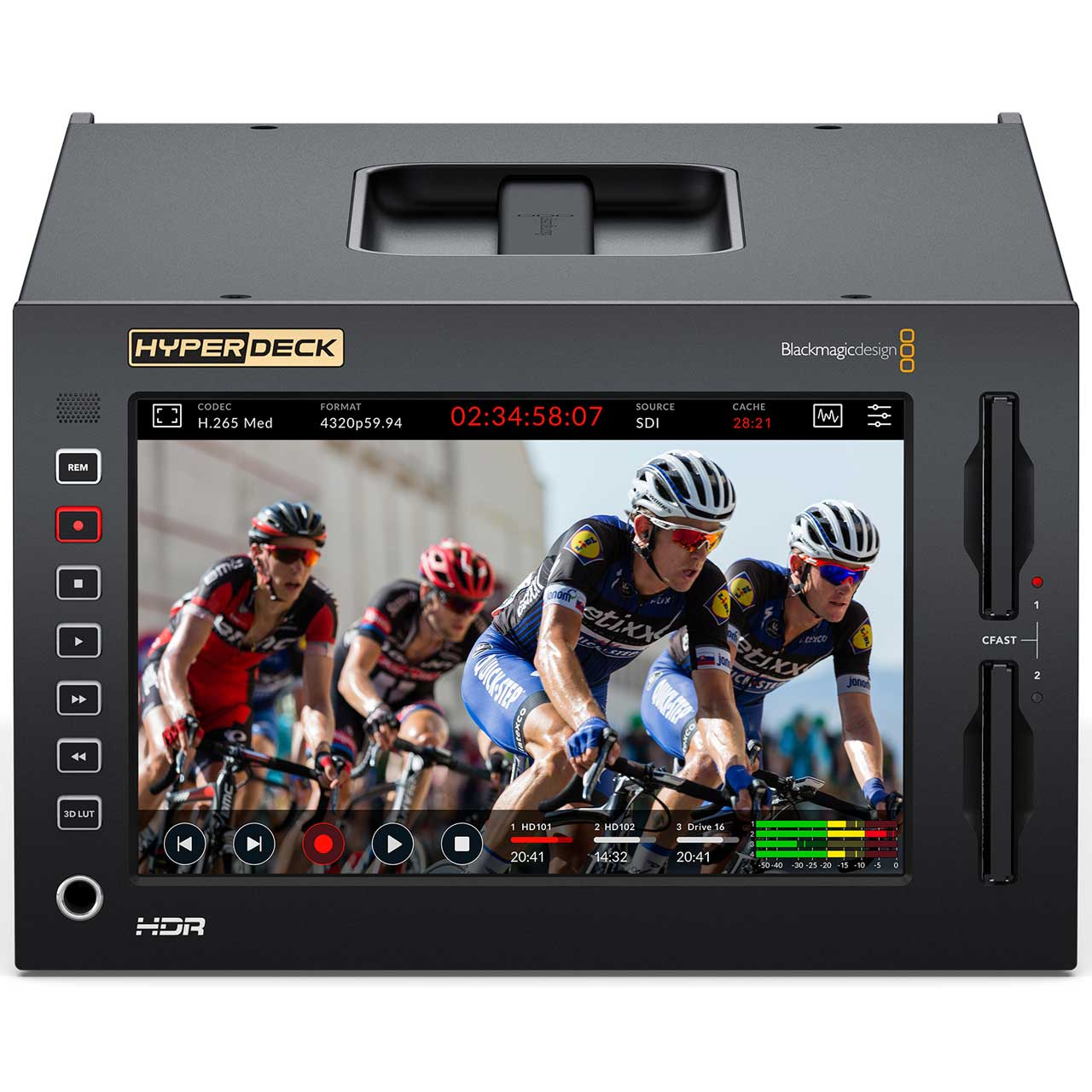

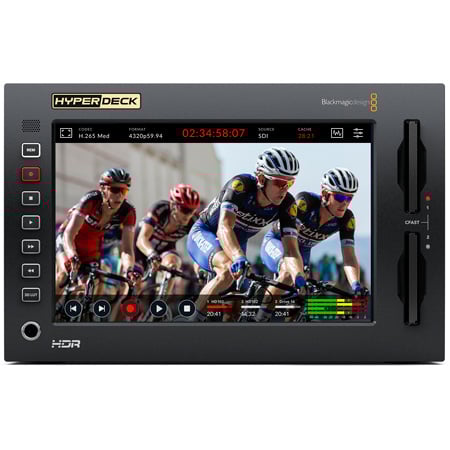

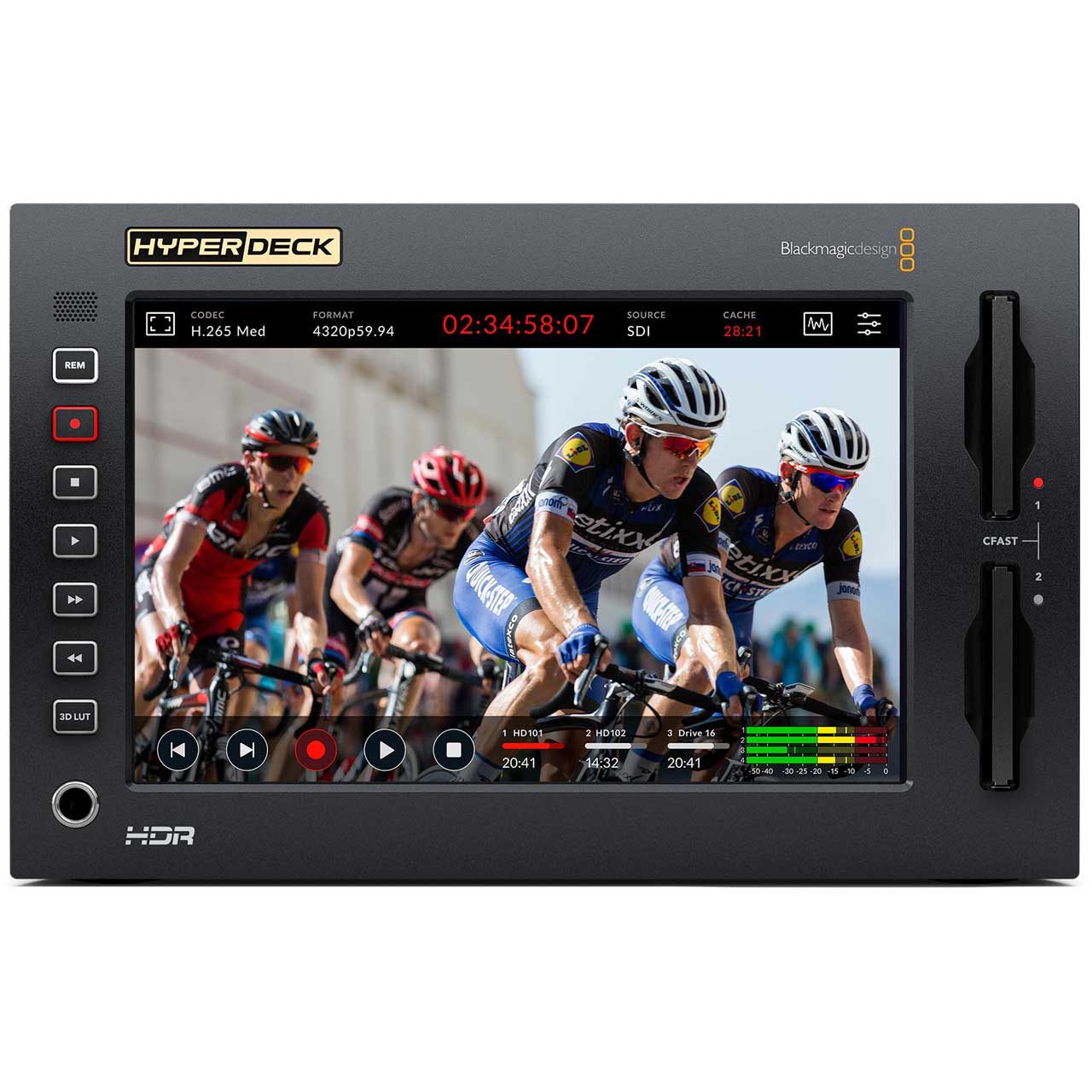

      • Big Bright Screen for Easy Touch Control
      • Traditional Broadcast Deck Controls
      • Dual CFast Media for Non Stop Recording
      • Record Direct to External USB C Media Disks
      • Optional Media Cache Eliminates Dropped Frames
      • Advanced HDR Support and Bright Wide Gamut LCD
      • Built In Scopes Ensure Compliance to Broadcast Standards
      • Latest MultiRate 12G-SDI for SD, HD, Ultra HD and Native 8K
      • Standard H.265 and ProRes Files for Wide Compatibility
      • Professional MultiChannel SDI and Analog Audio
      • The Fastest Networking with Modern 10G Ethernet

    • Specifications:

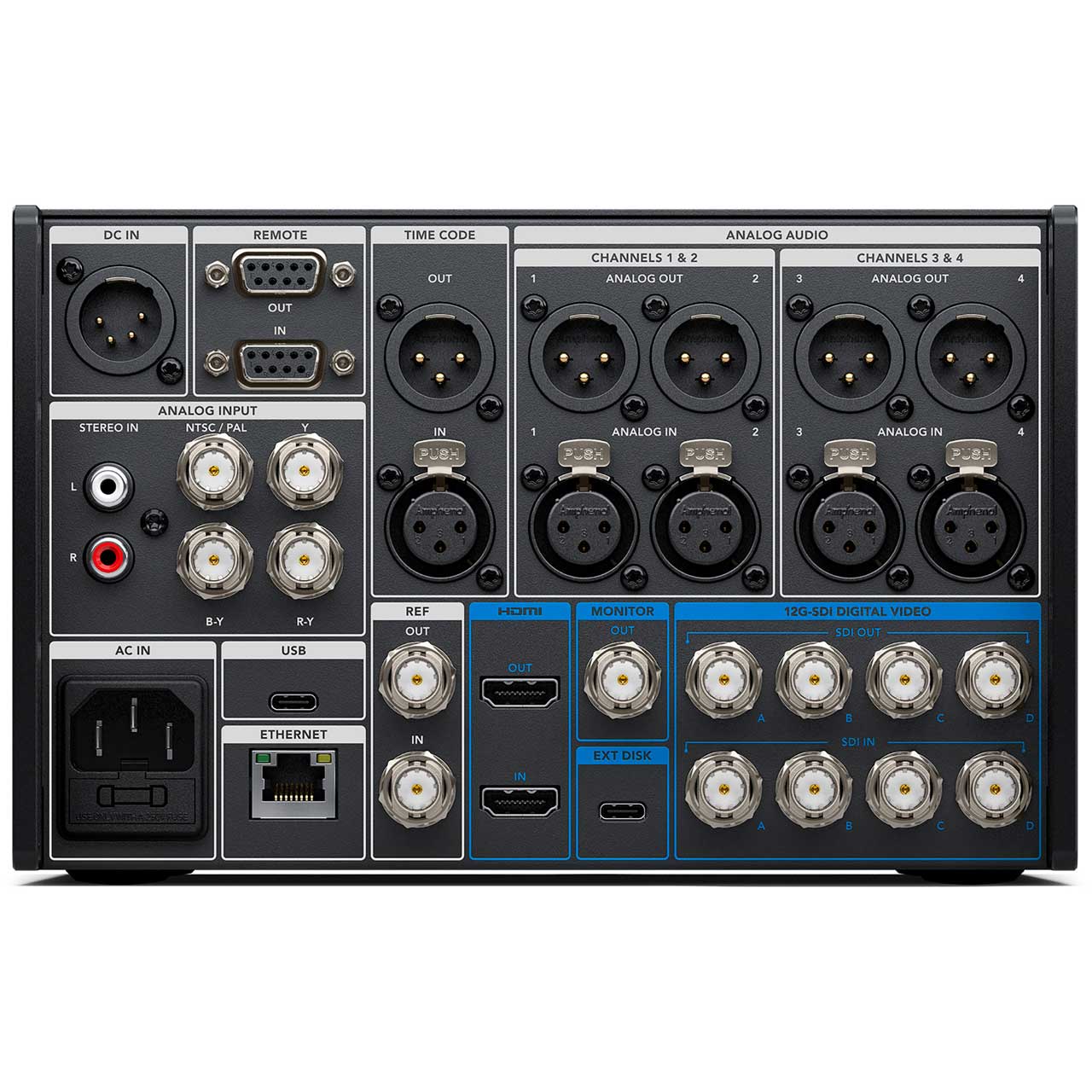

      • Connections
      • SDI Video Inputs: 4
      • SDI Video Outputs: 5 (12G-SDI A,B,C,D and 3G-SDI Monitor Out)
      • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
      • HDMI 2.0 Video Input: 1
      • HDMI 2.0 Video Outputs: 1
      • Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
      • Analog Video Outputs: 1 None.
      • Analog Audio Inputs: 1 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
      • Built in Speaker: 1 Mono
      • Screen: 1 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
      • Timecode Connections: 1 x XLR in and 1 x XLR out.
      • Reference Input: 1 Tri-Sync or Black Burst.
      • SDI Audio Inputs: 1 16 channels embedded audio.
      • SDI Audio Outputs: 1 16 channels embedded audio.
      • HDMI Audio Inputs: 1 8 channels embedded audio.
      • HDMI Audio Outputs: 1 8 channels embedded audio.
      • Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
      • Recorder Configuration: 1 Via user interface or Blackmagic HyperDeck Ethernet Protocol.
      • Ethernet: 1 10Gb/s
      • External Recording: 1x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
      • Computer Interface: 1x USB-C for software updates.
        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
      • 2K DCI Video Standards: 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI,1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K DCI Video Standards: 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
      • 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
      • 8K DCI Video Standards: 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
      • SDI Metadata Support: HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
      • Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
      • Video Sampling: 4:2:2 YUV
      • Color Precision: 10-bit
      • Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
      • Multi Rate Support: Auto detection of SD, HD, 6G SDI, 12G-SDI, 2SI Quad Link 12G-SDI.
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources.
        Media
      • Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
      • Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K.
      • Media Type: CFast card and external USB-C flash drives.
      • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
      • Supported Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime for all formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for all progressive formats up to 4320p60.

    • Item Includes:

      • HyperDeck Extreme 8K HDR
      • SD card with user manual.

    • Warranty:

      • 12 Month Limited

    • Operating Systems

      :

      • Mac 10.13 High Sierra, Mac 10.14 Mojave or later.
      • Windows 8.1 or Windows 10

    • GTIN:

      9338716006209
