BMD-CONVDSDDP-BS - Overview

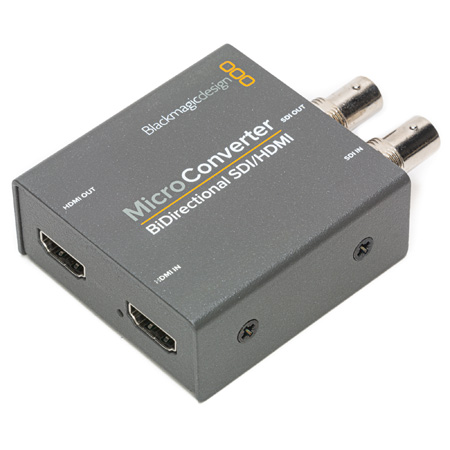

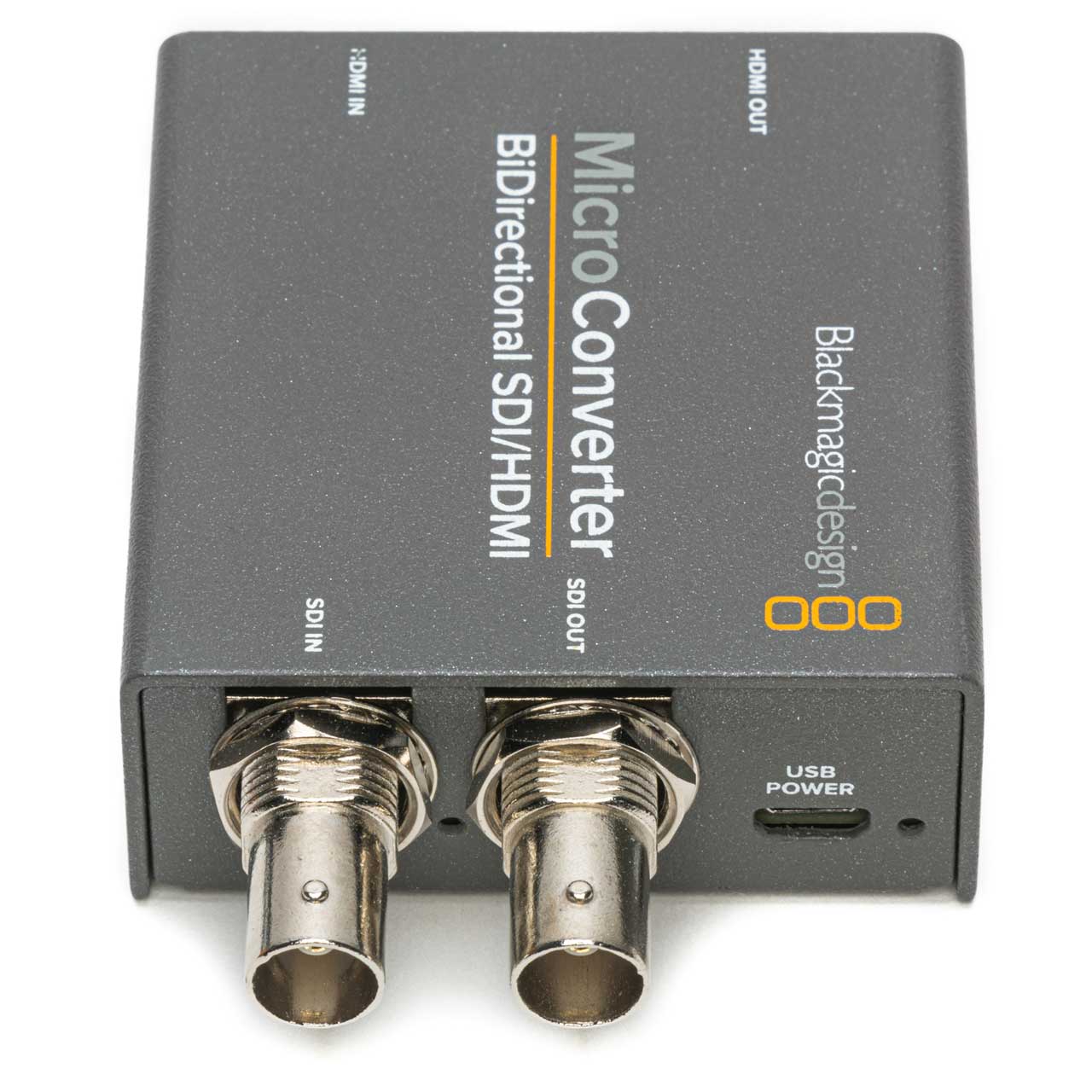

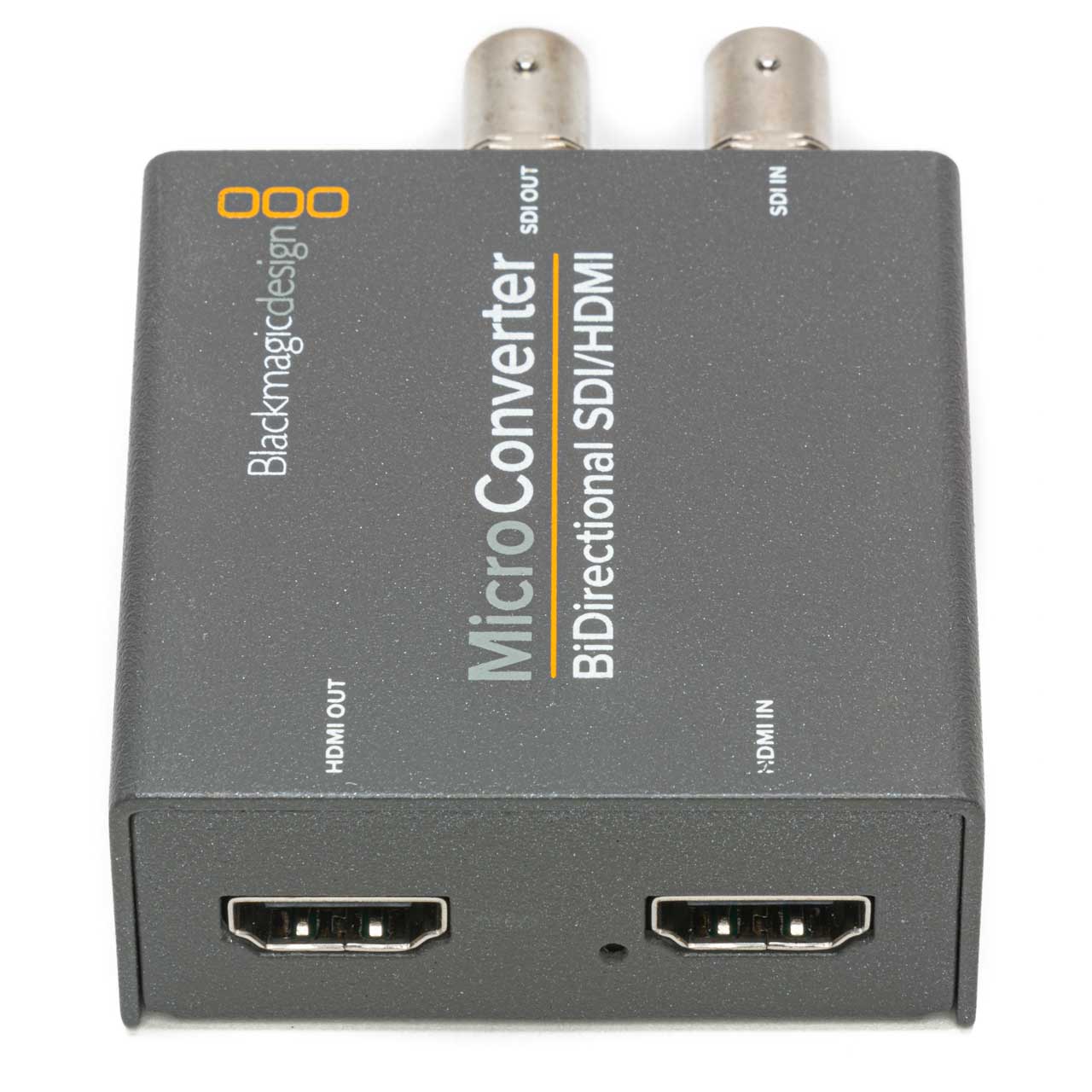

Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it's like getting two converters in one! The multi-rate 3G-SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats! It can even be powered via USB or with the included international power pack.

Please Note: The unit is used and repaired by vendor.

  • Specifications:

    • Connections
    • SDI Video Inputs: 1 x SD, HD or 3G-SDI
    • SDI Video Outputs: Automatically matches the SD, HD or 3G-SDI HDMI video input
    • HDMI Video Inputs: HDMI Type A in
    • HDMI Outputs: HDMI Type A out
    • Multi Rate Support: Auto detection of SD or HD
    • Updates, Configurations and Power: Micro USB
    • Reclocking: Yes
      Bstock - The unit is used and repaired by the vendor.
    • Standards
    • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
    • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV
    • Software Control: Mac and Windows™ software via micro USB
    • Internal Software Upgrade: Via micro USB

      Physical
    • Power Consumption: 2.5W
    • Operational Voltage Range: 4.4 to 5.25V DC
    • Power Supply: +5V universal power supply included with international socket adapters for all countries
    • Operating temperature: 0° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: 0% to 90% non-condensing
    • Dimensions: 3.18" x 2.32" x 0.98"
    • Weight: 6.13 oz.

  • Item Includes:

    • Micro Converter BiDirectional SDI/HDMI

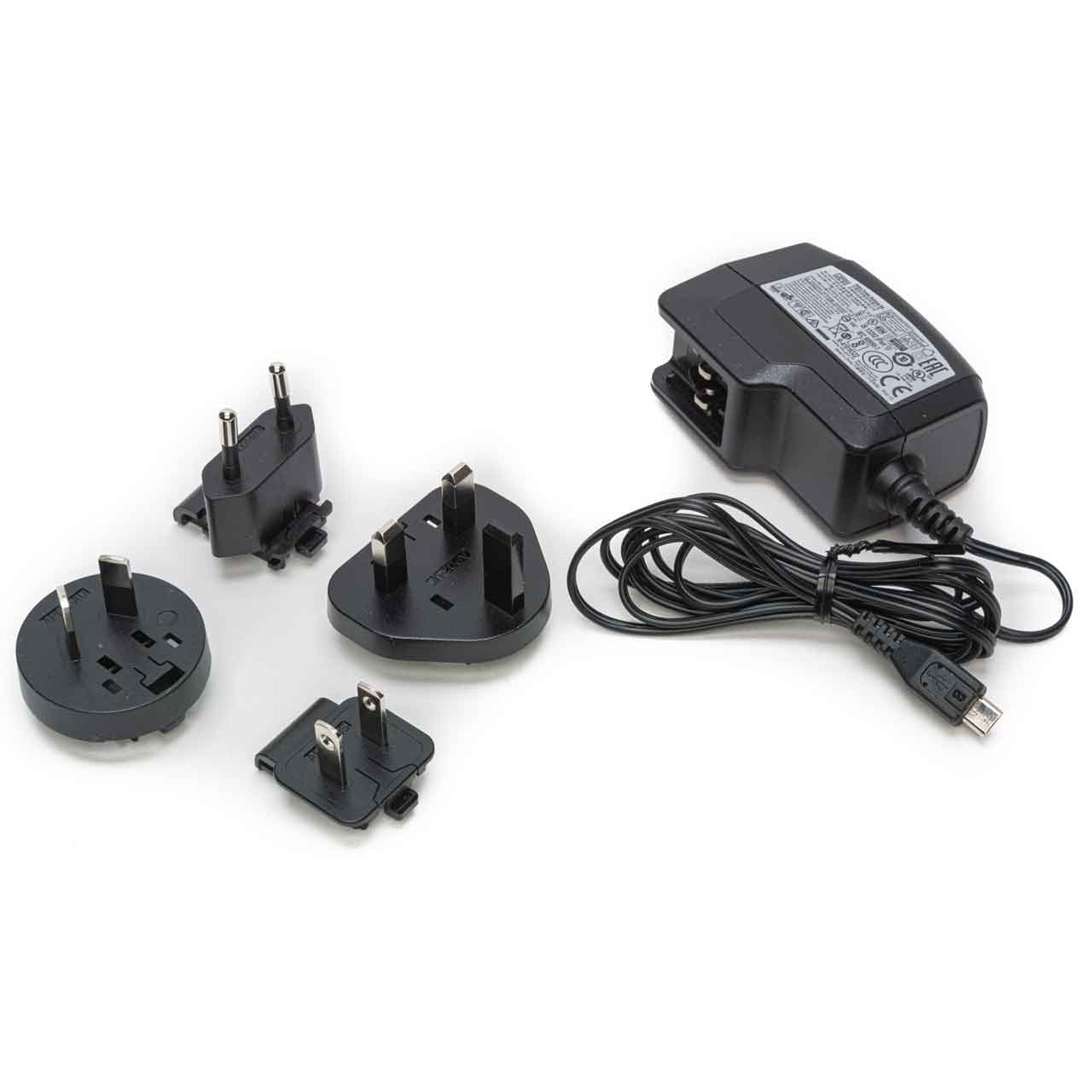

    • +5V universal power supply with international socket adapters

  • Warranty:

    • 3 Year
