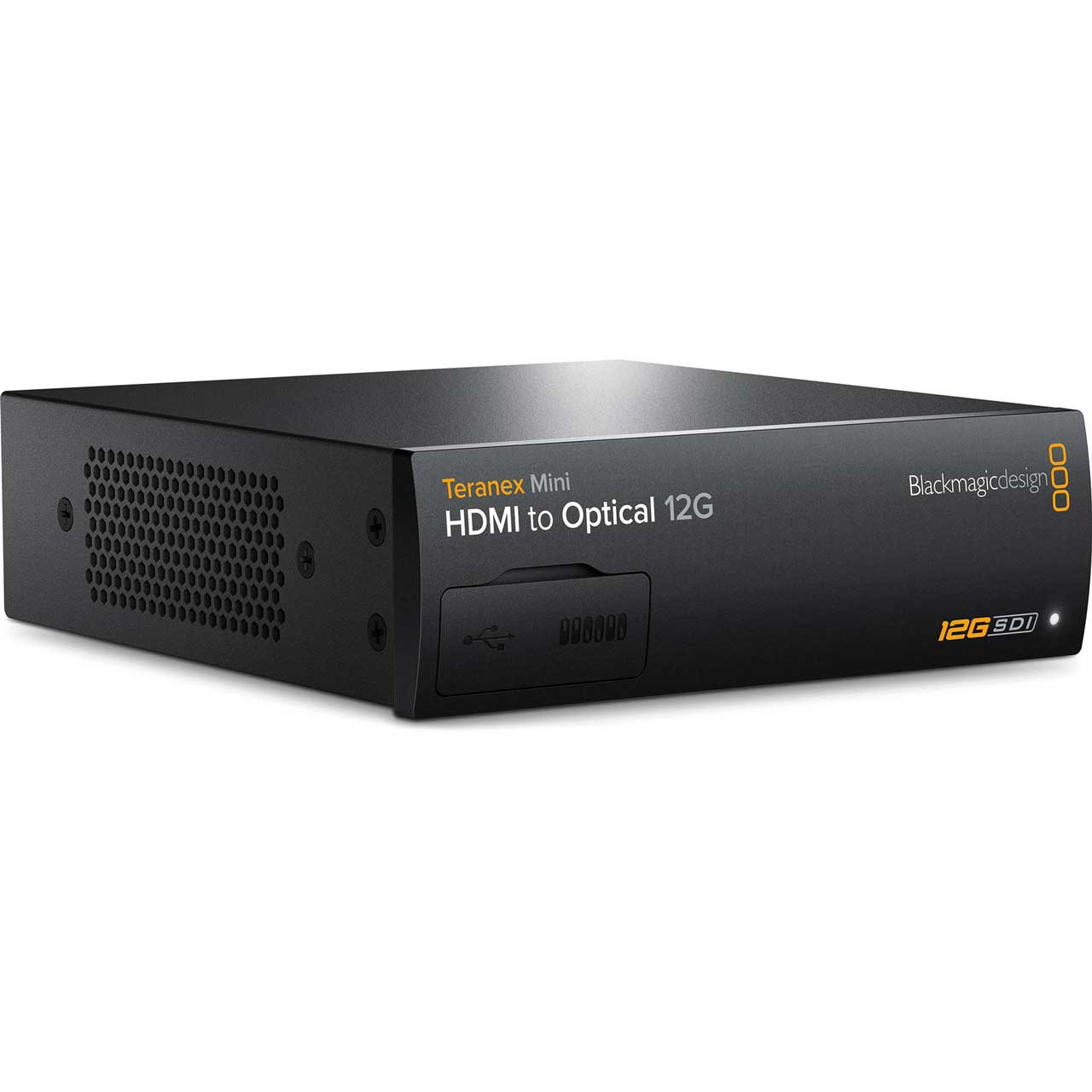

Blackmagic Design CONVNTRM/MB/HOPT Teranex Mini - HDMI to Optical 12G

ITEM #: BMD-CTMMBHOPT MFG #: CONVNTRM/MB/HOPT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$535.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVNTRM/MB/HOPT - Overview

With the Blackmagic Teranex Mini HDMI to Optical 12G you can convert from HDMI to SDI and SMPTE optical fiber! Simply insert the SMPTE optical fiber module of your choice (sold separately) to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, an up converter for viewing SD and HD sources on Ultra HD displays plus ethernet for remote admin control. Optical fiber SFP module sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!

Teranex Mini converters feature cutting edge, multi rate 12G-SDI technology that's 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

Please Note: Does not include SFP Optical Module.

  • Specifications:

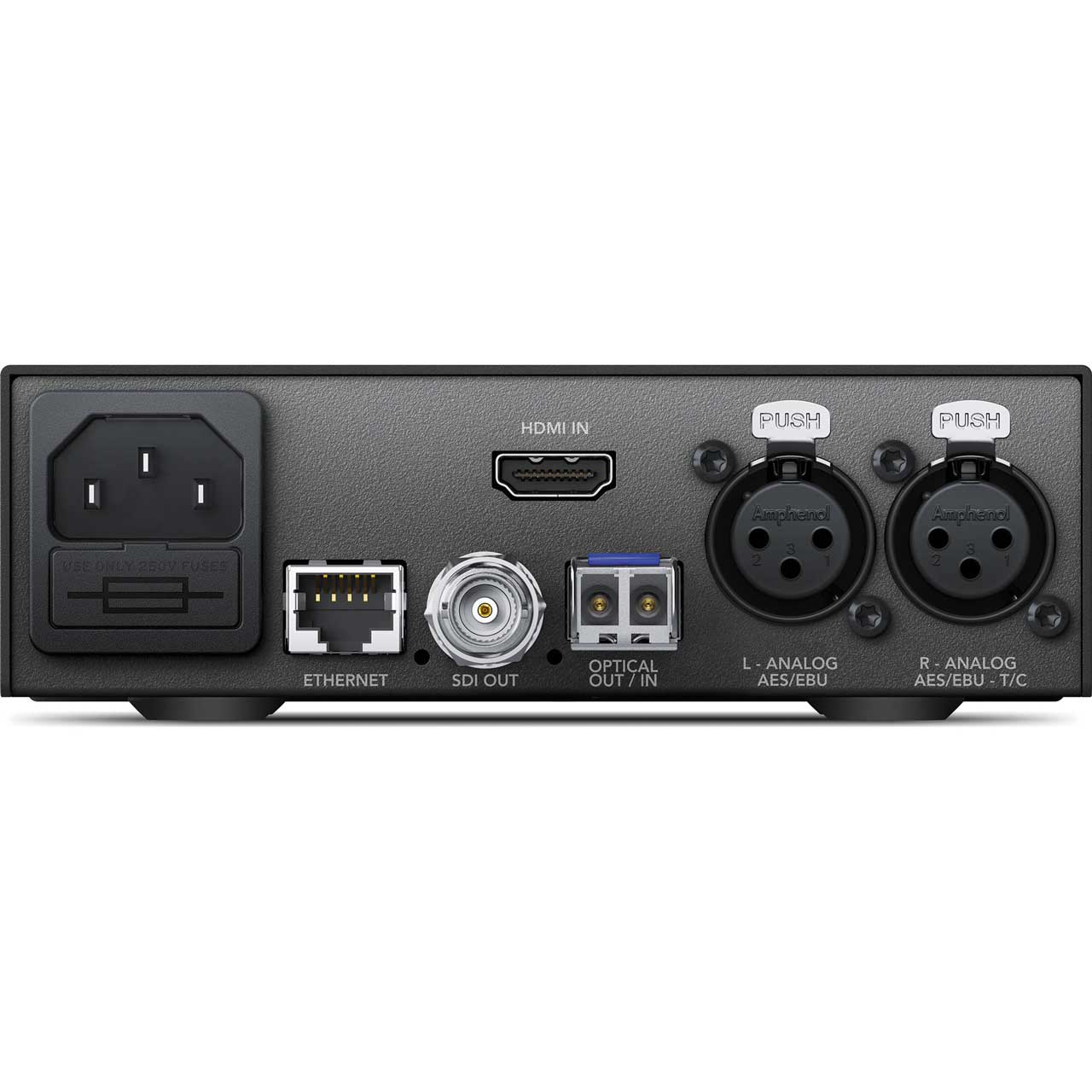

    • Connections
    • HDMI: 1 x HDMI 2.0 type A connector with support for 2160p60.
    • Optical Fiber Connection: LC connector, 1310 nanometer wavelength, single mode.
    • Optical Fiber Video Output: Automatically matches the SD, HD and 12G-SDI HDMI video input.
    • SDI Video Output: Automatically matches the SD, HD and 12G-SDI HDMI video input.
    • Analog Audio Input: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
    • AES/EBU Audio Input: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
    • Updates and Configuration: USB and Ethernet.
    • Re-Clocking: Yes

      Standards
    • SD Format Support: 525/29.97 NTSC, 625/25 PAL.
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080PsF23.98,1920 x 1080PsF24, 1920 x 1080p23.98,1920 x 1080p24, 1920 x 1080p25,1920 x 1080p29.97, 1920 x 1080p30,1920 x 1080p50, 1920 x 1080p59.94,1920 x 1080p60.
    • 2K Format Support: 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25.
    • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60.
    • SDI Compliance: SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,SMPTE 297M for Optical Fiber SDI.
    • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
    • SDI Video Sampling: 4:2:2 and 4:4:4.
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • SDI Color Space: REC 601, REC 709
    • HDMI Format Support: 525/29.97 NTSC, 625/25 PAL,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080p23.98, 1920 x 1080p24,1920 x 1080p25, 1920 x 1080p29.97,1920 x 1080p30, 1920 x 1080p50,1920 x 1080p59.94, 1920 x 1080p60,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 3840 x 2160p23.98,3840 x 2160p24, 3840 x 2160p25,3840 x 2160p29.97, 3840 x 2160p30,3840 x 2160p50, 3840 x 2160p59.94,3840 x 2160p60, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30,4096 x 2160p50, 4096 x 2160p59.94,4096 x 2160p60.
    • HDMI Color Space: REC 601, REC 709
    • HDMI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

      Software
    • Software Control: Mac OS XT and WindowsT software upgrade via USB or Ethernet.
    • Internal Software Upgrade: Via included updater application.

      Settings Control
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

      Power Requirements
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    • Power Over Ethernet: Can be powered


  • Item Includes:

    • Teranex Mini HDMI to Optical 12G
    • SD card
    • Software
    • Operations Manual


  • GTIN:

    9338716003314
