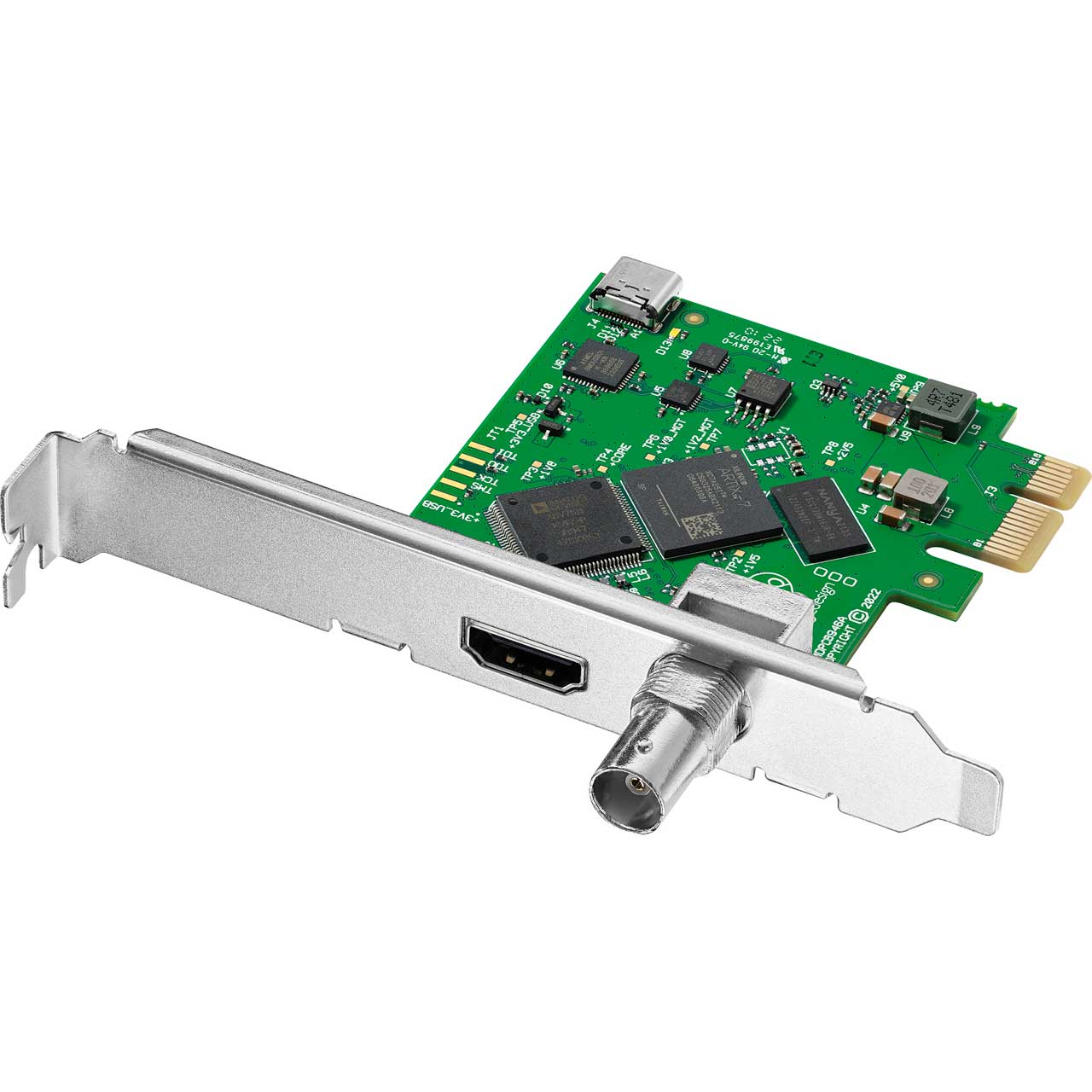

Blackmagic Design BDLKMINIMON3G DeckLink Mini Monitor HD 3G-SDI and HDMI Capture/Playback PCIe Card

ITEM #: BMD-DLMMHD MFG #: BDLKMINIMON3G

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$129.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BDLKMINIMON3G - Overview

    Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! Blackmagic Design DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.

    DeckLink Mini Monitor HD features advanced high quality video technology that supports uncompressed and compressed capture and playback at the highest 10-bit SD and HD quality. DeckLink Mini HD's support broadcast quality 10-bit YUV and 12-bit RGB 4:4:4 for pixel perfect capture and playback so customers get breathtaking image quality and detail. Replacing the previous 1.5G-SDI models, the update to 3G-SDI has allowed more features to be added such as support for video formats up to 1080p60 and 2Kp60 DCI, wider color spaces including Rec. 2020, as well as support for RGB video formats.

    The DeckLink Mini HD models are low profile 1 lane Gen 2 PCI Express cards that fit easily into either desktop or rack mount server style computers with the included full height and low profile PCIe shields. They can capture from decks, cameras and live video sources, and output to monitors, projectors, media servers and more. This is perfect for editing, compositing, graphics production and unlimited broadcast and post production situations where the highest quality video and true versatility are demanded.

    DeckLink Mini Monitor HD provides broadcast 3G-SDI and HDMI video playback from PCIe computers. It is perfect for playing back directly to TVs, video projectors and even live production switchers up to 1080p60. Playback images are a perfect pixel for pixel clone of the file so customers get breathtaking image quality and detail, perfect for critical monitoring. DeckLink Mini Monitor HD even supports the latest HDR formats, so it's perfect for when customers need professional but affordable color accurate monitoring.

    • Features:

      • Low profile 1 lane Gen 2 PCI Express cards
      • Includes PCIe shields for both regular and low profile slots
      • Built in 3G-SDI and HDMI connections on each model
      • Supports all common SD/HD video formats up to 1080p60
      • Supports DCI formats up to 2Kp60 via SDI
      • Uncompressed and compressed 10-bit 4:2:2 YUV or RGB quality
      • Supports DaVinci Resolve and all other video software
      • Developer SDK available to download free

    • Specifications:

      • Connections
      • SDI Video Input: 1 x 10-bit SD/HD switchable
      • SDI Rates: 270Mb, 1.5G, 3G
      • SDI Audio Input: 16 channels embedded in SD/HD
      • HDMI Video Input: 1 x HDMI 2.0 type A connector
      • HDMI Audio Input: 8 channels embedded in SD/HD
      • Computer Interface: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots

        Supported Codecs
      • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

        SDI Video Standards
      • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
      • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
      • SDI Video Sampling: 4:2:2, 4:4:4
      • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
      • SDI Color Space: REC 601, REC 709 and REC 2020
      • Multiple Rate Support: SDI video connection is switchable between SD and HD

        HDMI Video Standards
      • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
      • HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
      • HDMI Video Sampling: 4:2:2 and 4:4:4
      • HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards
      • HDMI Configuration: HDMI 2.0 supports Deep Color
      • HDMI Color Space: REC 601, REC 709 and REC 2020
      • Multiple Rate Support: HDMI video connection is switchable between SD and HD
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

        Processing
      • Colorspace Conversion: Hardware based real time

        Power Requirements
      • Power Consumption: 3 Watts

        Environmental Specifications
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity: 0% to 90% non-condensing

        Operating Systems
      • Mac 11.1 Big Sur
      • Mac 12.0 Monterey or later
      • Windows 10, 64-bit
      • Windows 11
      • Linux

    • Item Includes:

      • 1x DeckLink Mini Monitor HD
      • 1x Low profile slot bracket

    • Warranty:

      • 12 Month Limited

    • GTIN:

      9338716007916
