Blackmagic Design ATEM Television Studio Pro HD 8-input Live Production Switcher

ITEM #: BMD-SWATEMTVSTPR MFG #: SWATEMTVSTU/PROHD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-SWATEMTVSTPR

SWATEMTVSTU/PROHD - Overview

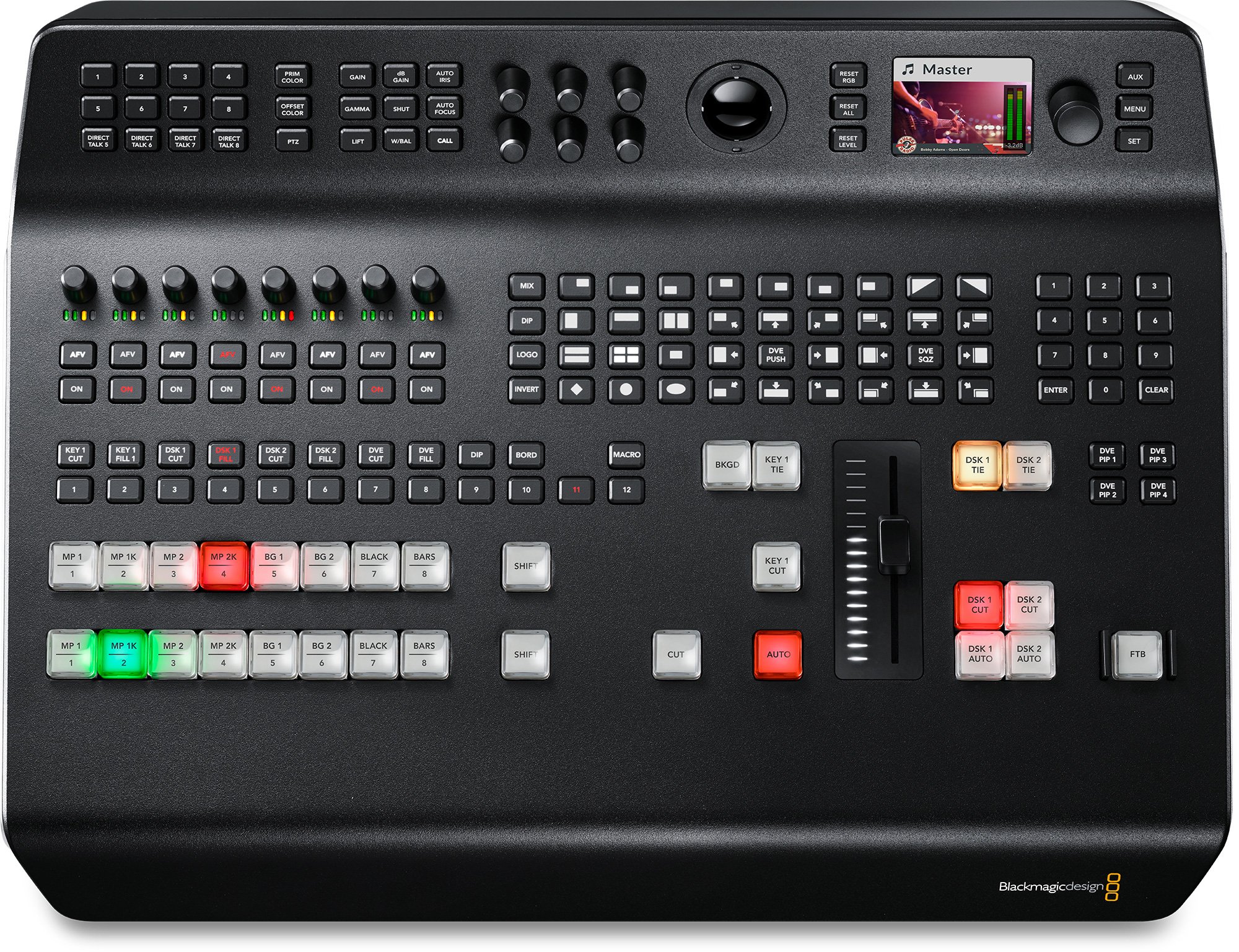

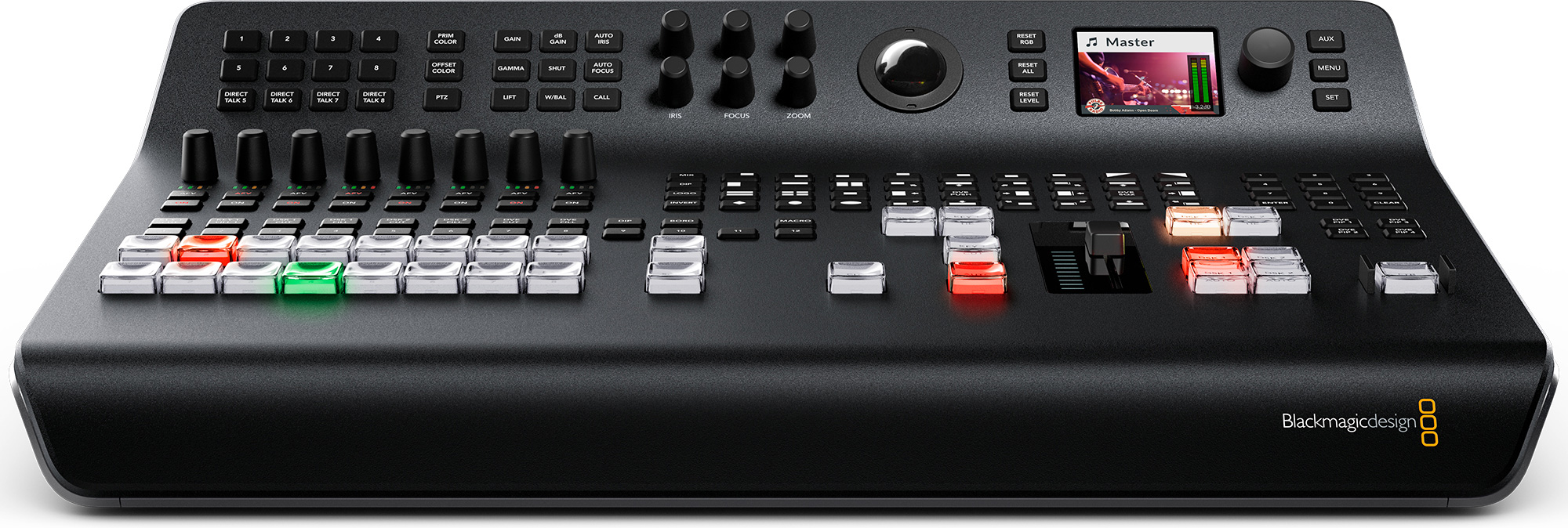

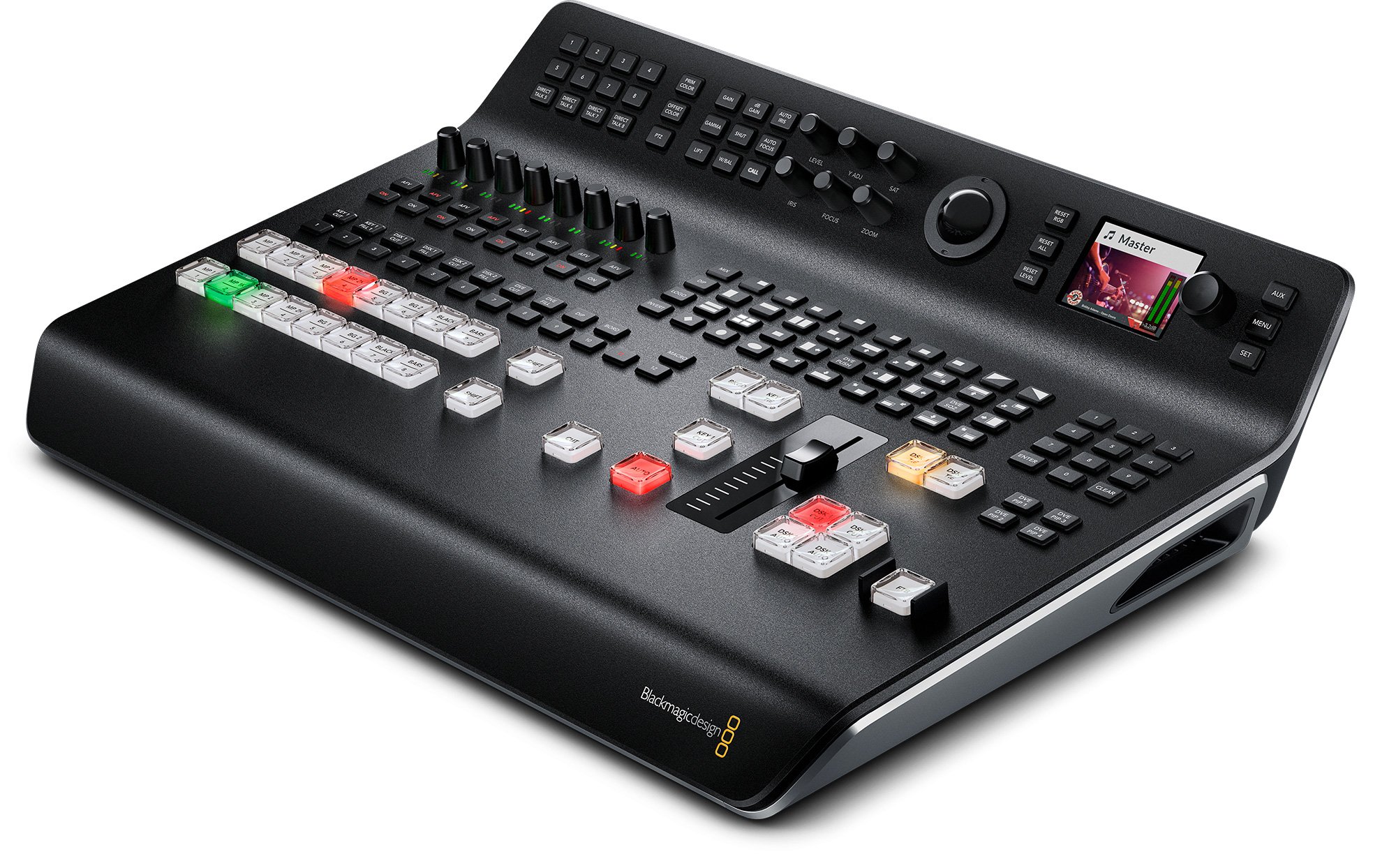

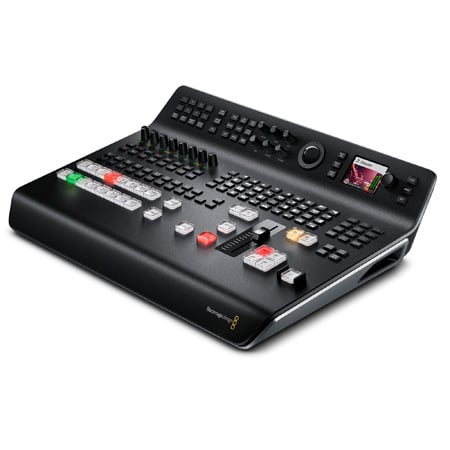

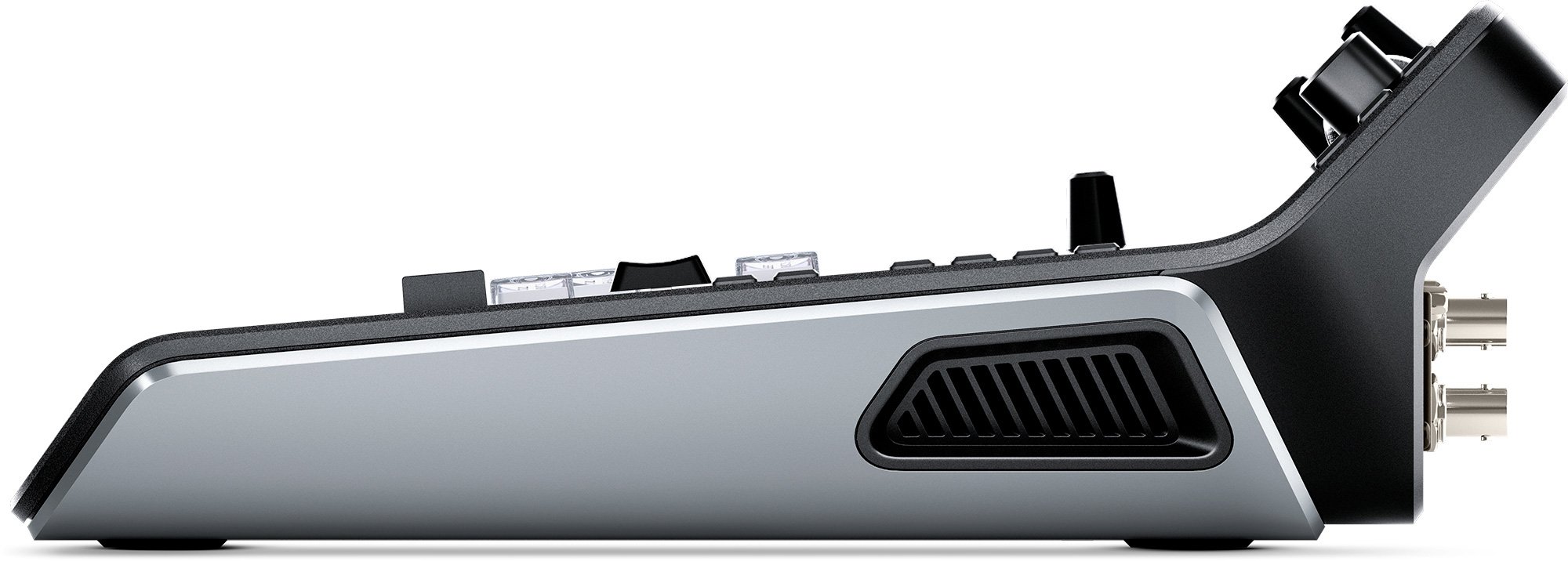

The Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher is an 8-input live production switcher with integrated control panel designed for broadcasters and A/V professionals. The relatively small chassis fits in a standard equipment rack, allowing it to be installed on a sliding rack shelf or packed into a "fly-away-kit" for use on location. The control surface is replete with control buttons, knobs, and a fader bar. All this enables easy camera input selection and control of transitions, keyers, settings, and the DVE.

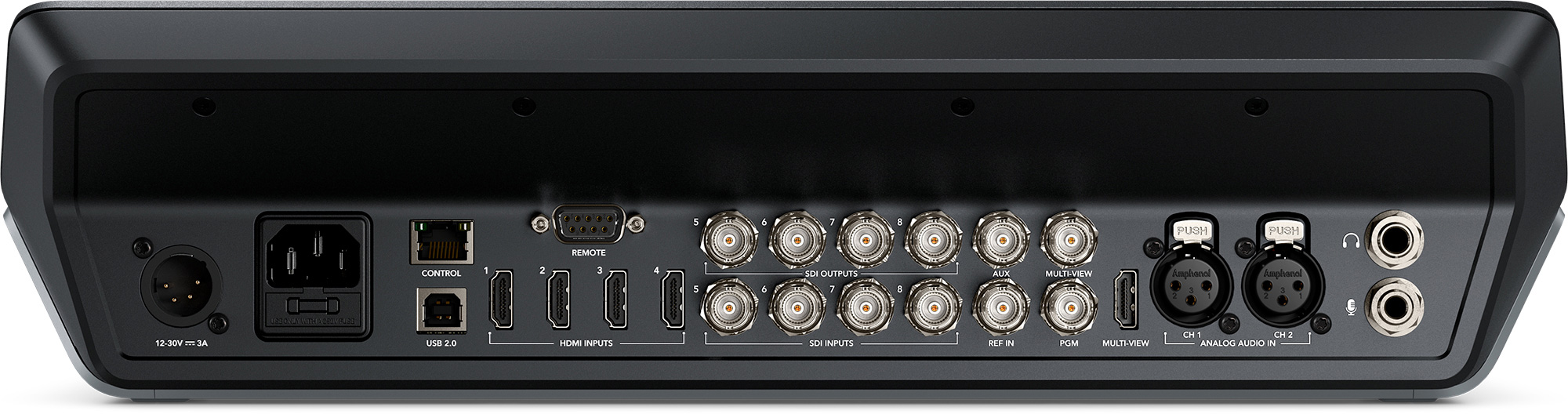

Inputs and outputs are located on the rear of the unit. You get four HDMI and four SDI inputs, with both sets of inputs supporting SD and HD resolution from professional and consumer cameras. PGM output is available via SDI while multiview can be sent via SDI or HDMI. An AUX output lets you send video to an external display, which is great for live events with a projection setup. Four of the SDI outputs have embedded talkback audio for studio setups. ATEM Television Studio Pro HD is packed with high end features and is perfect for live production, episodic television programming, web shows, AV or even live coverage of gaming competitions! Simply plug in cameras, game consoles or computers and start switching live!

  • Features:

    • A Ton of Transitions
    • Upstream Keyer
    • Downstream Keyers
    • Power Macros
    • Built in Audio Mixer
    • Multiview
    • Media Players
    • Built-in CCU and DaVinci Resolve primary color corrector
    • Built-In LCD
    • Transition Slider

  • Specifications:

    • Eartec HUB Mini Duplex Transceiver Base For 1 Plug-In & Up To 8 Wireless UltraLITE Headsets (USA)
    • Standard:DECT 6.0
    • Frequency: 1920 to 1930 MHz
    • Connector: 2.5 / 3.5 mm plug-in
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (baud rate)
    • Duplex Mode: Time Division Duplex (TDD)
    • Encoding: Speech Encoding, ADPCM / 32 bit/s
    • RF: RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 0.25 mile (400 m in open space)
    • Headset Power Supply: Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
    • Charger Power Supply: AC / Adapter: Input 100 to 240 VAC
    • Charge Time: 3 hours
    • Operation Time: 4 hours
    • Storage Temperature: 14 to 140°F / -10 to 60°C
    • Dimensions: 5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm
    • Weight: 4.0 oz / 113.4 g
    • Package Weight: 1.6 lb
    • Box Dimensions (LxWxH) 6 x 4.3 x 2.3"

      Eartec UltraLITE Single-Ear Remote Headset With Rechargeable Lithium Battery (USA Version)
      Wireless Connectivity
    • RF Bandwidth: 1728 GHz
    • Wireless Modulation: GFSK
    • DECT Standard: 6.0
    • Duplex Mode: Time-Division Duplex (TDD)
    • RF Channel Access Method: Time-Division Multiple Access (TDMA)
    • Speech Encoding: ADPCM / 32 b/s
    • Transmission Speed: 1.15 Mb/s
    • Operating Range: 1312' / 400 m
    • Frequency: 1920 to 1930 MHz

      Headphone
    • Number of Earpieces: Dual Earpiece

      Battery
    • Battery Capacity: 800 mAh
    • Recharge Time: 3 Hours
    • DC Input Power: 5 VDC at 1000 mA

      Environmental
    • Storage Temperature: 14 to 140°F / -10 to 60°C

      Physical
    • Weight: 4 oz / 113.4 g

      Packaging Info
    • Package Weight: 0.5 lb
    • Box Dimensions (LxWxH): 7 x 6.5 x 3"

      Eartec UltraLITE Dual-Ear Remote Headset With Rechargeable Lithium Battery (USA Version)
      Wireless Connectivity
    • RF Bandwidth: 1728 GHz
    • Wireless Modulation: GFSK
    • DECT Standard: 6.0
    • Duplex Mode: Time-Division Duplex (TDD)
    • RF Channel Access Method: Time-Division Multiple Access (TDMA)
    • Speech Encoding: ADPCM / 32 b/s
    • Transmission Speed: 1.15 Mb/s
    • Operating Range: 1312' (400 m)
    • Frequency: 1920 to 1930 MHz

      Headphone
    • Number of Earpieces: Dual Earpiece

      Battery
    • Capacity (mAh): 800 mAh
    • Recharge Time: 3 Hours
    • DC Input Power: 5 VDC at 1000 mA

      Environmental
    • Storage Temperature: 14 to 140°F / -10 to 60°C

      Physical
    • Weight: 4 oz (113.4 g)

      Packaging Info
    • Package Weight: 0.6 lb
    • Box Dimensions (LxWxH): 6.4 x 5.9 x 2.6"

      Eartec Max 4G Single Headset With Dual 3.5-2.5mm Connectors
      Headphone
    • Earpiece Design: Over-Ear (Circumaural)
    • Earpiece Connection / Wearing Style: Wired
    • Number of Earpieces: Single Earpiece
    • Sound Field: Mono

      Microphone
    • Type: Electret Condenser

      Wired Connectivity
    • Audio Connector to Source: 1 x 0.125 in /3.5 mm, 1 x 2.5 mm
    • Cable Length: 3' (91.4 cm)

      Physical
    • Weight: 5 oz (141.7 g)

      Packaging Info
    • Package Weight: 0.435 lb
    • Box Dimensions (LxWxH): 9.65 x 6.95 x 3.15"

  • Item Includes:

    • ATEM Television Studio Pro HD
    • SD card with software and manual

  • Warranty:

    • 12 Months Limited Manufacturer's Warranty.

  • GTIN:

    9338716004779
