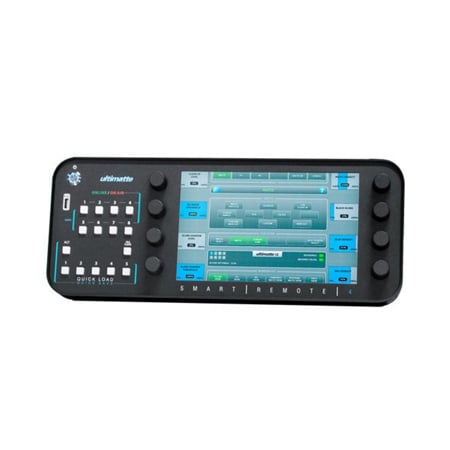

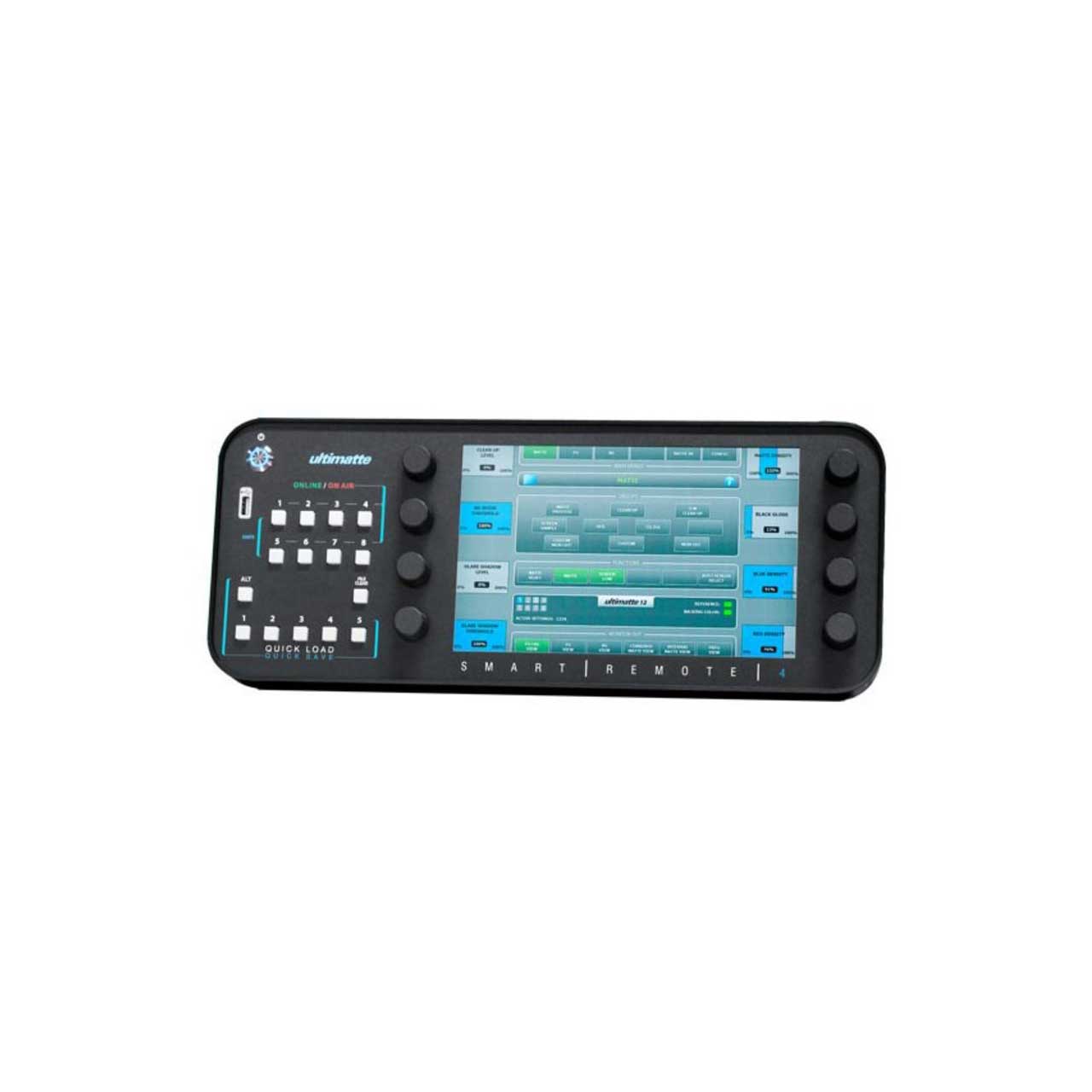

Blackmagic Design Ultimatte Smart Remote 4 - Control up to 8 different Ultimatte 12 Units

ULTMSMTREM4 - Overview

• Features:

  • System ON / OFF illuminated button
  • A color LCD display (resolution) with capacitive touch screen
  • Eight control knobs (optical encoders)
  • Eight Unit Select buttons (illuminated when selected)
  • 1 To 8 Unit On Line (Green) / On Air (Red) indicators
  • Five Quick Save / Quick Load buttons
  • Alt (Alternate Function) button
  • File Clear button
  • 1x USB 2.0 port


• Specifications:

  • Connection
  • Software Updates: 2 x USB 2.0 and 1 x USB 3.0 for firmware updates
  • SVGA Output: SVGA output allows for graphics to be viewed on an external VGA monitor
  • Ethernet: 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12
  • RS-422: 2 x for controlling Ultimatte 11.

    Product Specifics
  • Rotary Knobs: 8 x rotary knobs for adjusting parameters
  • Unit ID Buttons: 8 x buttons. Illuminated blue for active
  • Unit ID LED Indicators: Illuminated green for on line and red for on air
  • Alt + Quick Load/Save Buttons: Alt button plus 5 buttons for saving files into volatile RAM
  • Quick Load/Save Buttons: 5 x buttons for loading files stored in volatile RAM
  • File Clear Button: 1 x button for One Touch Keying
  • Alt + File Clear: Alt button plus file clear button for One Touch Keying using some user defined presets
  • Customizable Menus: 4 x menus for building your own menu with your most used controls
  • LED Control: User adjustable brightness control for LEDs
  • Fan Speed Control: User adjustable

    Software
  • Software updates: Via USB to load Smart Remote utility.

    Control
  • Touchscreen:10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus

    Operating Systems
  • Windows 10, 64-bit

    Power Requirements
  • Power Supply: 100 - 240V AC
  • Power Usage: 24W

    Environmental Specifications
  • Operating Temperature: 32° to 95°F
  • Storage Temperature: -4° to 140° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x Ultimatte Smart Remote 4
  • 1x SD card contains software and manual
  • 1x Rack mount ears


• Warranty:

  • 12 Month Limited Manufacturer's Warranty


• GTIN:

  9338716004410
