Blackmagic Design CINEURSANWFRCAM Camera Fiber Converter - Refurbished by Vendor - No Visual Damage - OOW

ITEM #: BMDCINURSNWFRCMB MFG #: BMDCINURSNWFRCMB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMDCINURSNWFRCMB

BMDCINURSNWFRCMB - Overview

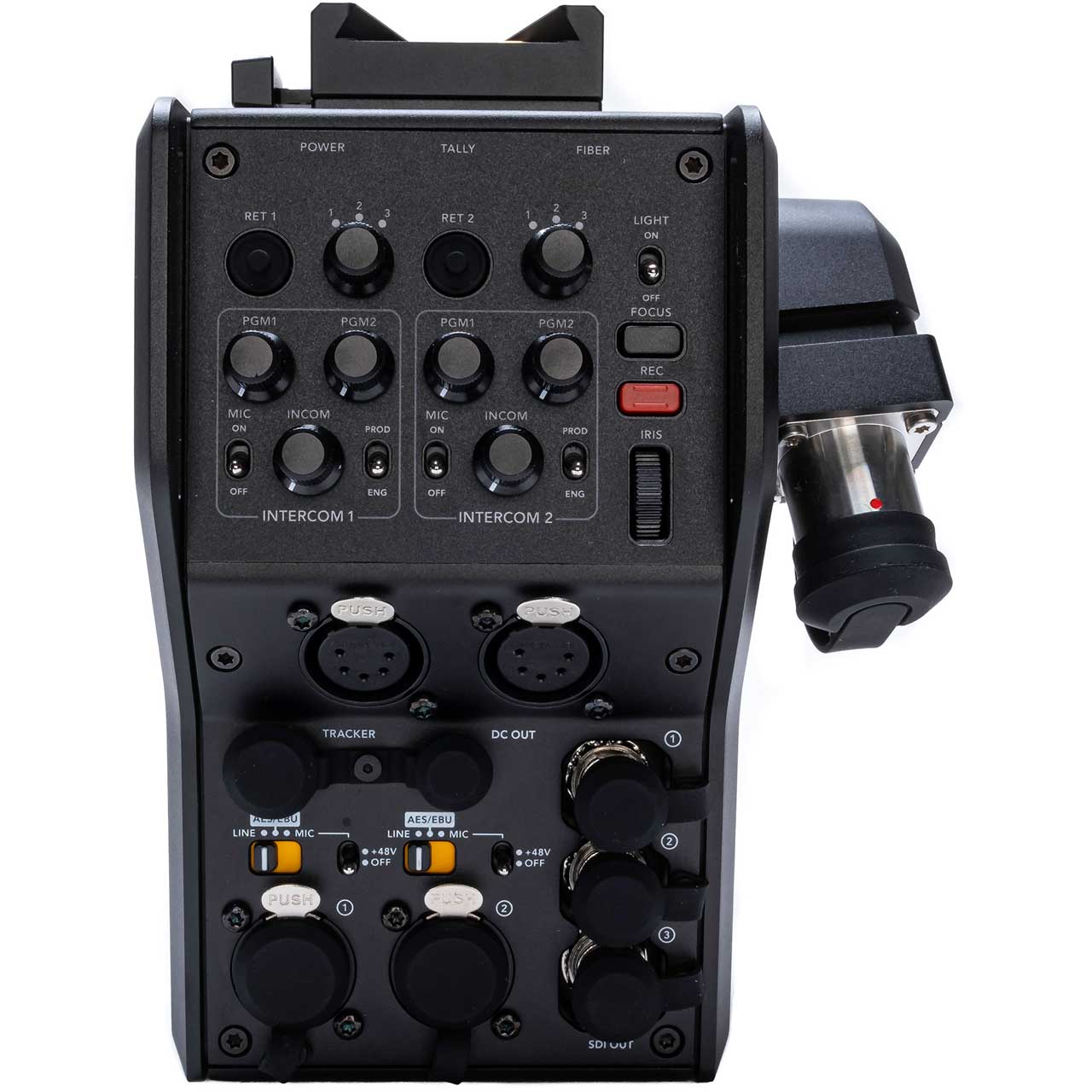

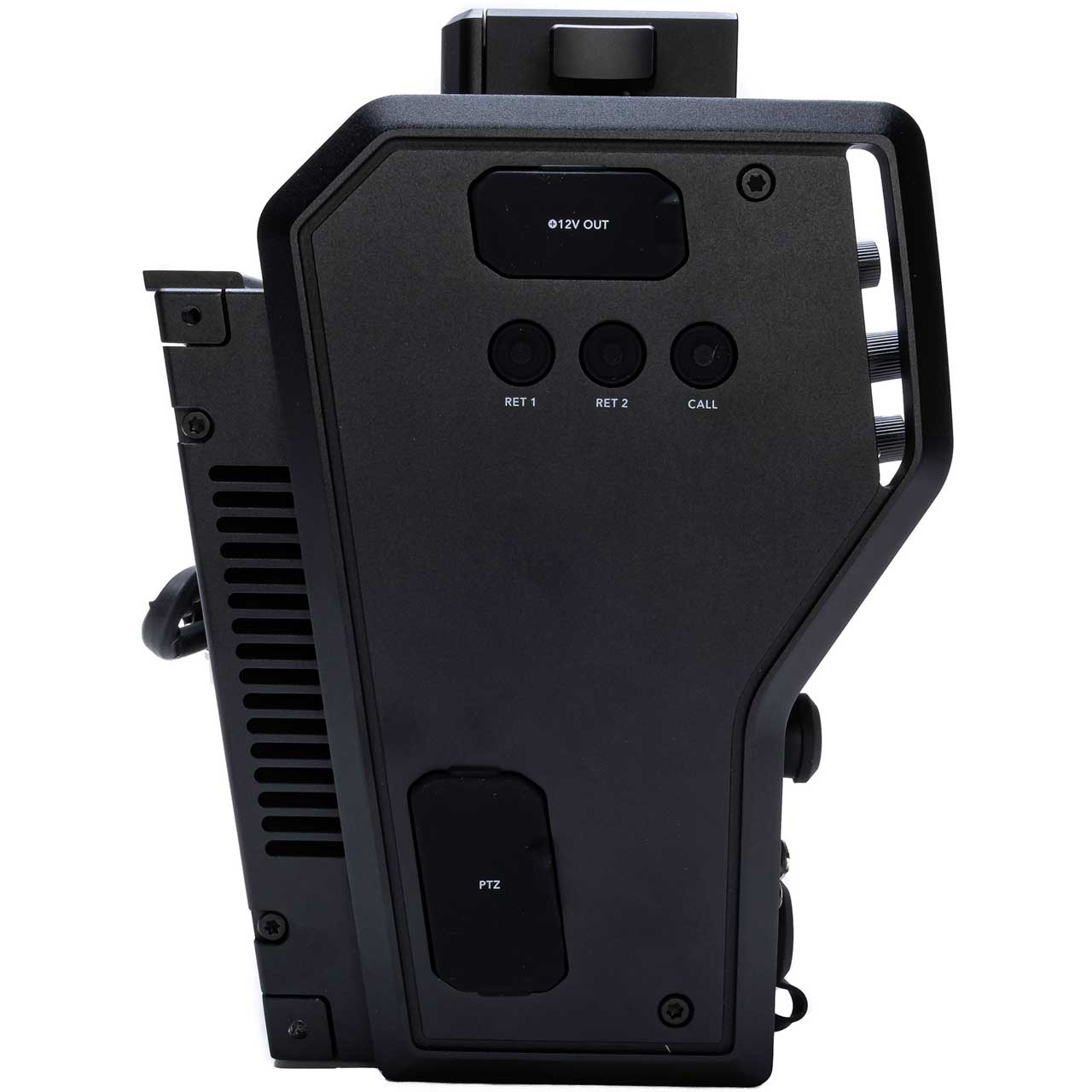

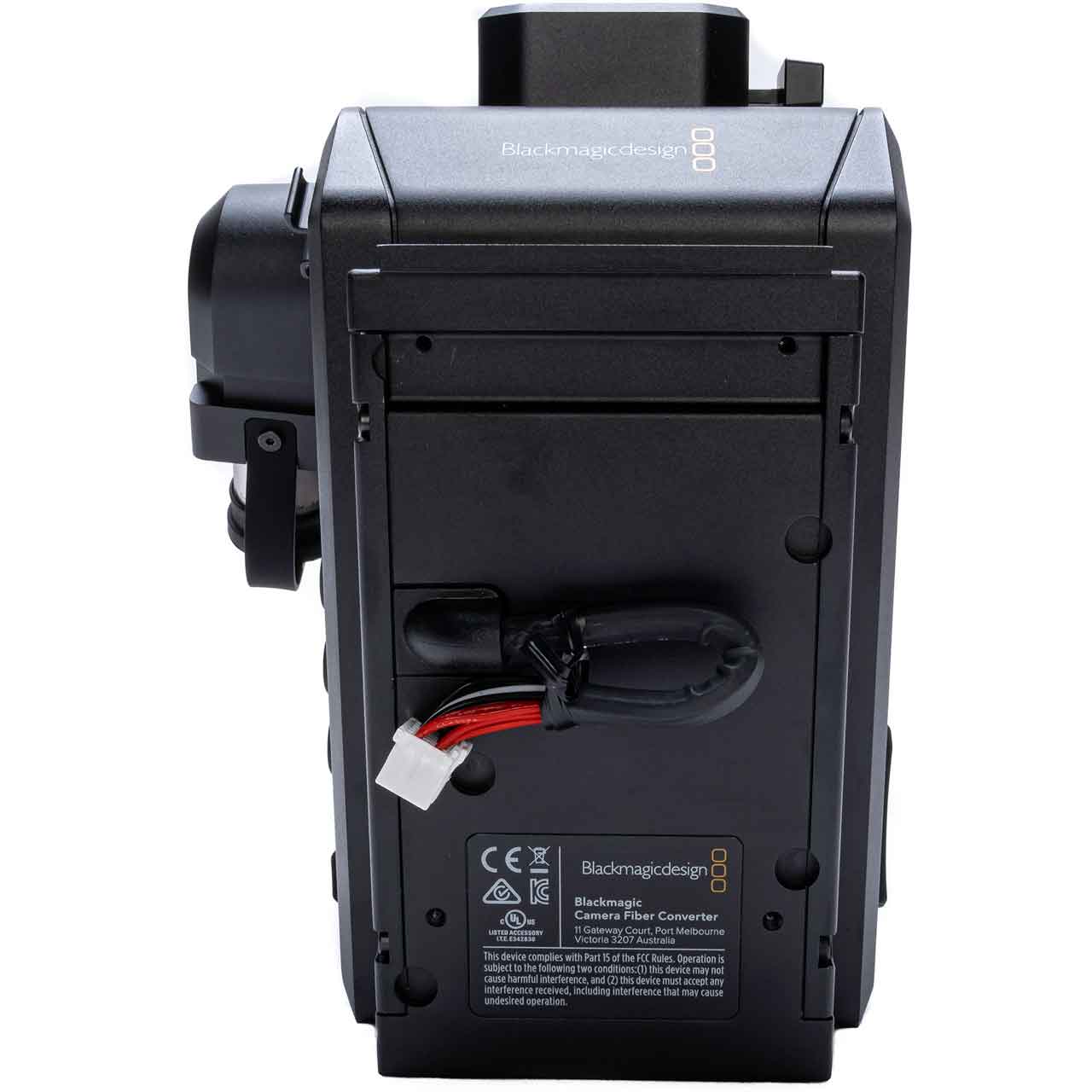

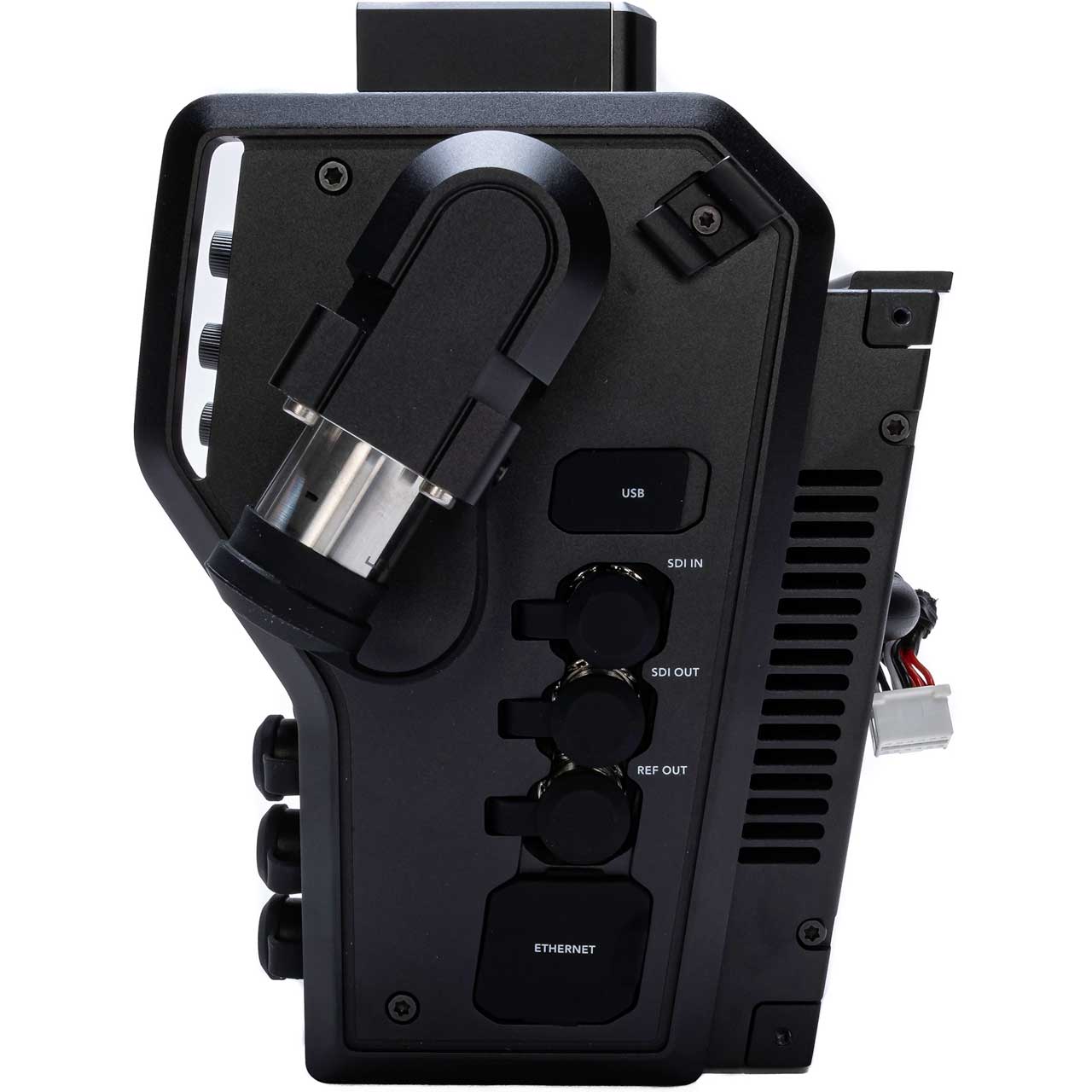

Factory Refurbished Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km (1.24 miles) away using industry standard SMPTE fiber cables! It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video-based design. The Blackmagic Camera Fiber Converter attaches to the back of your URSA Mini or URSA Broadcast camera (sold separately). In addition to converting audio, video, camera control and talk back into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a VLock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more!

Please Note: This item is factory refurbished and is no longer under warranty. Item was used and appears to have no physical damage.

  • Features:

    • Transform broadcast cameras into dedicated studio cameras!
    • Extend and fully power cameras up to 2 km (1.2 miles) away using an open standard SMPTE fiber cable!
    • Get cameras much closer to the action!
    • Built in multi layer fail safe instantly cuts power to eliminate danger
    • Super fast, low latency ethernet link for video, audio and control!
    • Two dual channel talkback intercoms with backup!
    • Durable metal design,high end components and professional connections

    • Please Note: This item is factory refurbished and is no longer under warranty. Item was used and appears to have no physical damage.

  • Specifications:

    • Connections
    • Optical Fiber Input: 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
    • SDI Video Input: 3x 12G SDI Return feeds with Program,Camera Control, Tally, Genlock and Intercom on Return 1.
    • SDI Video Output: 2x 12G SDI for Ultra HD up to 60p.
    • Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
    • Balanced XLR Audio Outputs: 4x camera analogue audio outputs.
    • Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active).
    • Computer Interface: 1x USB-C.

      Standards
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
    • Audio Sampling: Television standard sample rate of 48Khz, 24 bit A/D conversion.
    • Video Sampling: 4:2:2
    • Color Precision: 10-bit
    • Color Space: REC 709, REC 2020.
    • Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

      Software
    • Software Included: Camera Utility for firmware update.

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

      Power Requirements
    • Power Supply: 100 - 240V AC input.

  • Item Includes:

    • Blackmagic Camera Fiber Converter
    • Mounting Bracket and screws for attaching to URSA Mini and URSA Broadcast cameras
    • 3x Short 12G SDI cables for SDI In and Out connectiong to URSA Mini and URSA Broadcast
    • SD card with software and manual

  • Warranty:

    • 1 Year
