Blackmagic Design SWATEMRRW4ME4K ATEM 4 M/E Broadcast Studio 4K - Refurbished by Vendor - Some Scratches on Unit - OOW

BMDSWATEMRWME4KB - Overview

Advanced Live Production!

• Features:

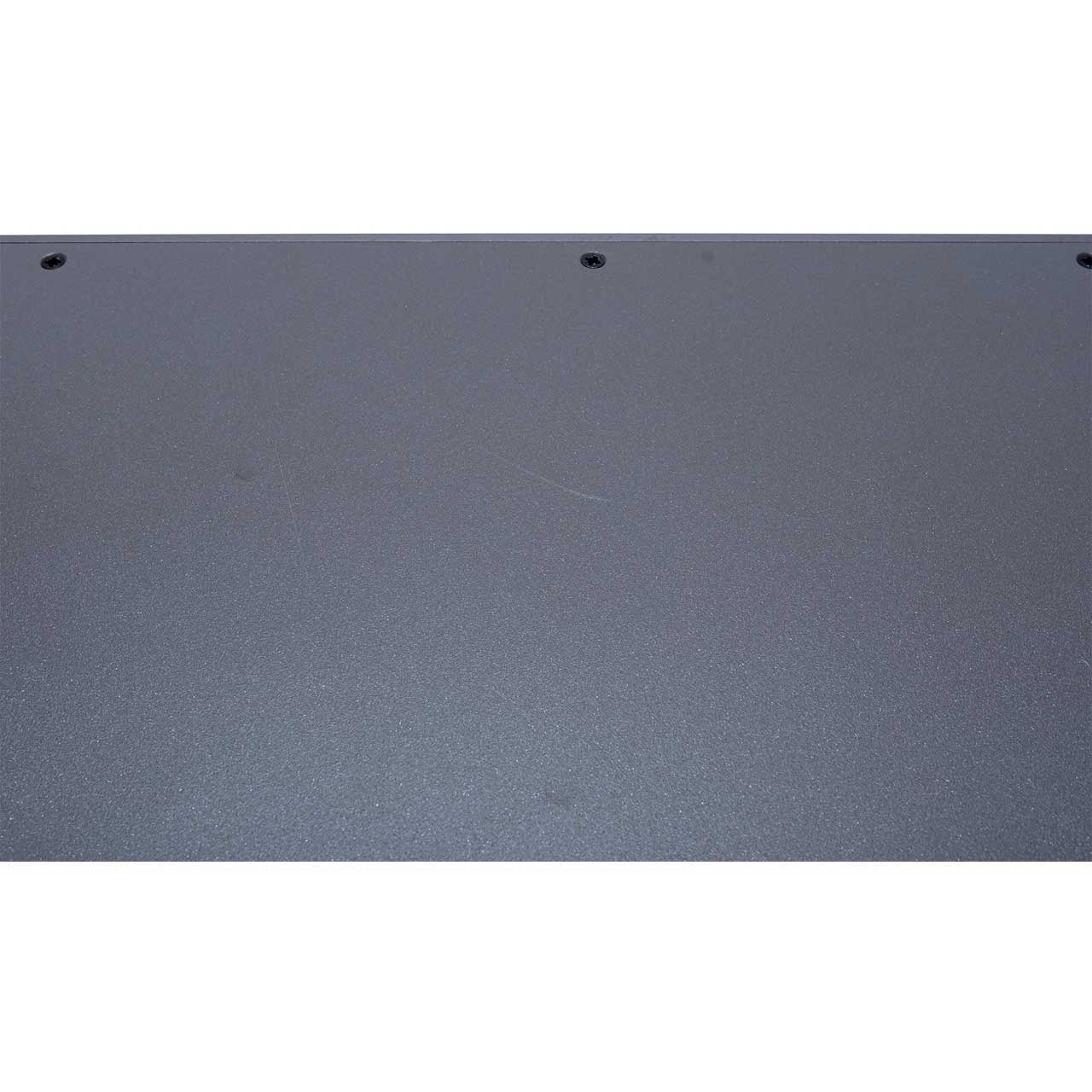

  • Please note: Refurbished by vendor.The unit is scratched, but in working condition. Unit is out of warranty.
  • Get the extreme power of a 4 M/E 20 input 12G-SDI switcher combined with 16 ATEM Advanced Chroma Keyers for high frame rate Ultra HD!
  • Combines the elegance of modern design with the power of broadcast production.
  • Creative features with advanced technology.

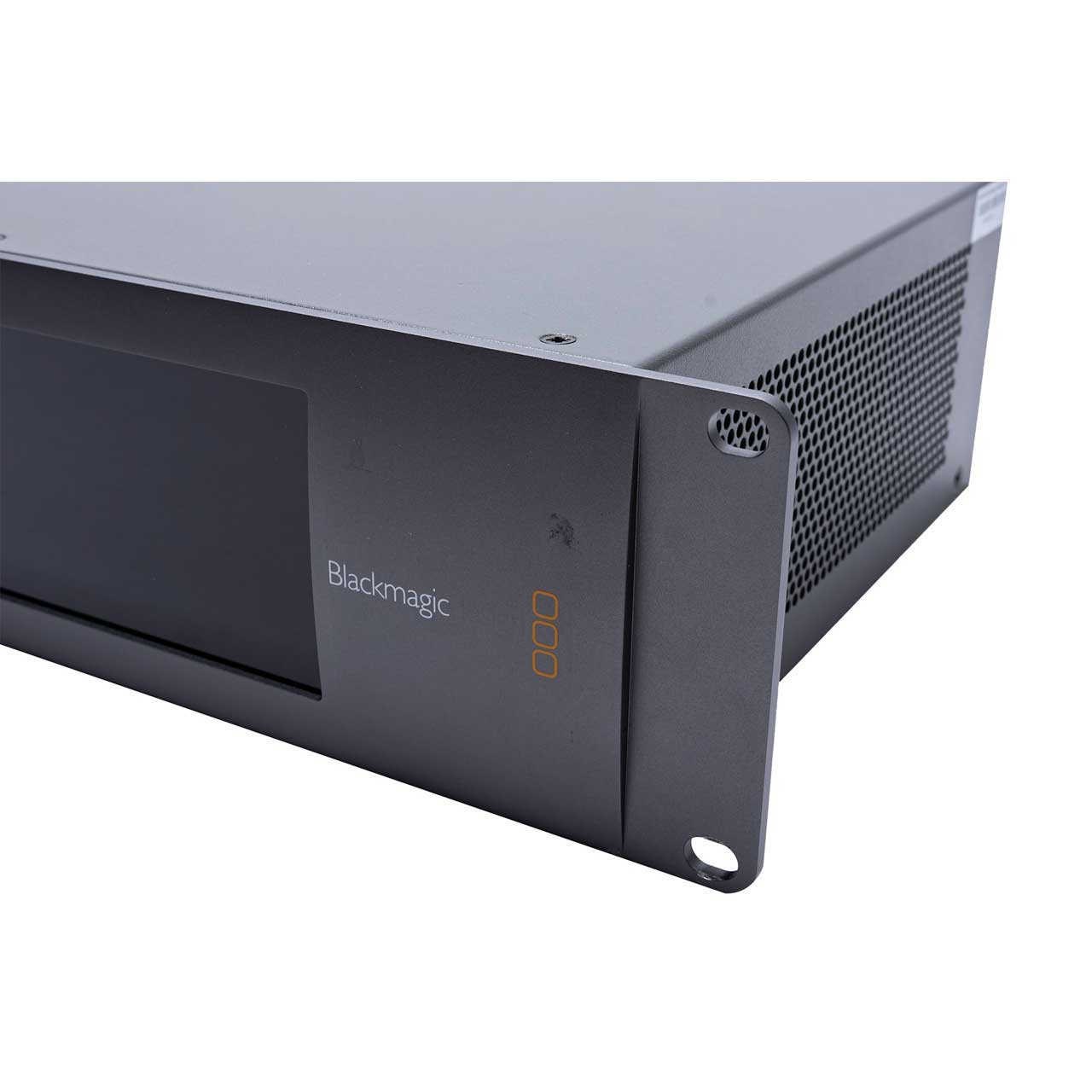

  • Elegant machined metal design in a super compact size!
  • Connect to SDI and HDMI equipment in SD, HD and Ultra HD!
  • Use a single screen for all your monitoring!
  • Get dozens of exciting effects and transitions!
  • Position, resize, rotate and scale in real time!
  • Large graphics memory!


• Specifications:

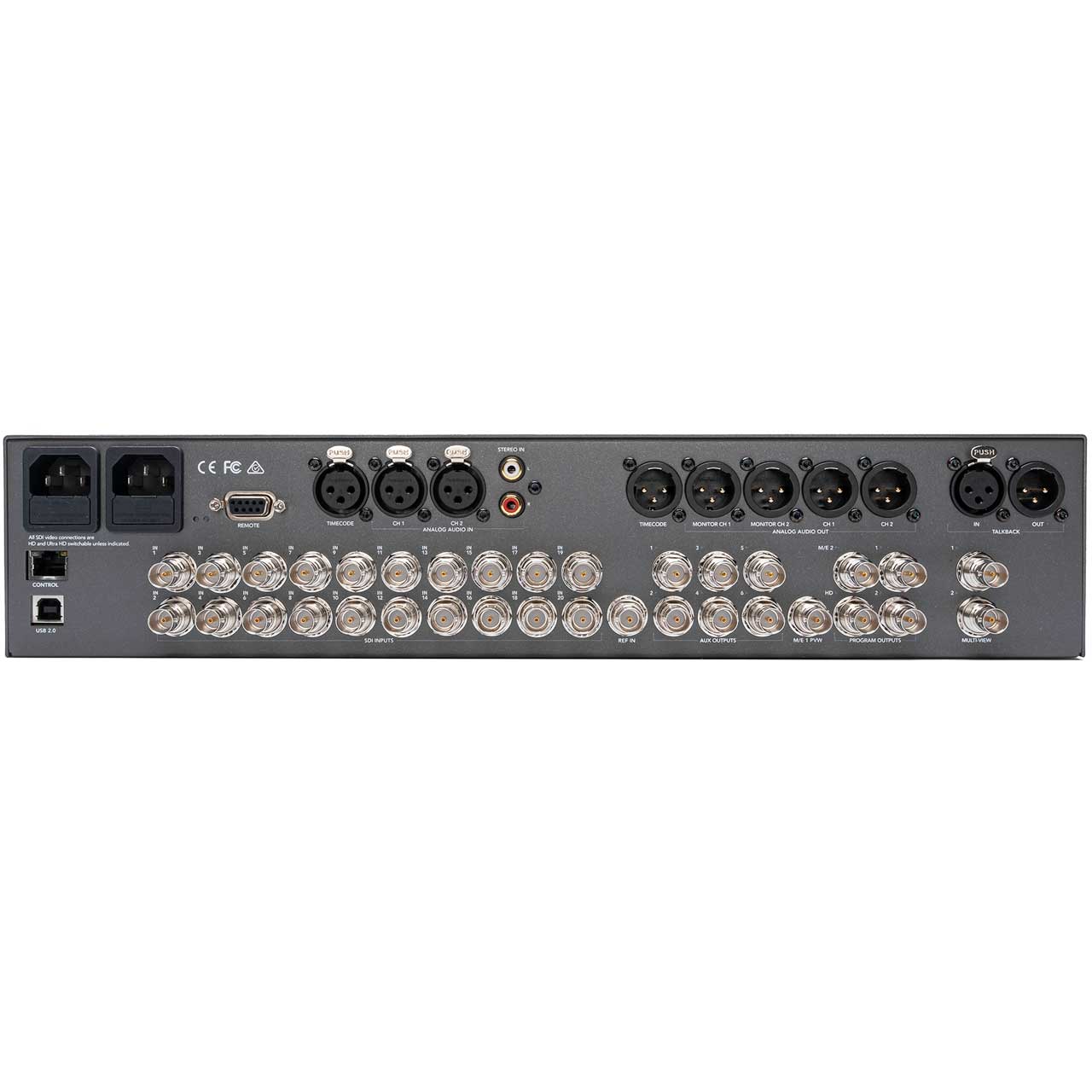

  • Connections
  • Total Video Inputs: 20
  • Total Video Outputs: 13
  • Total Aux Outputs: 6
  • SDI Rates: 1.5G, 3G, 6G, 12G
  • Total Audio Inputs: 2 x XLR. 2 x RCA.
  • Total Audio Outputs: 2 x XLR Program 2 x XLR Monitor.
  • Timecode Connections: 1 x XLR Timecode in and 1 x XLR Timecode out.
  • Reference Input: Tri-Sync or Black Burst.
  • Video Input Re-sync: On all 20 inputs.
  • SDI Video Inputs: 20 x 10-bit HD/Ultra HD 4K switchable. 2 channel embedded audio.
  • Extra Audio Outputs: 1 x XLR Timecode and 1 x XLR Talkback.
  • SDI Audio Outputs: 2 Ch embedded into SDI output on all outputs.
  • Extra Audio Inputs: 1 x XLR Timecode and 1 x XLR Talkback.
  • SDI Program Outputs: 3 x 10-bit HD/Ultra HD 4K switchable.
  • Down Converted SDI Program Output: 1 x 10-bit (From Ultra HD 4K to HD).
  • SDI Preview Outputs: 1 x 10-bit HD/Ultra HD 4K switchable.
  • Total Multi Views: 2
  • SDI Multi View Outputs: 2
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
  • Computer Interface: 1 x USB 2.0 port.

    Standards
  • SD Video Standards: None.
  • HD Video Standards: 720p50, 720p59.94,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
  • SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 2082.
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit.
  • Color Space: REC 601, REC 709, REC 2020.

    Product Specifics
  • Upstream Keyers: 16 with Chroma/Linear/Luma key.
  • Downstream Keyers: 2
  • Chroma Keyers: 16
  • Talkback Support: None
  • Mix Minus Support: None
  • Linear/Luma Keyers: 19
  • Transition Keyer (Stinger/DVE) : 1 Stinger, 1DVE .
  • Total Number of Layers: 26
  • Pattern Generators: 19
  • Color Generators: 2
  • DVE with 3D Borders & Drop Shadow: 1
  • Control Panel: Software or optional hardware panel.
  • Routable Windows: 16
  • Tally: Red for program and green for preview indication.
  • Windows Source Labels: Yes

    Multi View Monitoring
  • Multi View Monitoring: 2 x 10 Views for 20 total views.
  • Multi View Video Standard: Select HD or Ultra HD.

    Media Player
  • Media Players: 4
  • Media Pool Still Image Capacity: 64 with fill and key.
  • Media Pool Clip Capacity: 2 with fill and key.
  • Media Player Clip Length in 720 HD: 3200 frames.
  • Media Player Clip Length in 1080 HD: 1440 frames.
  • Media Player Clip Length in Ultra HD: 360 frames.
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Media Pool Video File Format: TGA Sequence.
  • Media Pool Audio File Format: WAV, MP3 and AIFF.

    Display
  • Interface: Minimum monitor resolution of 1366 x 768.

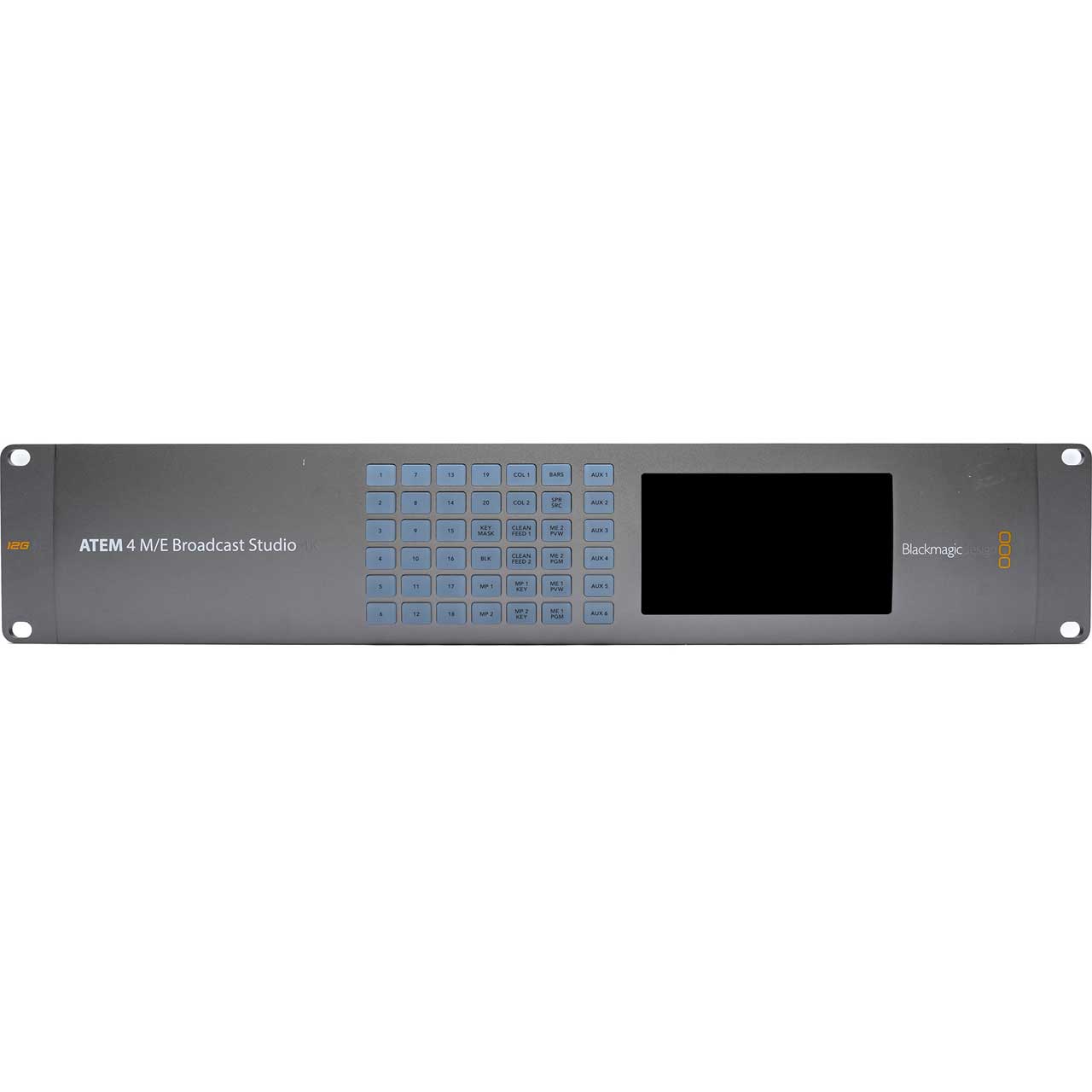

  • Front panel: Built in HD LCD monitor for video and 42 LED buttons for Aux switching.


• Item Includes:

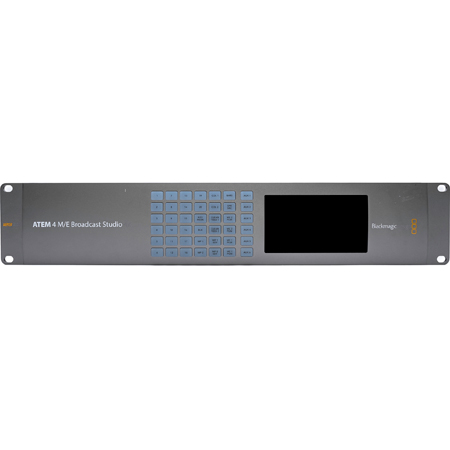

  • ATEM 4 M/E Broadcast Studio 4K
  • SD card with software and manual


• Warranty:

  • 12 Month Limited Manufacturer's Warranty.
