Bolin BL-BR4K-1 4K HDBaseT Receiver with PoH for Bolin 1/7/8/9 Series VCC HDBaseT Cameras

BL-BR4K-1 - Overview

• Features:

  • HDBaseT Receiver designed for the Pro AV and UCC industry
  • For use with Bolin 1/7/8/9 Series VCC HDBaseT camera or other compatible HDBaseT equipment.
  • Resolution supports up to 4K/30, 1080p60, 1080i59.94
  • Video Output: HDMI 1.4 (4K)
  • HDBaseT FHD/4K video transmission up to 80-100 meters.

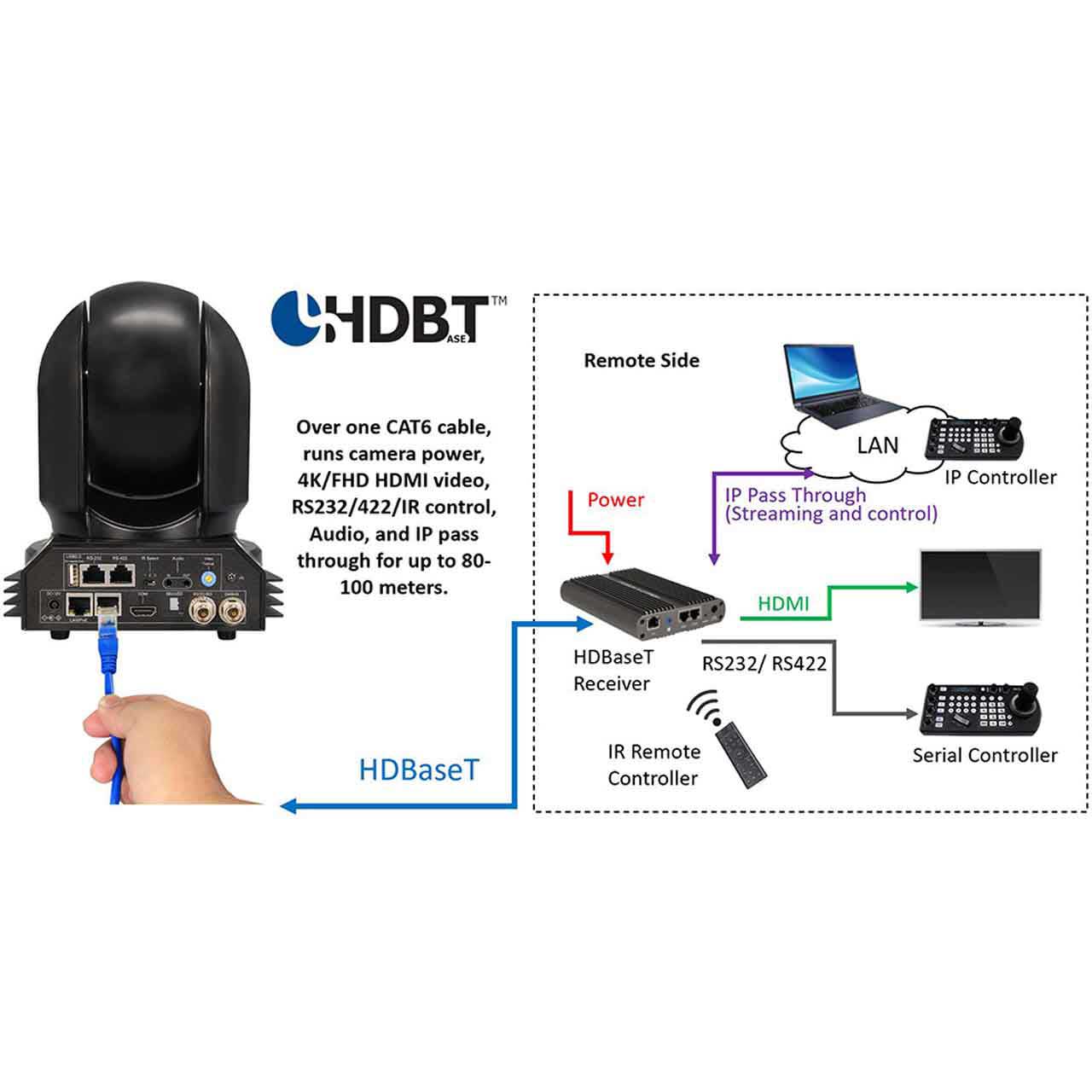

  • Over One CAT 6 Cable delivers: Camera Power (POH), 4K Video, Control, IP*, Audio.
  • Control via IR Control, RS232, RS422/485, IR
  • Provides Power to camera: IEEE802.3bt, power consumption up to 97W
  • Supports IP control and IP streaming from camera Pass-Thru*


• Specifications:

  • Video & Audio
  • Video support: 4K: 3840x2160/29.97p/25p; HD: 1080p60/59.94/50/30/29.97/25; 1080i60/59.94/50; 720p60/59.94/50
  • HDMI compliance: HDMI 1.4 (4K)
  • HDMI over UTP: CAT5e: 100M for up to 1080p60 CAT6/CAT6a/CAT7: 100 M for up to 4K 2K/30 4:4:4 and 4K60 4:2:0
  • IP Pass-Thru: For the camera with IP control or IP streaming functionality.(Camera model specific)
  • Audio support: Surround sound [up to 7.1ch) or stereo digital audio

    Control
  • PTZ Control: RS232, RS422/485
  • IR pass-thru: One-way(RX)
  • IP Control: Support pass-through (camera model specific)

    Interface

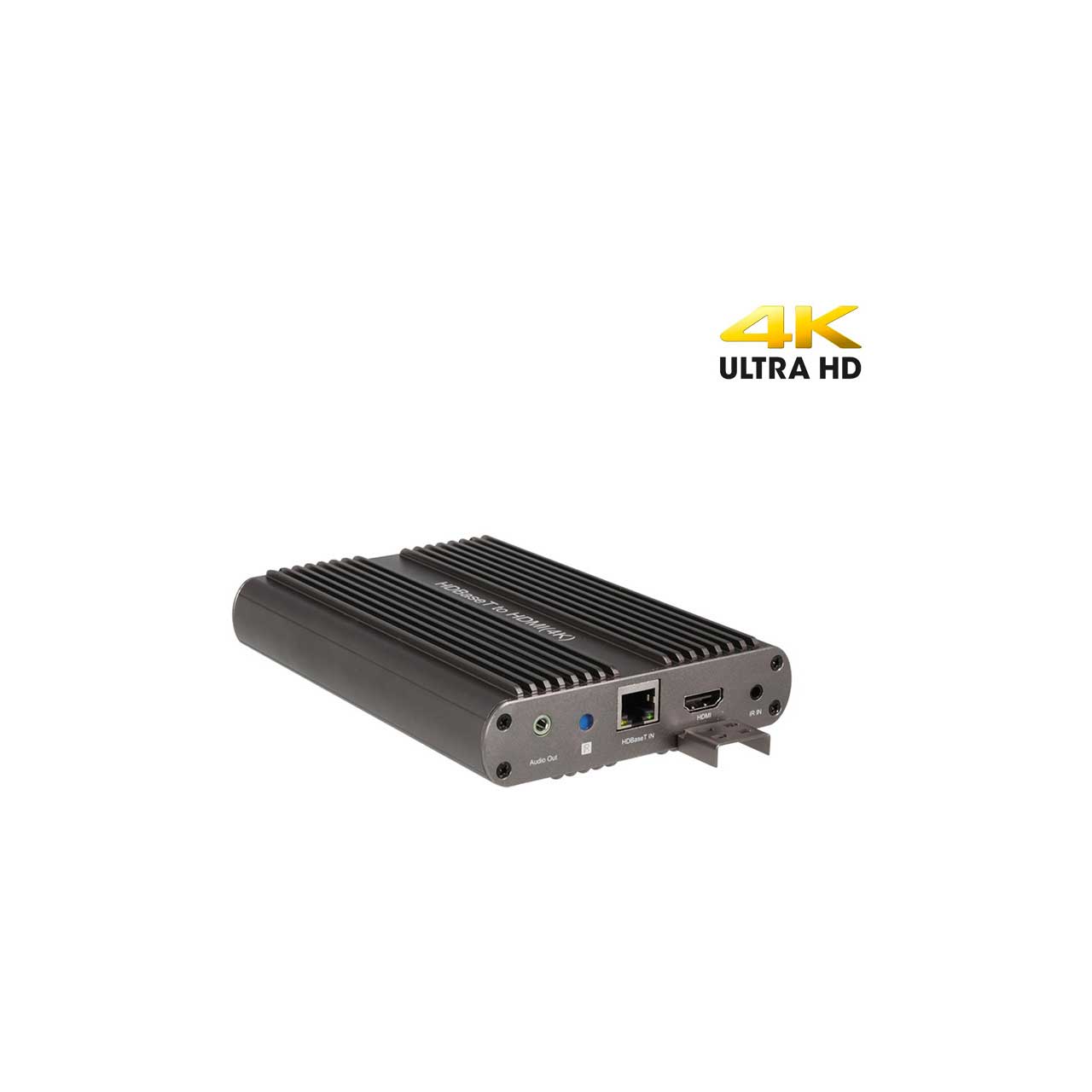

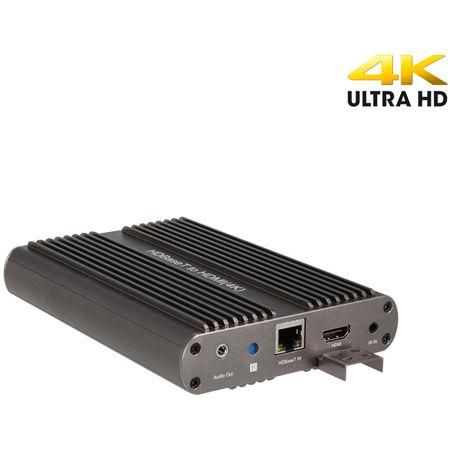

  • Video Output: 1XHDMI Type A - HDMI (4K), 1XRJ45 - IP Pass-Thru for the camera with IP control or IP streaming functionality. (Not an IP encoder)
  • Video Input: 1XRJ45-HDBaseT(4K),

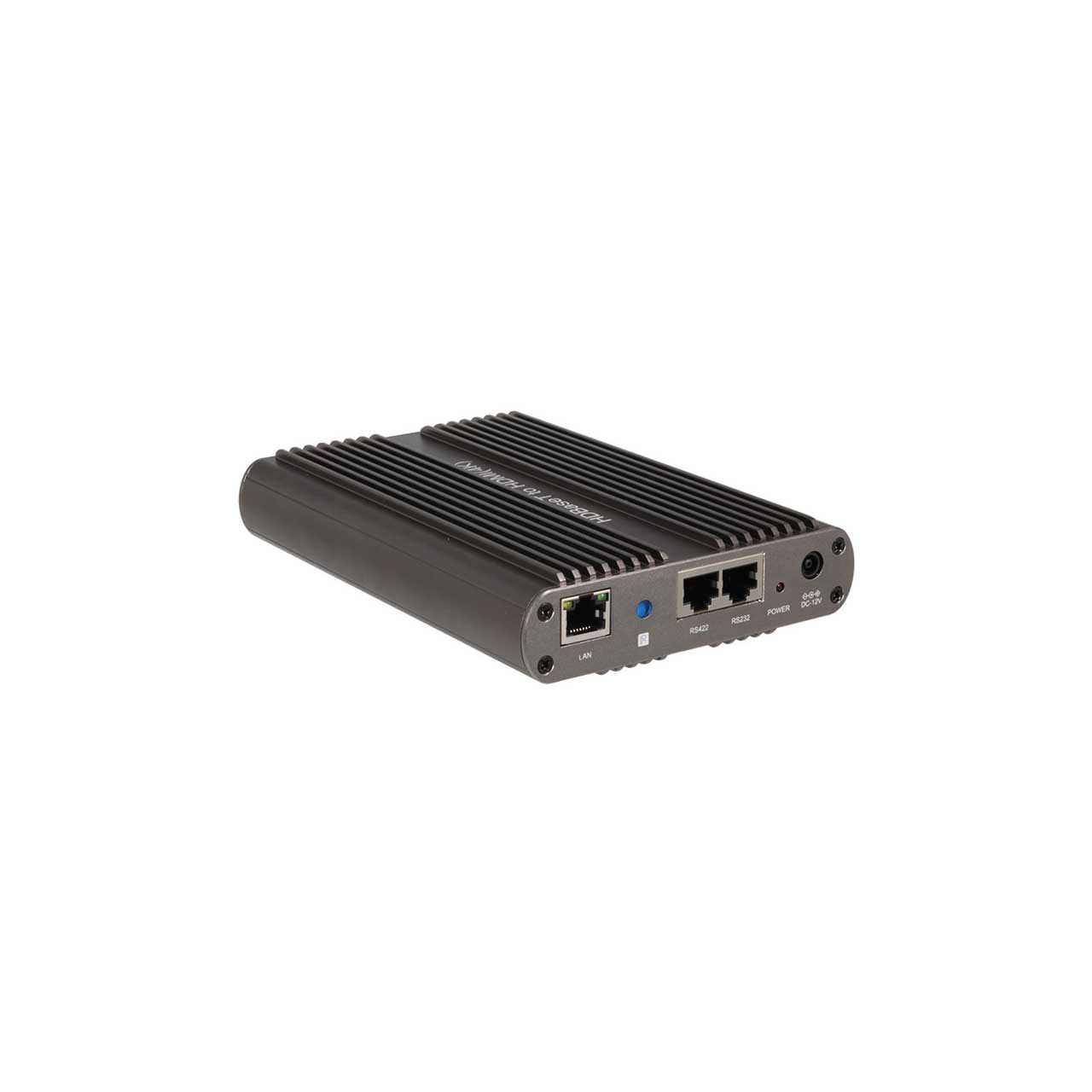

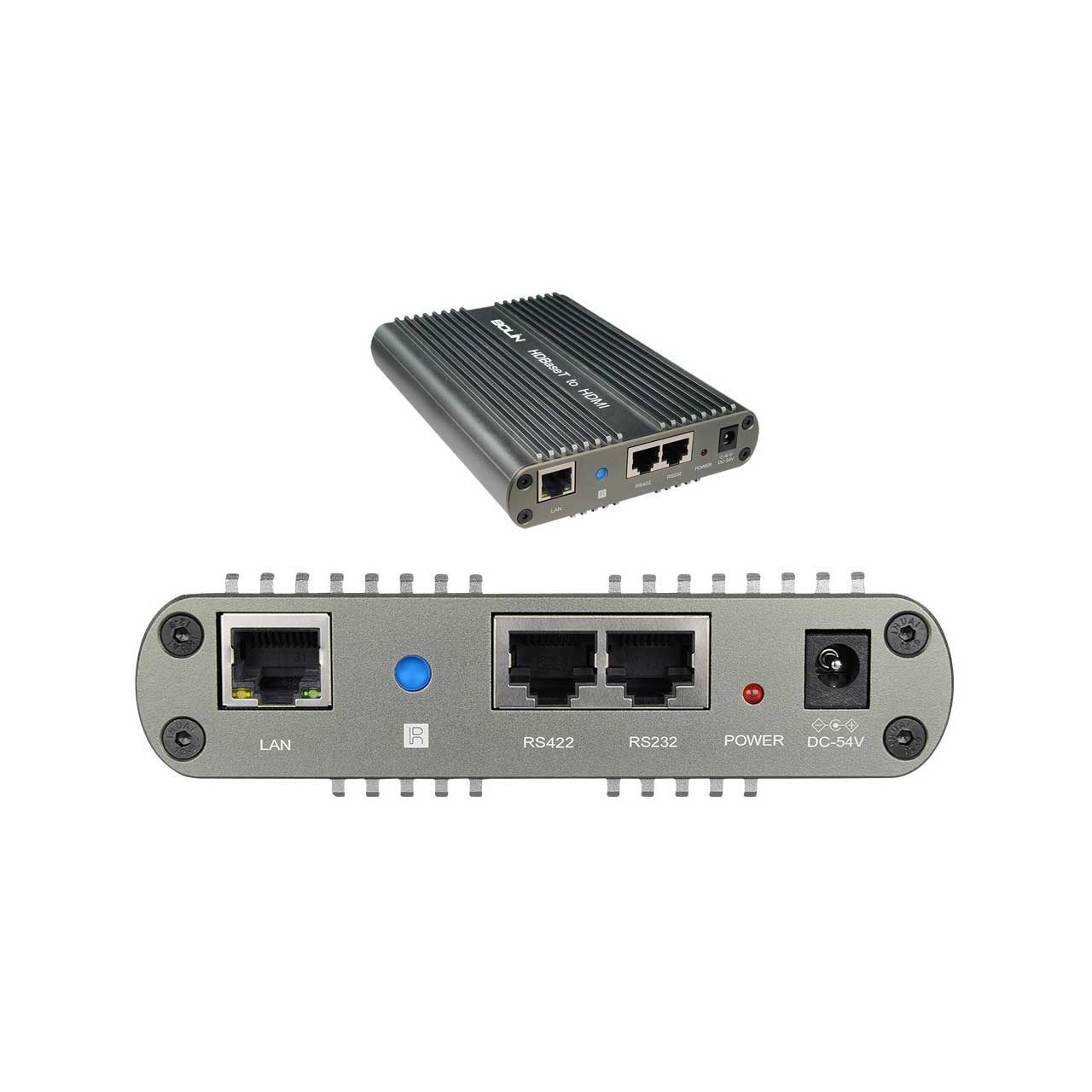

  • Control Interface: 2XRJ45: RS232, RS422/485 (RJ45 to Phoenix Connector adapter included), IR-1x 3.5mm IR RX
  • Audio Output: 3.5mm Jack

    General
  • Operating Temperature: -20 to +60 (°C)
  • Power Input: DC54V, 2.77A
  • Power Output: Provides power to camera over CAT6 cable, POH(Power Over HDBaseT, IEEE 802.3bt, up yo 97W), Backward compatible to IEEE802.3at Type1(af)&Type2)
  • Power Consumption: up to 97W
  • Dimension: 164x118x33mm
  • Weight: 0.52kg


• Item Includes:

  • 1x HDBT Receiver
  • 1x Power Supply 54V
  • 1x Power cord

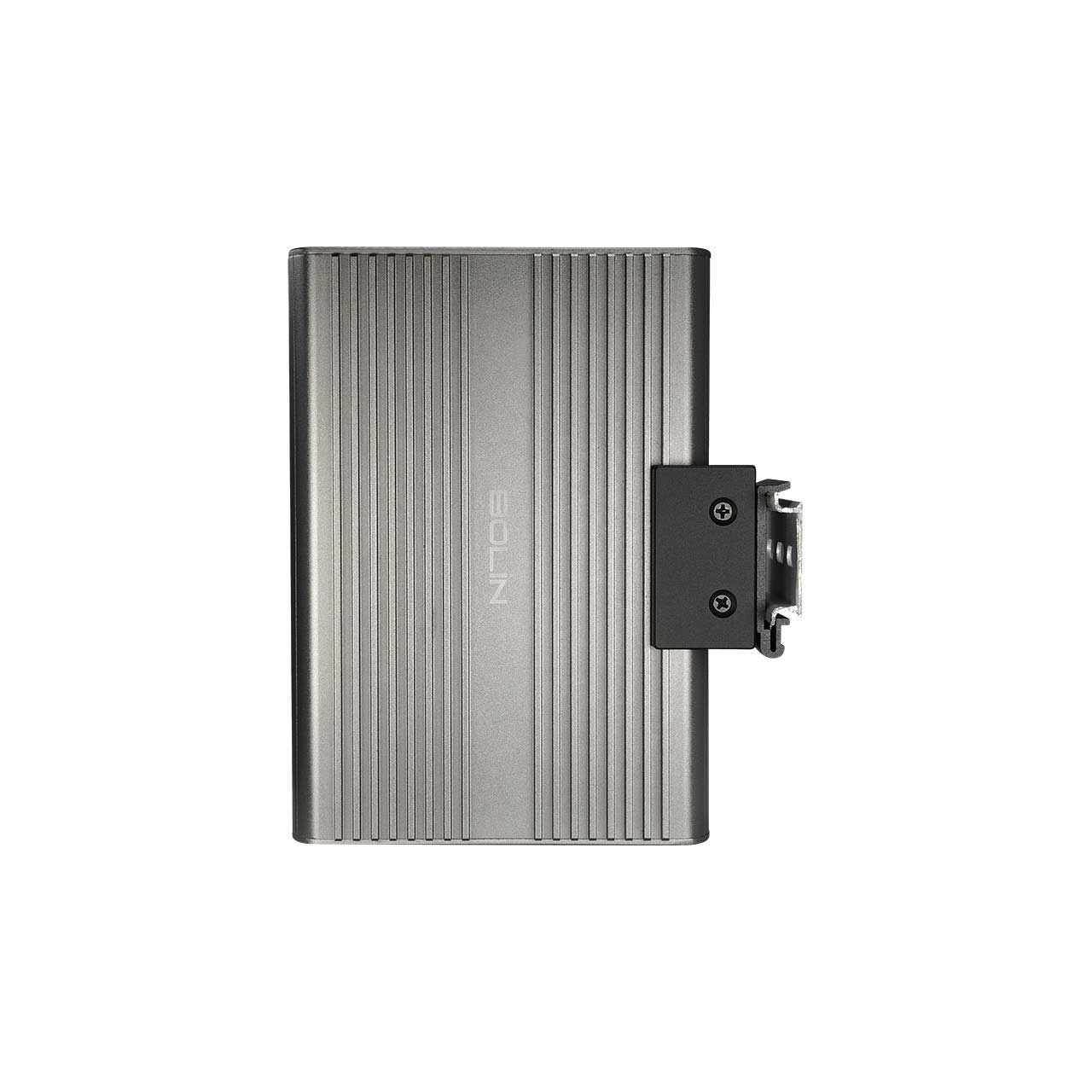

  • 2x Mounting bracket
  • 4x Mounting screws
  • 1x VCC-CC45RS (RJ-45 to phoenix) cable
  • 1x Y-Cable RJ-45 to RS-232 cable


• GTIN:

  0697377512023
