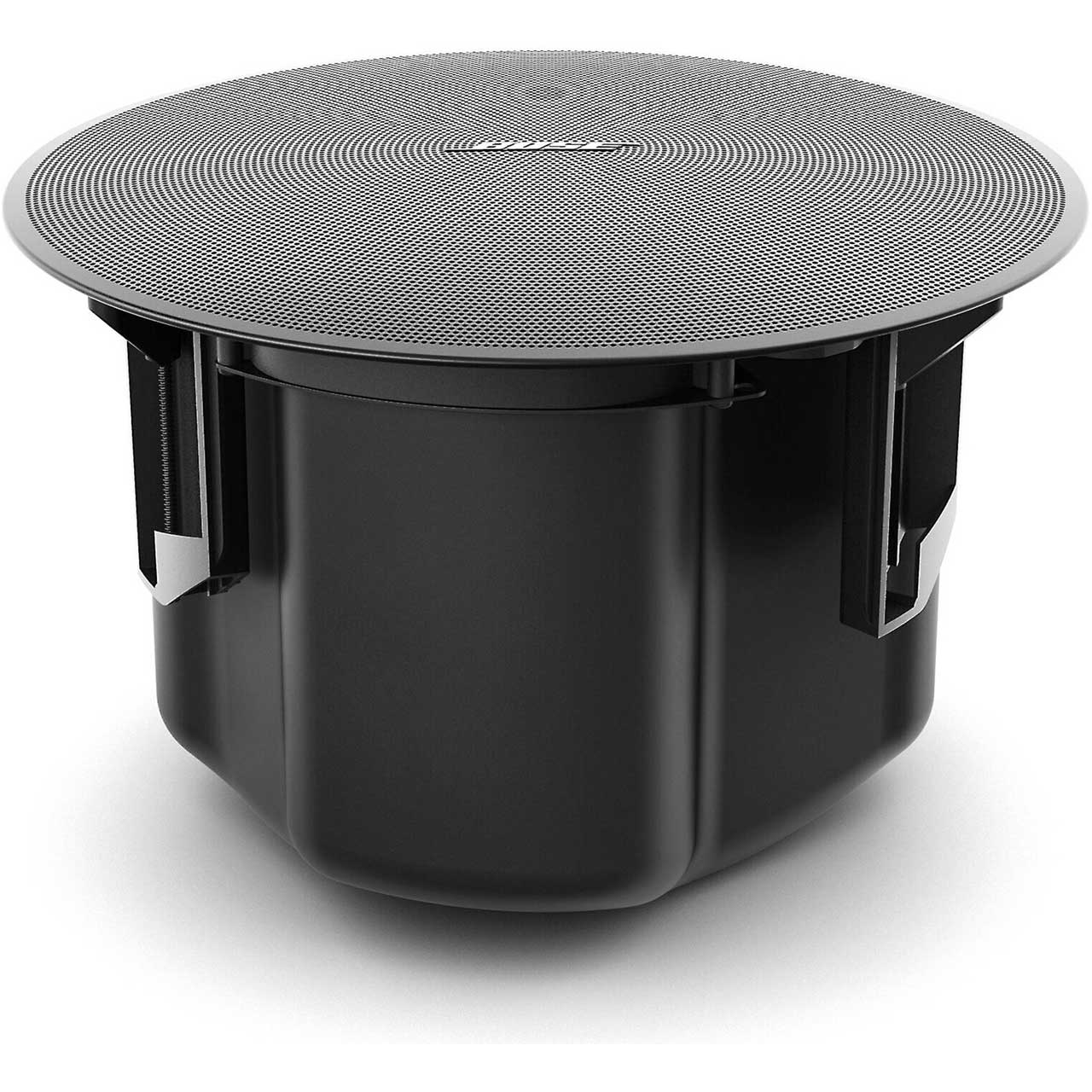

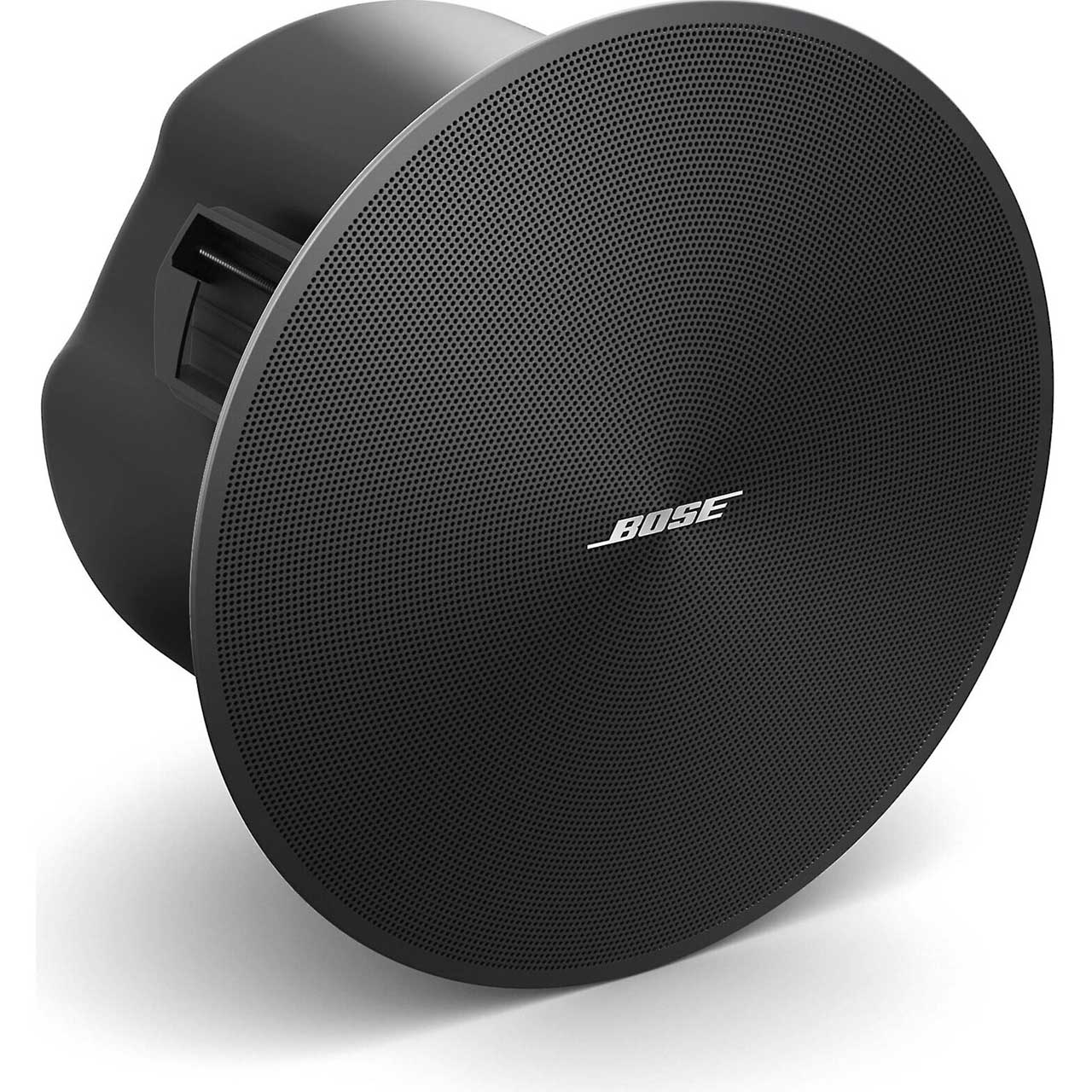

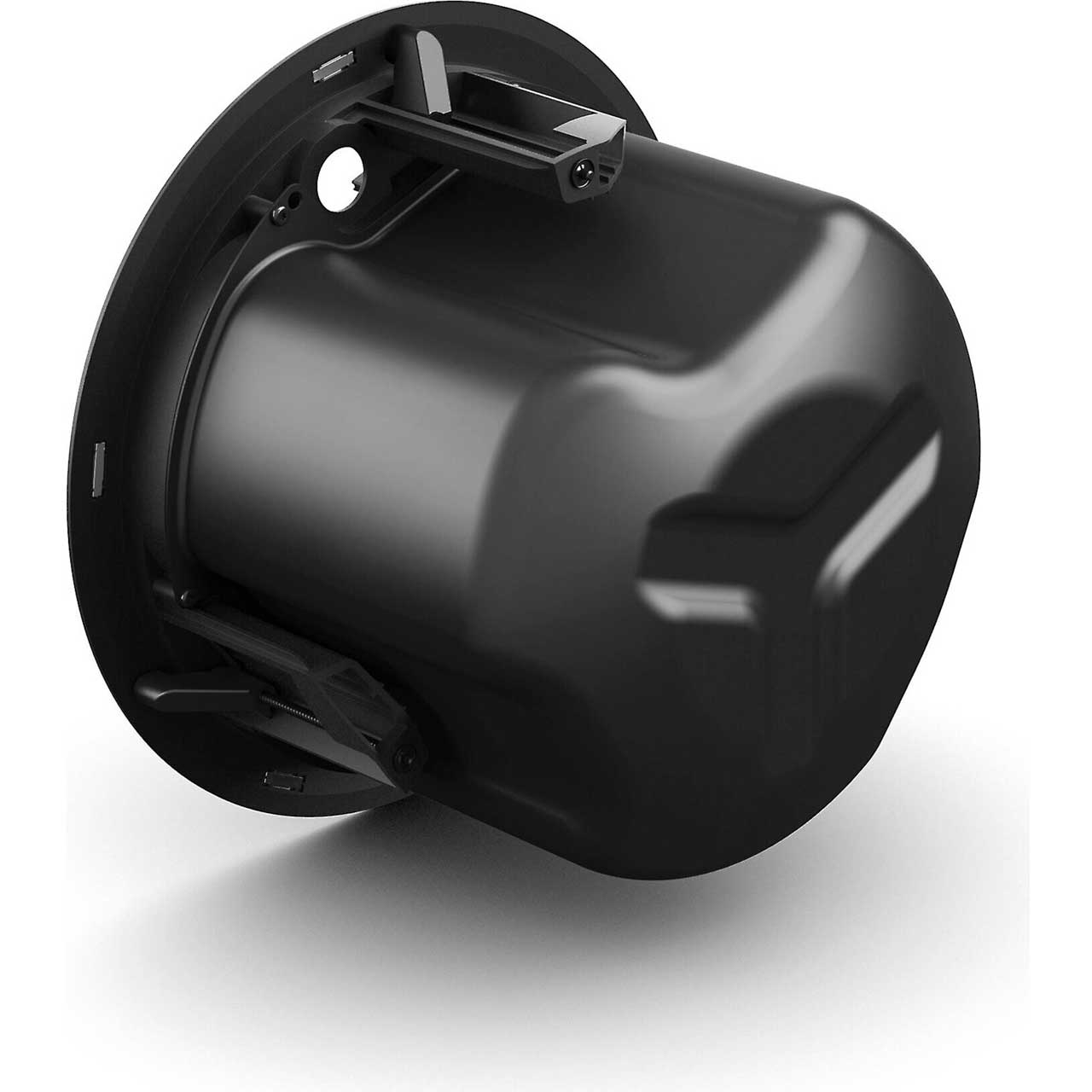

Bose DM5C DesignMax 5.25-Inch In-Ceiling Loudspeakers 60W UL Plenum Rated - Black - Pair

ITEM #: BOSE-DM5C MFG #: DM5C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOSE-DM5C

DM5C - Overview

Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle -- and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any decor.

The Bose 50-watt DesignMax DM5C loudspeaker features a two-way 5.25-inch woofer and 1-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 65 Hz - 20 kHz. The DM5C is ceiling-mounted and installs easily via QuickHold mounting arms.

Applications:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

  • Features:

    • Combine models to complete any design, big or small -- 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
    • Deliver instantly impressive sound with custom Bose drivers -- no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
    • Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
    • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
    • Install easily -- all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier


  • Specifications:

    • Frequency Response (+/-3 dB): 70 - 17,000 Hz
    • Nominal coverage (H x V): 160° Conical
    • Power Handling, peak: 200 W
    • Maximum SPL @ 1m: 103 dB
    • Frequency Range (-10 dB): 65 - 20,000 Hz
    • Power Handling, long-term continuous: 50 W
    • Sensitivity (SPL/1W @ 1 m): 86 dB
    • Nominal Impedance: 8 Ω (transformer bypass)
    • Crossover: 1.8 kHz (passive 2-way crossover)
    • Loudspeaker: EQ Not Required, Bose EQ voicing and SmartBass Processing available
    • Recommended High-Pass Protection: 65 Hz with recommended 24 dB / octave filter
    • Transformer Taps: 70V: 3, 6, 12, 25, 50 W, bypass - 100V: 6, 12, 25, 50 W, bypass
    • Low Frequency: 1 x 5.25-inch woofer (133 mm)
    • High Frequency: 1 x 1-inch (25 mm) neodymium dome tweeter, coaxially mounted
    • Technology Dispersion: Alignment system, 165mm (6.5 in) system diameter
    • Nominal Impedance: 8 ohms (transformer bypass)


  • Item Includes:

    • 1x Bose DM5C DesignMax 5.25-Inch In-Ceiling Loudspeakers 60W UL Plenum Rated - Black - Pair


  • GTIN:

    0017817803694
