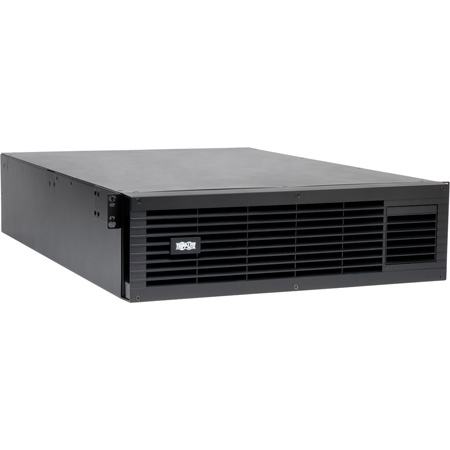

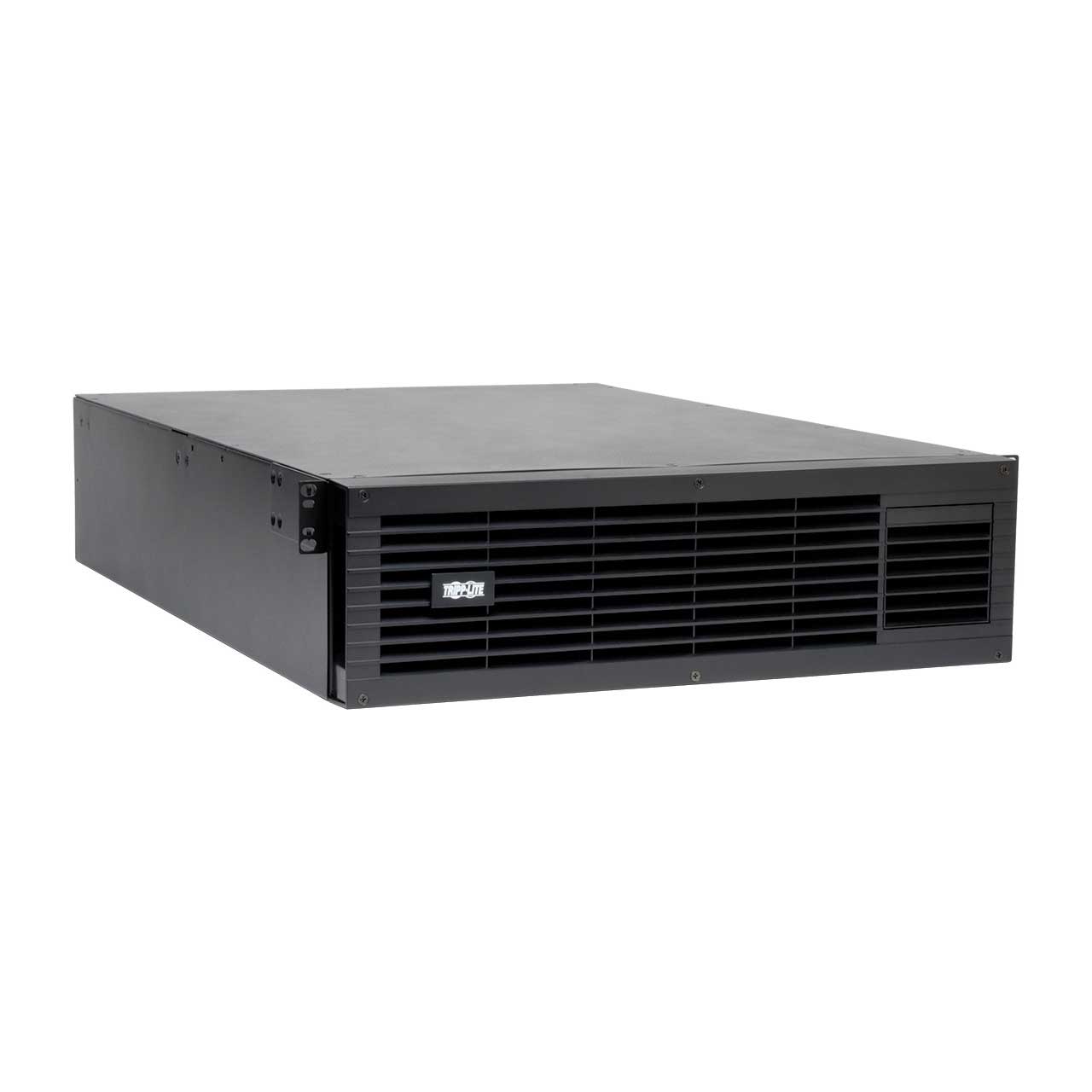

Tripp Lite BP192V12RT3UTAA External Battery Pack 192V for Select UPS 3URM TAA

ITEM #: BP192V12RT3UTAA MFG #: BP192V12RT3UTAA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BP192V12RT3UTAA

BP192V12RT3UTAA - Overview

The BP192V12RT3UTAA is compatible only with Tripp Lite’s SU5000RT4UHVTAA, SU6000RT4UHVTAA and other UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation. This battery pack’s multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP192V12RT3UTAA is also compatible with Tripp Lite’s 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).

  • Features:

    • Connects to expandable 192V DC Tripp Lite UPS systems for extended runtime

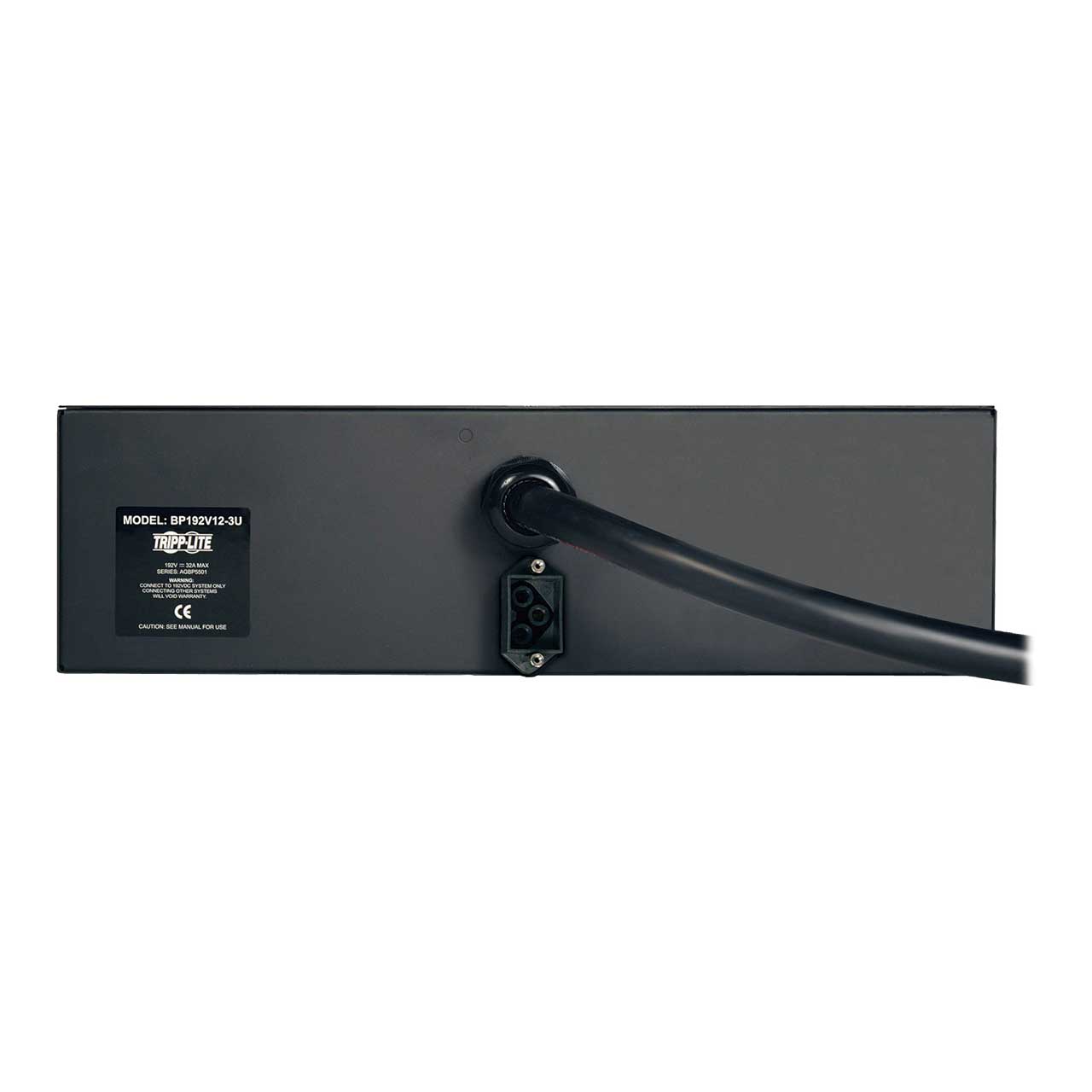

    • Daisy-chain connector supports additional battery packs for even longer runtime
    • Mounts in 3U of space in 19 in. rack using included 4-post installation hardware
    • Supports 2-post rack or tower installation with optional accessories (sold separately)
    • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases


  • Specifications:

    • Output
    • Overload Protection: 50A DC output fuse

      Input
    • UPS Input Cord Length (ft.): 3
    • Input Phase: Single-Phase

      Battery
    • Expandable Battery Runtime: Includes a second input/output connector to daisy-chain multiple battery packs
    • DC System Voltage (VDC): 192
    • UPS Connection: Detachable cable with UPS specific DC connector (90 cm length, 8 gauge)
    • Typical Battery Lifespan: 4-6 years typical (North America)
    • Expandable Runtime: Yes

      Physical
    • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
    • Minimum Required Rack Depth (inches): 36
    • Shipping Dimensions (hwd / in.): 11.00 x 23.00 x 33.00
    • Shipping Weight (lbs.): 211.25
    • Unit Dimensions (hwd / in.): 5.25 x 17.5 x 28
    • Unit Weight (lbs.): 174.00
    • Material of Construction: Black steel cabinet
    • External Battery Pack Form Factor: Rack/Tower

      Certifications
    • Certifications: TAA Compliant


  • Item Includes:

    • BP192V12RT3UTAA 192V External Battery Pack, 3U Rack/Tower, TAA
    • Rack-mounting hardware
    • Owner’s manual


  • Warranty:

    • 2-year


  • GTIN:

    0037332217806
