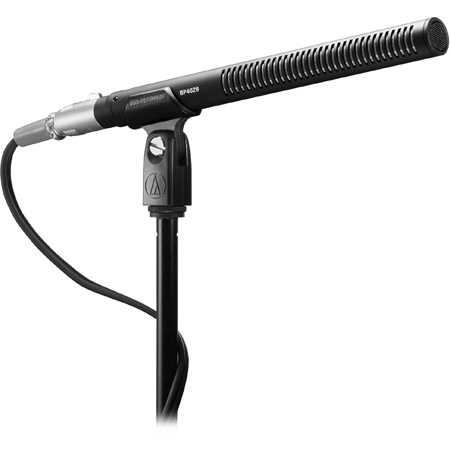

Audio-Technica BP4029 Stereo Shotgun Microphone

ITEM #: BP4029 MFG #: BP4029

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$799.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BP4029 - Overview

    Based on models originally developed for use in the broadcast of the Sydney Olympics in 2000, the Audio-Technica BP4029 (9.29" long) Stereo Shotgun model is engineered for high-end broadcast and production use. This microphone feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. The BP4029 innovative microphone allows sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone's internal matrixing system or choosing discreet Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer.

    A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. This phantom-powered model features a rugged lightweight design and sleek black color scheme, perfect for on-camera use.

    Did You Know?
    Many top record producers, when recording vocals, will use a dynamic mic for up close vocals and a heavily compressed shotgun mic about five feet away. It's true! The dynamic mic not only captures part of the final sound, but is also useful for giving the artist something to focus on, keeping a fairly consistent position relative to the shotgun mic. Have a shotgun mic on hand for your next vocal session....it could be the goldmine you've been seeking!

    • Features:

      • Designed for broadcasters, videographers and sound recordists
      • Compact, lightweight design is perfect for camera-mount use
      • Independent Line-cardioid and Figure-of-eight condenser elements
      • Switchable low-frequency roll-off
      • Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
      • Includes a 24" cable (5-pin XLRF to two standard 3-pin XLRM connectors)
      • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

    • Specifications:

      • Elements: Fixed-charge back plate, permanently polarized condenser
      • Polar Patterns: Line-cardioid, Figure-of-eight
      • Frequency Response: 40 - 20,000Hz
      • Low Frequency Roll-Off: 80Hz, 12dB/octave
      • Open Circuit Sensitivity: Mid: -30dB (31.6mV) re 1V @ 1Pa; Side: -34dB (19.9mV) re 1V @ 1Pa; LR Stereo: -36dB (15.8mV) re 1V @ 1Pa
      • Impedance: 200Ω
      • Maximum Input Sound Level: Mid: 123dB SPL, 1kHz @ 1% T.H.D.; Side: 127dB SPL, 1kHz @ 1% T.H.D.; LR Stereo: 126dB SPL, 1kHz @ 1% T.H.D.
      • Dynamic Range (typical): Mid: 101dB, 1kHz @ Max SPL; Side: 101dB, 1kHz @ Max SPL; LR Stereo: 102dB, 1kHz @ Max SPL
      • Signal-To-Noise Ratio: Mid: 72dB SPL, 1kHz @ 1Pa; Side: 68dB SPL, 1kHz @ 1Pa; LR Stereo: 70dB SPL, 1kHz @ 1Pa
      • Phantom Power Requirements: 11 - 52V DC, 4mA typical @ 48V, each channel
      • Switches: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
      • Weight: 3.6oz
      • Dimensions: 9.29" long, 0.83" diameter
      • Output Connector: Integral XLR5M-type
      • Cable: Dual 24" shielded two-conductor, terminated in two XLR3M-type connectors
      • Audio-Technica Case Style: SG2

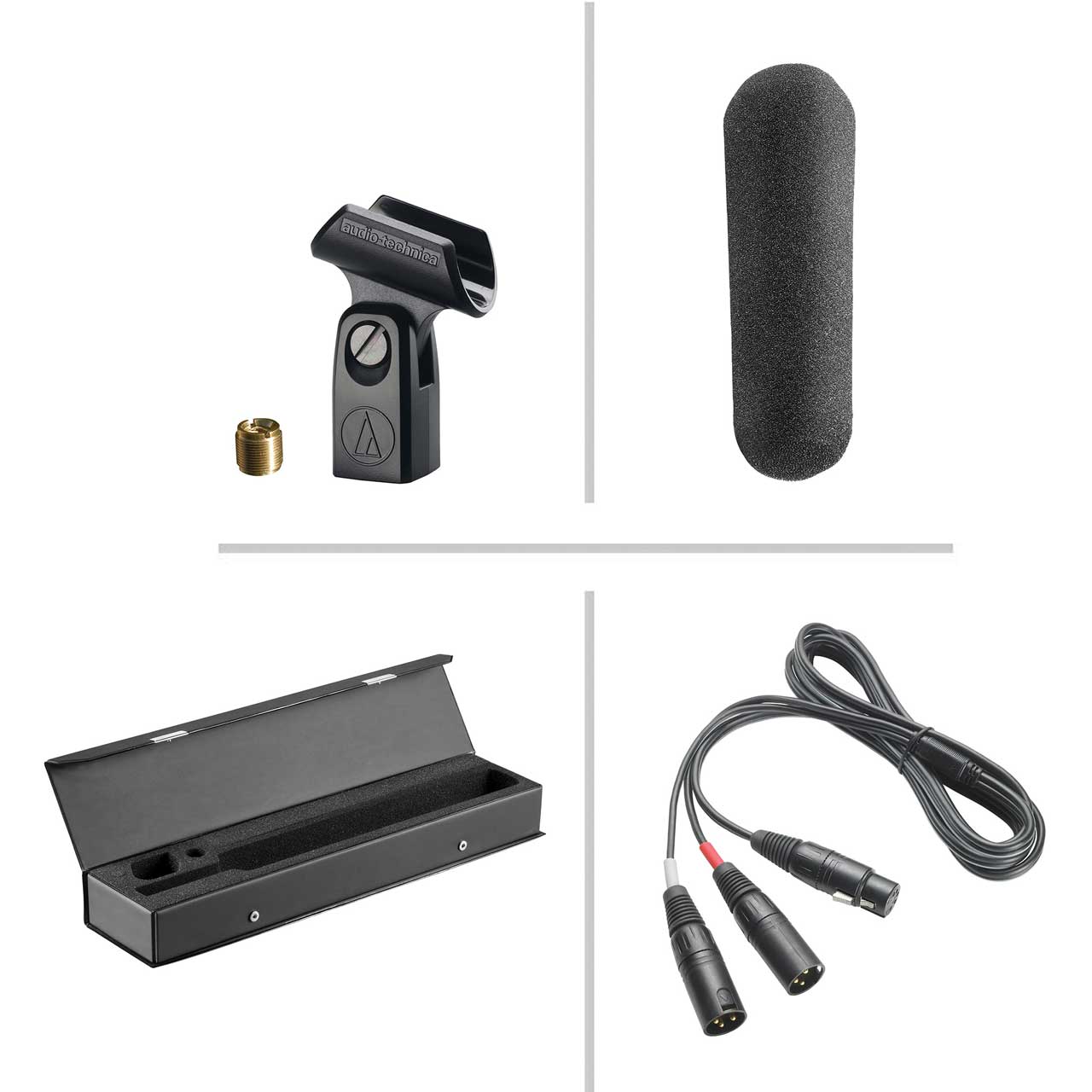

    • Item Includes:

      • AT8405a stand clamp for 5/8"-27 threaded stands
      • AT8134 foam windscreen
      • 5/8"-27 to 3/8"-16 threaded adapter
      • Protective carrying case

    • Warranty:

      • 5 Year Limited End-User

    • GTIN:

      4961310098308
