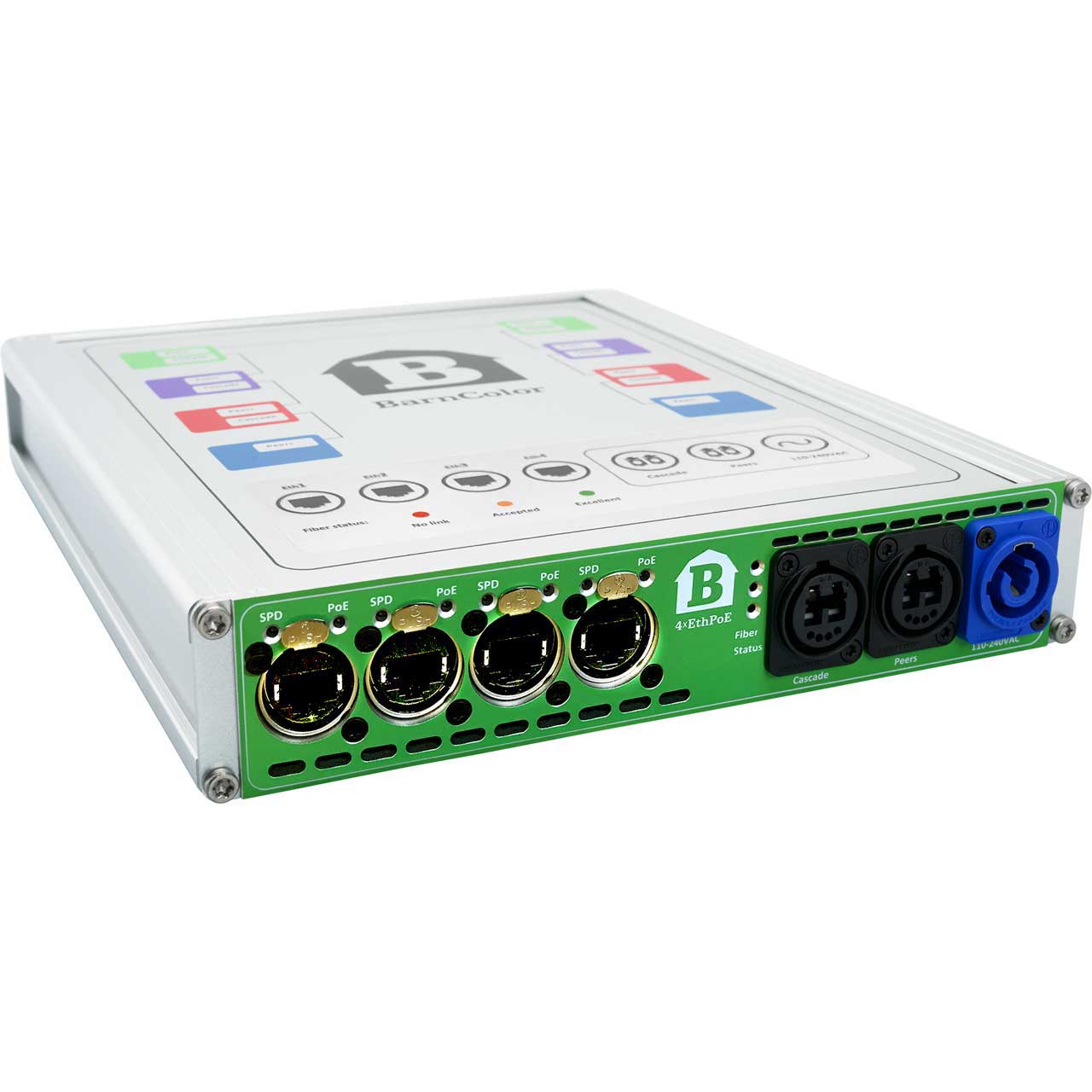

Barnfind BarnColor-ETH-POE-G is a video over fiber solution with 4x Ethernet in green position (1290/1310/1330/1350).
Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple ethernet signals both directions on a single fiber cable. BarnColor allows you to handle up to 16 separate 1Gbit links. Each BarnColor device handles up to 4 separate 1Gbit links and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.

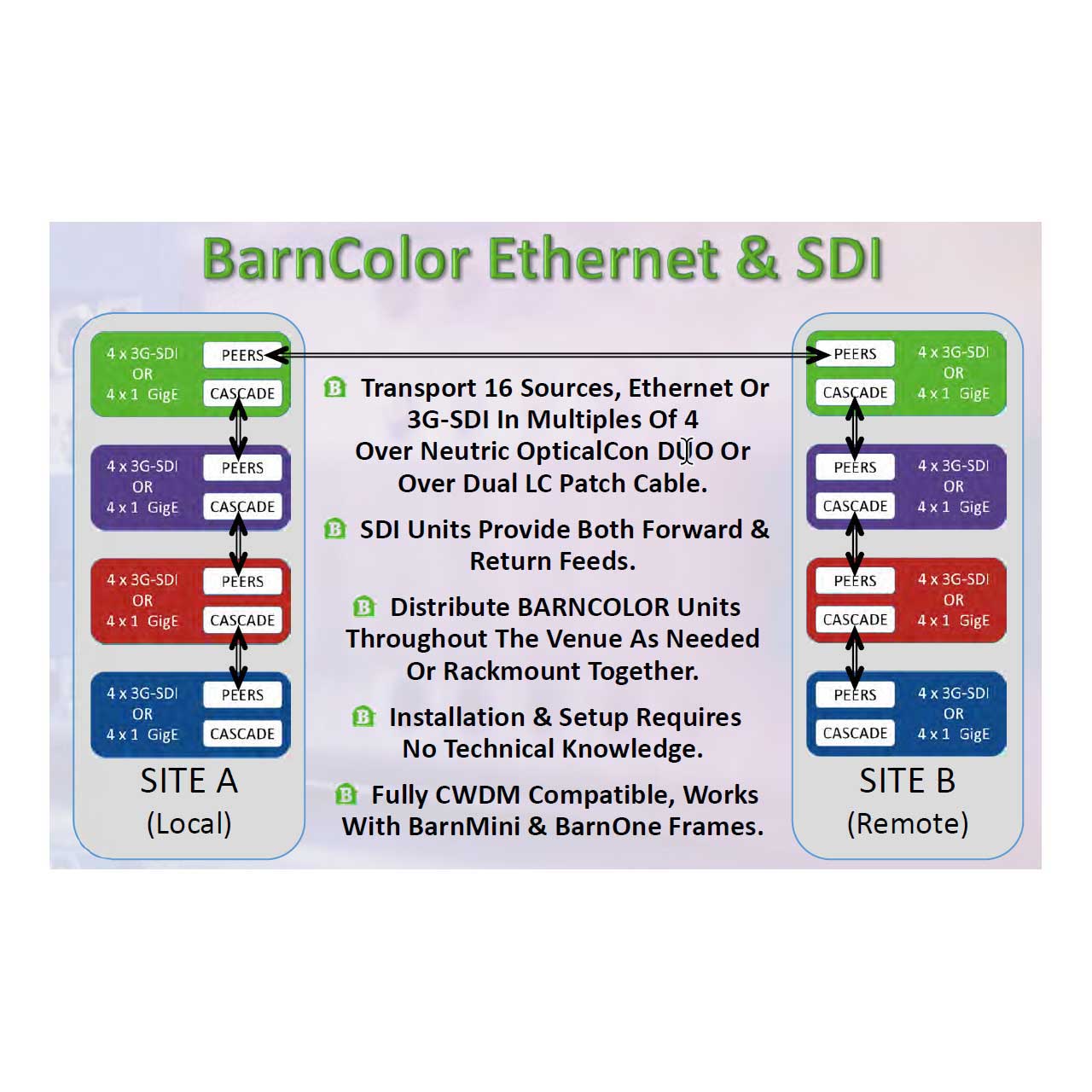

THE CONCEPT
Each BarnColor pair is available as SDI or Ethernet version and can cascade maximum 4 boxes (colors) on each side. The boxes can be combined in any variation as long as color is different. Maximum transmission distance - medium range. Equipped with rugged connectors.
As a pair
BarnColor can be coupled as a point to point link and will transmit/receive 4x SDI signals each way. This point to point connection can be done with any color

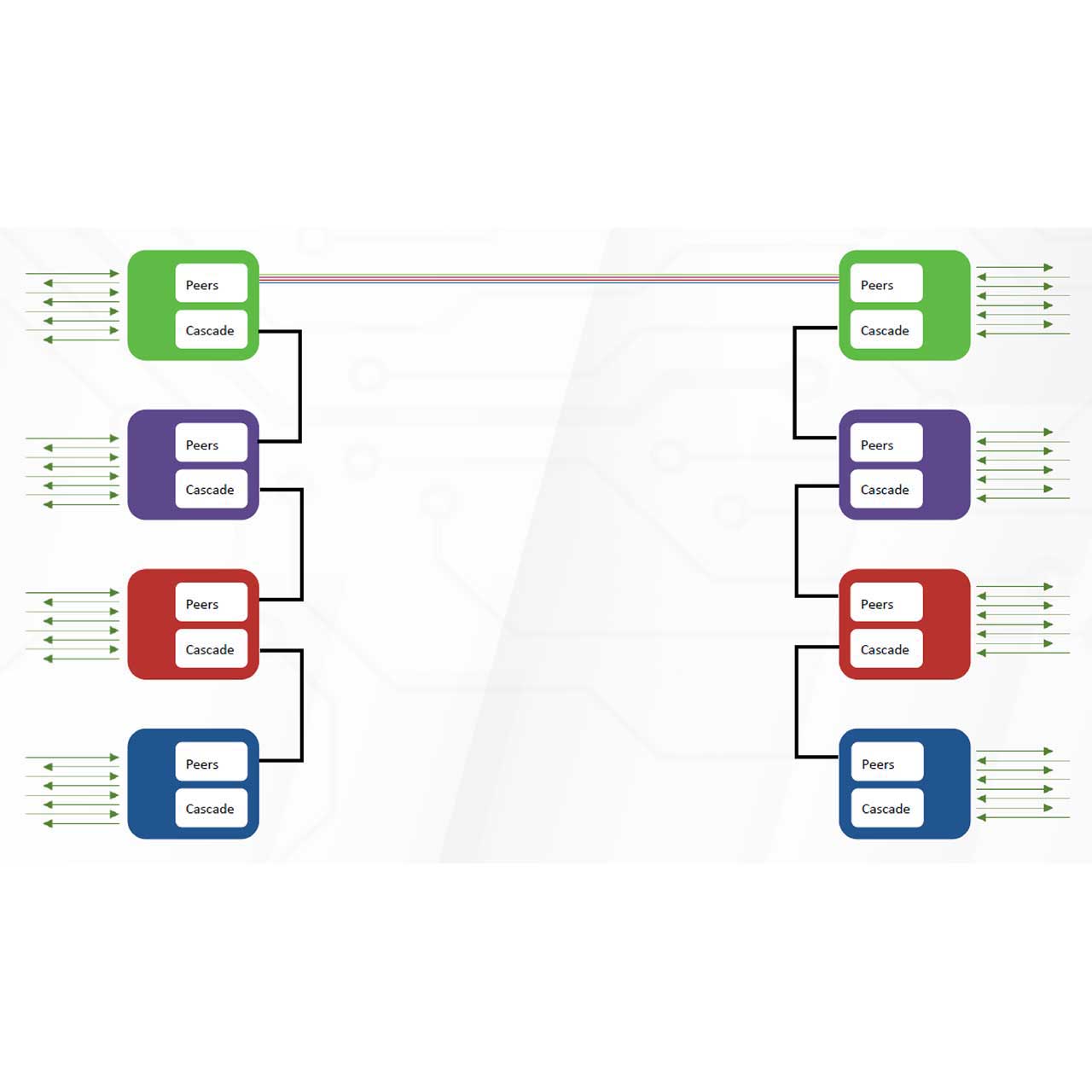

Cascade
BarnColor devices can be cascade coupled and all signals for both directions will be transferred into the same fiber connection. Follow the diagram under for connections. You will find the same diagram on top of the device.
