Barnfind BarnOne Frame BTF1-10-AA 16 SFP Ports 8 BNC & 8 Channel Analog Audio Embedding/De-Embedding Fiber Router - 1RU

ITEM #: BRN-BTF1-10-AA MFG #: BTF1-10-AA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$8,100.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BTF1-10-AA - Overview

The BarnOne series of routers can provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Every SFP port is bi-directional and every BNC port (if equipped) can be set as an input or output and all outputs are re-clocked. Multiple reference switching can be set to different references depending on the signal being switched and the system works with most 3rd party control systems. Each BarnOne frame is contained within 1 RU space - the highest density yet that also offers the least power consumption in the industry.

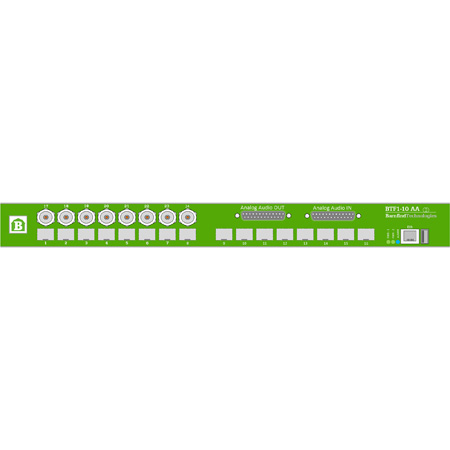

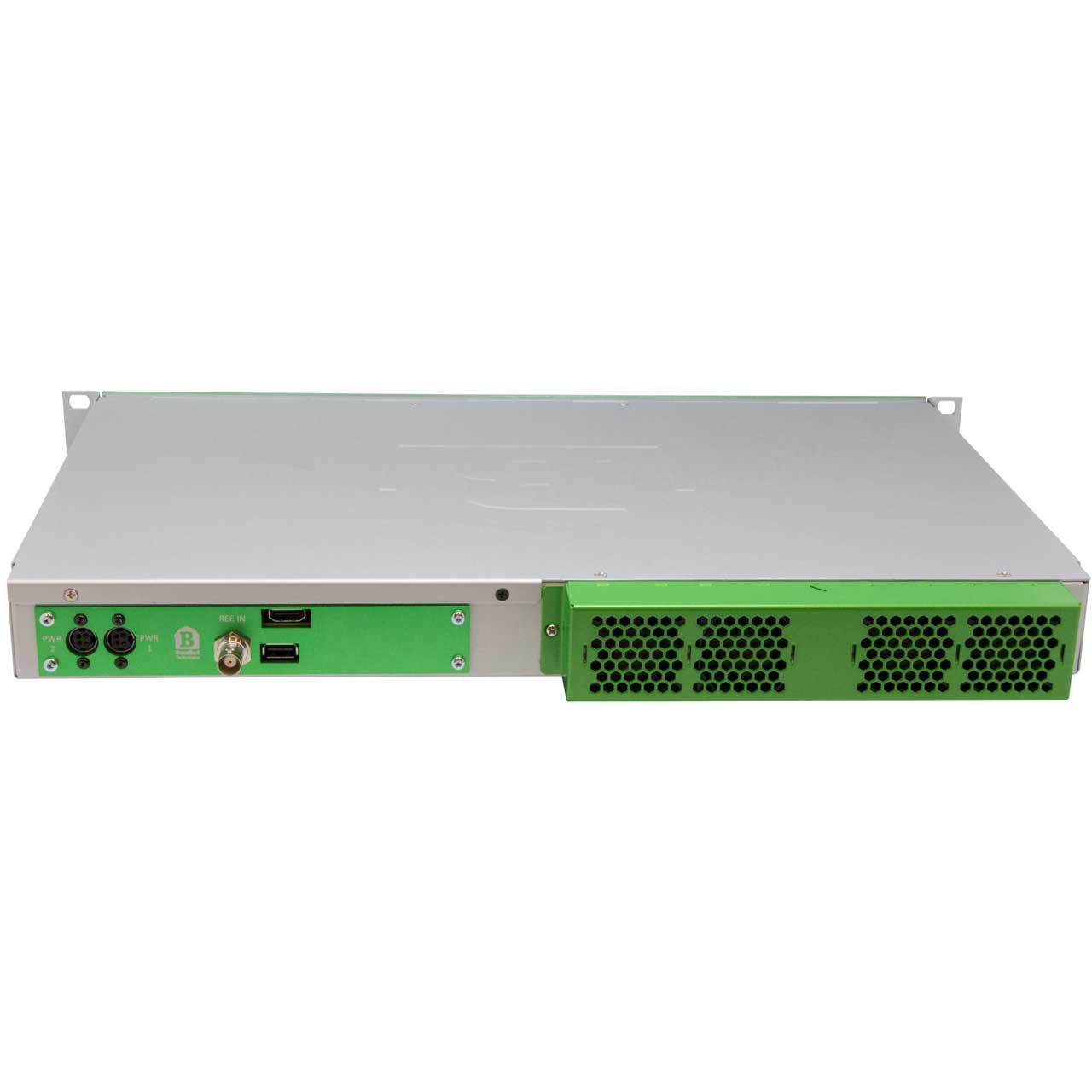

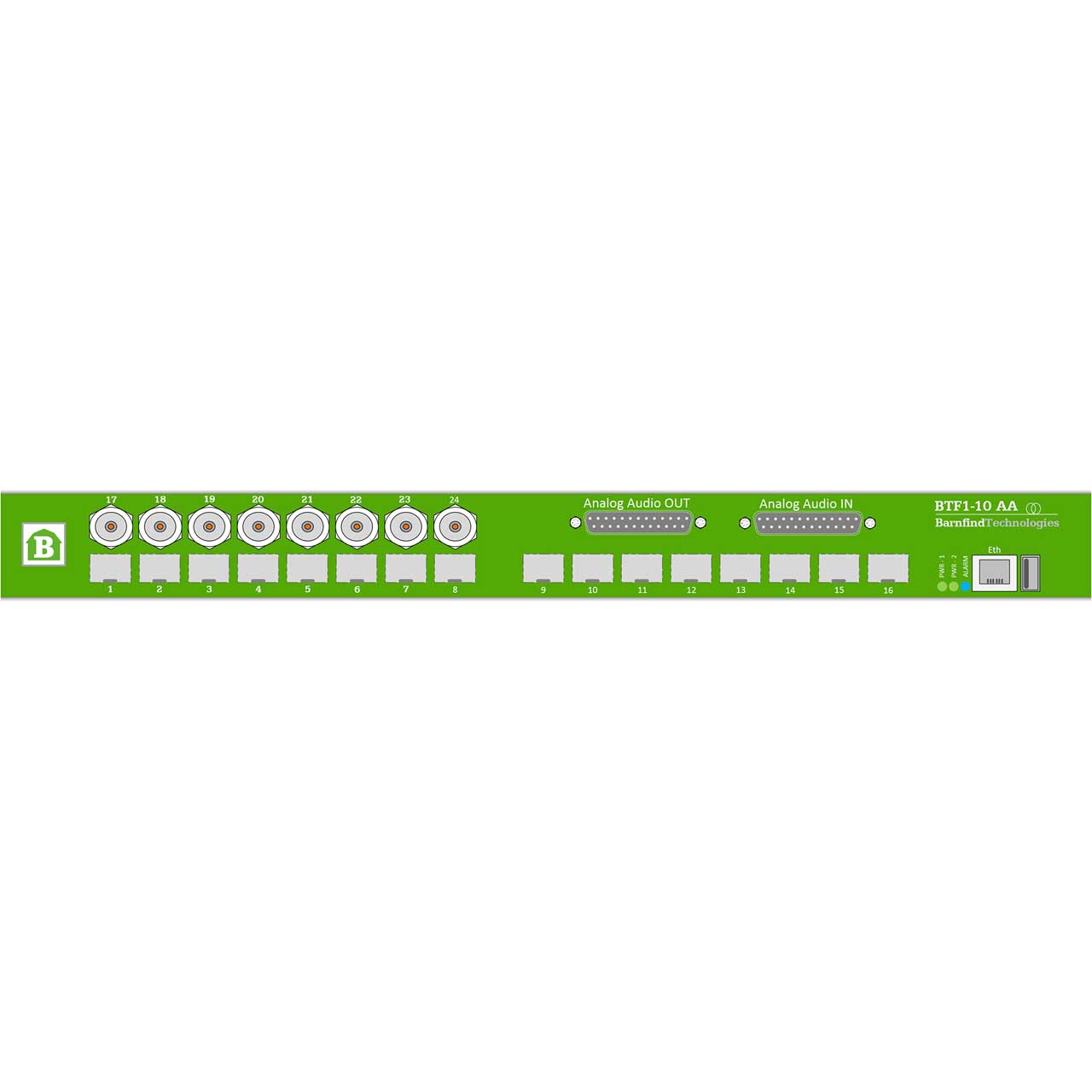

The BTF1-10-AA has 8 bi-directional BNC ports, 16 bi-directional Duplex transceiver cages with LC/PC connectors, and two D-SUB25 analog audio connectors in a convenient and small 1RU design. The BNC ports are 75 Ohm and feature multirate reclocking of outputs 270Mbit/s - 3Gbit/s. The SFP ports are hot pluggable/swappable and can be programmed to singlemode and/or multimode. The BTF1-10-AA features balanced analog line input/output connections that are individually configurable. A 12V DC 120W power supply is included to power the unit wherever you need it with the option to add redundant power.

Please Note: BarnFind BARNSTUDIO controller software is required to operate this and all BarnOne Frames.

  • Specifications:

    • Analog Ports
    • 8x balanced analog line inputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)
    • 8x balanced analog line outputs (DB25), individually configurable +18dBu/+24dBu (default setting: +18dBu)

      A/D Converter
    • THD -115dB
    • SNR -115dB unweighted
    • THD+N -108dB

      D/A Converter
    • SNR -115dB
    • THD+N -107dB

      MADI Ports
    • 4x MADI (AES10) inputs internally connecting to main matrix
    • 4x MADI (AES10) outputs internally connecting to main matrix
    • Sample rate 44.1kHz/48kHz (1FS), 2FS supporting 88.2kHz/96kHz
    • Synchronisation to one of the MADI ports or to internal clock 44.1kHz/48kHz
    • Single channel routing for all MADI ports and analog I/O

      Electrical Ports
    • 8x bi-directional BNC ports
    • 75 OHM BNC connector
    • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
    • Multirate reclocking of outputs 270Mbit/s - 3Gbit/s
    • Automatic cable EQ (Belden 1694A) 270Mbit/s-250m, 1.5Gbit/s-140m, 3Gbit/s-80m

      Optical Ports
    • 16x fiberoptical ports (SFP), Duplex transceivers, LC/PC connectors
    • SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
    • Hot pluggable/swappable
    • Singlemode and/or Multimode
    • 16 CWDM wavelength selections - ITU-T G.694.2
    • Multirate reclocking of outputs 270Mbit/s - 3Gbit/s

      General

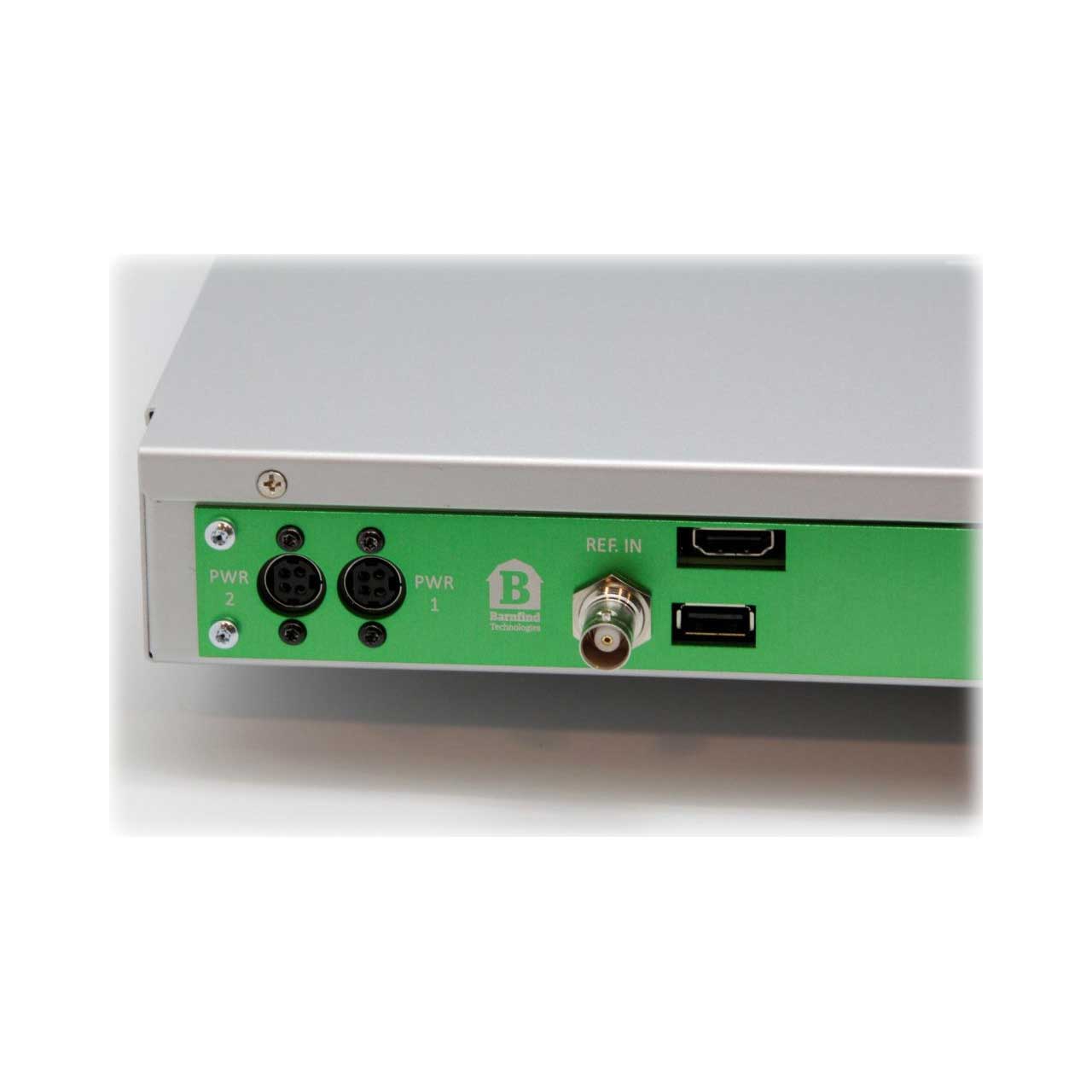

    • Power supply: 12V DC 120W (Redundant power supply optional)
    • Dimensions: 445mm x 280mm x 43.5mm (17.5" x 11" x 1.7")
    • Weight: 3.8 kg (8.3 lbs)

  • Item Includes:

    • BTF1-10-AA frame
    • power supply 12V DC
    • BarnStudio configuration and operation software
