Blonder Tongue HDE 8C QAM IP DIN High Definition Encoder - 8 Programs 8xDIN Inputs 256 QAM Output - 110-230 VAC 50/60Hz

ITEM #: BT-HDE8CQAMIPDIN MFG #: HDE 8C QAM IP DIN

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

List Price:

$6,231.00

Our Price:

$4,732.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HDE 8C QAM IP DIN - Overview

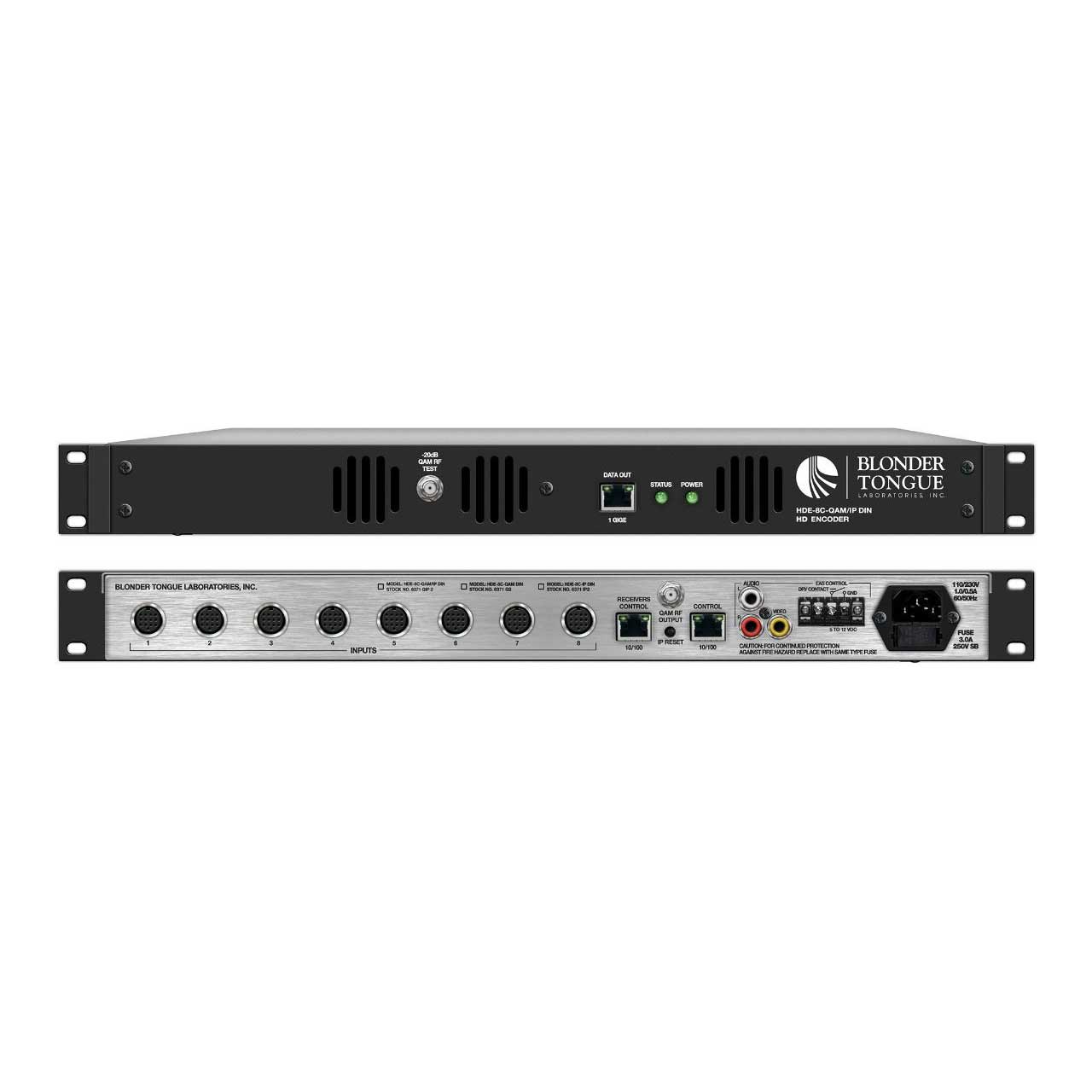

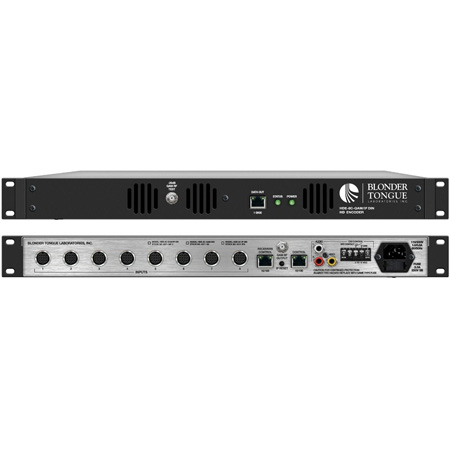

The Blonder Tongue HDE-8C-QAM DIN encoder digitizes and MPEG-2 encodes each input into a high-definition stream. The eight (8) program streams are multiplexed and then modulated onto four adjacent QAM channels in the 54-1002 MHz range (CATV 2-158). The HDE-8C-QAM/IP DIN (OPT 2) encoder includes an IP output to provide 8xSPTS. The unit ships with a supply of eight (8) H258C DIN Cables to for eight (8) H25 receiver connections. The H258C DIN to RCA Cable can be ordered separately for Non-H25 receiver sources.

  • Features:

    • Accepts 8 HD programs from DIN inputs
    • Digitizes, MPEG-2 encodes, and modulates up to 8 inputs into 4xQAM output channels (2 Prog. per QAM Ch.)
    • Configurable to ITU-T J.83 Annex A and B digital QAM formats
    • Provides a front-panel -20 dB RF test point
    • Provides 8xSPTS outputs on QAM/IP model
    • Supports user-defined PSIP configuration
    • Supports custom video and transport stream bit rate settings
    • Supports Real-time Dolby° Digital audio encoding
    • Supports Closed Captioning EIA-608 for each of the 8 encoded programs
    • Equipped w/ EAS interface (Analog Video + L/R Audio) and triggering, compatible with all EAS receivers
    • Provides comprehensive GUI-based monitoring and control via standard Web browsers


  • Specifications:

    • Connector: 1x "F" Female (rear panel; up to 4x RF QAM ch. combined)
    • Modulation: QAM 16, 32, 64, 128, and 256
    • Standards: ITU-T J.83; Annex A and B
    • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
    • Frequency Range: 54 to 1002 MHz
    • Tuning: CATV Channel Selectable (CH. 2 to 158)
    • Channel Bandwidth: 24 MHz (4x Adjacent 6 MHz)
    • RF Level: +40 dBmV ± 1 dB (4 channels combined)
    • RF Level Adjustment Range: +35 to +42 dBmV, 1 dB increments
    • Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
    • Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
    • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
    • Phase Noise: -98 dBc (@ 10 kHz)
    • Spurious: -60 dBc
    • Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
    • Impedance: 75 Ω
    • Spectral Inversion: Auto Recognition
    • Carrier Suppression: 45 dB
    • Return Loss: 14 dB typical
    • Signal-to-Noise Ratio (SNR): MER: 40 dB typical
    • I/Q Phase Error: Less than 1 degree
    • I/Q Amplitude Imbalance: Less than 1%
    • Dimensions (W x D x H): 19.0 x 16.0 x 1.75 inches (483 x 406 x 45 mm)
    • Power: 110 - 230 VAC, 50/60 Hz (Fuse: 4.0A, 250 VDC, Slo Blo)
    • Power Dissipation: ~60 W
    • Weight: ~7.2 lbs (3.27 kg)
    • Operating Temperature: 32 to 122 °F (0 to 50 °C)
    • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
    • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
    • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
