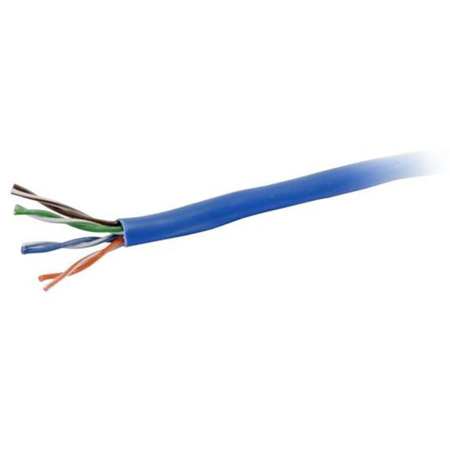

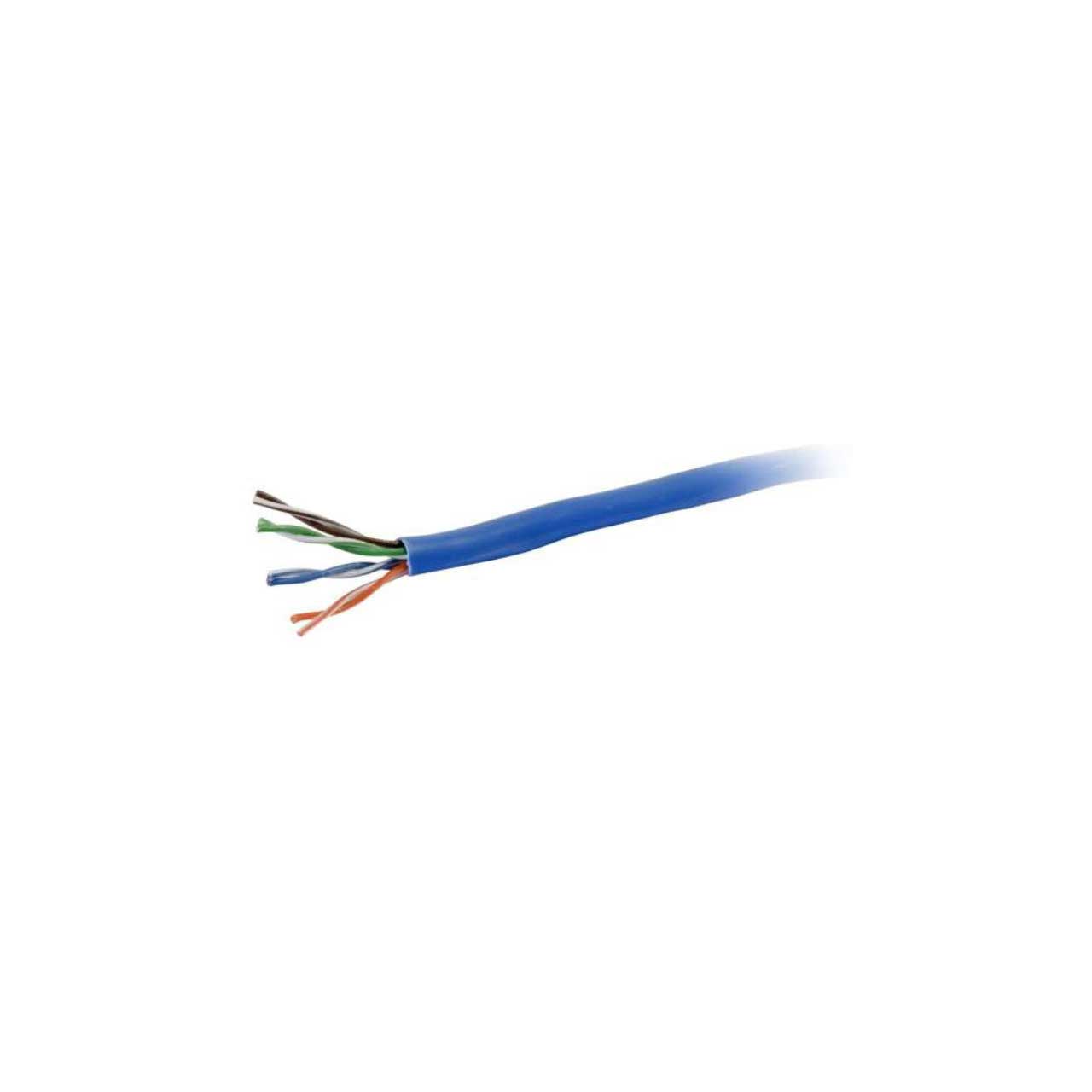

C2G Cat6 Bulk Ethernet Cable - Stranded - In-Wall - TAA - Blue - 1000 Foot

ITEM #: C2G-43405 MFG #: 43405

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$655.99

Availability: In Stock
iAvailability Description Popup


43405 - Overview

This in-wall rated Cat6 cable is perfect for creating custom length network patch cables. The stranded conductor construction makes this cable flexible and easy to work with, while the design of this box allow it to be easily dispensed. This cable is built to ANSI/TIA-568-C.2 standards and tested at frequencies up to 400MHz making it the ideal product for high performance transmissions. The jacket is foot marked allowing for easy determination of the amount of cable remaining.

  • Specifications:

    • Electrical Characteristics
    • Voltage rating: 300V
    • Spark test: 2.5KV DC
    • AC leakage (current through jacket): < 10mA (1.5KV AC)
    • Conductor DC resistance: < 14Ω/100m
    • Resistance unbalance: < 5%
    • Dielectric strength: 1.5KV AC for 2s
    • Insulation resistance: > 5000MΩ/KM
    • Mutual capacitance: < 5.6nF/100m
    • Capacitance unbalance (pair-to-ground): < 160 pF/100m

      Conductors
    • Material: 24AWG (7/33) stranded, bare copper
    • Insulation: Polyolefin (PO)
    • Outside diameter: 1.00 ± 0.03mm

      Overall cable
    • Jacket material: Flame retardant polyvinyl chloride (FRPVC)
    • Jacket thickness: 0.50 ± 0.05mm
    • Outside diameter: 5.4 ± 0.2mm
    • Storage temperature range: -20° to 75°C
    • Installation temperature range: 0° to 60°C
    • Operating temperature range: -20° to 60°C
    • Minimum bend radius: 21.6mm
    • Maximum pulling tension: 110N

  • GTIN:

    0757120434054
