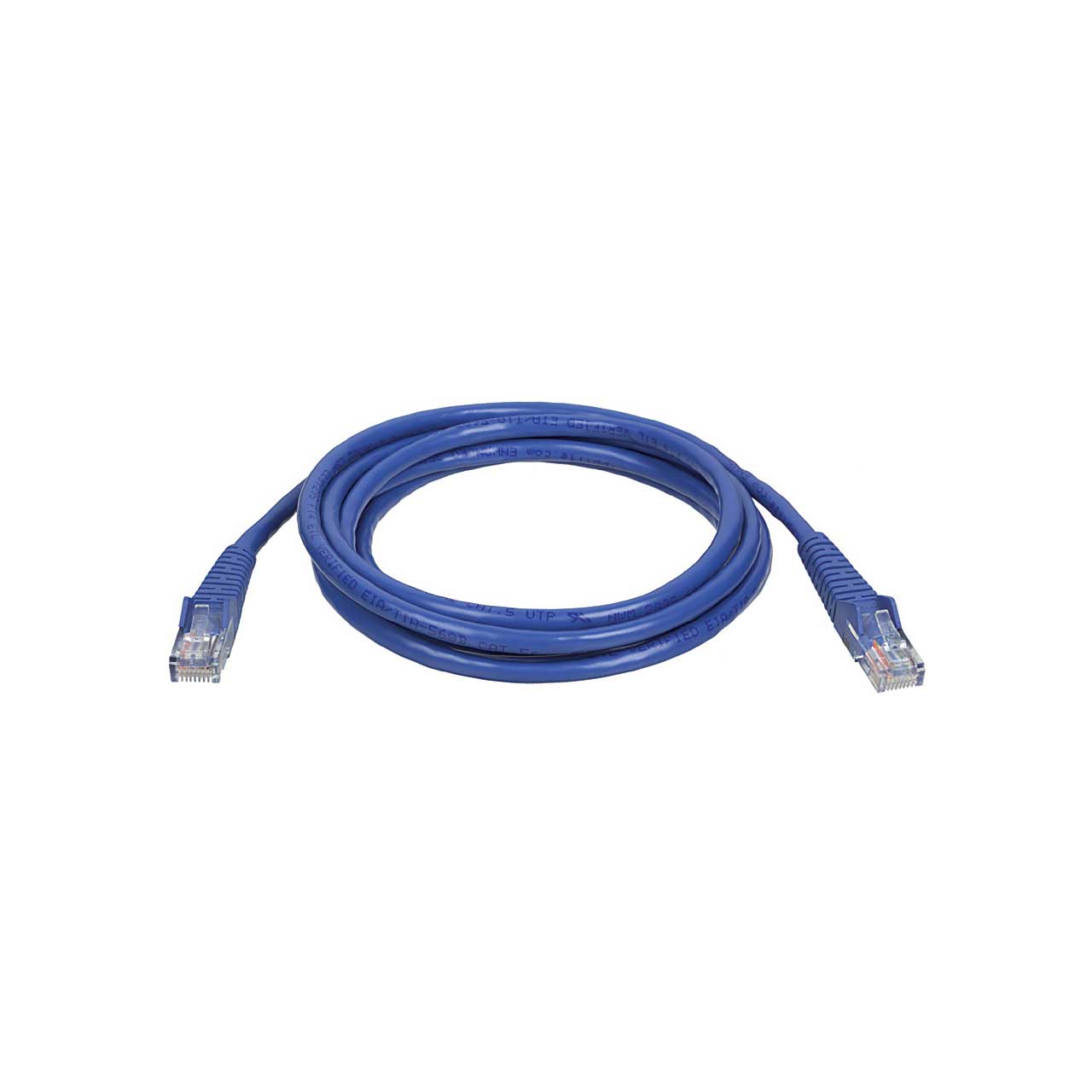

Connectronics CAT5e Snagless Molded 350MHz UTP Patch Cable - 10 Foot - Blue

ITEM #: CAT5-10 BE MFG #: CAT5-10 BE

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5.95

Our Price:

$4.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CAT5-10 BE - Overview

Keep your network on the cutting edge with the latest "Enhanced" Category 5 (Category 5e) cables that meet the most current industry standards, including: EEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (Category 5e, draft 11).

Category 5e cabling provides faster network transmission speeds (up to 1 Gigabit per second) and supports a wide variety of applications: 1000BASE-T (1 Gbps Ethernet); 100BASE-T (Ethernet); 10BASE-T (Ethernet); 100 Mbps TPDDI; 155 Mbps ATM; ISDN; and Voice.

  • Specifications:

    • PVC 4-pair stranded UTP with 24 AWG conductors
    • Attenuation (Max.): 26.1 dB/100 m
    • Frequency: Up to 155 MHz
    • Impedence: 100 ohms +/-15%
    • Resistance: 24.3 ohms/1000 ft

  • GTIN:

    0657248876531
