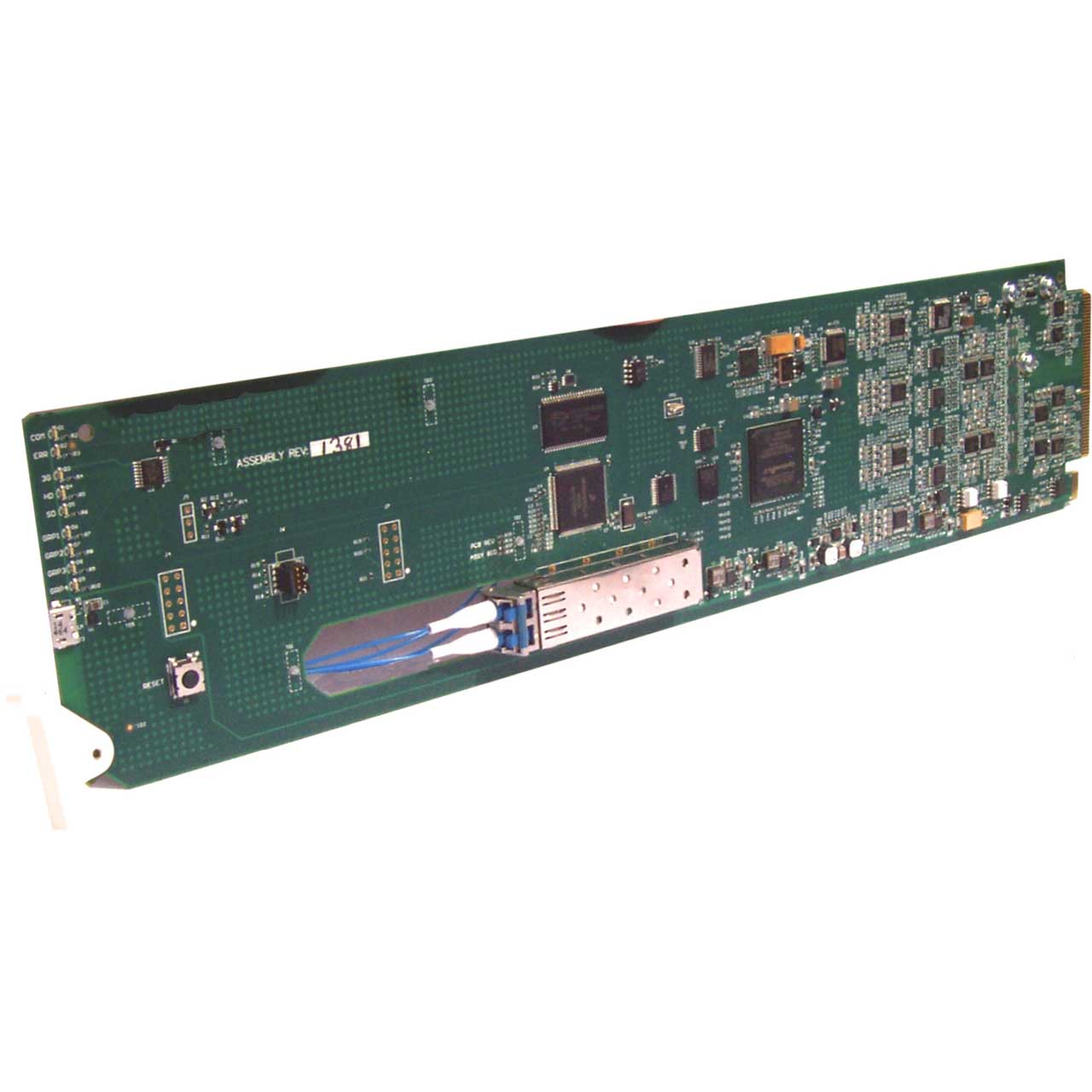

The Cobalt® 9410DA-2EO 3G/HD/SD-SDI / ASI / MADI Fiber Dual EO Transport/Distribution Amplifier with Full-Flexibility Crosspoint provides a card-based solution for high-density conversion from coax to fiber (with two independent EO channels), as well as coaxial distribution. The 9410DA-2EO is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
SFP-based EO converters provide state-of-the-art fiber performance, power consumption, and compactness. A crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows the card to apply any of the card inputs to various coax DA outputs as well as two independent fiber output channels. Up to 9 flexibly-sourced coaxial DA outputs are available per each card.
Using a high-density low-power design along with a high-density split rear module, up to 20 cards can be installed in a frame, providing 40 channels of EO conversion as well as up to 180 coaxial DA outputs. Excellent receive performance allows coaxial receive EQ for up to 110m 3G, 180m HD, and 360m SD cable length (1694A). Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Note: Inputs/outputs are a function of rear I/O module used.
