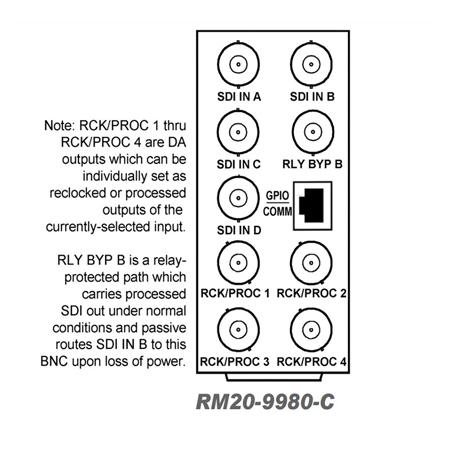

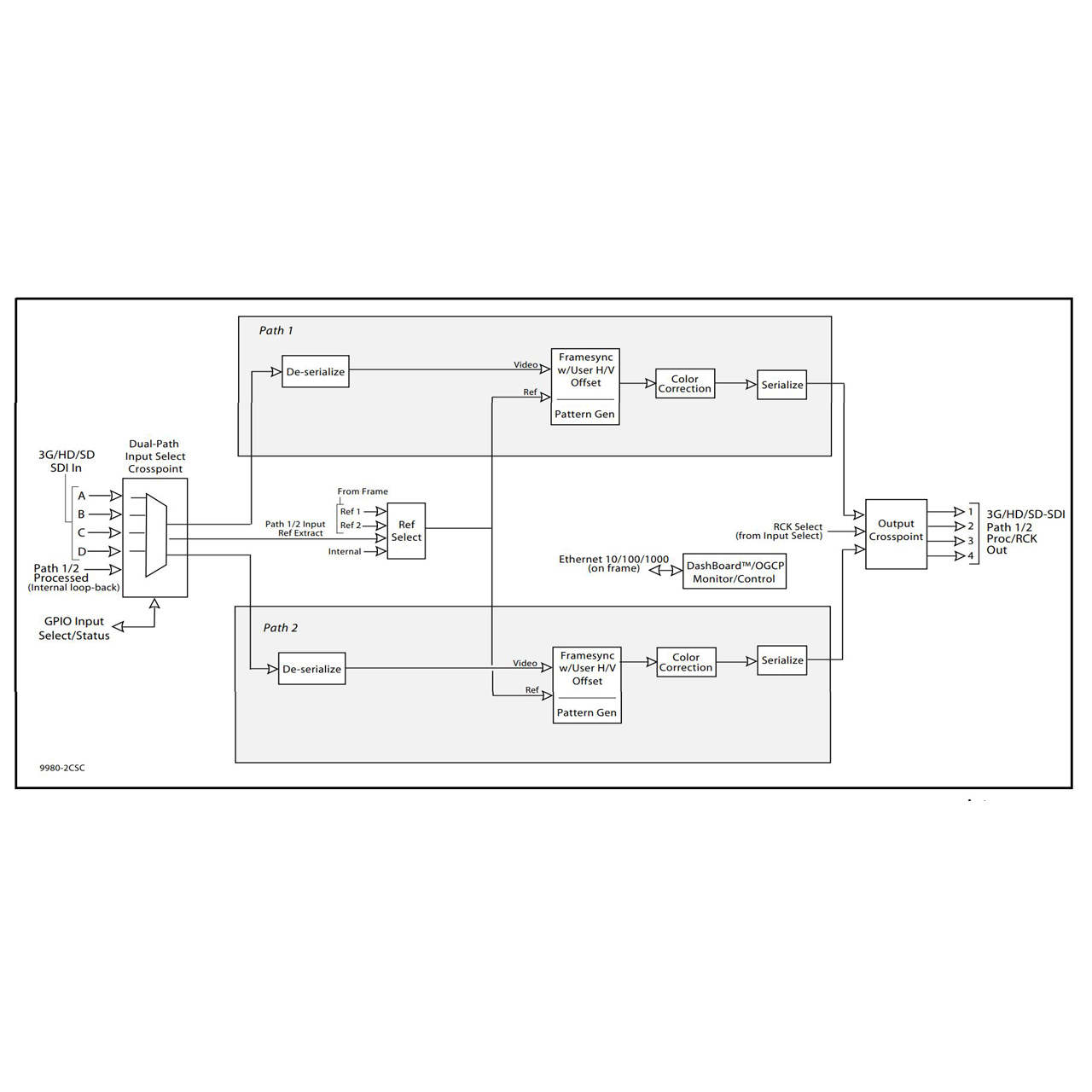

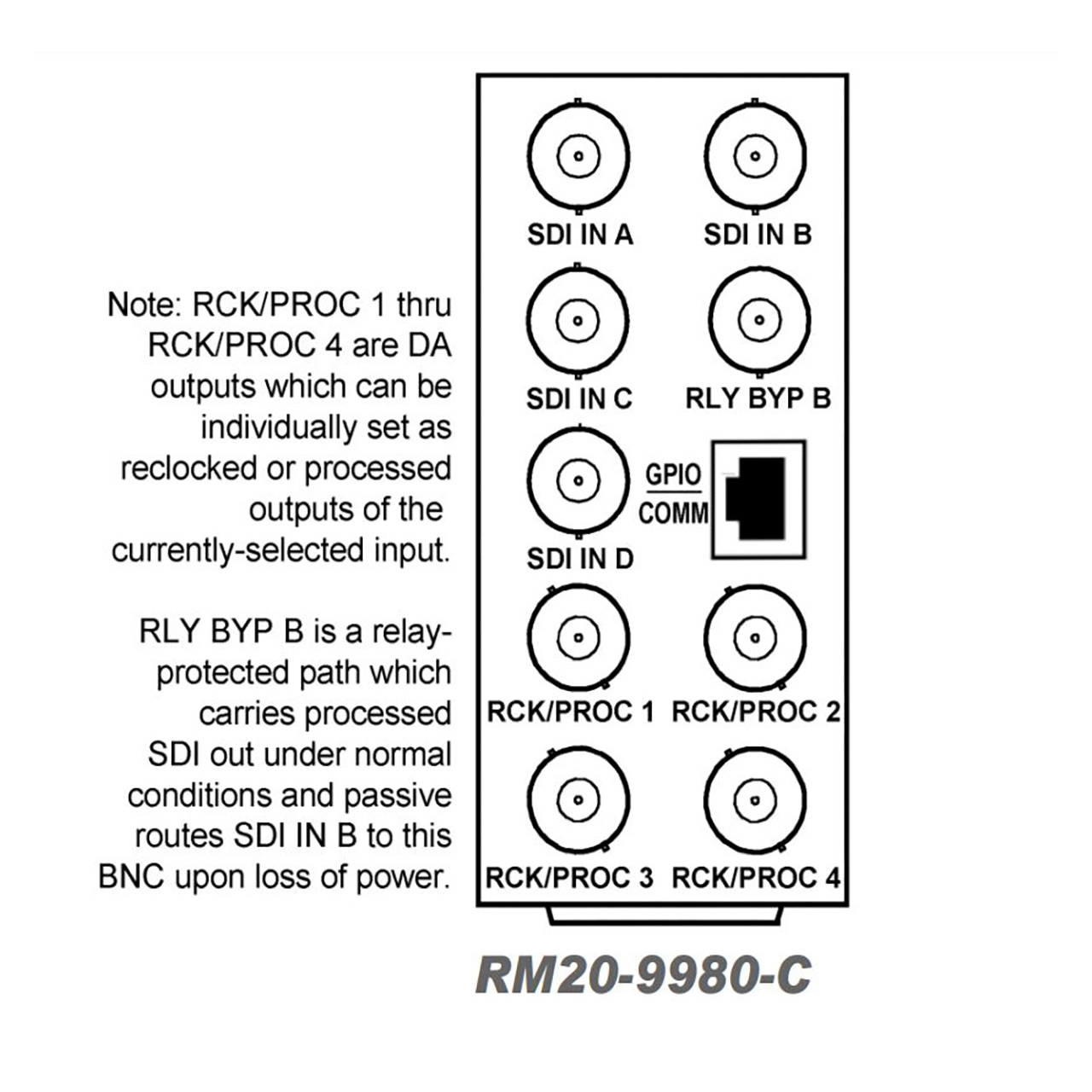

The Cobalt Digital RM20-9980-C is a rear module option for the Cobalt openGear 9980-2CSC-3G 3G/HD/SD-SDI Dual-Channel RGB Color Space Corrector/Frame Sync card.
This rear module option offers:
- 4x SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- 4x SDI Out (each selectable as processed out or input RCK)
- 1x Relay protected SDI Out (proc or SDI IN B on loss of power)
- All coaxial connectors BNC
