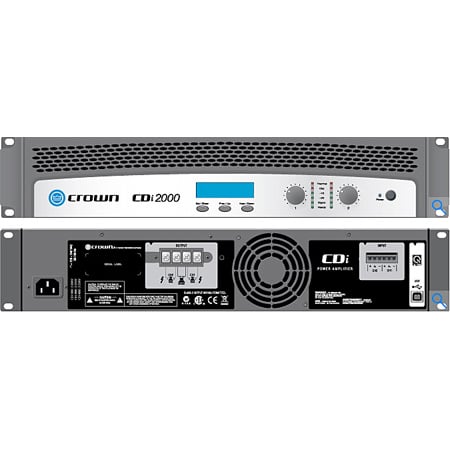

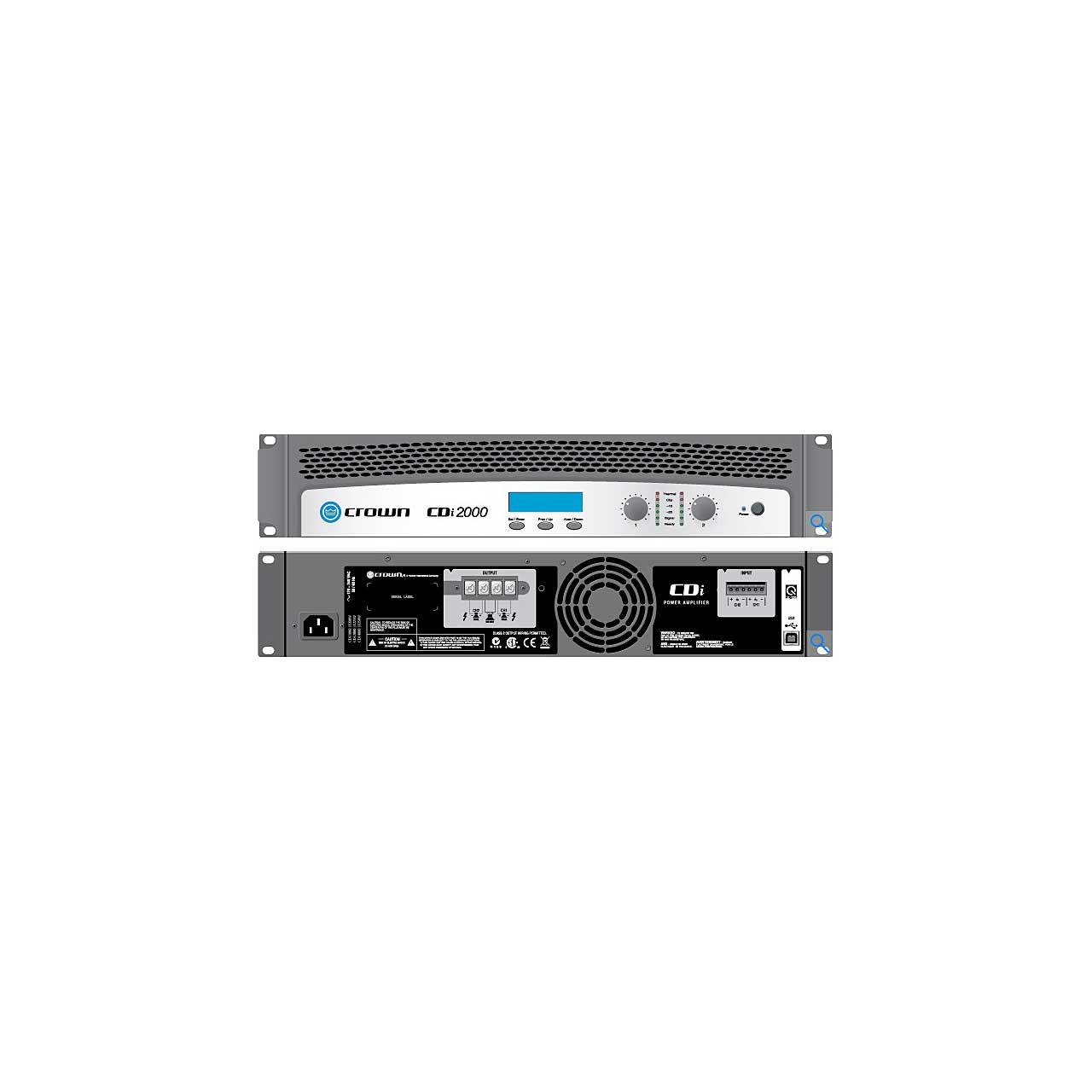

Crown CDI-2000 2-channel - 800W/4 Ohms - 70V/140V Audio Power Amplifier

CDI2000 - Overview

• Features:

  • Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
  • Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
  • Extremely versatile; rated for 2Ω, 4Ω, 8Ω loads and 70V and 140V outputs
  • Intuitive front-panel LCD screen for quick, easy configuration
  • Switch-mode universal power supply
  • Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
  • All products fill 2U rack spaces and weigh under 19lbs
  • Barrier strip outputs for low-Z or 70V/140V loads, removable Phoenix-style inputs


• Specifications:

  • Channels: 2
  • Sensitivity (for full rated power @ 8Ω): 1.4V
  • Rated Power Output (per channel @ 4Ω): 800W Stereo
  • Signal-To-Noise Ratio (below rated 1kHz power @ 8Ω): 100dB (A-weighted)
  • THD: <0.5%
  • Damping Factor (20Hz - 400Hz): >500
  • Frequency Response (@ 1W, 20Hz - 20kHz): + 0dB, -1dB
  • Crosstalk (below rated power) 20Hz - 1kHz: >70dB
  • Input Impedance (nominal): 20kΩ balanced, 10kΩ unbalanced
  • IEC Power Connector: 15A
  • Operating Temperature: 32°F - 104°F
  • Ventilation: Flow-through ventilation from front to back
  • Cooling: Heat sinks and proportional-speed fan
  • Dimensions (HxWxD): 3.5" x 19" x 12.25"
  • Weight: 22lbs


• Warranty:

  • 3-Year, No-Fault, Fully Transferable Warranty


• GTIN:

  0691991013737
